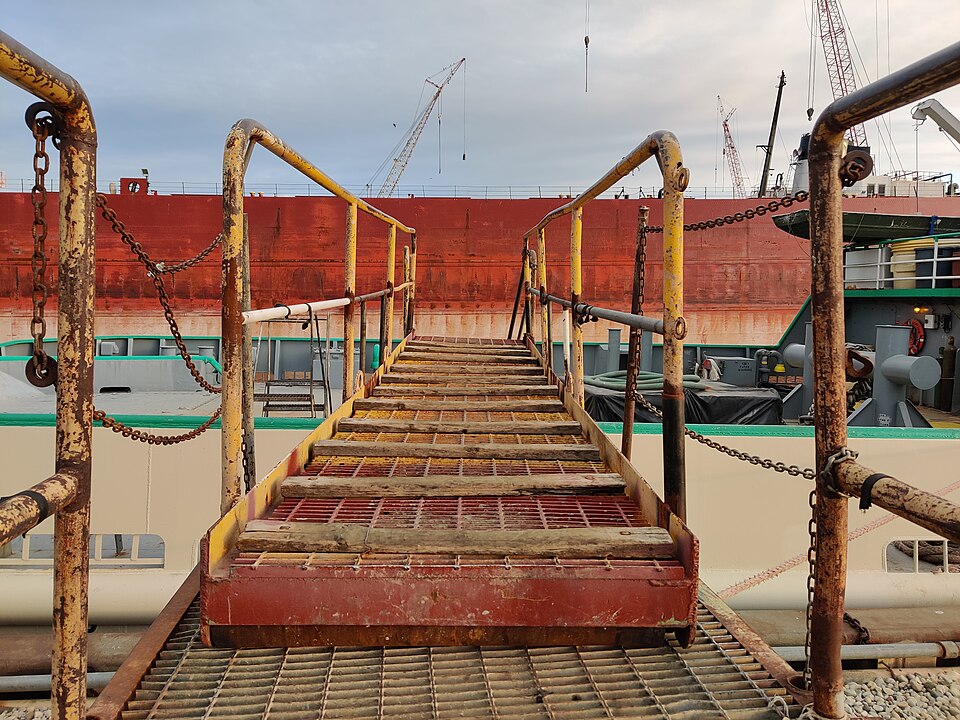

Ship Gangway Product

Overview

The ship gangway is a moored vessel's primary access system, enabling crew, passengers, and visitors to board and disembark safely and securely. Modern gangways are electro-hydraulically powered systems that telescope (extend and retract) and articulate (tilt up and down, swing side to side) to match the vessel's position relative to the dock, accommodating tidal rise and fall, ship draft changes, and quay geometry variations.

Ship gangways are ubiquitous on passenger vessels, cargo ships, and container ships operating at commercial ports. The system must meet strict maritime safety regulations (ISO 1435 for ship gangways, IMO SOLAS for passenger vessels) ensuring guard rails, load capacity, slip resistance, and emergency egress provisions.

How It Works

A gangway is mounted on the vessel's deck via pedestal bearings that allow slewing (rotation around the vertical axis). Before berthing, the gangway is stowed in a retracted, tilted-up position secured by tie-down cables.

Once the vessel is moored alongside the quay, the Control Station operator initiates gangway deployment. The Slew Drive Motor, driven by the Hydraulic Pump, rotates the entire Telescoping Ramp through the Slew Bearing to face the dock. The operator (via the Operator Pendant) engages the luffing function, causing the Luffing Cylinder to extend and lower the ramp toward the dock surface.

The Outer Tube Section is fixed; as the Double-Acting Cylinder extends, it tilts the entire ramp downward. Simultaneously, the Inner Telescopic Section automatically telescopes outward (either mechanically during descent or via a separate motor) to extend the ramp toward the dock. The ramp continues descending until it contacts the dock or reaches a limit-switch-defined safe angle (typically 10–15 degrees downslope from horizontal).

The Limit Switches detect the ramp has reached its destination. The operator or shore personnel verify the ramp is seated on the dock and secure. The Safety Railings are now in a safe, compliant orientation. Personnel begin boarding, using the Upper Handrail and Hand Rope Assembly for support.

When the vessel needs to depart or if the ramp must be retracted temporarily (e.g., during cargo operations), the operator reverses the process: the Luffing Cylinder retracts, lifting the ramp. The Inner Telescopic Section telescopes inward (retracting the reach), and the ramp is tilted back to a stowed position, typically 45–90 degrees above horizontal, where it is secured with rope lashings.

Subsystems

Pedestal Support

The Pedestal Support is the foundation. The Pedestal Column is a steel or aluminium tube (20–30cm diameter) anchored to the ship deck via the Base Plate. The Slew Bearing (0.5–1.0m diameter roller or ball bearing) is mounted atop the pedestal and allows continuous or limited rotation. The Accumulator Bracket is a welded frame on the pedestal supporting hydraulic safety accumulators that store emergency energy for powered descent if main hydraulic power is lost—a critical safety feature.

Telescoping Ramp

The Telescoping Ramp is the user-facing walkway. The Outer Tube Section is a box-section aluminium or steel beam (40–60cm x 40–60cm) forming the primary structural element. The Inner Telescopic Section is a smaller-section beam that nests inside the outer tube and slides forward during descent (telescoping). The Deck Plating covers the top surface with an anti-slip texture (typically metal grating or coated aluminium) meeting slip-resistance standards. The Telescopic Rollers are ball or wheel assemblies guiding the smooth extension and retraction of the inner section. The Luffing Cylinder Lugs are welded brackets where the Luffing Cylinder rods attach.

The ramp is typically 0.8–1.2m wide, accommodating personnel in single file. The ramp's load capacity (static, uniformly distributed) is 500–1000 kg, supporting the combined weight of several persons with safety margin.

Luffing System

The Luffing Cylinder is a large double-acting hydraulic cylinder (bore 12–16cm) that tilts the entire ramp. The Double-Acting Cylinder extends or retracts to raise and lower the ramp through a ±20 degree angle range. The Rod End Bearing at each end allows the cylinder rod to articulate freely without binding. The Hose Routing connects the cylinder to the proportional control valve via protected hose bundle.

Descending is smooth and controlled: the operator moves the proportional joystick on the pendant, commanding a proportional flow from the Hydraulic Pump. The Luffing Cylinder extends at a commanded rate (typically 0.1–0.3 m/s), tilting the ramp downward. The Luffing Cylinder can be powered in either direction; for powered descent in case of motor failure, the Accumulator units store sufficient energy to lower the ramp fully, ensuring personnel can evacuate if power is lost.

Slewing System

The Slew Drive Motor (hydraulic radial piston motor, 20–50 kW) drives the slew mechanism at 2–5 rpm, rotating the ramp ±90 degrees or ±180 degrees depending on the vessel layout. The motor is mounted on the gangway-slewing-platform and drives a pinion gear that engages the Slew Bearing inner race. The Control Valve Station is a proportional spool valve directing pump flow to the motor for clockwise or counterclockwise rotation. Slewing is typically slower than luffing (5–30 seconds to rotate 90 degrees) to allow personnel to clear the ramp before repositioning.

Safety Railings

The Safety Railings are fixed to the ramp and meet ISO 1435 standards. The Railing Posts (vertical standards, 5–8cm diameter steel or aluminium tube) are spaced 1.0–1.2m apart along the ramp length. The Upper Handrail is positioned 100–110cm above the ramp deck surface, providing an ergonomic handrail. The Lower Intermediate Rail is at approximately 50cm height, forming a safety barrier preventing falls through the gap between ramp and upper rail. Vertical balusters (metal rods or wire mesh) fill gaps between upper and lower rails, preventing passage of a 10cm ball per regulations. The End Cap Terminal terminates the railing at the dock end with a smooth, non-snagging geometry.

Hand Rope

Supplementary to the Safety Railings, the Hand Rope Assembly (typically one on each side, or one center) runs the full ramp length. The Hand Rope is natural-fiber rope (3–5cm diameter sisal, manila, or hybrid construction) with a synthetic outer sleeve for durability. The Rope Clips secure the rope at both ends via U-bolts or cable clamps. The Rope Tensioner is an adjustable turnbuckle maintaining rope tension at 500–1000 kg force, providing safe grip without excessive slack. The Inspection Label is a metal tag documenting rope age and last inspection, ensuring ropes are replaced within safe intervals (typically 3–5 years).

Control Station

The Control Station is the operator's command post, positioned on deck overlooking the ramp. The Control Booth is a small aluminium or stainless steel enclosure protecting the operator from weather and providing shade. Inside, the Operator Pendant is a handheld wireless or hardwired remote control with a proportional joystick for independent control of slew and luff functions. The Pressure Gauges (2–3 glycerin-filled gauges) display pressure in the slew and luff circuits, alerting the operator to abnormal conditions. The Limit Switches (typically 3–4) detect end-of-luff (upper and lower limits) and end-of-slew to prevent overtravel. The Warning Horn sounds an audible alarm (typically 85 dB) during all gangway motion, alerting personnel. The Control Valve Station houses the proportional spool valves and pressure relief cartridges modulating hydraulic flow.

Hydraulic System

The Hydraulic System is a moderate-pressure (150–250 bar) system supplying luffing and slewing functions. The Hydraulic Pump is a variable-displacement pump (30–50 LPM rated) driven by an electric motor (40–75 kW) or diesel engine (30–55 kW). Modern vessels typically use electric pumps for environmental and noise reasons. The pump is sized to simultaneously luff and slew the ramp at safe speeds without overheating. The Hydraulic Reservoir holds 100–200 liters of ISO VG 46 hydraulic fluid with integral return filtration and suction strainer.

The Slew Drive Motor (30–50 kW radial piston motor) drives slewing at 2–5 rpm. The Pressure Relief Valve (direct-acting cartridge, set at 200–250 bar) protects the system from overpressure due to load or control errors. The Accumulator units (2–4 bladder accumulators, 10–20 liters each) serve dual purposes: (1) energy storage for powered emergency descent (if pump motor fails, accumulators provide sufficient pressure to lower the ramp fully), and (2) shock absorption during rapid direction changes or load transients.

The Hose Assembly includes SAE-rated hoses with quick-disconnect couplers (ISO flat-face type) connecting tank, pump, motors, cylinders, and control valve station. Hoses are bundled with protective sleeves in high-traffic areas to prevent damage from cargo handling.

Electrical System

The Electrical System provides power control and safety logic. The Soft Starter (solid-state soft-start unit) gradually ramps the pump motor voltage from 0 to full, limiting inrush current and mechanical shock. This extends motor and pump bearing life. The Circuit Breaker (thermal-magnetic breaker) protects the motor circuit against overload and short-circuit, typically sized at 120–150% of motor full-load current.

The Control Relay is an electromechanical or electronic relay executing safety logic from limit switches and pendant commands. For example, if the upper luff limit is reached, the relay removes power from the luff motor contactor, preventing further upward motion. The Position Sensor (linear transducer or string potentiometer) measures ramp extension and luff angle, feeding data to the control system for position feedback and limit detection. The Lighting System includes LED work lights illuminating the ramp and boarding area during twilight or night operations, meeting port visibility standards.

Performance and Operational Characteristics

Typical gangway operation takes 3–5 minutes to fully lower and lock into position. Lowering speed is controlled at 0.1–0.3 m/s to prevent sudden jostling. Raising speed is similar or slightly faster. Slewing at 5–10 m/s (rotational arc speed) allows repositioning in less than 1 minute for most vessels.

Power consumption is modest: a 50 kW electric motor running intermittently (during raise/lower cycles, perhaps 10–15 minutes per 4-hour watch) consumes roughly 10–15 kWh per day of active ship operations. Diesel gangways are becoming rare on modern vessels due to emissions regulations and noise concerns in port areas.

Maintenance is rigorous. Hydraulic fluid is sampled annually for water and particulate content; full oil changes occur every 2–3 years. Hoses are inspected for cracks, kinks, and external damage every 6 months. Cylinder seals are replaced if leakage is observed. Ramp anti-slip surface is cleaned regularly and recoated if wear is visible. Hand ropes are replaced every 3–5 years or immediately if tears, fraying, or rot are observed. Limit switches are tested monthly via manual actuation and switch continuity checks.

Safety is paramount. IMO SOLAS regulations (INTERNATIONAL CONVENTION FOR THE SAFETY OF LIFE AT SEA) mandate that gangways are certified by classification societies (DNV GL, ABS, Lloyds, etc.) and undergo formal inspections at dry dock or every 5 years. Emergency descent capability (powered by accumulated hydraulic energy) must be demonstrated and documented. All crew members are trained on safe gangway use: boarding from a position close to the ramp, using both handrails, wearing proper footwear, and avoiding congestion. Life-line stations are positioned at the ramp top for emergency rescue if someone falls during boarding.

Wind limits are enforced: most vessels retract gangways if wind exceeds 15–20 m/s (30–40 knots), as high wind can destabilize the ramp and endanger personnel. Wave action (swell and surge) is monitored; if vessel rise/fall exceeds safe ramp motion limits, boarding is suspended until sea state improves.
