Gondola Lift Product

Overview

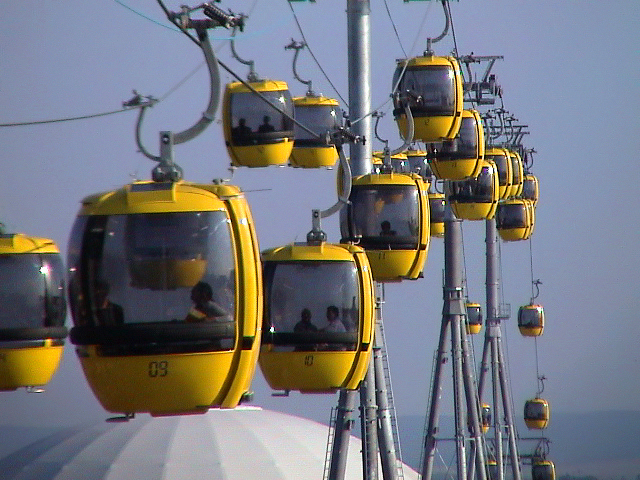

A gondola lift (or aerial ropeway) is a continuously moving system of enclosed Cabin cabins suspended from a Haul Rope main support rope. Each cabin accommodates 6–15 passengers and automatically detaches from the rope at stations for safe boarding and alighting, then re-engages and accelerates to line speed. Gondolas are ideal for mountainous terrain, river crossings, or urban settings where ground-based infrastructure is impractical or undesirable.

The system consists of a Drive Station (motor, gearbox, and drive sheave) at the base, a Return Station (tension and return sheave) at the summit, a main Haul Rope looped between them, intermediate Support Towers supporting the rope, and dozens of Cabin units suspended along the rope via motorized Grip Assembly grip assemblies.

Cabins and comfort

Each Cabin is a self-contained Cabin Frame (aluminum alloy structure) with Cabin Panels (composite or aluminum cladding), full-length Cabin Window (tempered safety glass), a Cabin Floor (aluminum with drain holes), and Cabin Handrail. Cabin Door gates at stations open automatically and interlock with the drive control — the lift cannot start if any door is open. Modern systems feature climate control (heating in winter, ventilation in summer) and emergency ventilation systems for safety.

A typical installation runs 30–100 cabins continuously around the loop, with spacing of 12–20 m center-to-center along the rope. A single cabin holds ~1.5–2 tonnes of dead weight; with passengers, total suspended load ranges from 3–8 tonnes per cabin.

Grip assembly and detach mechanism

The critical innovation is the Grip Assembly: each cabin hangs from a motorized Grip Jaw clamping the Haul Rope. A Grip Motor (24 VDC solenoid or DC motor) actuates the jaws; when de-energized, the jaws grip tightly. At a station, an electromechanical actuator (triggered by a fixed cam or proximity sensor) energizes the motor, slowly releasing the jaws until the rope slides free.

The cabin then decelerates over a 30–50 m "grip-release zone" using separate wheels on a guide track, coming to a stop at the station platform. Passengers exit while the cabin waits (stationary or slowly creeping at ~0.1 m/s). Once all passengers are cleared and the door is closed, the drive system begins accelerating. The cabin rolls back to the rope line, and a fixed Shock Absorber (spring or damper) cushions the impact as the grip jaws clamp and engage the moving rope. The cabin then accelerates to line speed (0.5–1.5 m/s) as it moves toward the next station.

Haul rope and support system

The Haul Rope is 40–50 mm diameter 8×19S steel wire rope (2160 MPa high-strength) 1000–5000 m long, looped continuously from the Drive Station to the Return Station. The rope Rope Termination at both ends is swaged or spliced per DNV standards, and Rope Clip secure the termination. The rope is greased annually with Rope Grease (biodegradable) to extend lifespan and reduce corrosion.

Along the route, Support Towers (spaced 50–200 m apart depending on terrain) support the rope sagging under load. Each tower has a Tower Base (concrete or steel anchor), a Tower Shaft (steel lattice or tubular, 20–150 m tall), Tower Sheave (guide pulleys, 800–1200 mm diameter) redirecting the rope, and Tower Bracing (diagonal members providing wind resistance).

Drive system and motor control

At the base, the Drive Station houses a 40–75 kW Drive Motor (three-phase AC squirrel-cage) coupled to a Drive Gearbox (12:1–20:1 helical inline reducer) driving a large Drive Sheave (1200–1600 mm diameter, 2–3 grooves). The sheave grips the rope via friction.

The Control and Safety Systems panel contains a Variable Frequency Drive (variable frequency drive) modulating motor speed smoothly from idle to full speed. An Intercom System system links operators at base and summit stations. A Speed Sensor (inductive or optical) monitors rope speed; if the rope speed drops (indicating overload or slip), an alert triggers the operator.

A Brake Unit (spring-applied parking brake, ~300 kN·m holding torque) engages when the motor is de-energized, preventing uncontrolled rope motion during maintenance or emergency.

Tension and return station

At the upper end, the Return Station is simpler than the drive station. A large Return Sheave (non-driven, 1000–1500 mm diameter) supports the rope return. A Tension Carriage (2–3 tonnes of cast iron) slides on vertical Tension Guide (steel I-beam rails), maintaining constant rope tension via gravity. As rope stretches slightly (thermal expansion or use), the carriage drops, keeping tension constant. This automatic system prevents slack and ensures smooth gripper engagement.

Station structures

The base and summit Station Building buildings provide weather protection, passenger amenities (seating, restrooms, ticket counters), and access to mechanical systems. A Station Foundation (concrete slab or piles) anchors the Station Frame (structural steel), Station Roof (pitched or flat weatherproofing), and Station Walls (composite cladding). The interior layout includes the grip-release zone, cabin track, and waiting area.

Operational and safety characteristics

Gondola systems are ideal for:

• Mountain tourism: High capacity (1200–2500 persons/hour), scenic views, 5–20 minute journey times.
• Terrain spanning: No ground-level obstructions; suspension bridges mountain ravines and rivers.
• Low environmental impact: Minimal ground disturbance, reversible installation.
• Reliability: Simple mechanical design; if a single cabin fails, it is isolated by locking the rope, and the system continues with one fewer cabin.

An Emergency System provides hardwired e-stop and backup power (UPS or generator) ensuring the brake engages even during power loss. Annual maintenance includes rope inspection (visual and ultrasonic), grip motor testing, bearing lubrication, and weather-seal replacement.
