Energy Recovery Wheel Product

Overview

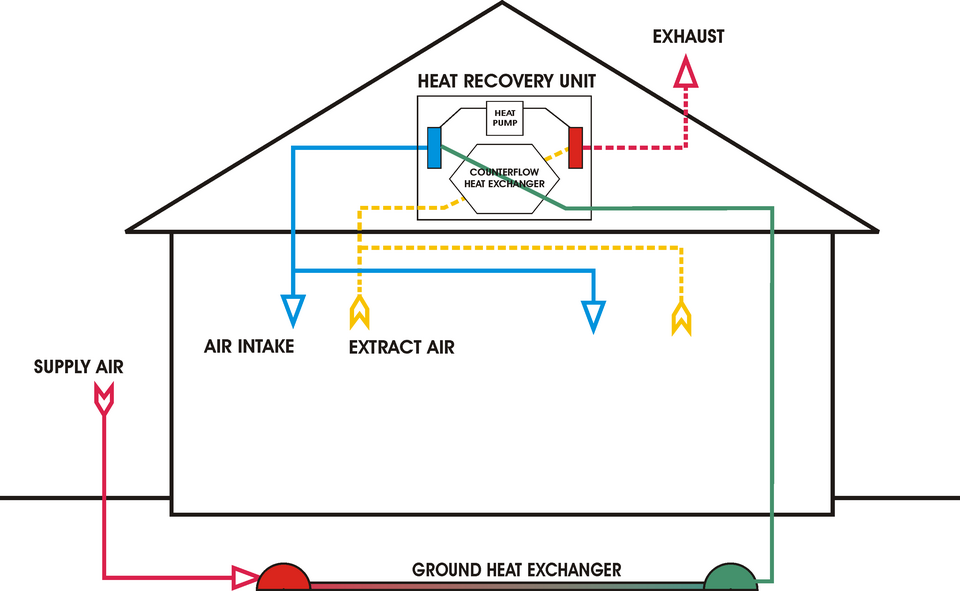

Energy recovery wheels (ERVs), also called rotary enthalpy exchangers, are mechanical air-to-air heat and moisture exchange devices installed at the building ventilation intake and exhaust points. A slowly rotating (8–20 RPM) honeycomb wheel core alternately contacts exhaust air from the building and outdoor supply air. Heat (and in desiccant models, moisture) transfer between these streams as the wheel rotates, pre-cooling or pre-heating the outdoor intake and reducing the load on the HVAC system. Sensible heat recovery efficiencies of 60–85% and latent (moisture) recovery of 50–75% are typical, depending on core material and operating conditions.

Energy recovery wheels are most effective in climates with large outdoor-indoor temperature differences (heating-dominated or cooling-dominated seasons) and where indoor humidity control is critical (clean rooms, hospitals, server rooms). A desiccant wheel simultaneously reduces both heating/cooling load and latent load (dehumidification or humidification), while an aluminum core wheel recovers sensible heat only. The continuous rotation and integrated controls make ERVs self-adjusting to load changes without multiple dampers or staged operation.

How it works

Wheel rotation and heat transfer: The wheel core is a honeycomb matrix of thousands of small passages, alternating between exhaust and supply air. As the wheel rotates, a section in the exhaust stream absorbs heat; then as it rotates into the supply air stream, that heat is released. The low-speed rotation (8–20 RPM) allows sufficient contact time for effective heat transfer.

Desiccant core operation: Desiccant wheels contain silica gel or polymer materials that physically absorb and release moisture. In a cooling cycle, warm humid exhaust air entering the wheel is dried as moisture condenses onto the desiccant. When that section rotates into the cool outdoor air stream, the desiccant releases moisture into the supply air, humidifying it. This latent energy transfer is invisible but powerful: humid exhaust air transferring its moisture to dry outdoor air pre-conditions the supply air before it enters the chiller.

Sensible core operation: Aluminum or plastic honeycomb cores transfer sensible heat only. Moisture passes through but is not exchanged. These simpler wheels are more cost-effective in applications where humidity balance is not critical.

Purge section: Most desiccant wheels include a small unpurged section where a small amount of supply air passes through before entering the main exhaust chamber. This "purge" air removes carryover moisture, ensuring the supply air is not humidified by residual moisture on the desiccant.

Bypass and freeze protection: At very low outdoor temperatures (below 32 °F), frost can form on the exhaust side of the wheel, blocking airflow. An automated bypass damper diverts supply air around the wheel for a portion of the rotation cycle, allowing the wheel to defrost. Temperature sensors trigger this bypass logic automatically.

Leakage control: Low-leakage seals (foam or brush) around the rotating wheel minimize bypass; modern designs achieve leakage rates below 5%, meaning 95%+ of the exhaust air and supply air are segregated during heat/moisture exchange.

Subsystems

Wheel Core Assembly is the core; desiccant is more complex and expensive than aluminum but recovers latent energy. Motor and Gearbox Assembly operates at very low speed to maximize contact time and minimize parasitic load. Control and Damper System includes freeze protection and purge damper modulation to maintain performance across a wide climate range.

Common failures

Desiccant saturation occurs if indoor humidity is very high or if the wheel rotates too slowly; the desiccant becomes plasticized and loses absorption capacity. Regular desiccant wheel regeneration (operational reset via higher speeds or external heating) may be required. Mold growth on the desiccant occurs in very humid climates unless biocide is added to the wheel. Seal wear increases bypass leakage, degrading recovery efficiency. Motor bearing wear manifests as increased noise; sealed bearing replacement is the remedy.

Installation and commissioning

Energy recovery wheels are typically installed in a dedicated frame between the fresh air intake ductwork and the return/exhaust ductwork in the mechanical room or on a rooftop plant room. Separate 2–6 inch flexible or hard ductwork connects the wheel's four ports to the AHU inlet, exhaust damper, outdoor intake, and exhaust stack. Electrical wiring brings 120 V or 240 V single-phase power to the motor and provides a low-voltage control signal (24 V) for bypass and purge damper actuators. Commissioning includes air leakage testing across the wheel and verification of recovery efficiency via temperature measurement.

Performance and efficiency gains

A properly operating energy recovery wheel can reduce HVAC fan energy by 20–40% in winter and cooling load by 15–30% in summer, depending on climate and building operation. In tight, well-insulated buildings, the ERV's contribution is even more significant. The combination of a heat recovery wheel with an air handling unit and mechanical chiller forms a highly efficient core for meeting continuous ventilation and space conditioning needs with minimal operating cost.
