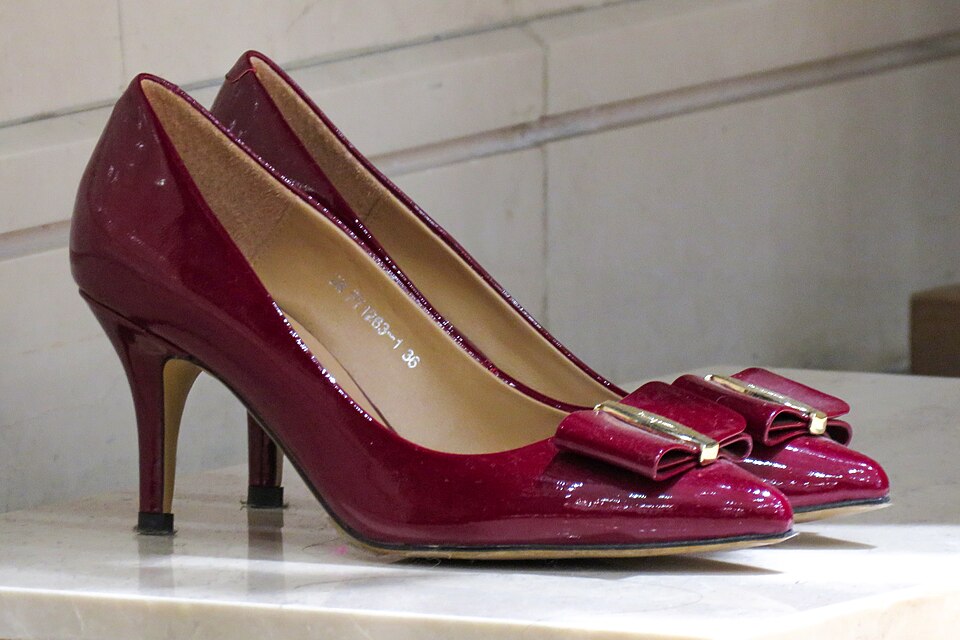

High Heel Shoe

Overview

High heels are fashion footwear designed to elongate the appearance of the leg and elevate the visual impression of height and posture, rather than optimize comfort or functional performance. A typical stiletto heel raises the heel 7–12 cm above the forefoot (compared to 10 mm for a running shoe), shifting body weight forward and creating a distinctive gait pattern.

This creates a biomechanical challenge: the heel is so narrow (7–10 mm diameter) that the entire foot load must be supported by the internal steel pin and rigid shank. Without these reinforcements, the heel would fracture almost immediately under body weight.

Heel Structure & Steel Pin Design

The heel assembly is a precision structure. A typical stiletto heel is built from:

1. Heel block: Stacked layers of wood (beech or poplar, preferred for weight and rigidity) or molded plastic (polystyrene or polypropylene). Individual layers are 5–10 mm thick, laminated with adhesive to build the final heel height (70–120 mm).

2. Steel pin: A continuous rod (4–6 mm diameter, 75–120 mm length, hardness 45–50 HRC) running from the heel base through the tip. The pin is not visible externally but is the true load-bearing structure. The wooden layers are wrapped around this pin, providing lateral stability while the pin resists bending.

3. Synthetic leather wrap: An outer covering (typically synthetic leather or leather-like material) wraps the heel block, providing weather resistance and aesthetic appeal.

4. Brass or rubber cap: A metal or rubber cap on the heel tip absorbs wear and provides friction against the ground.

Load Analysis

A 65 kg woman (140 lbs) standing upright on two feet experiences approximately 320 N of force per foot (about 3× the female average). When walking in heels, the gait shifts to a heel-toe pattern with momentary single-foot loading, concentrating up to 650 N on a single foot.

The stiletto heel contact area is approximately 0.7 cm² (small enough to fit a pencil eraser). This creates a contact pressure of:

Pressure = 650 N / 0.7 cm² = 930 N/cm² (9,300 Pa or 0.09 kg/mm²)

For comparison, a flat shoe distributes the same load over ~50 cm² (heel + forefoot), creating ~13 N/cm² pressure. A stiletto heel creates 70× the contact pressure of a flat shoe on the heel striking point.

This enormous pressure is why the steel pin is essential. The wood or plastic layers alone would compress or crack under this loading. The steel pin:

• Resists bending: The pin has a modulus of elasticity of ~200 GPa; wood has ~10 GPa. A pin of equivalent diameter to the wooden heel is 20× stiffer.
• Distributes load radially: Rather than the heel tip collapsing vertically, the load is spread to the surrounding wooden layers by the pin's lateral support.
• Prevents creep: Wood deforms (creeps) under sustained load over hours; steel does not.

Without a steel pin, a wooden heel would sag ~2–3 mm after 8 hours of wear, and would fracture (splintering) after 20–30 wears. With the pin, the heel remains rigid for 100+ wears (until the tip wears through).

Shank & Arch Support

The arch shank is a rigid bar spanning the ball of the foot to the heel, typically made of plastic (polystyrene or polyurethane), aluminum, or fiberglass. The shank prevents excessive bending of the foot midarch when the wearer pushes off during walking.

In flat shoes, the arch naturally flexes during the propulsion phase (the foot bends upward as the calf contracts). In a high heel, the forefoot is already raised 3–4 cm relative to the midfoot due to the heel height. Adding a shank prevents additional downward arch flexing, which would create excessive strain on plantar fascia and arch muscles.

However, rigid shanks create a biomechanical problem: the forefoot cannot flex, which is uncomfortable during extended standing or walking. Modern high heels attempt to balance this by:

• Partial-length shank: Spanning only the arch (mid-foot), not the entire foot
• Slight flex shank: Allowing 5–10° of controlled bending rather than complete rigidity
• Pressure-sensitive shank: Using memory foam that is rigid when loaded but slightly flexible when unloaded

Most fashion heels sacrifice this balance, using full-rigid shanks that minimize manufacturing cost.

Fitting & Biomechanical Challenges

High heels are fitted to a shoe last with a negative arch, meaning the insole curves downward under the arch. This is the opposite of a running shoe last, which has a positive arch curve. The negative arch aligns the medial arch with the elevated heel height, preventing excessive inversion (rolling inward) during standing.

However, high heels create several biomechanical stresses:

1. Plantarflexion: The heel elevation of 8 cm over a 12 cm foot length creates a plantarflexion angle of approximately 33°, comparable to a ballet dancer's en pointe position. The calf (gastrocnemius muscle) is in a shortened, maximally contracted state even at rest. Extended wear (>2 hours) causes calf fatigue and cramping.

2. Metatarsophalangeal (MTP) joint loading: The forefoot bears an estimated 50–70% of body weight in high heels (vs. 35% in flat shoes). The insole board must be thin and firm to maintain the fashion silhouette, providing minimal cushioning. This causes localized pain under the second and third metatarsal heads (the "ball of foot").

3. Hallux limitus: Pointed-toe high heels force the great toe into a plantarflexed position (toe pointing downward). This can cause toe box crowding and, over years of wear, contribute to bunion formation.

Material & Sustainability

High heels use a range of upper materials:

• Leather (premium): Full-grain leather, 0.6–0.8 mm thickness, water-resistant with aging character
• Suede/nubuck (luxury): Napped surface, soft but susceptible to water staining
• Satin/silk (formal): Delicate, limited to indoor wear
• Synthetic leather (mass-market): PU or PVC-coated fabric, durable but non-breathable

The heel block consumes 40–50 g of wood (or equivalent plastic) per shoe; manufacturing footprint is approximately 5–8 kg CO₂ per pair.

End-of-life options are limited: high heels are rarely resoled or repaired due to the precision manufacturing required and the short fashion cycle (heels are often discarded when heel tip wears or style changes). Recycling is uncommon; most end-of-life heels enter landfill.

Maintenance & Heel Replacement

The heel tip typically lasts 20–50 wears (approximately 3–6 months of weekly wear) before significant wear exposes the underlying heel block. When worn through, the tip must be professionally replaced. Heel tip replacement costs $15–40 per shoe, about 10–25% of the original shoe price, and extends usable life by another 20–50 wears.

Preventive maintenance extends life:

• Heel protectors: Adhesive or screw-on covers placed over the tip, reducing wear rate by 30–50%.
• Leather conditioning: Suede or leather uppers benefit from annual conditioning to maintain water resistance.
• Sole touch-ups: Rubber soles can be lightly roughed with sandpaper to restore anti-slip properties.

Most fashion heels are discarded rather than repaired, especially at lower price points (<$100) where repair cost approaches or exceeds replacement cost.
