Honey Extractor Product

Overview

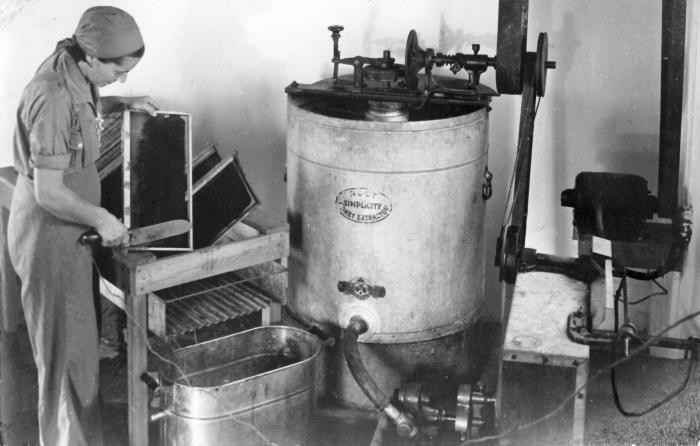

The honey extractor is a deceptively simple yet elegant machine, unchanged in principle since its invention in the 1860s: a rotating cage holds honeycomb frames while centrifugal force flings liquid honey outward into an outer collection chamber, leaving wax comb intact and reusable. A beekeeper uncaps honey-filled frames with a heated knife, loads them into the [[honey-extractor-drum|cage]], and spins the extractor at 400–800 RPM. The honey is forced radially outward and gravity-drained from the [[honey-extractor-honey-gate|bottom honey gate]] into buckets. Within 30–45 minutes, a four-frame batch of 4–12 kg of raw honey is extracted.

This is the most critical piece of equipment for any honey harvest, used by 10-hive hobbyists to 1,000+ hive commercial operations. Manual or semi-automated variations exist, but electrically powered variable-speed extractors dominate because the speed control (100–1,500 RPM) allows operators to fine-tune extraction intensity: slow for delicate wax structures (reducing breakage and turbidity), fast for complete yield. The extracted honey requires settling (24–48 hours) to allow fine wax particles to float to the surface, leaving clear, golden honey ready for bottling.

Centrifugal Force & Honey Physics

Honey is a non-Newtonian viscous liquid (thickens under stress, flows under gravity). Fresh uncapped honeycomb contains honey in hexagonal cells rimmed with wax cappings. When the frame is horizontal, honey sits in cells via surface tension and viscosity—it does not simply drip out. The centrifugal force is the key: spinning the drum at 500 RPM creates outward acceleration (~50 g) many times greater than gravity, overwhelming surface tension and pulling liquid outward.

The [[honey-extractor-drum-cylinder|rotating cage]] holds frames vertically or radially. As the cage spins, honey is forced radially outward against the [[honey-extractor-honey-collection-chamber|outer chamber]]. The wax comb (structurally stronger and less dense than honey) clings to the frame via surface adhesion, while honey slurries down the inner walls and settles in the bottom collection ring. The [[honey-extractor-drum-seal|rotating shaft seal]] prevents honey from leaking along the rotating axis into bearings.

Extraction efficiency depends on:

• RPM: Higher RPM extracts more completely (95 %+ yield) but risks breaking delicate comb structure. Lower RPM (300–400 RPM) is gentler but leaves more honey clinging to wax (85–90 % yield).
• Duration: Most frames surrender honey within 5–10 minutes at 500–600 RPM; additional spinning yields minimal extra honey and risks comb breakage.
• Honey maturity: Fully ripened honey (capped by bees, 16–18 % moisture) extracts cleanly; green honey (uncapped, high moisture) is thicker and slower to flow.

A practiced beekeeper spins initially at 300 RPM for 3 minutes (slow warm-up), then ramps to 600 RPM for another 5 minutes, monitoring honey flow from the [[honey-extractor-honey-gate|gate]]. Once flow slows to a trickle, the frame is flipped and the opposite side is extracted. Total time: ~15 minutes per four-frame batch.

The Extraction Cycle

Step 1: Uncapping (10–15 min, pre-extractor) Using a heated uncapping knife (electrified blade at 65–70°C), the beekeeper slices away the thin wax caps covering each honeycomb frame. The cappings (wax + some adhering honey) fall into a strainer pan. This step is done before loading into the extractor; uncapped frames are essential for honey to escape the cells.

Step 2: Loading & Initial Spin (1–2 min) Four uncapped frames are placed into the [[honey-extractor-frame-baskets|frame baskets]], inserted into the [[honey-extractor-drum|rotating cage]], and the drum is slowly spun up via the [[honey-extractor-vfd-controller|VFD controller]]. The beekeeper dials the potentiometer to 300 RPM. At this slow speed, honey begins flowing; the cage gently rotates, allowing honey to slurry down without violent sloshing.

Step 3: Extraction (5–10 min) Once initial slow motion confirms honey is flowing, the speed is increased smoothly to 500–600 RPM. At this point, a steady stream of honey flows from the [[honey-extractor-honey-gate|honey gate]] into a collection bucket below. The [[honey-extractor-strainer-screen|200 µm strainer]] catches wax particles and bee debris, yielding clear honey. Depending on frame fullness, honey may flow continuously (well-ripened frames) or in pulses (partially filled frames).

Step 4: Extraction Completion & Frame Flip (1–2 min) Once honey flow drops to occasional drips (indicating the frame is emptied), the [[honey-extractor-speed-potentiometer|speed is reduced]] back to 100 RPM and the cage is stopped. The beekeeper carefully removes the four frames (sticky but now empty of honey), flips them, and reinserts them for the opposite side extraction. The process repeats.

Step 5: Second-Side Extraction (5–10 min) The opposite side of each frame is extracted identically. After completion, the four frame bottoms yield another 4–12 kg of honey. The frames, now completely empty, are returned to the hive for the bees to refill next season (no wax replacement needed—a major advantage over manual pressing, which damages comb).

Step 6: Gate Drain & Storage (5 min) Once all frames are extracted, the [[honey-extractor-honey-gate|honey gate valve]] is fully opened, and any remaining honey settles to the bottom and drains into collection buckets. The gate is closed, and the honey is transferred to a settling tank.

Honey Settling & Clarification

Fresh extracted honey is turbid—it contains fine wax particles, air bubbles from the extraction vortex, and suspended pollen grains. It is 16–17 % water and will naturally crystallize within weeks if stored cool. The honey requires settling:

1. 24–48 hour rest: Honey is poured into a large stainless tank and left undisturbed. Fine wax particles (buoyant) float to the surface, forming a thin layer. Heavy particles (pollen, bee debris) settle to the bottom.
2. Straining: After settling, the clear middle honey is carefully poured through a 200 µm (or finer) strainer into storage jars, leaving wax cap and sediment behind.
3. Optional heating: Some producers gently warm honey to 40–45°C in a settling tank, reducing viscosity and accelerating particle separation. This must be done carefully—heating above 50°C begins to break down delicate flavor compounds (volatile esters) and degrade enzymes.

The result is liquid, clear, ready-to-consume honey—raw, unpasteurized, retaining all enzymatic activity and flavor complexity. No centrifugal polishing is needed, unlike olive oil. The honey's natural antimicrobial properties (low water activity, acidic pH) prevent fermentation and bacterial growth.

Comb Integrity & Seasonal Reuse

A honey frame is valuable—a single deep-frame of drawn comb (fully built-out by bees) represents ~8 hours of bee labor. The use of an extractor, rather than manual pressing or cutting, preserves comb structure, allowing frames to be returned to the hive season after season, indefinitely (30+ years is common).

This is a critical economic factor: a beekeeper with 50 hives uses perhaps 200 deep frames total. Over a 30-year beekeeping lifespan, these same frames are extracted from repeatedly, yielding thousands of kilograms of honey—a massive cumulative value. Extractors are thus a wise investment, whereas manual pressing (which damages comb) necessitates expensive annual frame replacement.

Apiary-Scale Variations

Hobby / 10–20 Hives: A single 4-frame extractor, 2.2 kW manual-speed model. Extraction takes 1–2 hours per season's harvest. Cost: $800–1,500 USD.

Semi-Commercial / 50–100 Hives: A 4–6 frame variable-speed extractor, 3 kW model. Honey settling tanks (100–200 L) adjacent. Uncapping station with 2–3 knives. One person can process 200–400 kg honey per season. Cost: $2,500–4,500 USD.

Commercial / 200+ Hives: Industrial extractors (20+ frame capacity) running 5–10+ kW motors, automated uncapping lines, continuous settling tanks, and bottling equipment. Professional apiaries in bulk honey production (1,000+ hives) employ multiple full-time staff. Equipment investment: $20,000+ USD per operation.

Variability by Nectar Source & Season

Honey composition varies wildly by nectar source, affecting extraction behavior:

• Clover honey (spring, temperate): Light color, runny, extracts easily at 400–500 RPM
• Wildflower/forage mix: Intermediate viscosity, moderate extraction speed
• Heather honey (Scotland, late summer): Thick, gelatinous, requires 600+ RPM to extract fully
• Acacia/Locust (light, premium): Runny, extracts quickly even at 300 RPM
• Crystallized winter stores: If bees were not fed supplemental nectar, frames may contain crystallized glucose (honey that has naturally granulated). This requires gentle warming (40°C in honey house) before extraction.

A beekeeper adjusts RPM based on expected honey texture and flow rate, learned through seasons of experience. No two harvests are identical.

Maintenance & Hygiene

Daily (during extraction season):

• Drain honey from the bottom chamber completely
• Wipe stray honey from stand and [[honey-extractor-collection-tray|spillage tray]]
• Inspect frame baskets for bent or cracked frames requiring repair

End of season:

• Disassemble the [[honey-extractor-drum-cylinder|drum cage]] and soak in hot water (60°C) to dissolve adhering honey
• Scrub all stainless surfaces with soft brush (no caustic needed; honey is food-safe soluble)
• Inspect bearing and seal for honey intrusion; apply food-grade lubricant if needed
• Replace any loose rivets or cracked welds
• Store in dry location (rust risk if stored outdoors)

The extractor is simple and robust, requiring minimal maintenance over decades of use. Replacement parts are rarely needed; the [[honey-extractor-vfd-controller|VFD controller]] may fail after 10–15 years and require replacement ($400–600 USD).

The Sacred Role in Beekeeping Culture

For most beekeepers, the honey extractor is more than equipment—it is the culmination of months of beehive care, represented in liquid gold. The sound of honey flowing from the [[honey-extractor-honey-gate|gate]], the aroma of fresh raw honey, and the joy of tasting the season's work make extraction day a cornerstone of apiary life. Many beekeepers invest in beautiful extractors (food-grade 316 stainless, polished finishes) that become proud fixtures in their honey house, displayed for visitors.

The extractor is indispensable for commercial viability but also symbolizes the reward of ethical, sustainable beekeeping—extracting honey without harming bees, returning empty comb for refilling, building apiary wealth year after year.
