Overview

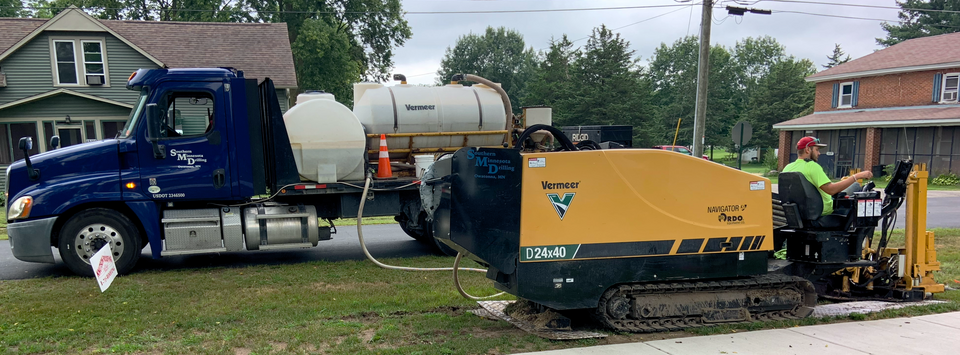

Horizontal directional drilling (HDD) is the technology of boring beneath obstacles—highways, railways, bodies of water, utility corridors—without surface disruption. An HDD rig is a mobile or stationary platform that rotates a segmented drill pipe string, circulates drilling mud slurry to remove cuttings and support the bore wall, and steers the bore direction using downhole steering tools.

The machine comprises eight major subsystems:

1. Prime Mover: Diesel engine (100–300 hp) powering all hydraulic circuits.
2. Rotary Drive Unit: Main drive unit rotating pipe string at 50–200 rpm.
3. Thrust and Feed Carriage: Massive hydraulic cylinder (4–8 inch bore) pushing the pipe string axially.
4. Mud Circulation System: Positive displacement pump and treating plant conditioning drilling fluid.
5. Drill Pipe Rack and Handling: Storage and makeup (threaded connection assembly) station for drill pipe sections.
6. Mobile Base: Mobile base allowing rig relocation between job sites.
7. Drill Head and Cutting Tool: Replaceable bit with hardened or carbide teeth.
8. Control Cabin and Instrumentation: Operator cabin with bore angle, pressure, and thrust sensors.

How It Works

The HDD bore starts at the launch pit. Two pipe sections are aligned end-to-end (butt-joined via threaded API connections), suspended in the Rotary Drive Unit chuck. The Main Thrust Cylinder (20–100 tons capacity) advances the pipe string axially into the ground. Simultaneously, the rotary motor spins the pipe at 50–200 rpm, and the Mud Circulation Pump circulates 200–400 gpm of water-based bentonite mud or synthetic mud at 400–600 psi down the inside of the pipe string, exiting through ports in the Drill Head and Cutting Tool bit.

The mud serves three functions:

1. Cuttings Removal: Mud carries soil and rock cuttings up the annulus (space between drill pipe and bore wall) to the surface return line, preventing pipe sticking.
2. Bore Stability: Bentonite mud forms a thin filter cake on the bore wall, stabilizing the hole and preventing collapse in soft soils.
3. Lubricity: Polymers in the mud reduce friction between the pipe and bore wall, reducing required thrust and motor torque.

As the Drill Head and Cutting Tool rotates, the hardened teeth or tungsten carbide inserts penetrate soil or soft rock, fragmenting it into cuttings. Thrust pushes the bit forward; rotation grinds the cuttings into smaller particles. The drill string elongates as each new 30-foot pipe section is connected (via Pipe Makeup Table) and fed into the borehole.

Steering and Directional Control

In basic steerable HDD, a bent-sub (a spool with a 1–3 degree bend welded into the pipe, just above the bit) deflects the drilling direction. The bore follows the bent-sub trajectory, allowing gradual build-up of inclination (angle from horizontal) and turn-radius curves. The Bore Angle Inclinometer receives real-time downhole angle telemetry via MWD (measurement-while-drilling)—a hardwired or wireless package inside the drill string transmitting inclination and azimuth angles to the surface display.

The operator monitors bore angle on the Digital Gauge Display: if the angle is too steep, the operator reduces Main Thrust Cylinder pressure and increases rotary speed to flatten the build; if the angle is too shallow, the operator increases thrust and rotary torque to drive steeper.

For precise horizontal bends (e.g., under a river), a rotary steerable system (RSS) is used: a flex-housing in the bent-sub can be articulated (via small pilot jets in the bearing) to angle the entire tool face 0–360 degrees, permitting precise directional control without tripping the entire pipe string.

Mud Circulation and Cuttings Handling

The Mud Circulation Pump draws mud from the Mud Tank sump, pressurizes it to 400–600 psi, and forces it down the drill string. At the bit, the mud exits ports and flows up the annular space, carrying cuttings. The Return Flow Manifold manifold controls back-pressure (typically 50–150 psi), preventing excessive mud loss into permeable formations.

The return mud flows into the Mud Tank, where it settles. A Shale Shaker vibrating screen (100–200 mesh) removes large cuttings. A Cuttings Centrifuge removes fine solids, keeping mud density stable (typically 8.6–9.2 lbm/gal for bentonite) and viscosity within range (30–50 seconds Marsh funnel time).

The Mud Conditioning Unit injects bentonite powder, polymers (xanthan gum, polyacrylamide), or lime to adjust rheology. As the bore deepens and cuttings accumulate, solids content creeps upward; periodic mud dumping and replacement is required (every 50–200 feet depending on formation type).

Pipe String Assembly and Makeup

The Drill Pipe Rack and Handling stores 20–50 sections of drill pipe (2–4 inch OD, 30 feet long, 40–80 lbs per foot). A crew stages two sections horizontally on the Pipe Makeup Table, applies pipe dope (anti-seize compound), and power-torques the threaded API connections to spec (typically 4,000–8,000 foot-pounds per coupling, size-dependent). The made-up section is lifted via the Pipe Hoist and fed into the rotary chuck.

A typical 1,000-foot bore requires 33 pipe sections (1,000 ÷ 30) plus the bit = 34 connections. Each connection takes 5–10 minutes to make and break; a full bore can consume 4–8 hours of tripping time (pipe making/breaking) alone, making crew efficiency critical.

Pilot Bore and Reaming Passes

In soft soil (clay, sand), a small-diameter pilot bore (2–3 inch gauge) is drilled first. The bore is then enlarged via reaming passes: the Rotary Drive Unit pulls the bit backward (over-pull, 50–100 tons reaming load) while circulating large-volume mud, widening the bore to final diameter (4–6 inches for a 4 inch gauge pilot).

Product pipe (the final utility line—fiber optic cable conduit, gas line, water main) is then pulled through the enlarged bore. Pull force can exceed 200 tons for long pulls or congested soil; the bore diameter must exceed product OD by 1.5–2 inches to prevent sticking.

Typical Bore Profile

• Build Section (first 500–1,000 feet): Inclination increases from 0° to 85–90° (nearly horizontal). Bent-sub angle and thrust/rotary balance control build rate (typically 2–5 degrees per 100 feet).
• Hold Section (middle): Bore angle holds steady at ~85–90°. Rotary speed and thrust maintained constant; mud circulation steady at 200–300 gpm.
• Drop-Off Section (final 200–500 feet): Bore angle decreases, approaching vertical or target exit angle. Thrust reduces to prevent overpressure; rotary speed increases to improve hole conditioning.

Total bore length for a river crossing might be 1,500–3,000 feet (pilot + reaming). Bore time is typically 50–200 feet/hour depending on soil type, mud condition, and crew experience.

Maintenance and Service Life

The Diesel Engine receives oil and filter changes every 250 hours. The Hydraulic Power Transmission hydraulic fluid is sampled annually for water and particulate; a 3–5 micron return filter is flushed every 500 hours. The Hydraulic Rotary Motor and Main Thrust Cylinder seals are replaced after 2,000–5,000 operating hours. The Drill Head and Cutting Tool bit teeth wear progressively; bits are replaced every 50–200 feet of boring (depending on soil hardness). The Mud Circulation Pump triplex pistons typically last 2,000–4,000 hours before overhaul; the pump relief valve is inspected and re-seated annually.

The Drill Pipe Rack and Handling, Mobile Base, and Cabin Frame are mechanical assemblies requiring minimal maintenance beyond annual bolt-torque checks and paint touch-up.
