Hot Tub Product

Overview

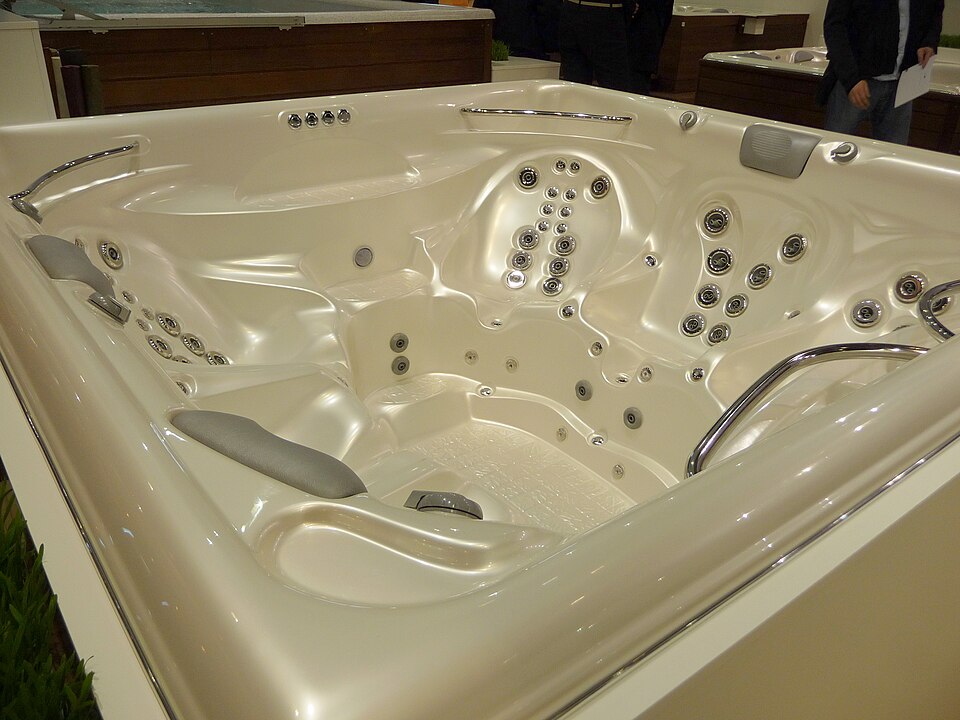

A hot tub is a freestanding leisure vessel combining heated water immersion with hydrotherapy jet massage. Modern residential hot tubs range from 1800–2500 L capacity, accommodate 4–8 bathers, and maintain water temperatures 35–40 °C. The defining features are dual or triple high-pressure jet pumps delivering 15–40 psi massage spray, full-perimeter seating with integrated footrests, and an integrated filtration/heating system managing water clarity and temperature during sessions.

Unlike therapeutic pools or soaking tubs, hot tubs emphasize active hydrotherapy—the jets are the primary function. Unlike spa resorts requiring large pump rooms, residential hot tubs integrate all equipment (heater, circulation pump, filter, control pack) into a compact self-contained cabinet beneath the acrylic shell.

Construction & Materials

The Acrylic Spa Basin is typically 8–10 mm cast acrylic, thermally bonded and reinforced with fiberglass laminate on the exterior, achieving structural rigidity under 2–3 ton wet load. The shell is molded into ergonomic seating surfaces—integrated Contoured Seat reclines, Integrated Footrests allow full-body immersion. Underneath, a thermally-insulated Cabinet & Insulation of 100 mm EPS foam (R30+) reduces heating consumption.

The Cabinet Frame Lumber is typically 2×4 PT (pressure-treated) wood or composite, anchored on a concrete pad. The insulation and Cabinet Siding Panels (vinyl or PVC composite) provide weather protection and aesthetic finish.

Heating System

The Heating Element Assembly is a 5.5–7.5 kW electric immersion element or equivalent gas burner raising water from 20 °C ambient to 40 °C operating temperature at 2–4 °C/hour. A Temperature Sensor & Setpoint (digital or analog) cycles the element on/off maintaining setpoint. A Heater Bypass Diverter diverts circulation water through the heater only during heating mode, bypassing it during jets-only sessions to reduce heating load.

Thermal Loss: A 2000 L tub with R30 cabinet loses ~8–12 kW to ambient at 20 °C temperature differential. Heating from cold typically requires 6–8 hours; once heated, covering the tub with an insulating lid reduces nightly loss to ~2–3 kW.

Gas heater variants (propane or natural gas) use a 200k BTU/h burner and copper hot-tub-heat-exchanger instead of immersion. Gas heaters require exhaust venting (flue) and take-off supply, but offer lower operating cost in cold climates.

Jet & Circulation System

The Jet Pump Assembly comprises two or three 2–3 HP pumps operating independently or in sequence. Each pump draws from the main pool through the Skimmer & Drain Assembly, pressurizes water to 15–40 psi, and ejects it through rotatable or fixed nozzles mounted around the shell walls. The Hydrotherapy Jet Nozzle can face upward (foot jets), inward (leg jets), or at neck/shoulder height (back massage).

The main Circulation Pump (0.5–1 HP) runs continuously or on timer cycles (typically 4–8 hours daily) drawing untreated water through the Skimmer & Drain Assembly, passing it through the Filtration & Water Treatment system (sand filter with multiport selector valve), and returning it via the Return Manifold. This circulation maintains water clarity.

Jet pumps are independent of circulation—they draw from the main basin and return water directly, mixing with heated water. This is why hot tub water warms quickly once heater is engaged: circulation and jets are continuously recirculating through the heater.

Filtration & Water Treatment

The Filtration & Water Treatment is a small sand or cartridge filter (30–50 L capacity), running daily for 4–8 hours. A multiport valve offers six modes: filter (normal), backwash (reversing flow to clean sand), rinse (settling debris), closed (isolation), waste (draining debris), and recirculate (bypass filter).

Sand filter media is graded 0.5–1.0 mm silica, performing approximately 10 micron particle capture. Over 2–4 weeks, the bed accumulates sediment, hair, and biosolids—backwashing reverses flow at 40–60 psi, dislodging debris for 2–3 minutes. Cartridge filters (alternative) offer higher surface area and require chemical soaking for cleaning instead of backwashing.

Water chemistry is maintained via three-part chemical dosing: chlorine (1–3 ppm), alkalinity (80–120 ppm), and pH (7.2–7.8). Tablets or liquid chlorine must be added weekly; test strips monitor levels. Hot water (38–40 °C) chlorine demand is 2–3x higher than cool pools due to volatilization and oxidation load.

Control & Safety

The Main Control Pack is a wall-mounted electronics box housing a 240V-to-24V transformer, relays for pump and heater switching, and a microcontroller managing timer schedules, temperature setpoint, and safety interlocks:

• Flow safety: Main heater elements shut off if circulation pump stops (prevents localized overheating).
• Temperature limit: High-limit sensor at 60–65 °C cuts all heating if exceeded.
• Pump interlock: Jets cannot run if circulation pump is not running (optional, reduces wear).

Users control operation via push buttons on the Display & Control Panel (LCD or LED, displaying temp and mode) or optional WiFi-enabled app.

Maintenance & Winterization

Weekly: Test water chemistry (pH, alkalinity, chlorine), top off evaporation loss (~5–10 L/week), empty Skimmer Basket.

Monthly: Backwash filter (or replace cartridge), shock-dose chlorine to oxidize organics, inspect pump seals.

Seasonally (cold climates): Drain completely via Drain Shutoff Cock, remove pump/heater modules, store indoors or cover. Glycol may be added to plumbing lines in freezing conditions.

Every 3–5 years: Replace sand media (250–300 kg per filter), service pump seals, repaint cabinet siding if faded.

Acrylic shells are durable (20+ year lifespan) but require UV protection and regular cleaning with non-abrasive products. Fiberglass backing and cabinet lumber may degrade faster in intense sun without maintenance.

Variations & Upgrades

Swim Spa Hybrid: Combines a 2–3 m spa end with a 4–5 m narrow swim current pool, allowing simultaneous laps and soaking (see Swim Spa).

Infinity Edge: Overflow lip creates visual illusion of water flowing into landscape; requires secondary catch basin and recirculation.

Built-in Heater & Chiller: Dual heating/cooling maintains 35–42 °C year-round, enabling off-season use in cool climates.

Smart Controls: WiFi-enabled controllers enable scheduling, remote diagnostics, and app-based temperature adjustment from smartphone.

Saltwater Chlorinator: Salt Chlorine Generator replaces chemical chlorine dosing, generating chlorine on-demand from dissolved salt, reducing handling hazard.
