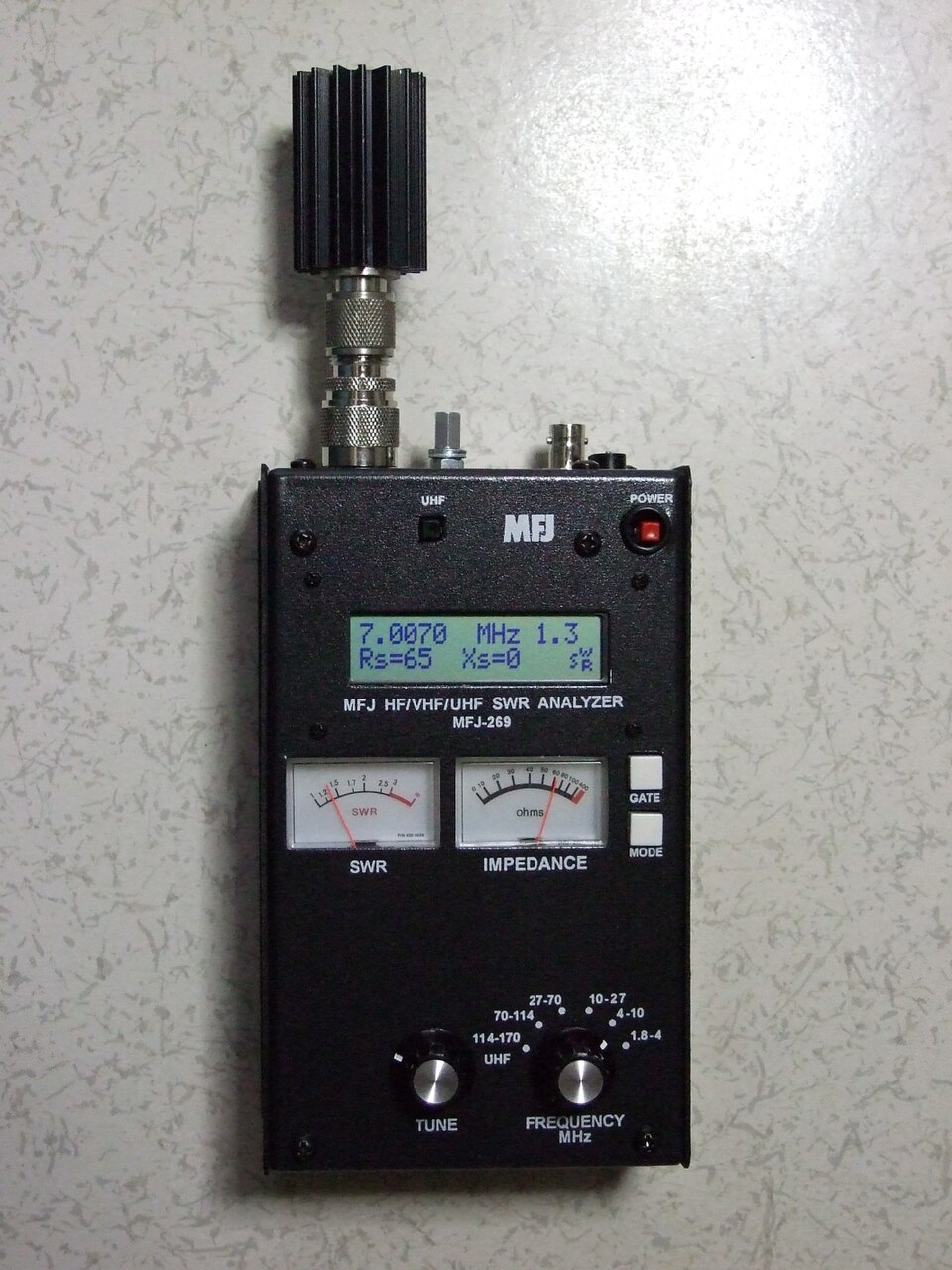

Overview

An impedance analyzer is a precision laboratory instrument for characterizing the complex electrical behavior of components, materials, and devices across a wide frequency range. Unlike a simple ohmmeter that measures DC resistance alone, an impedance analyzer applies an AC test signal and measures both the magnitude (|Z|) and phase angle (φ) of the resulting current, determining the component's impedance as a complex number Z = R + jX, where R is resistance and X is reactance.

The impedance analyzer is essential in materials science, electronics manufacturing quality control, and research laboratories studying properties of capacitors, inductors, resonators, batteries, and biological samples. By sweeping frequency from near-DC (42 Hz) to 30 MHz, engineers characterize the frequency response of components, identify parasitic effects, and verify device compliance with specifications.

Auto-balancing bridge topology distinguishes modern impedance analyzers from older manual-balance bridges, providing fully automated measurement without operator adjustment and repeated recalibration. Measurement uncertainty remains small—typically ±0.5% of the measured value plus a fixed offset—across the full impedance range.

Bridge Measurement Principle

The [[impedance-analyzer-bridge|four-terminal auto-balancing bridge]] applies a low-level AC test signal (1 kHz to 30 MHz, 5 mV to 1V RMS) across the unknown impedance Zx under test. A reference impedance Zr is adjusted until the voltage at the bridge midpoint null (via phase-sensitive detection) indicates balance. At balance, Zx = Zr, and the reference impedance value directly equals the unknown.

The [[impedance-analyzer-detector|lock-in detection system]] performs synchronous demodulation, multiplying the bridge voltage signal by the test signal at the fundamental frequency and at 90° phase shift (quadrature). Low-pass filtering the products yields in-phase (resistance) and quadrature (reactance) components, from which magnitude and phase are computed:

|Z| = √(R² + X²), φ = arctan(X/R)

This approach, called coherent detection or lock-in amplification, powerfully suppresses noise and harmonics that are not coherent with the test signal, enabling measurement of small impedances (0.001 Ω) in the presence of environmental electromagnetic noise.

Test Fixtures and Parasitic Effects

Accurate impedance measurement requires careful attention to test lead routing and fixture design. The [[impedance-analyzer-test-fixtures|four-terminal (Kelvin) test setup]] separates current-carrying leads from sensing (voltage measurement) leads, eliminating the effect of lead resistance on the measurement. A simple two-terminal measurement would include lead resistance in the result, corrupting small impedance readings.

Inductance and shunt capacitance in test leads and fixtures create frequency-dependent parasitic effects. The [[impedance-analyzer-lead-coax|low-inductance coaxial test leads]] maintain <5 nH series inductance by using twisted pairs with close spacing. The [[impedance-analyzer-fixture-shield|shielded fixture enclosure]] reduces capacitive coupling between the test device and environmental RF fields.

To account for remaining parasitic effects, users perform [[impedance-analyzer-calibration|three-point calibration]] using precision [[impedance-analyzer-standard-open|open]], [[impedance-analyzer-standard-short|short]], and [[impedance-analyzer-standard-load|load reference standards]]. The analyzer measures these known impedances with the test fixture in place and stores correction coefficients that are subtracted from subsequent measurements. This calibration procedure is typically repeated at a few discrete frequencies (e.g., 100 kHz, 1 MHz, 10 MHz) and interpolated across the frequency range.

Display Modes and Measurement Parameters

The [[impedance-analyzer-controls|user interface]] allows selection of measurement representation:

• Series impedance (Zs, Rs, Xs): Direct equivalent circuit of resistor and inductor (or capacitor) in series. Useful for resonator and filter design.
• Parallel impedance (Zp, Rp, Xp): Resistance and reactance in parallel configuration. Natural for lossy capacitor and inductor models.
• Quality factor (Q): Ratio of stored energy to dissipated energy per cycle. High-Q components (Q > 100) are sharp resonators; low-Q (Q < 5) are lossy.
• Dissipation factor (D): D = 1/Q, often reported as a percentage. D = 0.01 (1%) is a typical low-loss capacitor.
• Admittance (Y): Reciprocal of impedance, Y = 1/Z, useful for parallel resonance analysis.

Each measurement mode has a dedicated frequency list in the [[impedance-analyzer-calib-storage|non-volatile calibration storage]], ensuring fast recall of previously measured points.

Application: Capacitor Characterization

A common use is verifying capacitor equivalent series resistance (ESR) and inductance (ESL) versus frequency. An ideal 10 µF capacitor at DC appears as a short circuit (Z ≈ 0). At high frequency (e.g., 1 MHz), parasitic inductance dominates: Z ≈ j·2π·f·L_ESL. The impedance magnitude follows a V-shaped curve with a minimum at the self-resonant frequency (SRF), where inductive and capacitive reactances cancel. Knowing SRF, the capacitor equivalent circuit parameters are immediately derived.

Similarly, inductor measurement reveals winding resistance (ESR) and parasitic shunt capacitance. Precision measurement across a 100 kHz to 30 MHz frequency sweep characterizes the inductor performance at the design operating frequency, critical for power supply and RF circuit applications.

Measurement Speed and Integration Time

The [[impedance-analyzer-lpf|post-detection low-pass filter]] integration time determines the noise floor and measurement speed. Fast integration (high corner frequency, 100 Hz) yields measurements in <1 second but with higher noise floor (±1% noise standard deviation). Slow integration (<1 Hz filter corner) reduces noise to <±0.2% but requires 5–10 seconds per measurement. Operators select integration time based on the required noise performance and available test time.

Frequency sweeps are performed under microprocessor control: the [[impedance-analyzer-oscillator|signal source]] steps through a user-selected frequency list (typically 5, 10, or 20 points per decade), pausing at each frequency for 1–10 seconds to allow the lock-in filter to settle. A complete sweep from 42 Hz to 30 MHz requires 2–5 minutes depending on the point density and integration time.
