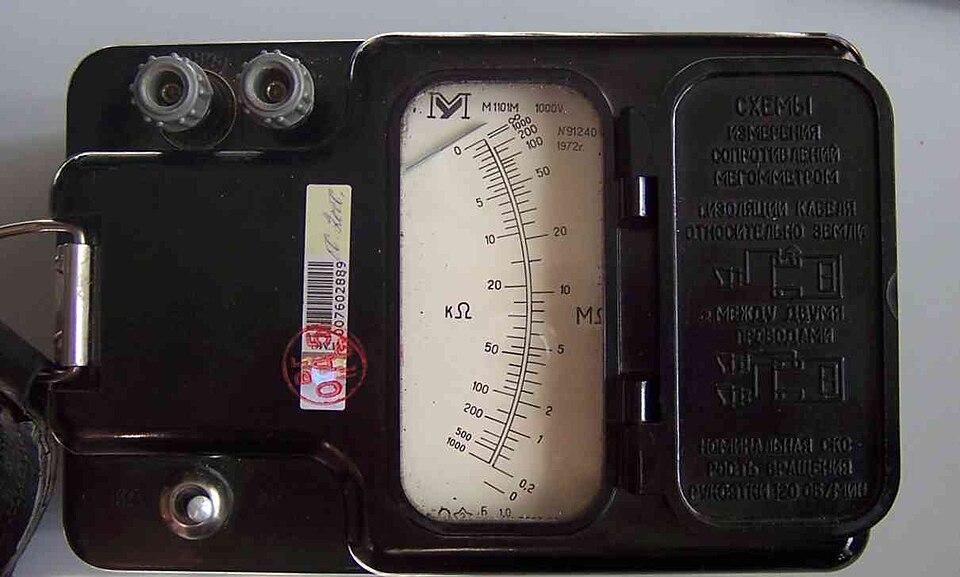

Insulation Resistance Tester Product

Overview

An insulation resistance tester is a specialized safety diagnostic instrument used in electrical maintenance, condition assessment, and troubleshooting. By applying a known high DC voltage (500V to 10kV) across insulation and measuring the resulting leakage current, technicians diagnose deterioration, moisture ingress, contamination, and imminent failures before catastrophic breakdown occurs.

The tester is critical in preventive maintenance of medium-voltage and high-voltage electrical distribution systems, motors, transformers, cables, and switchgear. A motor winding that has measured insulation resistance of 1 GΩ (gigaohm) is healthy; one that drops to 10 MΩ (megaohm) due to moisture contamination signals an impending failure and triggers immediate remediation. Standards (e.g., IEEE 43, IEC 60364) define minimum acceptable insulation resistance at various voltages, making the tester an objective diagnostic tool.

Operating Principle and Measurement Technique

The [[insulation-resistance-tester-hv-generator|high-voltage generator]] applies a DC voltage (user-selected from 500V to 10kV) across two conductors—typically a live wire and ground. The [[insulation-resistance-tester-measurement|measurement circuit]] detects the resulting leakage current flowing through the insulation. Using Ohm's law, the microprocessor computes resistance:

R_insulation = V_test / I_leakage

The [[insulation-resistance-tester-tia|transimpedance amplifier]] measures leakage currents from <1 picoamp (pA) to >100 microamps (µA), requiring ten different feedback resistances (a 10-decade measurement range) to maintain reasonable signal levels across the full resistance range. An [[insulation-resistance-tester-adc-16bit|16-bit analog-to-digital converter]] digitizes the amplified current at 1 Hz, and the display shows the computed resistance in megohms.

Three-Terminal Measurement and Guard Terminal

Insulation resistance of real devices is not a single well-defined value but depends on measurement technique. Surface leakage (current flowing along contaminated or moist surfaces) can dominate the measurement if not properly suppressed.

The [[insulation-resistance-tester-guard|guard terminal circuit]] implements three-terminal measurement per IEC 61243-1. A third electrode ("guard" or "guard ring") is driven to the same potential as the test voltage. This guard tracks the high voltage, so no current flows across the surface between the hot conductor and the guard; instead, all measured current flows through the bulk insulation between hot and ground.

Example: Testing motor winding insulation with contaminated external surfaces. Without guard:

• Current flows through the water film on the motor surface → measured resistance is low, appears faulty.

With guard:

• Guard drives the motor surface to the same potential as the winding, blocking surface current.
• Only bulk insulation leakage is measured → true insulation status is revealed.

Test Voltage Selection and Standards

Different applications require different test voltages:

• Low-voltage circuits (<500V): Use 500V or 1kV test voltage per IEC 60364 to avoid excessive current.
• Medium-voltage distribution (1–35 kV): Use 2.5kV or 5kV per IEEE 43 for motor and cable testing.
• High-voltage equipment (>35 kV): Use 10kV test voltage, with measurements performed by specialists in the field.

Acceptance criteria depend on voltage class. A 480V industrial motor typically must have R_insulation > 5 MΩ when tested at 500V. A 10 kV distribution cable must show > 100 MΩ when tested at 2.5kV. Standards document these thresholds to provide objective pass/fail criteria independent of subjective experience.

Interpretation of Readings and Trending

Insulation degradation is progressive. A motor winding starts at R > 10 GΩ (essentially infinite), and moisture or contamination gradually reduces resistance over months or years:

• 10 GΩ to 1 GΩ: Healthy, routine maintenance.
• 1 GΩ to 100 MΩ: Caution, increased risk; plan replacement or remediation.
• 100 MΩ to 10 MΩ: Warning, risk of failure within hours to days.
• <10 MΩ: Immediate action required; remove equipment from service.

Trending is more informative than absolute values. A motor's insulation that has been stable at 500 MΩ for years but suddenly drops to 100 MΩ signals acute moisture ingress (e.g., from a leaking roof). A cable that has degraded linearly from 1 GΩ to 100 MΩ over one year suggests age-related drying of insulation, warranting replacement within the next few months.

The [[insulation-resistance-tester-display|timer function]] enables the "absorption curve" test: measure resistance at 1 minute, 10 minutes, and 60 minutes. Healthy insulation shows rising resistance over time (capacitive charge absorption); contaminated or wet insulation shows declining or constant resistance, a definitive sign of moisture.

Practical Field Measurement

Field technicians follow this procedure:

1. De-energize the equipment and verify all capacitors are discharged (use a shorting stick or ground lead).
2. Connect the [[insulation-resistance-tester-test-leads|shielded test probes]]: positive to the conductor under test, negative to ground/reference.
3. Optionally connect a [[insulation-resistance-tester-guard|guard electrode]] (e.g., motor frame, cable shield) to the guard terminal for accurate three-terminal measurement.
4. Select test voltage (e.g., 500V for low-voltage equipment, 5kV for medium-voltage motors).
5. Press the test button.
6. The instrument applies voltage and displays resistance in megohms within 2–10 seconds.
7. Compare the reading to the acceptance threshold per applicable standard (IEC, IEEE, or manufacturer spec).

If resistance is below the threshold, the equipment requires maintenance or replacement. If resistance is borderline, enable the timer function to measure absorption curve and capture trend data.

Safety Considerations

Testing high-voltage insulation requires careful attention to safety. The [[insulation-resistance-tester-hv-generator|high-voltage output]] can deliver dangerous voltages (10 kV is lethal, capable of several joules of stored energy). Test leads are rated 15 kV per IEC 61010-031, and probes have insulated shrouds to prevent accidental contact.

The [[insulation-resistance-tester-display|LED indicator and audible buzzer]] alert the operator that dangerous voltage is present. After the test is complete, residual energy in capacitors must be safely discharged. Many testers include an automatic bleeder that discharges the output through a resistive network within a few seconds of test completion, eliminating stored charge.

Proper personal protective equipment (insulated gloves, safety glasses, grounded wrist strap) is mandatory when testing live circuits or equipment that has not been locked-out per OSHA/IEC safety procedures.

Limitations and Complementary Testing

Insulation resistance testing is a go/no-go diagnostic—it reveals when insulation has degraded, but does not pinpoint the location of the defect (short circuit, moisture pocket, or contamination hotspot). Locating faults requires complementary techniques:

• Insulation power factor / dissipation factor (tan δ): Measures capacitive and resistive components of leakage separately; more sensitive to dielectric degradation than resistance alone.
• Time-domain reflectometry (TDR): Locates discrete faults (shorts, opens) along cables by measuring reflections.
• Partial discharge testing: Detects incipient ionization within the insulation, a leading indicator of imminent failure.

For critical infrastructure, a comprehensive insulation assessment combines all three techniques. For routine maintenance, insulation resistance trending alone often suffices to schedule equipment replacement or refurbishment before catastrophic failure.
