A jetted bathtub combines a standard acrylic tub with integrated hydrotherapy jets powered by an electric pump. The system circulates bathwater through nozzles embedded in the tub walls, creating massaging jets; a separate air blower can inject bubbles for additional agitation. Jetted tubs are standard in mid-range to luxury home bathrooms and hospitality settings, offering therapeutic benefits for muscle relaxation and improved circulation. The engineering challenge lies in sealing all internal passages against leakage, managing thermal load, and controlling noise from the pump and motor.

Design and Structure

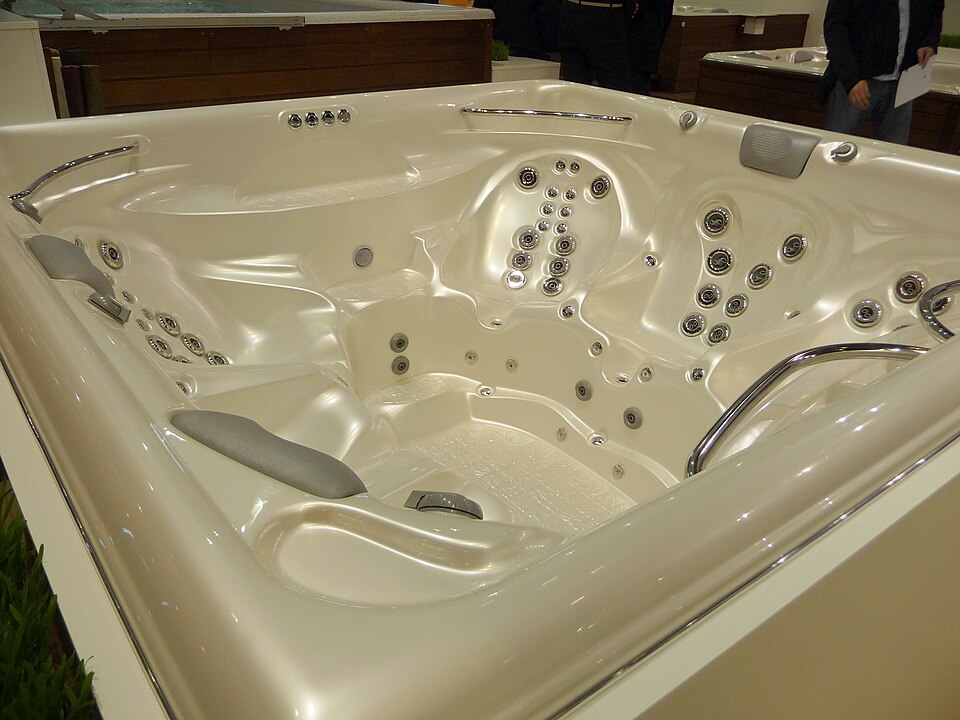

The heart of a jetted tub is its Acrylic Shell, a one-piece molded acrylic basin with pre-drilled apertures for jet nozzles. Acrylic is chosen for its durability, ease of repair, and thermal properties (better heat retention than steel). The nozzle openings are threaded inserts or molded holes that accept the Jet Nozzle Assembly, which direct water and air at angles between 30–60 degrees from horizontal to deliver concentrated massage without excessive depth disturbance.

Beneath the shell sits a Support and Trim, typically a steel welded frame that distributes the tub's 800+ lb dry weight plus 1000+ lb of water across the floor. The frame also serves as an anchor point for plumbing and electrical systems. Access to the Pump System and Water Loop Piping is normally provided by a removable trim skirt on one side of the tub.

Circulation System

The Pump System is a compact centrifugal pump driven by a 0.75–1.5 HP AC motor. When activated, the pump draws water from the sump (a low region at the tub bottom) and forces it through the Water Loop Piping supply line to a Jet Manifold. This manifold splits the flow into multiple zones, each feeding a cluster of jets; manual or solenoid valves on each zone allow independent control.

A critical component is the Check Valve in the pump discharge. When the pump shuts off, this valve closes automatically, preventing siphoning and keeping the tub from draining prematurely into the pump cavity. Return lines are typically larger in diameter than supply lines to accommodate low-pressure gravity return flow back to the sump.

Pressure is maintained at 30–60 PSI, monitored by a Pressure Sensor wired to the Control Electronics. If pressure drops (indicating an air leak or clog), the control system can alert the user or shut down the pump to prevent cavitation damage to the impeller.

Air Injection

The Air Injection System supplements water jets with bubble action. A small blower motor (0.25–0.5 HP) draws ambient air through a filter and into a Venturi Mixer, a Venturi tube that mixes high-velocity water with atmospheric air. As water flows through a constriction, its velocity drops the local pressure below ambient, creating suction that draws air into the stream. The air and water mixture then travels through dedicated air-jet nozzles in the tub wall.

The Air Solenoid Valve is a solenoid valve that allows the control panel to toggle air injection on and off independently from water jets. Many users prefer varying the air/water ratio throughout a soak for different sensations.

Control and Electrical

The Control Electronics houses a contactor relay, timer module, and push buttons in a waterproof NEMA 4X enclosure mounted on the tub rim or adjacent wall. Standard controls include:

• Pump On/Off: Momentary push button that energizes the main Pump Motor contactor.
• Air Toggle: Separate button for the blower motor.
• Timer: Programmable relay that automatically shuts down the pump after a set duration (typically 15–30 minutes) to prevent overheating and extend component life.
• LED Indicators: Show active functions and low-pressure alerts.

An optional Timer Module can enforce a maximum runtime (e.g., 20 minutes per cycle with 30-minute lockout) to protect the pump from thermal damage if the user falls asleep mid-soak.

Drainage

The tub drains via a main waste port (typically 2 inches) with an internal Main Drain fitting that includes a removable strainer basket. If the bathroom drain is below the tub bottom, a submersible Drain Pump may be installed in the sump to lift waste water to the drainage stack.

Thermal Management and Insulation

Water in a jetted tub cools faster than in a static tub because the pump's internal friction and motor inefficiency generate localized heat, and the circulation exposes more surface area to air and shell conduction losses. To mitigate this, the exterior is wrapped with Insulation and Soundproofing: 2 inches of rigid polyurethane or spray foam, followed by a Vapor Barrier to prevent moisture ingress into the wood frame or subfloor.

Maintenance Considerations

Regular maintenance includes draining and cleaning the sump weekly to remove hair and debris (which can clog jet passages), running a cleaning cycle with vinegar or proprietary jet-tub cleaner every month, and inspecting the Check Valve annually for calcium buildup in hard-water areas. The Pump Motor capacitor is a common wear item (lifespan 5–10 years) and should be replaced if the pump fails to start.

Seal failure around jet nozzles or supply manifold connections can lead to leaks into the cavity between the shell and frame; detection usually comes from water pooling under the tub or softening of the trim skirt. Resealing typically requires partial tub disassembly and caulking or replacement of the damaged fitting.
