Crack/Joint Sealing Machine Product

Overview

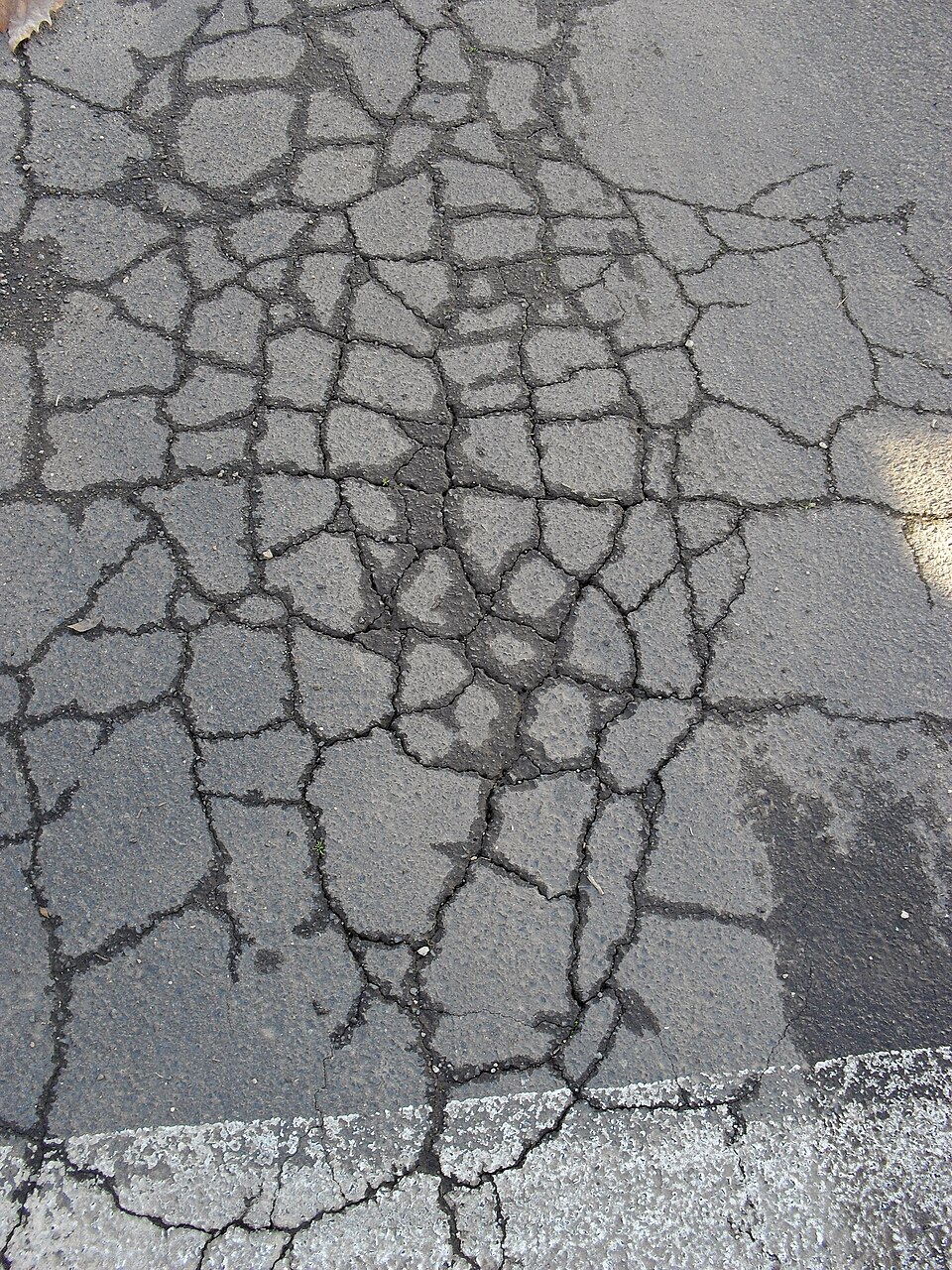

Joint and crack sealing machines heat and apply hot-melt sealants into pavement cracks and control joints, preventing water and debris infiltration that accelerates pavement deterioration. Cracks allow water to penetrate the base layer, weakening support and causing rapid spalling (chunk loss), pothole formation, and pavement failure. Professional maintenance programs seal cracks within 6 months of formation (when still <0.5 inches wide and <0.25 inches deep), significantly extending pavement life.

The machine combines a Heated Sealant Kettle insulated heated kettle (maintaining sealant at 320–350°F), a Sealant Delivery Pump System gear pump delivering sealant at controlled pressure, a Powered Hose Reel System powered hose reel storing up to 300 feet of heat-traced delivery hose, and a Handheld Spray Wand handheld wand for precise placement into cracks. Operators (typically crews of 2–3 people) treat 5–20 miles per day depending on crack spacing and depth.

Sealant chemistry and properties

Three main sealant types:

Hot-melt asphalt emulsion: Most economical ($3–8 per gallon). Mixture of asphalt cement, mineral fillers, and adhesives. Operating temperature 320–350°F. Sets by cooling and oxidation; typically achieves strip tensile strength (resistance to being pulled apart) of 50–100 PSI within 24–48 hours. Limited movement accommodation (±5–15% expansion/contraction); used for low-movement cracks (<0.1 inches seasonal movement).

Polyurea: Synthetic polymer, two-part system mixed at application ($10–20 per gallon). Operating temperature 200–250°F (lower than asphalt, reducing kettle heating load). Higher tensile strength (200–400 PSI) and movement accommodation (±25–50%). Popular for higher-movement cracks and joint sealing on highways. Cures via chemical cross-linking, reaching full strength in 2–4 hours.

Polychloroprene (neoprene) rubber: Synthetic rubber, single-component hot-melt ($15–30 per gallon). Operating temperature 300–350°F. Excellent movement accommodation (±50%+) and durability (10+ year life vs. 3–5 years for asphalt). Higher cost limits use to critical or high-movement applications.

Selection depends on pavement age, movement expectations, and budget. New pavements with tight control joints (low movement) use asphalt emulsion; older pavements with widening cracks (high movement) use polyurea or neoprene.

Heating and storage

The Heated Sealant Kettle insulated kettle maintains sealant temperature within ±5°F via Temperature Control Thermostat proportional thermostat. The Immersion Burner Tube immersion burner (diesel or propane) heats the sealant gradually; heating rate is 50–80°F per minute, warming a 1,000-liter kettle from ambient (60°F) to operating temperature (340°F) in ~3–4 hours.

The Kettle Insulation 150 mm foam insulation minimizes heat loss; without insulation, the burner would need to run continuously at full power, consuming 100+ gallons of diesel per 8-hour day. With insulation, burner cycles 30–50% duty cycle, reducing fuel cost by 60–70%.

The Sealant Agitation System paddle agitator rotating at 30–60 RPM prevents sealant separation (polymer/rubber settling to bottom, leaving thin oil layer on top). Inadequate agitation produces non-uniform sealant, with early applications containing excess resin (stiff, brittle) and later applications containing excess oil (runny, poor adhesion). Agitation ensures consistent viscosity and performance throughout the kettle contents.

Pump and delivery system

The Sealant Delivery Pump System gear pump (8–12 GPM @ 100 PSI) draws sealant from the kettle and delivers it at constant pressure to the hose reel. A Pressure Control Needle Valve needle valve at the pump outlet allows precise pressure adjustment; higher pressure (80–100 PSI) ensures good atomization from the spray wand nozzle, creating fine mist for even cracks; lower pressure (20–40 PSI) produces sluggish stream for wide cracks where misting isn't necessary.

The Powered Hose Reel System powered reel stores 200–300 feet of 3/8 inch delivery hose with internal Heat-Traced Delivery Hose heating element (typically 1 kW electric heater running on truck 120V or 240V supply). The heat tracing maintains hose contents at 250–280°F (10–20°F cooler than kettle) during idle periods; this prevents sealant solidification in the hose, which would require hose replacement (cost: $500–1,000 per reel).

The Hose Supply Swivel rotating coupling at the reel base supplies pump pressure to the hose without twisting the hose; without swivel, the hose would spin as it winds/unwinds, creating operational hazards.

Handheld wand operation

The Handheld Spray Wand ergonomic aluminum wand (18 inch long, foam-insulated handle) includes:

• Flow Control Trigger Squeeze trigger controlling sealant flow via proportional valve
• Spray Nozzle Tip Replaceable nozzle tip (adjustable 0–120° spray pattern)
• Wand Insulation Foam Foam insulation preventing operator hand burn (sealant exits at 250–280°F)

Operator holds wand 2–4 inches above the crack, squeezing trigger to spray sealant into the joint. The nozzle angle controls spray pattern: narrow angle (0–30°) creates tight stream for narrow cracks; wide angle (60–120°) creates fan pattern for wide cracks or joints. The Heat-Traced Delivery Hose insulated hose maintains sealant at proper temperature; uninsulated hose allows excessive cooling, causing premature gelation (sealant hardens in hose, blocking flow).

Travel speed is typically 0.5–1.5 linear feet per second (3–9 mph equivalent). At this speed, a crew of two (one operating wand, one managing hose) seals 10–20 linear miles per 8-hour day (assuming ~1 mile spacing between cracks).

Application and curing

Successful sealing requires proper crack preparation:

1. Cleaning: Remove debris (dirt, gravel, vegetation) from crack via high-pressure air blower or compressed air. Water remaining in the crack (which ruins adhesion of hot-melt sealants) must be removed via forced-air drying.

2. Routing: For wide cracks (>0.25 inches), optionally enlarge the crack to a rectangular profile (0.5–1 inch wide, 0.5–1 inch deep) via diamond-blade router or chisel. This creates uniform walls and improves sealant adhesion.

3. Backer rod: For deep cracks, install foam rope (backer rod) to support the sealant and prevent adhesion to the crack bottom (which reduces stress distribution and movement accommodation).

4. Application: Apply sealant filling the crack completely (no voids), slightly overflowing the surface.

5. Curing: Allow 24–48 hours for asphalt emulsion or polyurea to achieve handling strength before opening to traffic. Neoprene cures faster (~2 hours).

Seasonal and weather considerations

Crack sealing is performed during warm, dry seasons (late spring through early fall):

• Temperature range: 50–90°F ambient temperature. Cold (<50°F) slows curing; hot (>90°F) causes premature gelling in the hose and reduces sealant flow.
• Moisture: Cracks must be completely dry before application. Rain within 24 hours of sealing can wash sealant out; projects are typically suspended if rain is forecast.
• Wind: Strong wind cools the sealant and increases exposure of the wand operator; projects shut down if wind exceeds 15–20 mph.

Seasonal work windows are typically 5–7 months (May–November in northern climates, year-round in southern climates). A single machine treats 50–100 miles per season, depending on crew productivity and crack density.

Quality control

Sealing effectiveness is evaluated by:

• Void-free fill: Visual inspection confirms sealant fills the entire crack depth with no voids or thin spots
• Adhesion: Probe test (scraping sealant with a tool) should require significant effort; poor adhesion indicates inadequate crack cleaning or excessive cooling
• Level flush with pavement: Proper leveling prevents sealant buildup (which traps debris) or insufficient coverage (which exposes crack edges)

Typical inspection protocols include spot checks every 0.5 miles, with rejection rate <5% for quality assurance. Deficient sections are re-sealed without cost to the contractor.

Maintenance and operating costs

Routine maintenance includes:

• Hose replacement: Heat-traced hoses last 500 hours or 2–3 seasons before internal corrosion or heating element failure requires replacement ($500–800 per reel)
• Nozzle replacement: Wand nozzles clog with cooled sealant; cleaning or replacement every 10–20 miles of sealing (~$20–50 per nozzle)
• Strainer cleaning: The Kettle Suction Strainer suction strainer at kettle inlet accumulates sludge from degraded sealant; cleaning annually prevents pump cavitation
• Burner service: Annual burner inspection, electrode cleaning, and flame adjustment (~$300–500)

Operating costs:

• Sealant: $3–30 per gallon, typical application 0.5–1 gallon per 100 linear feet = $30–300 per mile
• Diesel fuel: 1–2 gallons per 8-hour day (during heating) = $10–20 per day
• Labor: 2–3 operators @ $18–25 per hour = $150–200 per 8-hour day

Total cost per mile treated: $200–500 (depending on sealant type, crew wage, and local factors). Sealed cracks extend pavement life by 3–5 years, easily justifying the cost vs. early pavement failure.
