Overview

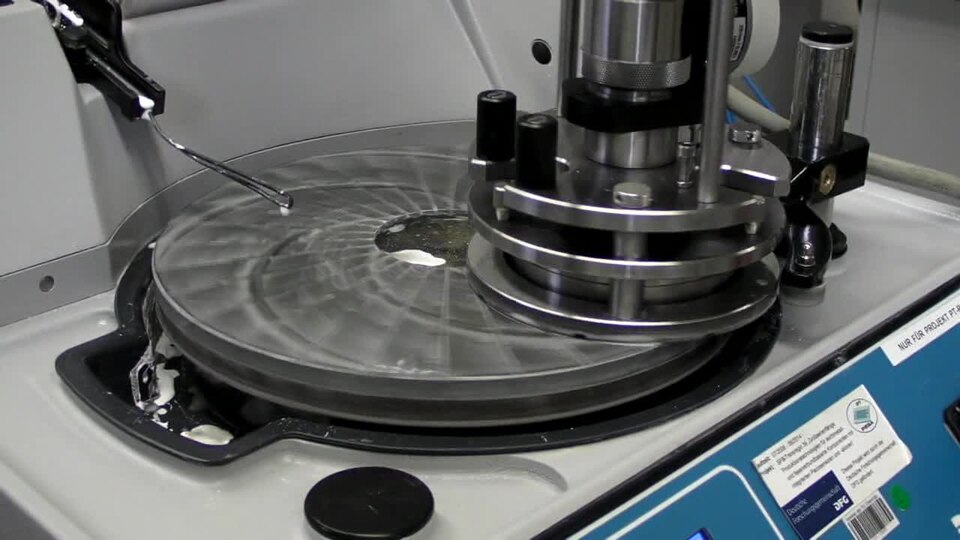

Lapping is the finishing process used when grinding is not flat or smooth enough: mechanical seal faces, valve plates, fuel-injector components, gauge blocks, ceramic substrates and silicon wafers. A lapping machine does not cut with a fixed tool. Instead, loose abrasive grains suspended in a liquid vehicle roll and slide between a slowly rotating cast-iron Lap Plate Assembly and the workpieces, each grain removing a microscopic chip. Because material removal is distributed over thousands of random three-body contacts, the process averages away local errors and routinely delivers flatness of one micrometre or better with surface finishes down to Ra 0.012 µm.
The machine itself is mechanically simple — a stiff Base Weldment, a geared Plate Drive, a plate, rings and a slurry drip. The precision lives in the geometry of the plate and the kinematics that preserve it.
How it works
Workpieces sit inside three Conditioning Ring stations resting on the plate annulus, held apart by thin Workpiece Carrier discs so they cannot collide. A Pressure Plate on top of the batch spreads the load, applied either by the Weight Set or, on production machines, by the Air Cylinder at each station through a proportional Pressure Regulator. Typical contact pressures are modest — 5 to 50 kPa — because lapping trades force for time; excess pressure embeds grit in soft parts and rolls grains instead of cutting.
When the plate turns, friction drags each ring into rotation about its own axis while the parts inside tumble through epicyclic paths. This planetary motion is the core of the process: every point on every part sweeps continuously varying tracks across the plate, so no individual scratch pattern develops and removal is uniform. Plate speed stays low, 10–80 rpm via the Variable-Frequency Drive and reduction Helical Gear Pair, because centrifugal force at higher speeds slings slurry off the plate and heats the work.
The Slurry System system drips abrasive suspension through perforated Drip Arms onto the plate. Grit selection sets the trade between speed and finish: 15–30 µm silicon carbide for roughing at up to 20 µm/min removal, 1–5 µm aluminium oxide or diamond for finishing at a fraction of that. The Slurry Agitator runs continuously, since abrasive settles within minutes, and the Slurry Pump is peristaltic — the only wetted component is a replaceable tube, which is the only pump style that survives pumping grinding grit for years.
Why the plate stays flat
Parts can be no flatter than the plate they are lapped on, and the plate wears every minute it runs. The conditioning rings solve this. A free-spinning cast-iron ring wears the plate under itself; by shifting each Ring Yoke radially — hanging the ring further inboard or outboard — the operator biases wear toward the plate's high zone. A plate gone concave gets the rings moved outward so they wear the raised rim; convex, inward. A skilled operator holds a 1,200 mm plate within 2–3 µm of flat indefinitely this way, checked with a straightedge or a monitor workpiece read on an optical flat. Deeply worn plates are periodically refaced.
The plate itself is fine-grained cast iron because graphite flakes in the iron hold abrasive grains in partial embedment — hard enough to drive them across the work, soft enough not to dull them. The spiral grooves in the Lap Plate Disc meter slurry under the parts and flush spent grain and swarf outward into the Drip Pan. Temperature is the quiet enemy: friction can put tens of watts into the plate, and a one-degree gradient through its thickness bows a large plate by several micrometres, so precision machines circulate water through the Coolant Jacket beneath the working face.
Operation and variants
A cycle is time- or removal-based: the Control System runs the plate for a set period at programmed speed and pressure, often stepping to lighter load and finer feed near the end. Parts are then cleaned of all grit — contamination of later processes being lapping's main housekeeping cost — and measured for thickness, flatness and finish.
The single-side machine described here finishes one face at a time. Double-side lapping machines add an upper plate and drive the carriers themselves as planetary gears between inner and outer pin rings, finishing both faces parallel within a micrometre — the standard route for wafer blanks, pump vanes and seal rings needing tight parallelism. Substituting bonded-diamond plates and water turns the same machine into fine grinding ("flat honing"), which is faster but slightly less forgiving on finish. Lapping remains the slowest material-removal process in the shop and earns its keep only on the last few micrometres, which is exactly where nothing else works as well.
Build & assembly graph
expand / collapse · shared sub-assemblies converge · links to related products · est. labourTap an assembly to expand/collapse · tap a part to open it · use “Open page” for any node · drag to pan, scroll to zoom.
Bill of materials
8 top-level lines · 45 rows shown · 67 parts total · indented to 3 levels| # | Item / sub-assembly | Part no. | Qty/assy | Ext. qty | Parts | Type |
|---|---|---|---|---|---|---|
| 1 | Lap Plate Assembly 4 parts | lapping-machine-plate | 1× | 1 | 4 | assembly |
| 1.1 | Lap Plate Disc | lapping-machine-plate-disc | 1× | 1 | — | part |
| 1.2 | Plate Hub | lapping-machine-plate-hub | 1× | 1 | — | part |
| 1.3 | Coolant Jacket | lapping-machine-coolant-jacket | 1× | 1 | — | part |
| 1.4 | Fastener Set | fastener-set | 1× | 1 | — | part |
| 2 | Conditioning Ring Set 4 parts | lapping-machine-rings | 1× | 1 | 15 | assembly |
| 2.1 | Conditioning Ring | lapping-machine-ring | 3× | 3 | — | part |
| 2.2 | Ring Yoke | lapping-machine-ring-yoke | 3× | 3 | — | part |
| 2.3 | Ring Rollers | lapping-machine-ring-rollers | 6× | 6 | — | part |
| 2.4 | Ring Lift Handles | lapping-machine-ring-lift | 3× | 3 | — | part |
| 3 | Workholding Set 4 parts | lapping-machine-workholders | 1× | 1 | 8 | assembly |
| 3.1 | Workpiece Carrier | lapping-machine-carrier | 3× | 3 | — | part |
| 3.2 | Work Nest Set | lapping-machine-work-nest | 1× | 1 | — | part |
| 3.3 | Pressure Plate | lapping-machine-pressure-plate | 3× | 3 | — | part |
| 3.4 | Weight Set | lapping-machine-weight-set | 1× | 1 | — | part |
| 4 | Plate Drive 7 parts | lapping-machine-drive | 1× | 1 | 8 | assembly |
| 4.1 | Drive Motor | lapping-machine-drive-motor | 1× | 1 | — | part |
| 4.2 | Drive Belt | drive-belt | 1× | 1 | — | part |
| 4.3 | Helical Gear Pair | gear-pair | 1× | 1 | — | part |
| 4.4 | Gearbox Housing | gearbox-housing | 1× | 1 | — | part |
| 4.5 | Main Spindle | lapping-machine-main-spindle | 1× | 1 | — | part |
| 4.6 | Ball Bearing | ball-bearing | 2× | 2 | — | part |
| 4.7 | Oil Seal | oil-seal | 1× | 1 | — | part |
| 5 | Slurry System 4 parts | lapping-machine-slurry | 1× | 1 | 5 | assembly |
| 5.1 | Slurry Tank | lapping-machine-slurry-tank | 1× | 1 | — | part |
| 5.2 | Slurry Agitator | lapping-machine-agitator | 1× | 1 | — | part |
| 5.3 | Slurry Pump | lapping-machine-slurry-pump | 1× | 1 | — | part |
| 5.4 | Drip Arms | lapping-machine-drip-arms | 2× | 2 | — | part |
| 6 | Pneumatic Pressure System 4 parts | lapping-machine-pneumatics | 1× | 1 | 8 | assembly |
| 6.1 | Air Cylinder | lapping-machine-air-cylinder | 3× | 3 | — | part |
| 6.2 | Pressure Regulator | lapping-machine-pressure-regulator | 1× | 1 | — | part |
| 6.3 | Solenoid Valves | lapping-machine-solenoid-valves | 3× | 3 | — | part |
| 6.4 | Pressure Sensor | pressure-sensor | 1× | 1 | — | part |
| 7 | Base and Guarding 4 parts | lapping-machine-base | 1× | 1 | 10 | assembly |
| 7.1 | Base Weldment | lapping-machine-base-weldment | 1× | 1 | — | part |
| 7.2 | Sheet Metal Panel | sheet-panel | 4× | 4 | — | part |
| 7.3 | Drip Pan | lapping-machine-drip-pan | 1× | 1 | — | part |
| 7.4 | Machine Feet | lapping-machine-machine-feet | 4× | 4 | — | part |
| 8 | Control System 6 parts | lapping-machine-controls | 1× | 1 | 9 | assembly |
| 8.1 | Microcontroller | mcu | 1× | 1 | — | part |
| 8.2 | LCD Panel | lcd-panel | 1× | 1 | — | part |
| 8.3 | Variable-Frequency Drive | lapping-machine-vfd | 1× | 1 | — | part |
| 8.4 | Relay | relay | 4× | 4 | — | part |
| 8.5 | Power Supply | power-supply | 1× | 1 | — | part |
| 8.6 | Wire Bundle | wire-bundle | 1× | 1 | — | part |
