Laser Beam Profiler Product

Overview

A laser beam profiler measures the spatial intensity distribution of a laser beam, extracting key metrics: beam diameter (waist size at focus), divergence angle (rate at which the beam expands), and M² (beam quality factor—a measure of how far from diffraction-limited the beam is). A high-quality laser has M²≈1 (diffraction-limited); real lasers have M²>1, indicating aberrations or multimode content. Profilers capture 2D intensity images, fit them to Gaussian or Airy-disk models, and solve for beam parameters. With motorized stages and attenuation filters, they can scan the beam profile along the propagation axis (Z), computing divergence and waist position. This is essential for laser alignment, optical system design, and quality assurance.

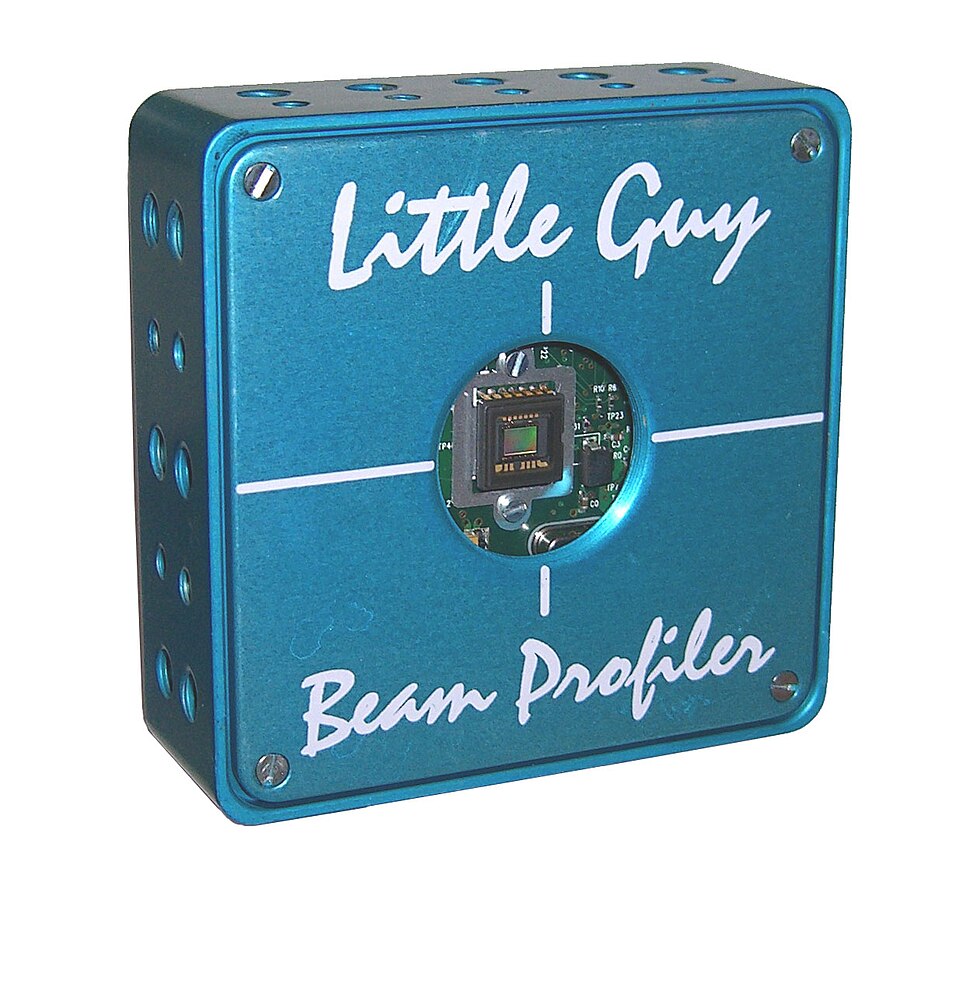

The Camera Head Assembly uses a high-sensitivity CMOS sensor to image the laser spot. The Beam Sampling Optics extracts a small portion of the beam (typically 10% via a beamsplitter) so the measurement is non-destructive. The Attenuator Wheel Assembly control the intensity reaching the camera—bright beams would saturate the sensor, so neutral-density filters are stepped in or out as needed. The camera signal is digitized and sent to the Analysis Processor, which fits the 2D image intensity to a Gaussian profile I(x,y) = I₀·exp(−((x−x₀)²/(2σₓ²) + (y−y₀)²/(2σᵧ²))), extracting beam waist σₓ, σᵧ, and centroid (x₀, y₀). By scanning the Camera Head Assembly along the beam propagation axis using a motorized stage, the operator captures multiple profiles, plots waist vs. Z position, and fits to the expected parabolic relationship, yielding divergence half-angle and the Z-position of the waist (focus).

The Laser Power Sensor measures total beam power, either transmitted or reflected, allowing normalization of intensity profiles and absolute power verification.

How it works

Most beam profilers use a CMOS or CCD array sensor with pixel pitch of 1.4–4 µm. A laser beam incident on the sensor is imaged in 2D; the intensity at each pixel is proportional to photon flux. Software applies a Gaussian fit to the data:

I_model(x,y) = I₀ · exp( -( (x-x₀)²/(2σₓ²) + (y-y₀)²/(2σᵧ²) ) )

The fit solves for I₀ (peak), x₀ and y₀ (centroid), σₓ and σᵧ (standard deviations, related to the 1/e² diameter by D = 4σ). The beam diameter is D = 4√(σₓ·σᵧ) (geometric mean), and if σₓ ≠ σᵧ, the beam is astigmatic.

M² (beam quality) is computed from the propagation data. For a Gaussian beam, the product of beam waist w₀ and divergence half-angle θ is:

w₀ · θ = λ / (π · M²)

By measuring waist and divergence, M² = (π · w₀ · θ) / λ is calculated.

The Attenuator Wheel Assembly implement a motorized filter wheel with neutral-density (ND) filters of different optical density (OD): ND 0.5 (reduces intensity by 3×), ND 1.0 (10×), up to ND 3.0 (1000×). Software selects the appropriate filter based on the measured intensity, keeping the sensor in the optimal linear region.

The Laser Power Sensor option adds a calibrated photodiode behind the beam sampler to measure absolute power, useful for laser source characterization and safety verification.

Applications

Laser manufacturers and integrators use beam profilers to verify output quality and alignment. Researchers employ them to characterize experimental lasers and to debug optical systems. In manufacturing, profilers monitor laser-cutting and -marking systems, ensuring beam quality stays within spec. In semiconductor processing (lithography, doping), beam profiling verifies laser uniformity and stability. In medical and aesthetic devices, profilers confirm beam uniformity on scan lenses. In fiber-laser systems, profilers verify coupling efficiency and beam shaping at various stages. In metrology, they characterize sources for interferometers and displacement sensors.
