Tow-Behind Lawn Sweeper Product

Overview

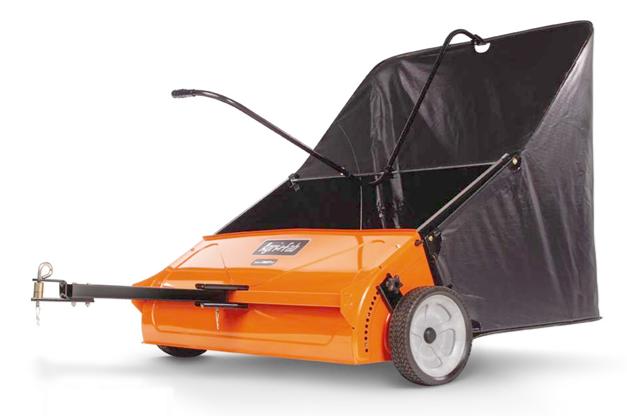

A tow-behind lawn sweeper is the simplest mechanised way to clear a large lawn of grass clippings, autumn leaves, pine needles, and twigs. It carries no engine of its own: every moving part is driven by the turning of its own road wheels as a ride-on mower or garden tractor pulls it along. A Brush Reel spinning faster than the ground speed flicks debris up and back into a Hopper Bag bag, and a Height Adjuster sets how firmly the bristles touch the turf. The whole thing trails behind on a Tow Hitch and a Chassis & Wheels with two large wheels.

Because it is ground-driven and gear-multiplied, sweeping costs nothing in fuel beyond the towing tractor and there is nothing to start, choke, or refuel — the trade-off is that the brush only spins while the unit is moving forward.

How it works

The mechanism is a speed-multiplying gear train. As the traction Wheel Assembly pair rolls, an Axle Pinion on the wheel hub drives an Idler Gear and a Helical Gear Pair step-up that spins the Brush Shaft roughly five to six times faster than the wheels. This matters: at walking pace the brush tips need to move several metres per second to throw debris rather than merely comb it. The reel carries four to six Bristle Row Module modules of stiff polypropylene bristles arranged in a helix, so that contact is continuous and load is spread rather than hammering the gears once per revolution.

When a bristle row sweeps the turf it loads, bends, and then springs free as it lifts clear, flicking whatever it has caught upward at high speed. A curved Throw Deflector behind the reel catches that stream and redirects it up and back into the open mouth of the hopper. Critically, the brush only just kisses the grass — set too deep, the bristles dig and wear in days; set too high, they skim over leaves without lifting them. The Anti-Reverse Dog ratchets let the reel free-wheel in reverse so the operator can back up without dragging the bristles backward, which would shred them and could break a gear tooth.

The Gear Cover shields keep grass windings and fingers out of the open gears, which run dry and unlubricated by design so they self-clean rather than picking up grit in oil.

The hopper

Debris collects in the Collection Bag, a woven polyester sack of 300–500 L held open by a folding Bag Frame. The key feature is the mesh back panel: it lets the air thrown in by the brush escape while the leaves and clippings stay behind, so the bag fills with material instead of ballooning with pressure. Without that vent the bag would inflate and reject debris back over the lawn. When full, the operator pulls the Dump Rope from the mower seat — no need to dismount — and the frame tips forward to dump the load; a pair of Frame Return Spring return springs swing it back upright. The bag clips to its frame on plastic Bag Hook so it can be unhooked and hosed out.

Setting up and towing

The Height Adjuster is the single most important control. Its Adjustment Lever swings through a notched Detent Quadrant, and through the Reel Lift Link arms it raises or lowers the Reel Bearing Block ends of the reel relative to the wheels. Short, dry grass and fine needles want the brush set low; a thick carpet of wet autumn leaves wants it higher so the bristles ride on the leaf layer. Most users set it once for their lawn and leave it.

The Tow Hitch adapts to almost any ride-on. A telescoping Draw Bar sets the towing gap, a multi-hole Hitch Plate matches the mower's hitch height, and a Hitch Pin clevis drops through to couple them. A nylon Pivot Bush lets the sweeper articulate so it follows the tractor cleanly around tight turns rather than scrubbing sideways.

Practical use and care

Sweeping works best on dry material: wet leaves mat and resist lifting, and damp clippings clog the bristles. Overlap each pass slightly, since a single pass rarely lifts everything, and slow down in heavy debris because throw force falls with ground speed. Maintenance is minimal — clear grass from around the Cross Axle and gears, check that the brush rows have not worn below useful bristle length (they are replaceable as modules), keep the Wheel Hub pinions engaging cleanly, and store the unit with the bag empty and dry to stop the fabric rotting.
