Overview

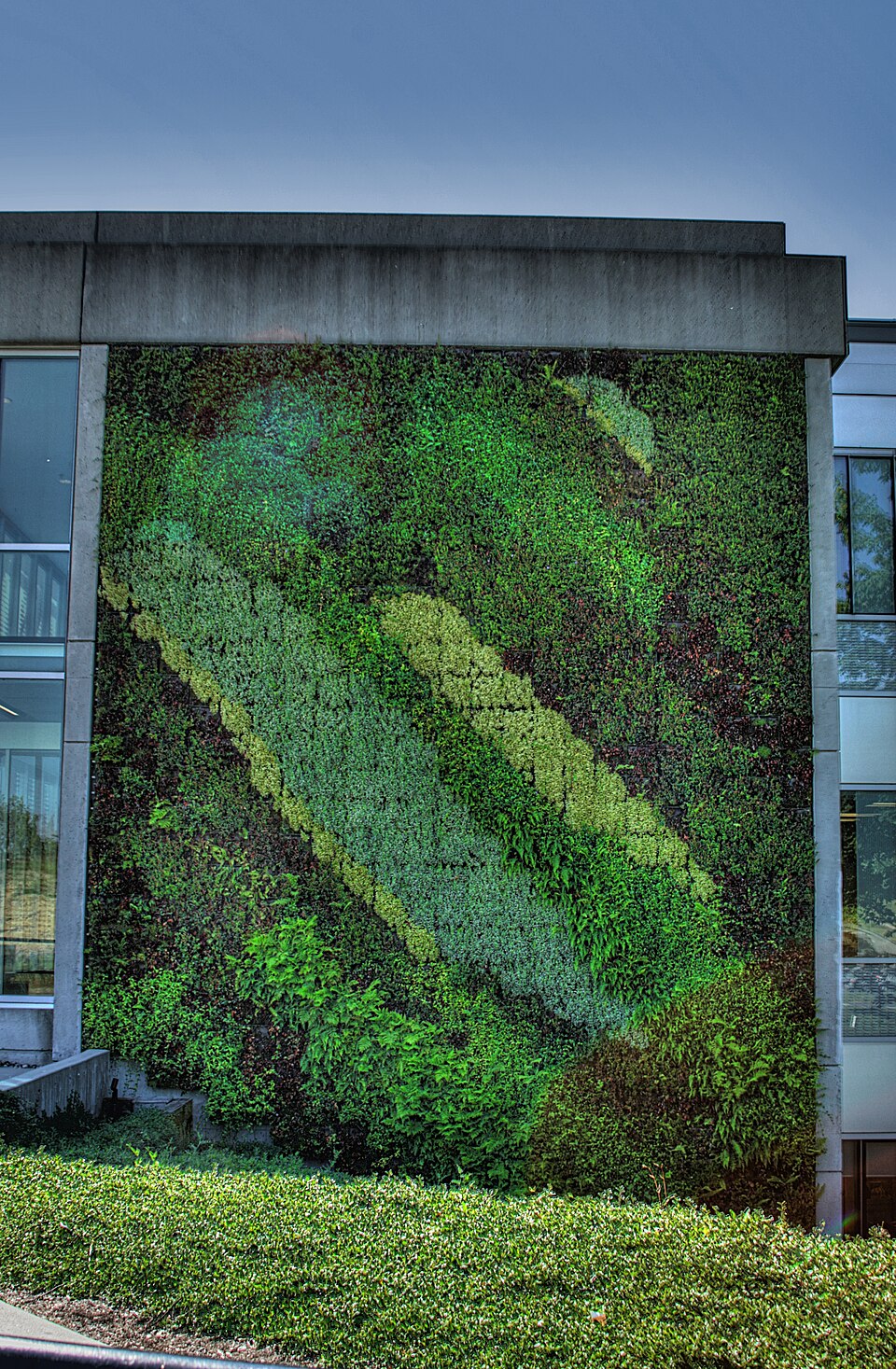

A living green wall (also called a vertical garden or green facade) is a system of planting modules attached to a building wall, irrigated by an automated drip system. Unlike ivy-covered walls that require years to establish, green walls are pre-planted and functional within weeks. They transform blank interior or exterior walls into living ecosystems, improving air quality, thermal insulation, and aesthetic appeal.

Green walls are installed in corporate lobbies, shopping malls, hospitals, and residential interiors where biophilic design is valued. Exterior green walls provide thermal mass moderating temperature swings, while interior installations in office buildings improve employee productivity (studies show 15% higher focus in spaces with visible greenery).

A typical 4 m² (2 m wide × 2.5 m tall) green wall installation costs $4,000–8,000 installed, including structure, modules, irrigation, pump, and maintenance for the first season.

System Design & Components

Structural Frame

The [[living-green-wall-system-frame|structural frame]] is typically aluminum (lighter than steel, corrosion-resistant) comprising two vertical [[living-green-wall-system-vertical-stud|40 mm × 40 mm tubes]] (2.5 m tall) and eight horizontal [[living-green-wall-system-horizontal-rail|cross-member rails]] spaced 300 mm apart vertically.

The frame is anchored to the building wall via [[living-green-wall-system-wall-bracket|stainless steel L-brackets]] at three heights (top, middle, bottom). For concrete or masonry walls, brackets are fastened with chemical anchors (epoxy-bonded) or mechanical anchors rated to 20 kN per bracket.

Behind the frame, a [[living-green-wall-system-waterproof-membrane|black EPDM membrane]] (1 mm thick) protects the underlying wall from moisture infiltration. Proper backing is critical to prevent water damage to interior walls over the 10–15 year service life of the green wall.

Total frame weight (dry): ~25 kg. With [[living-green-wall-system-planting-modules|30 planting modules]] and saturated soil (approximately 3 kg per module when wet), total installed weight is approximately 120–150 kg, or 180–250 kg/m² on the wall surface. This is manageable for concrete and masonry walls but requires structural assessment for older wood-frame or steel-stud construction.

Planting Modules

The [[living-green-wall-system-planting-modules|planting modules]] are individual plastic pockets (200 mm wide × 150 mm deep × 100 mm tall), felt-lined and mounted vertically on the [[living-green-wall-system-pocket-mounting-rail|mounting rails]] in rows. Typical installation: 6 modules per horizontal meter, 8 rows vertically = 48 modules per 4 m² wall.

Each pocket is filled with lightweight [[living-green-wall-system-soil-mix|growing medium]]—a blend of peat, perlite, and coir fiber (1:1:1 ratio by volume)—reducing weight to ~800 kg/m³ compared to 1800 kg/m³ for conventional garden soil. This mix drains rapidly (preventing root rot) while retaining moisture for 2–3 days between watering cycles.

Pre-grown [[living-green-wall-system-plant-plug|plant plugs]] (4–8 week seedlings) are installed into each pocket at initial commissioning. Plant selection varies by location:

• Exterior sunny walls: Sedums (Sedum spurium, S. rupestre), ornamental grasses, trailing ivy.
• Interior or shaded areas: Pothos, philodendron, spider plant, trailing fern species.
• Tropical installations: Anthurium, epipremnum, hemigraphis.

Irrigation System

The [[living-green-wall-system-drip-irrigation|drip irrigation system]] is the lifeline of the green wall. A [[living-green-wall-system-main-header|main aluminum header]] runs horizontally at the top of the wall, fed by a discharge line from the [[living-green-wall-system-pump-assembly|pump]]. Thirty [[living-green-wall-system-drip-line|drip lines]] (4 mm tubing, 1 m length) descend vertically, one serving each vertical column of modules.

At each module level, a [[living-green-wall-system-drip-emitter|drip emitter]] (rated 2 l/h) delivers water directly to the pocket root zone. The system is designed for gravity drainage: excess water percolates through soil, exits the pocket bottom, and flows down the EPDM backing to a [[living-green-wall-system-reservoir-drain-line|drainage collection line]] at the wall base, returning water to the [[living-green-wall-system-water-reservoir|reservoir tank]].

Drip pressure is maintained at 2–3 bar (measured via [[living-green-wall-system-pressure-gauge|pressure gauge]]), ensuring uniform emitter flow. Higher pressure (>4 bar) causes uneven wetting and emitter spray; lower pressure (<1.5 bar) may result in flow inconsistency.

Water Circulation & Reservoir

The [[living-green-wall-system-water-reservoir|reservoir tank]] (200–300 liter polyethylene) sits at ground level, collecting drainage and serving as the water source. A submersible [[living-green-wall-system-submersible-pump|pump]] (24 VDC, 50 l/min capacity) lifts water from the tank to the top header against a 5 m hydrostatic head (pressure approximately 0.5 bar).

The pump runs on a schedule determined by the [[living-green-wall-system-controller-module|smart controller]]. Default operation: pump runs 10–15 minutes daily during late morning (when soil tension is highest), delivering approximately 50–75 liters per day for a 4 m² wall in temperate climate. In summer or dry climates, pump runtime increases to 20–30 minutes daily. In winter or wet climates, runtime may decrease to 5–10 minutes.

A [[living-green-wall-system-level-sensor|water level float switch]] in the tank shuts off the pump if water level drops below 50 mm, preventing pump dry-running and damage. In normal operation, the reservoir refills via irrigation drainage (closed-loop system), supplemented with occasional top-up watering (~50 liters monthly) to compensate for plant transpiration and evaporation.

Smart Control Logic

The [[living-green-wall-system-controller-module|smart controller]] can be programmed with multiple operating modes:

1. Timer mode: Fixed schedule (e.g., 10 minutes daily at 8 AM).
2. Soil moisture mode: [[living-green-wall-system-soil-moisture-sensor|Soil moisture probes]] inserted into representative pockets provide feedback. Controller adjusts pump runtime: if soil moisture is >60%, pump skips the day; if <40%, pump runs longer (e.g., 20 minutes instead of 10).
3. Hybrid mode: Timer provides baseline, sensors override if conditions warrant.

Wireless connectivity (Wi-Fi or Bluetooth) enables remote monitoring via smartphone app. Occupants can manually trigger watering, adjust schedules, or receive alerts (e.g., "water level low," "pump not running").

Optional LED Grow Lights

For interior installations or shaded exterior walls, [[living-green-wall-system-lighting-option|LED grow lights]] supplement natural light. A [[living-green-wall-system-led-module|50 W full-spectrum LED panel]] mounted above the wall provides 400–700 nm wavelength coverage (visible and red light, optimal for photosynthesis).

The LED operates on a 14–16 hour daily photoperiod (enforced by [[living-green-wall-system-light-timer|timer]]), with dimming controlled by [[living-green-wall-system-light-sensor|ambient light sensor]] during daylight hours (reducing power consumption when natural light is sufficient).

Power consumption: 50 W × 14 hours = 700 Wh daily (~$0.15/day in electricity at $0.20/kWh). Cost is justified in commercial installations where 24/7 aesthetic appeal is valued, but homeowners may opt for a shade-tolerant plant palette (pothos, philodendron, fern) requiring no supplemental light.

Maintenance & Care

Weekly Tasks

• Visually inspect for wilting, yellowing, or pest infestations.
• Monitor reservoir water level; top up if below 100 liters.
• Check pump discharge pressure gauge; pressure should be 2–3 bar (too low suggests clogged emitters, too high suggests blocked header).

Monthly Tasks

• Manually cycle the pump to observe water flow across all modules; uneven flow suggests clogged emitters (clean with warm water or replace for ~$0.50 each).
• Test soil moisture sensor calibration; manually water if sensor reads >70% but soil feels dry (calibration drift).
• Inspect for fungal growth or algae on module exterior (common in humid environments); rinse with water or weak bleach solution if present.

Seasonal Tasks (Spring & Fall)

• Replace dead or diseased plants; surplus seedlings are grown in-house or purchased annually (~$2–5 per plug).
• Prune overgrown vines to maintain aesthetic and prevent shading of shorter plants.
• Drain and refill reservoir; filter media (100 µm screen) prevents algae and mineral buildup.
• Inspect EPDM membrane behind wall for deterioration; patch small tears with EPDM patch kit ($20).

Annual Tasks

• Replace all drip emitters (~$15 for 30 units); drip lines wear and deposits accumulate over time, reducing precision.
• Inspect structural bolts for corrosion or loosening; retorque M10 bolts to 25 N⋅m.
• Service submersible pump (annual: $50–100 labor or DIY); backflush intake strainer, check for cavitation noise.
• Calibrate [[living-green-wall-system-soil-moisture-sensor|soil moisture sensors]]; replace if drift exceeds 10% after recalibration.

Performance Metrics

Plant Health & Growth

In optimal conditions (adequate light, proper watering, 20–25 °C temperature), plants achieve 20–30 cm new growth annually. Sedums grow slower (10 cm/year) but are hardy; ivy and pothos grow faster (40 cm/year) but require pruning to maintain aesthetics.

Initial plant establishment (root colonization of soil and wall integration) takes 4–6 weeks. By month 3, the wall achieves full visual coverage and peak evapotranspiration.

Air Quality Impact

A 4 m² green wall removes approximately 0.4 kg of CO₂ annually and generates 0.3 kg of oxygen daily (equivalent to photosynthetic output of a medium-sized tree). This contributes modestly to indoor air quality in office spaces; a typical 500 m³ office with 4 green walls reduces CO₂ concentration by approximately 5 ppm year-round.

Thermal Performance

Exterior green walls reduce surface temperature by 5–10 °C compared to bare wall, decreasing heat transmission into the building. A 4 m² south-facing green wall saves approximately 50–100 kWh cooling energy annually in temperate climates (roughly $10–20 in electricity cost).

Interior green walls have negligible thermal benefit but improve employee comfort and perceived air quality (psychological effect).

Water Consumption & Evapotranspiration

Daily water demand varies by season, plant species, and climate:

• Summer (high ET): 40–60 liters/day for a 4 m² wall (10–15 liters per m² per day).
• Spring/Fall (moderate ET): 20–30 liters/day (5–8 liters per m² per day).
• Winter (low ET): 5–10 liters/day (1–3 liters per m² per day).

Annual consumption: approximately 100–150 m³ per 4 m² wall per year. For comparison, a conventional roof garden requires 300–400 m³/year (3–4x higher due to greater soil volume and higher evaporation from exposed soil surface).

Installation Requirements

Structural Assessment

Walls must be inspected for:

1. Compressive strength ≥20 MPa (concrete/masonry capable of supporting 200 kg/m² load).
2. Surface flatness ±10 mm over 2 m (larger irregularities require shims or backing).
3. Moisture intrusion (active leaks must be repaired before installation; moisture barrier alone does not remediate active water entry).

Waterproofing

A continuous [[living-green-wall-system-waterproof-membrane|EPDM backing]] is installed behind the frame, overlapping building wall elements by 300 mm at top, bottom, and sides. Seams are sealed with EPDM adhesive. The membrane protects against:

• Irrigation overspray and drainage migration behind the wall.
• Condensation on cold surfaces (in cold climates, wall insulation may be needed to prevent condensation at the membrane interface).

Electrical Supply

A 24 VDC power supply (transformer) is mounted near the reservoir, providing power to the pump motor and controller. Typical circuit: 110 VAC input (standard wall outlet), 24 VDC 2 A output = 48 W continuous (modest load, suitable for standard building circuits).

A manual [[living-green-wall-system-manual-valve|bypass valve]] allows hand-watering if the electrical system fails, ensuring plant survival during outages.

Standards & Best Practices

• ASLA (American Society of Landscape Architects): Guidelines for green wall design and maintenance.
• ISO 11733: Specification for living systems in the built environment.
• FLL (Forschungsgesellschaft Landschaftsentwicklung): German standard for green facades; defines construction, irrigation, and plant selection protocols.

Economic Value

Annual maintenance cost: $300–500 per 4 m² wall (includes replacement plants, emitter maintenance, water, and electricity).

Long-term property value: green walls in commercial real estate command 3–5% rent premiums in high-end markets, justified by improved indoor air quality perception and employee wellness narrative.

Payback: for residential installations, aesthetic and psychological benefits dominate economic rationale (no direct energy savings warrant the investment alone); for commercial buildings, the combination of reduced HVAC load, enhanced occupant satisfaction, and marketability justifies installation.
