Motorized Louvered Pergola Product

Overview

A motorized louvered pergola is an outdoor structure combining shade control with ventilation and water management. Unlike traditional fixed pergolas with permanent overhead lattice or slats, a louvered pergola features rotating blades that adjust from fully closed (0°, blocks 100% of direct sunlight) to fully open (180°, provides ventilation and starlight views). The rotation is driven by a 24 VDC electric motor with programmable controls.

These systems are popular in regions with variable climate conditions—hot sunny afternoons, cool mornings, and occasional rain. They're installed on residential patios, commercial courtyards, and hospitality venues where aesthetics and functionality are equally valued. Modern variants include integrated lighting, smart Wi-Fi control, and automatic deployment triggered by sun intensity or rainfall.

A typical 3 m × 3 m pergola with motorized control costs $8,000–15,000 installed, compared to $3,000–6,000 for a manual-crank variant and $1,500–3,000 for a fixed pergola structure.

Mechanical Design

Frame Structure

The [[louvered-pergola-frame-posts|frame assembly]] comprises four vertical 80 mm × 80 mm aluminum posts (typically 2.4–3 m tall, depending on clearance requirements), connected by top-spanning beams and cross-bracing. The posts are anchored to concrete foundations using chemical anchors or post-base connectors rated to 20 kN per post.

Post spacing (distance between corner posts) is typically 3–4 m to maintain headroom beneath the louvers while keeping deflection under 5 mm under the weight of the louver blades and gutter system.

Horizontal top beams (120 mm × 60 mm I-beams) span post-to-post, rated for 5 kN distributed load (approximately 500 kg per beam for the louver assemblies above). Cross-bracing (50 mm × 50 mm angle or tube members) prevents frame racking (twisting) under lateral wind loads.

Louver Blade Assembly

The [[louvered-pergola-louver-blades|louver blade assembly]] consists of 18–24 horizontal aluminum slats running the full width of the pergola, spaced 100–150 mm apart (center-to-center). Each blade is a 6063-T5 extrusion, 100 mm wide × 6 mm thick, anodized for corrosion resistance.

All blades rotate in unison about horizontal pivot axes. Two [[louvered-pergola-blade-bearing-support|ball-bearing pivot blocks]] at each end of each blade support rotation. The blades are mechanically synchronized via a [[louvered-pergola-synchronization-rod|drive rod]] with universal joints running the full length of the pergola, connecting all pivot pins.

As the motor rotates this synchronization rod, all blades rotate together at the same angular velocity. A single [[louvered-pergola-linear-actuator|linear actuator]] (200 mm stroke) translates motor rotation into blade motion via a linkage mechanism.

Water Management

Between adjacent blades, small gaps allow air circulation but accumulate rainwater during storms. EPDM [[louvered-pergola-blade-gasket|gaskets]] (5 mm foam) seal gaps, directing water down the blade surface toward the perimeter [[louvered-pergola-gutter-system|gutter]].

The gutter is a K-style aluminum channel running the full perimeter (approximately 12 m for a 3 m × 3 m structure), sloped 2° for gravity drainage toward two [[louvered-pergola-gutter-downspout|downspouts]] exiting at ground level. Total gutter capacity is approximately 10 liters/minute (equivalent to ~10 mm/hour rainfall), adequate for most residential locations.

A [[louvered-pergola-leaf-guard|mesh debris guard]] prevents leaves and twigs from clogging the gutter during wind events or when blades are partially open.

Shading Performance

Solar transmittance depends on blade angle. At 0° (fully closed), transmittance is <5% (opaque). At 45°, approximately 40% of direct sunlight passes through the blade gaps. At 90°, ~70% passes through. At 180° (fully open), ~95% passes through (limited only by blade shadows).

In summer (high sun elevation angle, ~65° above horizon at solar noon for 40° latitude), closing blades to 30–45° provides comfortable shade while still allowing ventilation breeze. In winter (low sun angle ~25°), opening to 135–180° allows maximum direct solar gain for passive heating.

Smart control systems measure incident solar irradiance via a [[louvered-pergola-sun-sensor|photoresistor]]. When irradiance exceeds 800 W/m² (typical comfort threshold), the controller automatically adjusts blade angle to maintain interior comfort, reducing demand for air conditioning.

Rainfall Detection & Auto-Close

The [[louvered-pergola-control-module|control module]] integrates a [[louvered-pergola-rain-sensor|tipping-bucket rain sensor]] mounted on the pergola roof or nearby. When accumulated rainfall exceeds 0.5 mm, the sensor closes a normally-open contact, signaling the controller to automatically close the blades (rotate to 0°).

This prevents rain from entering through the blade gaps into interior spaces or furniture beneath the pergola. Deployment time for auto-close is 30–60 seconds, sufficient to protect most outdoor furniture before water damage occurs.

Manual override is always available via a wired [[louvered-pergola-manual-button|three-button control panel]] (open, close, stop), or via Wi-Fi app for electric models.

Motor & Drive System

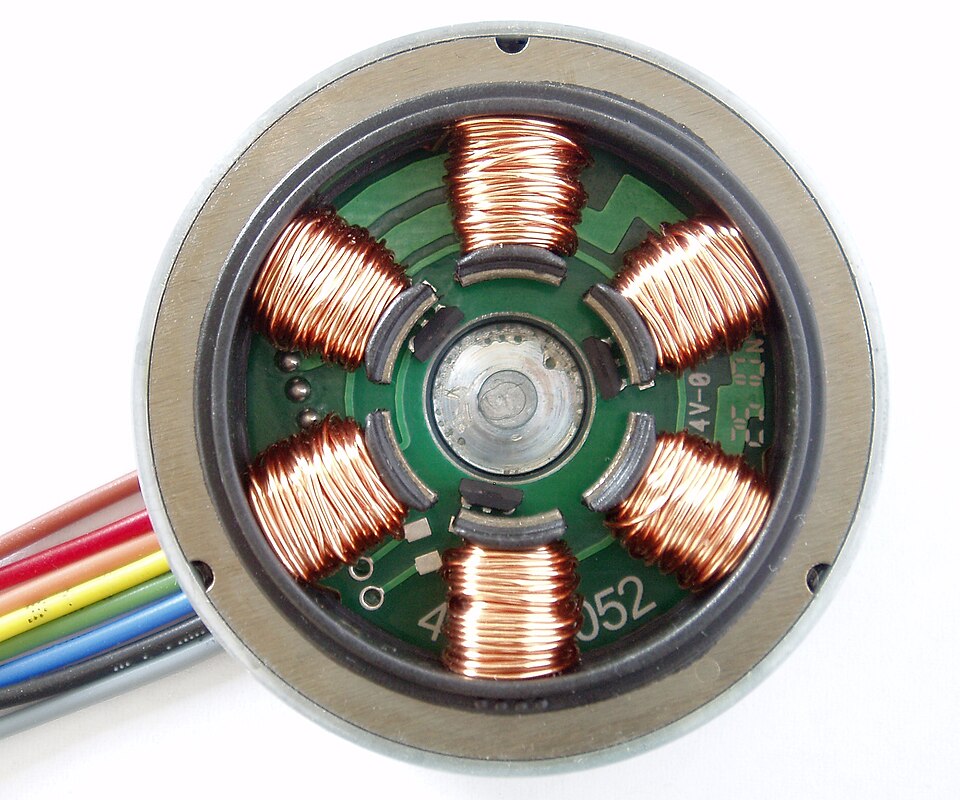

The [[louvered-pergola-actuator-assembly|motor and drive system]] uses a 24 VDC brushless motor (150 W, 1000 rpm) paired with a mechanical linkage. The motor rotates a crank arm (150 mm radius) connected to the [[louvered-pergola-linear-actuator|linear actuator]] via a pivot rod.

As the motor rotates, the crank arm moves the actuator rod through a 200 mm linear stroke, which via another linkage mechanism, rotates the [[louvered-pergola-synchronization-rod|synchronization rod]], which in turn rotates all louver blade pivot pins.

Gear reduction is implicit in the crank-arm geometry: a 150 mm radius crank arm moving 200 mm linearly generates approximately 0.9 radians (52°) of blade rotation per linear stroke meter. Total motor output over a full blade rotation (180°) requires approximately two full motor rotations.

At 1000 rpm motor speed, full blade deployment (0° to 180°) takes approximately 45–60 seconds. Electric models allow speed adjustment (60–120 seconds) for gradual shading changes, reducing sudden brightness transitions that can cause discomfort.

[[louvered-pergola-limit-switch-open|Limit switches]] at 0° (closed) and 180° (fully open) stop the motor automatically, preventing mechanical over-drive and damage to the drive linkage.

Control & Automation

The [[louvered-pergola-control-module|control module]] is a Wi-Fi enabled ARM Cortex-M4 microcontroller powered by 24 VDC. It accepts inputs from:

• Sun sensor: Analog irradiance measurement (0–1000 W/m²) via a photoresistor circuit.
• Rain sensor: Digital contact closure when precipitation is detected.
• Manual buttons: Three discrete inputs (open, close, stop).
• Wi-Fi network: Remote commands via smartphone app (optional cloud integration).

The controller executes programmed logic:

1. If irradiance > 800 W/m² AND current blade angle ≥ 45°, gradually close blades to 30°.
2. If rain sensor activates, immediately close blades to 0°.
3. If blade angle = 0° AND irradiance drops below 200 W/m² for >10 minutes, auto-open to preset angle (e.g., 90° for evening ventilation).
4. Manual button inputs override automation and move blades to commanded position.

A 24 VDC 500 W power supply (wall-mounted or integrated into the pergola frame) powers the motor and control electronics. A [[louvered-pergola-disconnect-breaker|main disconnect breaker]] (20 A AC) provides safety isolation during maintenance.

Integrated Lighting

Optional [[louvered-pergola-lighting-interface|LED lighting]] can be mounted beneath the louver blades. A [[louvered-pergola-led-rail|aluminum mounting channel]] runs the length of the pergola, accepting adhesive-backed [[louvered-pergola-led-strip|LED strips]] (24 VDC, 120 lm/W, warm white 2700 K typical).

A [[louvered-pergola-dimmer-control|PWM dimmer module]] allows brightness adjustment 0–100%. A [[louvered-pergola-light-sensor|twilight sensor]] auto-triggers LED illumination at dusk (<100 lux ambient).

Typical installation: 20–25 m of LED strips providing ~2400 lumens total output, creating ambient lighting for evening dining or entertaining beneath the pergola. Total power draw: 50–75 W continuous.

Weather Resistance

Aluminum 6063-T5 extrusions are anodized to ASTM B244 Class I (≥20 µm anodized layer), providing excellent corrosion resistance in most environments. In marine or high-salt environments, additional stainless steel fasteners (316 grade) are recommended in place of standard galvanized hardware.

The synchronization rod and pivot pins are stainless 304 or 316, resistant to salt spray and moisture. Ball bearings are sealed with nylon seals, reducing water ingress into bearing races.

Gasket materials (EPDM) are rated -30 to +70 °C, withstanding thermal cycling without hardening or cracking for 15–20 years of service life.

Wind Performance

At 0° (fully closed), the louver array presents maximum wind resistance. A fully closed 3 m × 3 m pergola experiences approximately 15 kN of horizontal wind force at 100 mph (45 m/s) wind speed. This load is distributed to the four [[louvered-pergola-post-vertical|vertical posts]] via the frame structure.

At 90° (perpendicular to vertical), wind resistance is minimal (~2 kN). At 180° (fully open), wind passes largely between blade gaps, reducing force to ~5 kN.

Structural analysis typically rates motorized louvered pergolas for 100 mph winds at the fully closed position. Higher wind speeds or open-ocean coastal conditions may require reinforced posts and larger foundation anchors.

Installation Requirements

1. Foundation: Concrete pad minimum 1 m × 1 m per post, 600 mm deep; chemical anchors rated 20 kN per post.
2. Electrical: 110 VAC outlet within 5 m of pergola for transformer, or hardwired 24 VDC power distribution.
3. Drainage: Downspout discharge to swale, rain garden, or storm drain; minimum 1.5% ground slope to drain point.
4. Sun orientation: Ideal installation: long axis east-west, allowing maximum shade benefit in summer (high sun) while allowing winter sun penetration.
5. Clearance: Minimum 2.4 m headroom above patio surface; ensure blade rotation doesn't interfere with adjacent structures.

Maintenance Schedule

• Monthly: Visually inspect frame for corrosion or loose fasteners; manually cycle blades 2–3 times to verify smooth operation.
• Semi-annually (before hot season): Clean gutter of debris; test rain sensor functionality; check motor soft-start capacity.
• Annually: Replace gaskets if hardened or cracked; inspect ball bearings for grinding sounds indicating wear; test emergency manual override.
• Every 3 years: Recalibrate sun sensor threshold; replace LED strips if lumen output has degraded >20%.

Economic Value

A motorized louvered pergola provides quantified benefits:

• Cooling load reduction: Automatic shade deployment reduces HVAC cooling demand by 15–25%, saving $200–400/year in electricity (depending on climate).
• Outdoor entertainment value: Extended patio season (spring/fall) due to temperature/rain control.
• Property value: Outdoor living space amenities typically add 2–5% to home resale value.

Payback period: 5–10 years through energy savings and enhanced property value, with 20+ year structural service life.

Standards & Codes

• ASTM D4169: Performance specification for metal products in marine environments.
• ANSI/AAOS: Aluminum Association Specifications for aluminum structures.
• IBC 2021 Section 3206: Roof and roof accessories wind resistance requirements.
• NFPA 1: Exterior structure materials and attachment standards.
