Mechanical Bull Product

Overview

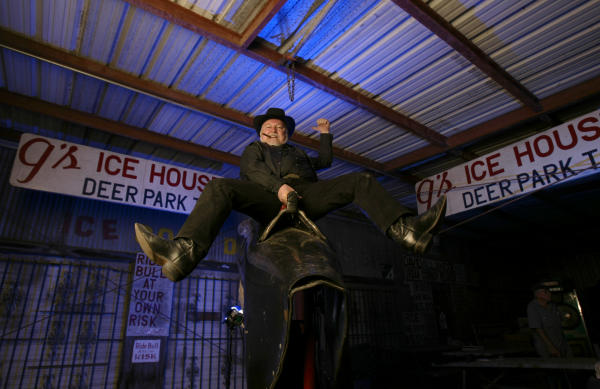

A mechanical bull is an amusement or sport training apparatus consisting of a motorized, hydraulically actuated platform carrying a fiberglass bull-shaped body. The platform rotates and tilts beneath the rider, creating unpredictable bucking motion that simulates the behavior of a live bull. Riders attempt to hold onto the saddle horn (or bullrope) while maintaining their seat, with the motion intensifying progressively.

Mechanical bulls are found in bars and nightclubs as entertainment, in rodeo facilities for training and competition, and increasingly in fitness gyms as novelty workout equipment. Modern bulls feature electronic control of motion intensity, safety features, and programmable bucking patterns.

How it works

Platform Motion. The Platform Base is a large turntable (slew-ring bearing) suspended above a padded landing zone. The platform is driven by Motor Drive (electric motor + gearbox) and Hydraulic System (pump, directional valves, cylinders).

The primary motions are:

1. Rotation: The electric motor drives a planetary gearbox, which turns the slew ring bearing. Rotation speed is controlled via the gearbox ratio and motor RPM, typically 0–30 rpm (fully adjustable).

2. Vertical Bounce: Hydraulic cylinders mounted under the platform extend and retract, lifting and dropping the platform (and rider) 1–2 feet at a cadence of 1–3 Hz, controlled by solenoid valves and operator input.

3. Lateral Tilt: Additional cylinders tilt the platform side-to-side, creating unpredictable weight shifts.

Rider Experience. The Buck Body is a lifelike bull-shaped fiberglass form sitting on the rotating platform. The rider straddles the bull (or sits on a saddle), gripping the prominent Saddle Horn with one hand (professional bull riding rules specify one-hand grip only). The combination of rotation, vertical bounce, and lateral motion creates a chaotic, challenging ride.

The operator uses the Control Console to adjust motion intensity via a potentiometer (speed dial) and mode selector. Beginner modes may emphasize smooth, predictable motion; expert modes include rapid direction reversals and surprise bounces.

Force Distribution. The Mounting Frame base anchors the motor, hydraulic pump, and slew-ring bearing to the floor. The frame must resist overturning moment (from the rotating mass and lateral rider movement) through bracing and heavy base plating. Most installations bolt the base to a reinforced concrete floor to resist lateral and lifting forces.

Safety and Emergency Stop. The Motor Brake holds the platform stationary while a rider mounts. The Emergency Stop red button cuts power to the Hydraulic System, bringing the platform to rest immediately (hydraulic pressure is relieved). The Landing Zone surrounding and under the platform cushions falls.

Hydraulic System Details

The Hydraulic Pump (typically 10–20 gpm) draws oil from the reservoir and pressurizes it to 2500–3000 psi. The Main Spool Valve is a four-spool proportional directional control valve, allowing independent control of each Hydraulic Cylinder via joystick or electronic signal.

The Pressure Accumulator (nitrogen-charged) stores pressure energy, smoothing pulses from the pump and providing rapid response when the operator demands sudden motion changes. The Flow Divider ensures cylinders operating in parallel (e.g., tilt cylinders) extend and retract synchronously, preventing platform tilt imbalance.

The Pressure Relief Valve valve is set to crack (open) at 3000 psi, protecting the system from overpressure if a cylinder stalls or the operator commands conflicting valve positions.

Rider Safety and Technique

Bull riders use a one-handed grip technique, controlling balance through core and leg tension. The grip-horn provides the only handhold; pulling on the horn is allowed (unlike bull rope, where riders grip rope only). Falls are absorbed by the Landing Mat (EVA foam or rubberized mat, 12–18 inches thick).

Fitness and sport training facilities typically impose weight limits (300 lbs maximum) and require riders to understand basic safety before riding. Injuries from mechanical bulls are rare; most incidents involve minor sprains or bruises. Serious injuries (head, neck) are prevented by proper landing mat depth and fall technique training.

Maintenance and Longevity

Hydraulic systems require regular maintenance:

• Daily: Check fluid level, visually inspect hoses for leaks.
• Monthly: Change hydraulic filter; inspect pump and cylinder seals for weeping.
• Quarterly: Full system pressure test; check solenoid coils for electrical faults.
• Annually: Flush and refill hydraulic fluid; inspect slew-ring bearing for play.

The fiberglass bull body gradually accumulates cracks and abrasion from repeated rider contact. Cosmetic restoration (repainting) is done every 2–3 years; structural repair (patching cracks) as needed.

Slew-ring bearing wear is the primary structural concern; excessive radial or axial play signals bearing degradation. Bearing replacement is a major service requiring disassembly of the platform.

Motion Programming

Modern bulls feature programmable motion sequences. Basic patterns include:

• Steady: Constant rotation + low-frequency bounce.
• Random Bucking: Unpredictable direction reversals and intensity surges.
• Professional: 8-second sequence mimicking professional rodeo bull behavior (ramping difficulty).

Operators can customize intensity and duration via touchscreen or dial. Some systems integrate a scoreboard displaying ride time and difficulty rating (often expressed as a score mimicking professional rodeo scoring, e.g., 0–100 points).
