Overview

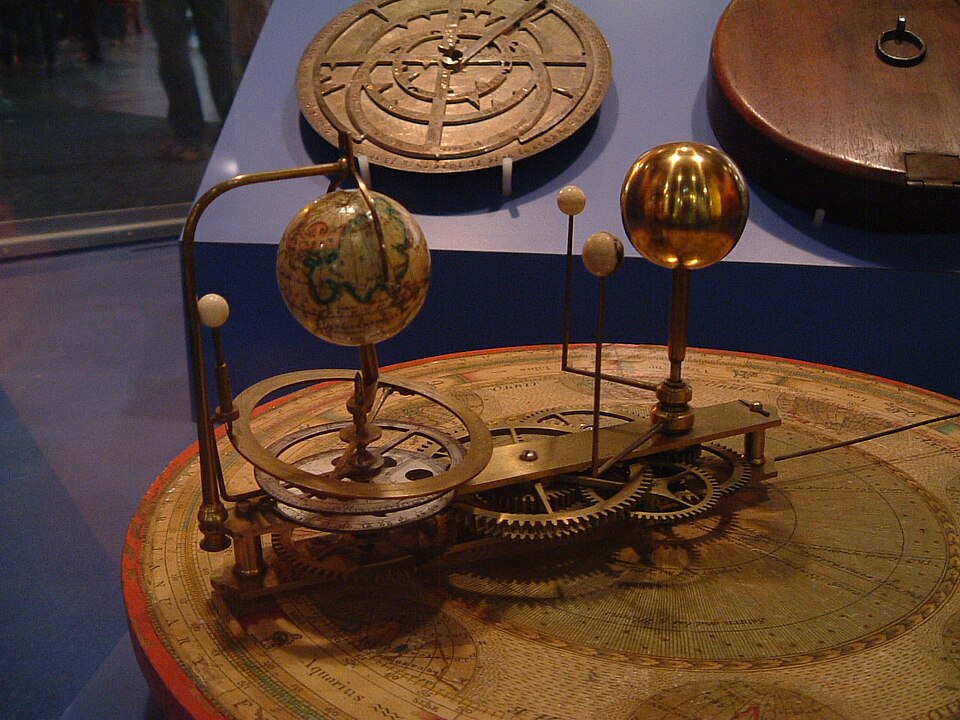

A mechanical orrery is a three-dimensional kinetic model of the solar system in which gears encode orbital mechanics. Invented in the early 18th century and named after the Earl of Orrery, these devices visualize the relative motions and periods of planets around the Sun without any electricity or computers—purely mechanical. The orrery uses gear ratios to represent the relative orbital speeds of the eight planets. If Earth's arm makes one complete rotation per unit time, Mercury's arm (closer to the Sun, moving faster) completes roughly four revolutions, Jupiter's completes only one-thirteenth of a revolution, and Neptune—distant and slow—barely moves. This encoding of Kepler's laws into gear teeth is both elegant and practical: observers can watch planetary motion unfold at a human timescale, understanding orbital mechanics viscerally by seeing the mathematical relationships embodied in hardware.

The orrery predates planetarium domes and digital simulations. In the 18th and 19th centuries, elaborate brass orreries were status symbols, displayed in gentlemen's studies and observatories. Modern orreries are smaller and simpler but retain the same principle: a single input rotation drives multiple outputs at different angular velocities, accurately representing the periods of the planets. Some orreries include moons (e.g., the Galilean satellites of Jupiter), or add secondary mechanisms to show axial tilts and precession. Educational orreries remain valuable teaching tools because they make abstract numerical period ratios (Earth 365 days, Mars 687 days, Jupiter 4333 days) tangible.

How it works

Gear ratios and Kepler's Third Law: The foundation of the orrery is the relationship between orbital period and orbital radius. Kepler's third law states:

T² ∝ r³

where T is the orbital period and r is the orbital radius. In the orrery, the gear ratio encodes this relationship. If the Sun's gear is a fixed pinion, and each planet's gear is sized such that:

Gear_ratio_planet = (T_planet / T_Earth)⁻¹

then each planet's arm rotates at the correct speed relative to Earth. For example, Mercury's orbital period is 0.24 Earth years, so its gear ratio is (0.24)⁻¹ ≈ 4.1; Mercury's gear has roughly 4.1 times the teeth of Earth's gear. Jupiter, with a 11.9-year period, has a gear ratio (11.9)⁻¹ ≈ 0.084; its gear is ~1/12 the size of Earth's.

Drive mechanism: The Drive Mechanism (or Hand-Crank Drive for manual operation) rotates the Main Drive Shaft at a constant speed, typically 1 RPM for Earth's arm (so Earth completes one lap per minute). The Central Drive Pinion, a small central pinion (20–30 teeth), is mounted on this shaft. All eight planetary gears mesh directly or indirectly with the Sun gear. When the Sun gear rotates once, each planetary gear rotates according to its tooth count ratio.

Planetary arms and spheres: Each Articulated Planetary Arms extends radially from its drive gear (or from a shaft driven by the gear). The arm is held at a fixed angle (typically all arms in the same orbital plane, representing the ecliptic) and rotates about the central axis. At the end of each arm sits a Planet Spheres, a ball painted or colored to represent each planet. The ball's size is chosen for visual appeal and clarity; it is usually highly schematic (not to true scale) because accurate size ratios would make most planets invisible and Jupiter enormous.

Orbital geometry: The Orbital Path Ring (optional) is a fixed circle on the base marking the orbital plane. The orrery as typically built places all planets in the same plane (the ecliptic), though some designs incorporate tilted planes or oval orbits to show true orbital inclinations and eccentricities. However, most mechanical orreries for education simplify to coplanar circular orbits.

Temporal representation: The temporal behavior of the orrery is idealized. Instead of Earth taking 365 days to complete an orbit, it completes an orbit in 1 minute (or per hand-crank revolution). All periods scale equally; the orrery is a sped-up model. An observer watching the orrery for 1 minute sees what actually takes 365 days in the real solar system.

Mechanical precision and challenges

Gear mesh and backlash: For the orrery to accurately represent planetary motions, each gear must maintain proper mesh with its driver. Backlash—tiny gaps between teeth—accumulates and causes jitter and loss of synchronization. High-quality orreries use gears cut on precision mills and assembled with careful tolerance control. Brass is preferred because it resists corrosion and can be machined to tight tolerances.

Bearing friction: The Arm Rotation Bearings must allow free rotation with minimal friction; otherwise, heavier planets lag, spoiling the model. Ball bearings are ideal; sleeve (bronze) bearings, cheaper but higher-friction, are acceptable for low-speed operation. Lubrication (light machine oil) is necessary for long-term reliability.

Scaling and visual appeal: The Planet Spheres are scaled schematically, not to scale. A true-scale orrery with Jupiter at its correct size (11 times Earth's diameter) relative to Earth would be impractically large and would make smaller planets nearly invisible. The orrery prioritizes clarity and visual engagement over strict geometric accuracy, which is acceptable because the key educational content is the gear ratios and orbital speeds, not the sizes.

Oscillations and wobble: Unbalanced arms or gears can cause the orrery to wobble or oscillate. Careful dynamic balancing (adjusting arm and sphere positions so the center of mass lies on the rotation axis) ensures smooth, stable operation.

Historical variants

Orreries of the 18th century: Elaborate brass models with 6–8 planets, sometimes including moons, Earth's moon, and markers for the zodiac. Often mounted on mahogany bases and encased in glass. The Orrery of the Earl of Orrery (c. 1712) remains a celebrated example.

Modern orreries: Smaller, simpler designs for educational use, often built from plastic gears or acrylic. Some orreries use chain drives or belt drives instead of meshing gears. Others add motors and lights to highlight planetary positions.

Digital orreries: Software simulations now supplement or replace physical models, offering advantages of arbitrary scale, exoplanet systems, and playback of historical planetary alignments. However, physical orreries remain valuable for their tangibility and for demonstrating mechanical principles.

Educational significance

The orrery exemplifies how ancient and medieval scientists discovered mathematical relationships in the heavens and how those relationships can be translated into mechanical form. It teaches:

• Kepler's laws: Visual demonstration of the period-radius relationship.
• Gear mechanics: How ratios compound to achieve large speed differences from a single input.
• Scale: The vast distances and periods in the solar system, in compressed form.
• Simulation: The concept of physical modeling, solving equations by mechanical means rather than mathematics.

A child watching an orrery viscerally understands that the planets move at different speeds and that the farther they are from the Sun, the slower they move—a deep insight that abstract textbooks struggle to convey.

Modern variations and extensions

Some modern orreries add complications:

• Axial tilt: Shafts tilted at Earth's obliquity (~23 degrees) and rotating through a yearly cycle show seasons.
• Precession: Additional gearing encodes the 26,000-year precession of Earth's axis.
• Moon orbits: Secondary gear trains drive the Moon around Earth, showing lunar phases and eclipses.
• Exoplanet systems: Custom gear ratios can represent planets orbiting other stars, illustrated by multi-planetary systems discovered by space telescopes.

The mechanical orrery remains a masterpiece of analog computation—encoding physical laws into hardware and allowing natural law to perform the "calculation" as gears rotate.
