Medical Cyclotron Product

Overview

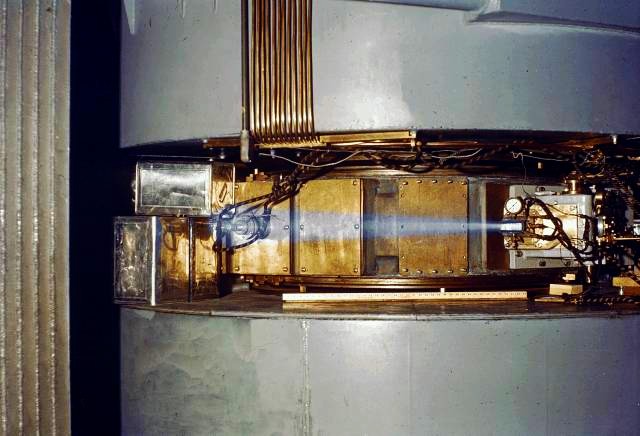

A medical cyclotron is a compact proton accelerator producing radioactive isotopes for positron-emission tomography (PET) imaging. Unlike large research cyclotrons (5 m diameter), medical units fit in hospital basements (1.5–2.5 m diameter, 5–10 tonnes) and operate at 10–30 MeV proton energies ideal for producing short-lived PET tracers: fluorine-18 (F-18) for fluorodeoxyglucose (FDG), carbon-11 (C-11), nitrogen-13 (N-13), and oxygen-15 (O-15). These isotopes have half-lives of 20 minutes to 2 hours, enabling same-day patient imaging.

The Medical Cyclotron works on the cyclotron principle: a charged particle (proton) spirals outward in a uniform magnetic field while being accelerated repeatedly by a resonant RF electric field. As the proton gains energy, its orbital radius increases until it reaches the extraction radius, where it exits toward a target.

How it works

Magnetic Confinement

The Magnet System provides a 3–4 Tesla dipole field. For protons, the cyclotron frequency is f = qB/(2πm), which remains constant regardless of energy—a key advantage allowing fixed-frequency RF acceleration. The Main Magnet is typically iron-core (not superconducting, to keep costs and cryogenic complexity down) with pole pieces shaped to optimize field homogeneity. Shim Coils fine-tune field uniformity to better than 0.1% over the acceleration region.

Acceleration Cavity

The RF System maintains oscillating voltage across the Dee Electrodes—two D-shaped metal sectors. As a proton crosses the gap (the "dee line"), the voltage accelerates it by ~50 kV per transit. After each acceleration, the particle re-enters one dee, where it drifts in a semicircle at constant velocity (the RF is off inside the dee). By the time it exits, the RF field has reversed, ready to accelerate again.

A 10 MeV proton makes roughly 100–200 acceleration gaps before extraction. The 15–30 MHz RF frequency is maintained within parts-per-million stability by the RF Frequency Controller, which tunes the cavity resonance as extracted beam energy varies.

Ion Source and Extraction

The Ion Source at the cyclotron center produces a 10–100 mA proton or deuteron beam via thermionic emission or ECR discharge. Protons spiral outward at radii proportional to √E. The Stripping Foil (5–20 µm carbon) strips electrons from H₂⁺ ions, converting them to neutral atoms that are unaffected by the magnetic field and exit radially to the target station.

Target and Isotope Production

At the Target Station, the proton beam impinges on solid or liquid targets (titanium backing fluorine-19, for F-18 production via the ¹⁹F(p,n)¹⁸F reaction). The Target Cooling system handles >1 kW thermal load from beam stopping. The resulting radioactive nucleus decays, emitting a positron that annihilates with nearby electrons, producing the gamma rays detected by PET scanners.

Control and Safety

The Control System manages RF frequency tuning, extraction probe positioning, and magnet field stabilization via feedback from shimming coils. Radiation safety interlocks prevent beam extraction unless the target shield is fully closed and the survey meter confirms acceptable ambient dose rates.

Isotope Production Yields

F-18 production from ¹⁹F(p,n)¹⁸F reaches peak cross-section (~60 millibarn) at 18 MeV; typical yields are 200–500 mCi F-18 per one-hour bombardment. C-11 from ¹²C(p,2n)¹¹C requires ~20 MeV and is less efficient (yield ~100 mCi/hour). Multiple production slots allow simultaneous synthesis of different isotopes.

Vault Shielding

A medical cyclotron target station requires 150–250 mm lead equivalent (plus 1–2 m concrete maze access) to limit occupancy dose rates to <2.5 µSv/hour per regulatory limits. Prompt neutrons from nuclear reactions and secondary gamma rays demand thorough shielding design.

Maintenance and Regulatory

Cyclotrons require quarterly calibration of RF frequency, monthly magnet-field shimming checks, and annual target-station surveys. Medical facilities must maintain state radiation licenses, conduct annual QA per AAPM guidelines, and track all isotope production and disposal per NRC (U.S.) regulations.
