Overview

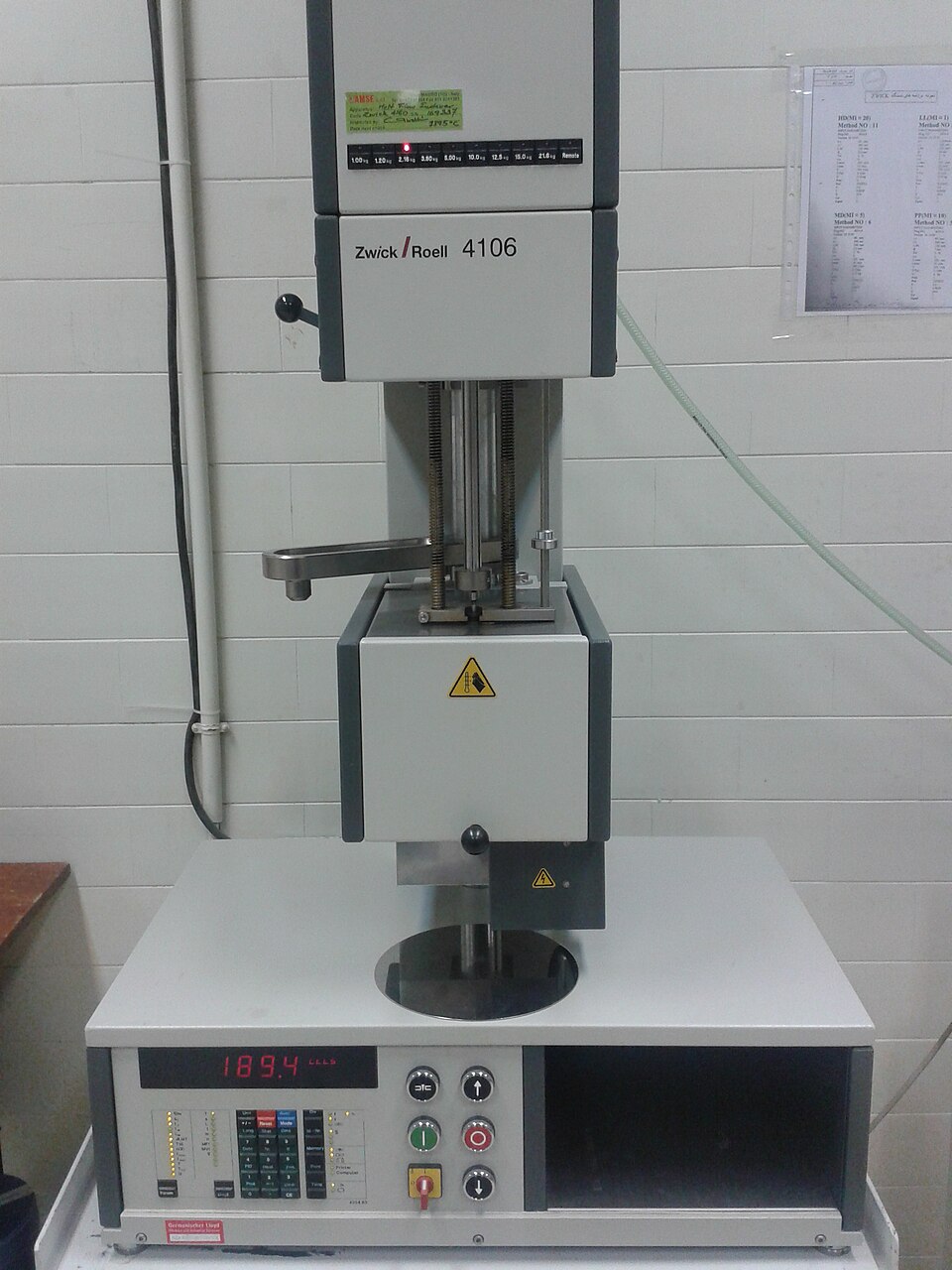

A melt flow indexer (MFI) measures the fluidity of molten thermoplastic polymers by determining the mass of material extruded through a standard die in a fixed time period, quantified as grams per 10 minutes (g/10 min). The apparatus consists of a precision-bored barrel (7 mm diameter) heated to a temperature specific to the polymer (190°C for polyethylene and polypropylene, 250°C for polyamides), a hardened-steel piston with calibrated weights, a die orifice (2 mm diameter × 8 mm length), and a collection tray with timer-controlled strand cutting. The MFI value (ranging from 0.1 to 1000+ g/10 min depending on polymer and applied load) indicates polymer chain length and degree of branching: higher MFI indicates lower melt viscosity (shorter chains or high branching), while lower MFI indicates higher viscosity (longer chains, less branching).
Melt flow index is the primary quality-control metric in plastics manufacturing, correlating to processability (ease of injection molding or extrusion), mechanical properties (tensile strength, elongation), and shelf-life stability. Every resin batch is tested per ISO 1133 to ensure consistency and traceability.
How it works
The Heated Barrel Assembly (stainless-steel or ceramic-lined, 7 mm bore) is maintained at a controlled temperature (190–250°C depending on the polymer) by a Band Heater (500 W electric heater) regulated via a Temperature Controller PID control loop. A Temperature Sensor (Type K thermocouple or PT100 RTD) monitors barrel temperature with ±1°C stability.
The operator charges the barrel with approximately 3.5 g of polymer pellets or powder through the top opening. The pellets soften and melt within 3–5 minutes (preheat time per ISO 1133). The Piston and Weight Assembly (hardened-steel piston with [[melt-flow-indexer-weight-1.2kg]] standard load or [[melt-flow-indexer-weight-3.8kg]] heavy load) sits atop the melted polymer. The piston weight creates a controlled pressure (0.5 kg/cm² for standard load, 1.5 kg/cm² for heavy load) that forces molten polymer through the Die Assembly orifice (2 mm diameter, 8 mm long).
An extruded filament (3–5 mm diameter) flows downward at a rate proportional to the polymer''s melt viscosity. A Cutter and Timer electronic timer (set to 10 seconds per ISO 1133, or a custom interval) controls the extrusion duration. At the timer trigger, a Cutter Solenoid solenoid (24 V DC) drives a hardened-steel Electric Cutter Blade blade downward, cleanly severing the strand.
The operator collects the cut strand on a Collection Tray collection tray, cools it to room temperature (2–3 minutes), and weighs the strand on an analytical balance (±0.1 mg). The mass is recorded in grams. The melt flow index is calculated:
MFI (g/10 min) = (Mass of Strand in grams ÷ Extrusion Time in minutes) × 10
For example, if a 10-second extrusion yields 2.4 g, then MFI = (2.4 g ÷ 0.167 min) × 10 = 144 g/10 min.
Polymer-specific test conditions
Different thermoplastics require different test temperatures to achieve comparable melt viscosity ranges (typically 100–1000 g/10 min):
- Polyethylene (PE): 190°C, 1.2 kg load (standard)
- Polypropylene (PP): 230°C, 1.2 kg load
- Polyamide (Nylon): 250°C, 1.2 kg load (or 8 kg load for high-performance grades)
- Polyester (PET): 250°C, 1.2 kg load
- Polycarbonate (PC): 300°C, 1.2 kg load
Higher temperatures lower viscosity and increase MFI (fluid polymer flows faster); lower temperatures raise MFI (viscous polymer extrudes slower). Standard reference materials (certified MFI reference pellets) are tested on each apparatus annually to verify calibration.
Process control and material batch qualification
In manufacturing, MFI testing is performed on:
- Incoming material: Every new resin lot from the supplier is tested to verify specification compliance (e.g., "PE shall have MFI 0.5–2.0 g/10 min at 190°C"). Out-of-spec lots are rejected or regraded.
- Process monitoring: Periodically during production (e.g., every 4 hours) to detect polymer degradation or additives drift.
- Final product: On injection-molded or extruded articles, resin is extracted and tested post-processing to confirm that shear heating and time at elevated temperature did not significantly degrade the polymer.
MFI value directly correlates to processability: high-MFI (fluid) polymers fill thin-wall injection molds easily but may have lower mechanical strength; low-MFI (viscous) polymers provide higher stiffness but are difficult to process. Optimal MFI is a balance determined by part geometry and performance requirements.
Advanced applications: melt mass-flow rate (MFR) vs. melt volume-flow rate (MVR)
ASTM D1238 and ISO 1133 define two related measurements:
- Melt Mass-Flow Rate (MFR): Mass of polymer extruded in 10 minutes (g/10 min, standard)
- Melt Volume-Flow Rate (MVR): Volume of polymer extruded in 10 minutes (cm³/10 min, measured via piston displacement)
MVR is less dependent on polymer density variations (useful for blends or recycled polymers) and provides information about flow behavior. Some lab instruments measure both MFR (by weighing) and MVR (by piston position) simultaneously.
Troubleshooting and limitations
Common test issues:
- Leakage around piston: Indicates excessive piston wear or barrel bore dirt. Requires professional cleaning and potential piston/barrel replacement.
- Irregular strand formation: May indicate temperature instability (overshoot/undershoot) or contamination in the polymer. Verify band-heater calibration and resin cleanliness.
- Low repeatability: Multiple factors: thermal drift (lag in heater response), sample variation (moisture content in hygroscopic polymers like nylon), or variation in preheat time. Pre-drying pellets in a vacuum oven improves repeatability ±2–3%.
Modern high-throughput labs employ automated MFI testers with robotic feeders and integrated scales, measuring MFI on 10–20 resin lots per shift and auto-reporting to LIMS for batch release approval.
