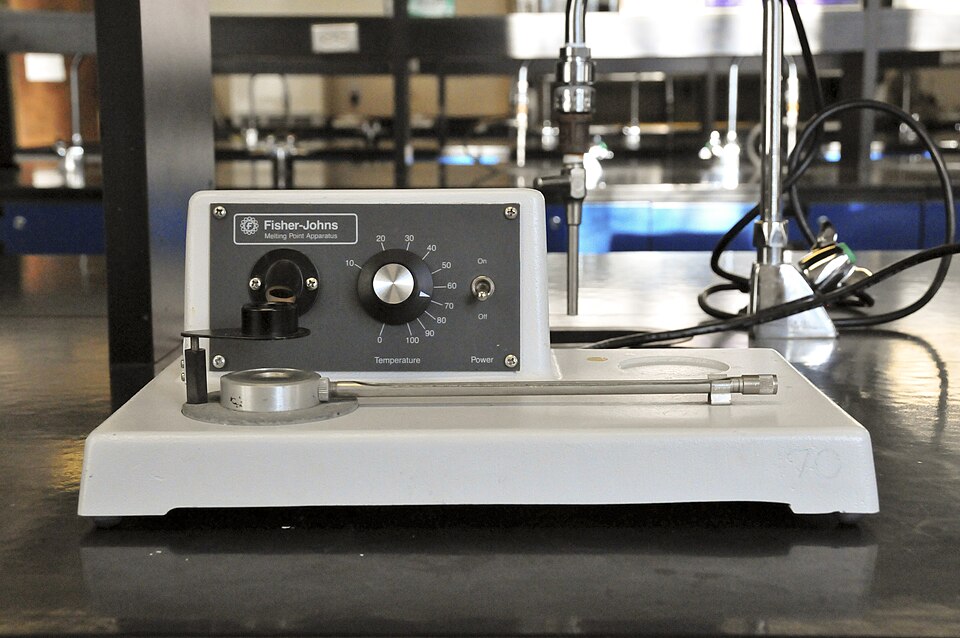

Melting Point Apparatus Product

Overview

A melting point apparatus determines the temperature at which a solid compound transitions from crystalline to liquid phase. Melting point is a characteristic physical property used to identify organic compounds, assess purity, and detect polymorphic forms. Pure compounds show a sharp melting point (narrow range, typically <1 °C); impurities depress melting point and broaden the range.

In pharmaceutical and chemical manufacturing, melting point is a key identity and quality specification. In research and synthesis, melting point confirms that a product is the intended target compound and assesses isolation purity.

How it works

A sample (~2–3 mg) of finely powdered or crystallized compound is manually loaded into a Capillary Tube (open-ended borosilicate tube, 1.5 mm OD). The powder is gently packed using a Sample Pusher, creating a column ~2–3 mm tall.

The packed capillary is placed in the Capillary Holder mounted in the Heated Block, which is gradually heated via a Heating Element. The Temperature Control ramps the block temperature at a user-selected rate (typically 5–10 °C/min for rapid screening, or 0.5–1 °C/min near the expected melting point for precision measurement).

The operator observes the sample through a Lens Assembly (magnified 10x–20x) illuminated by LED light. Initially, the crystalline powder appears opaque. As temperature rises, crystals begin to glisten (surface melting). At the melting point onset, individual crystals sharpen their edges and begin to collapse into liquid. The melting point is recorded as:

• Onset: Temperature when the first crystal appears to soften or collapse.
• Clear point: Temperature when the last crystal fully dissolves into clear liquid.

The melting range is (onset − clear) temperature; a narrow range (<1 °C) indicates high purity.

Optional automated detection uses a Photodiode mounted behind the capillary. As crystals melt, transmitted light intensity increases. A Comparator detects this intensity threshold, triggering automatic endpoint recording on the Display Unit.

Temperature Measurement and Control

The Temperature Sensor (Pt100 RTD or thermocouple) is immersed in the Block Body near the capillary position. The PID Controller reads the sensor via a Microcontroller ADC and compares actual temperature to a desired setpoint.

The TRIAC Driver modulates AC power delivered to the Heating Element, implementing PID feedback:

• If T < setpoint, increase heating (TRIAC on-time).
• If T > setpoint, decrease heating (TRIAC off-time).

The proportional term provides immediate response; the integral term eliminates steady-state offset; the derivative term dampens overshoot. Tuning is typically auto-learned during initial warmup.

Ramp Rate and Precision Measurement

A fast ramp (5–10 °C/min) is suitable for initial screening (is this the right compound?); total time is ~5–10 minutes from 25 °C to 250 °C.

A slow ramp (0.5–1 °C/min) is used near the expected melting point for high-precision endpoint detection. A compound with m.p. ~180 °C would:

• Ramp fast (10 °C/min) from 25 °C to 170 °C (15 min)
• Switch to slow ramp (0.5 °C/min) from 170 °C onwards

This hybrid approach balances speed and accuracy.

Capillary Tube Preparation

Sample loading is manual:

1. Finely powder the compound (mortar and pestle).
2. Push the open capillary tube into a small pile of powder; powder adheres via static cling.
3. Use the Sample Pusher to gently tamp the powder column, creating a compact 2–3 mm plug.
4. Tap the capillary on a hard surface to further compact and remove air gaps.

Improper packing (loose, aerated sample) causes slow melting, extended melting ranges, and poor reproducibility.

Optical Observation

The Lens Assembly (10x–20x magnification) provides clear view of the capillary interior. The LED Light (white LED) illuminates from above or is reflected via Reflective Mirror for backlighting.

Backlighting (LED behind capillary) provides contrast: crystals (opaque) appear dark, liquid (transparent) appears bright. The Viewing Window (heat-resistant borosilicate or quartz) protects the operator's eye and maintains thermal contact with the hot block.

Melting Behavior and Polymorphism

Most organic compounds are polymorphic—they can crystallize in multiple crystal forms with different melting points:

• Polymorph I: m.p. 145 °C, stable form
• Polymorph II: m.p. 142 °C, metastable form

If a sample is recrystallized under different conditions, it may contain a mixture of polymorphs, showing a broad melting range (142–145 °C).

Some compounds exhibit plastic melting (crystals soften but don't fully liquefy, appearing as a clear liquid but still containing solid particles). These show no sharp melting point and require alternative identification methods.

Calibration

The Calibration Kit includes two standards:

• Benzoic Acid Standard: m.p. 122.3 °C (easily handled, mid-range)
• Naphthalene Standard: m.p. 80.3 °C (low-range validation)

A Caffeine Standard standard (m.p. 238 °C) is optional for high-temperature validation.

Calibration is performed by measuring melting points of known standards using the apparatus. If benzoic acid measures 122.0–122.5 °C, the apparatus is within ±0.5 °C accuracy. Systematic offset (consistent high or low reading across multiple standards) indicates thermocouple drift or TRIAC hysteresis; this is corrected by software calibration offset adjustment.

Mixed Melting Point Analysis

A classical qualitative identification technique uses mixed melting points:

1. Measure melting point of unknown compound (m.p. 122.0 °C).
2. Measure melting point of suspected reference standard (also m.p. 122.3 °C).
3. Mix equal parts unknown + standard and measure mixed m.p.

If the unknown is the standard compound, the mixed m.p. remains ~122.1 °C (same). If the unknown is a different compound (m.p. close, e.g., 121.8 °C), the mixture will have lower m.p. and broader range (e.g., 119–121 °C). This simple test confirms identity without spectroscopy.

Purity Assessment

Melting point depression due to impurities follows the Clausius-Clapeyron equation for ideal solutions: ΔT_f = K_f × x_2 / (1 − x_2) ≈ K_f × x_2

where K_f is the cryoscopic constant (depends on the pure compound), x_2 is mole fraction of impurity.

For many organic solids, K_f ≈ 100–300 °C·kg/mol. A 1 mole percent impurity (x_2 = 0.01) causes melting point depression: ΔT_f ≈ 100 × 0.01 = 1 °C

Thus, each 1 °C depression indicates ~1 mole percent impurity (rough estimate; exact values depend on the system). A melting point 1–2 °C below literature value indicates 95–99% purity. Broad ranges (>3 °C) suggest significant impurity or polymorph mixtures.

Apparatus Heating Design

The Block Body is aluminum or copper (good thermal conductivity, ~100–400 W/m·K). A 50×50×30 mm block has thermal mass ~75 g; heating from 25 °C to 300 °C requires: Q = m × c × ΔT = 0.075 kg × 900 J/kg·K × 275 K ≈ 18.6 kJ

At 500 W average power, this takes ~40 seconds (not accounting for losses). The Insulation Housing surrounds the block, reducing ambient heat loss and improving ramp speed.

Manual vs. Automated Detection

Manual observation: Operator watches capillary through magnified lens, records onset and clear-point temperatures via Keyboard. Requires attention and judgment; prone to operator bias and error.

Automated detection: Photodiode continuously monitors transmitted light. As crystals melt (transparency increases), light intensity rises. A Comparator threshold detector triggers recording at a preset intensity level (e.g., 50% of liquid intensity). Reproducible, operator-independent, but may be sensitive to sample color and packing density.

Applications

• Compound identification: Melting point is a characteristic property in reference databases.
• Purity testing: Regulatory requirement (USP, EP, BP) for pharmaceutical compounds.
• Polymorph screening: Different crystal forms have different melting points; detected via multiple measurements.
• Stability study: Storage stability monitored by periodic melting point measurement; broadening or depression indicates decomposition or phase transformation.
• Synthesis confirmation: Product melting point confirms that the intended compound was synthesized and isolated.

Troubleshooting

Broad melting range or low m.p.: Likely sample contamination or impurities. Recrystallize the compound and retry.

Inconsistent results: Check capillary packing (ensure even, compact column). Recalibrate with standard. Verify heating rate (0.5–1 °C/min near m.p.).

Black smoke or decomposition: Sample may be decomposing before melting. Lower the heating rate or use lower maximum temperature. Some compounds undergo thermal decomposition near or below their true m.p.

High erratic readings: Thermocouple malfunction or poor thermal contact. Check sensor placement and recalibrate.
