Collapsible Fuel Bladder Product

Overview

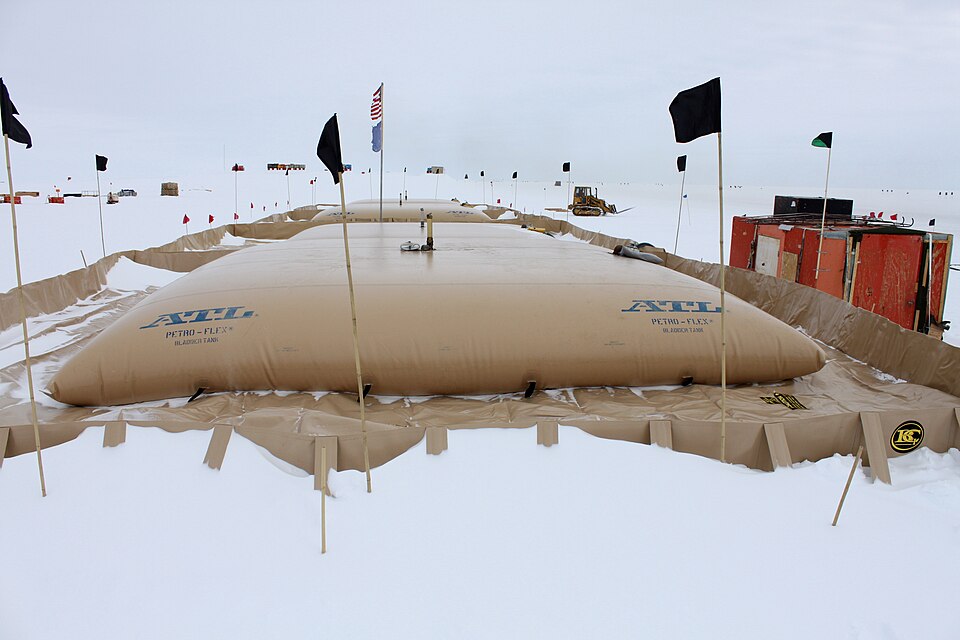

The Collapsible Fuel Bladder is a flexible fabric tank designed for temporary fuel storage in forward operating areas, support bases, and emergency fueling operations. Unlike rigid steel tanks that require heavy equipment to transport and install, the bladder collapses into a compact bundle when empty and expands during filling, allowing rapid deployment to remote locations via truck or helicopter.

The tank consists of a multi-ply coated polyester or polypropylene fabric envelope that forms the fuel-containing compartment. Hypalon or polyurethane elastomer coatings on the inner and outer surfaces provide impermeability to jet fuel and diesel; the coating also resists UV damage and thermal stress over years of outdoor exposure. All seams are heat-sealed and reinforced with tape to prevent micro-leakage. Eight brass or stainless corner grommets provide tie-down points for anchoring the bladder to a support frame.

The Support Frame is a collapsible steel or aluminum framework that holds the bladder off the ground and provides a containment basin beneath. The frame is constructed from standard pipe and fittings, allowing rapid assembly on-site using hand tools. The berm walls (corrugated steel or plastic sheets) form a secondary containment basin that can hold 100–110% of the tank capacity, meeting environmental regulations for spill prevention. A Berm Liner geomembrane HDPE tarp is placed beneath the bladder and covers the berm floor, adding another layer of spill containment.

The Fittings Manifold provides a fill port (threaded cap with integral screen), a drain valve (full-port ball valve for rapid evacuation), and a return line nipple for circulation. Pressure relief and air inlet valves maintain equilibrium as fuel is drawn: as fuel exits the tank, internal pressure would drop and collapse the bladder; the air inlet valve automatically opens, allowing atmospheric pressure to equalize the interior, preventing vacuum collapse. The relief valve cracks open if pressure rises slightly during refueling, allowing excess pressure to vent safely.

The Pump Assembly consists of a gear pump (driven by electric motor or PTO from a vehicle), a fuel filter, and a pressure regulator. This allows fuel to be transferred from the bladder to vehicles at a controlled rate (20 GPM typical), with automatic pressure regulation preventing overpressure in the receiving vehicle's fuel system.

How it works

Deployment begins with site selection: a level area with good drainage, located at least 50 meters from any ignition sources (motor pool, welding areas, command post). The Berm Liner geomembrane is spread on the ground and secured with stakes or sandbags at the perimeter. The Support Frame is assembled by bolting together the four main beams, installing eight vertical posts at 2-meter intervals, and welding or bolting corner fittings to ensure square geometry.

The Berm Wall corrugated panels are then installed vertically, forming a rectangular containment basin around the inside of the frame. The geomembrane is sealed at the corners and pulled up along the inside of the walls, creating a continuous impermeable basin. A sump pump connection (with drain valve) is installed at the lowest point to allow emergency water or spilled fuel removal.

The empty bladder fabric is carefully unfolded and positioned inside the berm, with corner grommets aligned to the frame corners. Tie-down straps are attached through the grommets and cinched to the frame, keeping the bladder centered and preventing it from bunching.

The Fittings Manifold is bolted to the top of the bladder at a corner, with the fill cap (screened) pointing upward. The drain valve is located at the lowest point to allow gravity drainage. The return nipple (quick-disconnect) is positioned for easy hose attachment.

Fuel delivery begins with a tanker truck positioned adjacent to the site. The Fuel Filter is pre-charged with fresh fuel, and the fill hose from the tanker is connected to the bladder's fill cap. Fuel begins flowing into the bladder at 20–30 GPM. As fuel enters, the bladder expands, conforming to the berm basin. A level gauge (simple sight tube or float gauge) is installed at the fill cap, allowing the operator to monitor fill level and stop before overflow.

As the bladder fills, internal pressure increases slightly. The Pressure Relief Valve opens at 0.5 psi, venting excess pressure to atmosphere through a vent tube, maintaining safe operating pressure. The Desiccant Cartridge in the breather absorbs water vapor, preventing rust or microbial growth inside the tank.

Once full, the fill hose is disconnected, and the bladder remains in place for several weeks, supplying refuel operations for vehicles. When a vehicle requires fuel, the Transfer Pump is started (powered by a portable electric generator or a truck PTO shaft). The pump draws fuel from the bladder through a suction line, passes it through the Fuel Filter (removing any sediment), and delivers it at regulated pressure (adjustable 5–30 psi) through the Supply Hose to the vehicle fuel inlet.

The Return Hose is also connected to the bladder, allowing the transfer pump to recirculate fuel continuously if a vehicle is not actively fueling. This keeps fuel mixed (preventing stratification) and helps maintain consistent temperature.

As fuel is drawn, the bladder collapses inward, minimizing the vapor space above the remaining fuel. This reduces fuel evaporation loss compared to rigid tanks, conserving fuel in hot climates. The Air Inlet Valve automatically opens during draw, allowing air to enter and prevent vacuum.

When the bladder is empty or when operations cease, the drain valve is opened fully, allowing gravity drainage into collection containers (typically 55-gallon drums). The empty bladder is then flattened, drained thoroughly, and either packed up for redeployment or sent to a fuel depot for cleaning and storage.

Design rationale

The fabric envelope design was selected over rigid steel tanks because it offers several advantages: light weight (empty bladder < 500 lbs even at 50,000 gallon capacity), compact stowage (a 50,000-gallon bladder packs into a bundle smaller than a car door), and no requirement for heavy lifting equipment. A rigid steel tank of equivalent capacity weighs 10,000+ lbs and requires a crane or flatbed to position.

The multi-ply coated fabric construction provides durability and redundancy: if an outer ply is punctured, the inner ply continues to contain fuel. The Hypalon coating resists fuel penetration, thermal cycling, and UV damage better than rubber or vinyl alone. Two coating layers (top and bottom) are essential: the bottom protects against ground contaminants, and the top resists weathering.

The heat-sealed seams (rather than stitched) prevent needle holes from perforating the fabric and creating leakage paths. Every seam is reinforced with additional tape to prevent catastrophic failure if the primary seam degrades. Field repair kits with pre-cut patches and contact cement allow minor holes to be sealed without removing the bladder.

The collapsible frame design (not permanent berming) allows the bladder system to be relocated or struck within 2–3 hours. The corrugated berm walls can be dismantled and transported on two trucks, making the system suitable for forward-deployed bases that may relocate monthly. The geomembrane liner adds secondary containment, meeting environmental standards that prohibit fuel spills into soil or groundwater.

The manifold design integrates fill, drain, return, and vent functions into a single assembly, reducing leak points and simplifying connections. Threaded ports allow future modifications (e.g., adding a flow meter or pressure gauge) without compromising the original design. Check valves prevent fuel from flowing backward if the pump pressure exceeds tank pressure.

The pressure relief valve is set at 0.5 psi (approximately 3.5 cm of water column), allowing safe venting without opening the fill cap violently. The desiccant breather prevents water vapor and microbial spores from entering the tank; military-grade diesel can form rust and biological slime if water is present, reducing fuel quality over weeks of storage.

The transfer pump and filter system allows fuel quality to be maintained: the 10-micron filter removes particulates that would clog vehicle fuel injectors or engines. The pressure regulator adjusts automatically based on vehicle demand, preventing overpressure that would rupture fuel lines or meters.

Operational considerations

Fuel bladders require careful handling to avoid punctures. Sharp vegetation, rocks, or equipment must be cleared from the installation site. If the bladder is set on concrete or asphalt, a plastic tarp is placed first to protect the bottom coating from abrasion. During filling or draining, the site is cordoned off and smoking is prohibited within 50 meters.

Temperature control is important. Diesel fuel expands about 0.1% per degree Celsius; in extreme heat, fuel level can rise above the planned fill level. Bladders are typically filled to 90% capacity to allow thermal expansion. In winter, fuel viscosity increases, requiring heating of the fuel (or the pump outlet) to ensure proper flow. Electric immersion heaters can be added to the pump discharge to warm fuel during cold-weather operations.

Water contamination is the primary failure mode for fuel quality. Condensation forms inside the tank as external temperature fluctuates; the desiccant breather absorbs most water vapor, but in very humid climates or after extended storage, free water can collect at the bottom. Field operators are trained to drain a small sample from the drain valve before each fuel delivery, checking for water (free water sinks to the bottom and appears darker/cloudy). If water is detected, the entire tank is drained and the fuel is transferred to a fuel purifier truck, which separates water and contaminants.

Bladder material degradation is accelerated by direct UV exposure. When not in active use, the bladder is covered with an opaque tarp (white or reflective) to reduce solar heating and UV penetration. Under ideal conditions (shaded, moderate temperature, dry environment), a bladder lasts 10–15 years. In harsh climates (intense UV, extreme temperature swings, sand/dust abrasion), lifespan may be 5–7 years.

Maintenance and field repair

Weekly inspections check for visible tears, seam separation, or ground contact. If a small tear (< 5 cm) is found, it is cleaned and patched using the Patch Kit: the area is lightly sanded, cleaned with solvent, the patch is applied with contact cement, and pressure is applied for 24 hours. Once cured, the patched area is tested by applying soapy water and confirming no bubbles (indicating a sealed patch).

Larger tears or seam separations require bladder removal and replacement. The fuel is drained completely, the bladder is removed from the berm, and it is sent to a fuel depot for repair or disposal. Replacement bladders are held in logistics supply and are swapped in place within 24 hours.

The Pressure Relief Valve and Air Inlet Valve are inspected monthly to ensure they open and close freely. Debris or salt crystals can lodge in the valve spools, preventing operation. If stuck, the valves are soaked in solvent, cleaned, and retested. Any valve that fails to function is replaced.

The Desiccant Cartridge is replaced every 6 months or whenever the silica gel color changes from blue to pink (indicating saturation). Replacement takes 10 minutes and prevents water vapor ingress.

Berm walls and liners are inspected seasonally for rust (steel walls) or punctures (plastic liner). Rust spots are painted with mil-spec epoxy; punctured liners are patched or replaced in section. Corner anchors are checked annually to ensure they are not corroding and that tie-down straps are not slack.

The transfer pump and filter require servicing every 200 operating hours: the filter cartridge is replaced, the pump is drained and refilled with fresh hydraulic oil, and all hose connections are tightened. Any hose showing cracks or weeping is replaced before re-entering service.
