Mobile Archive Shelving Product

Overview

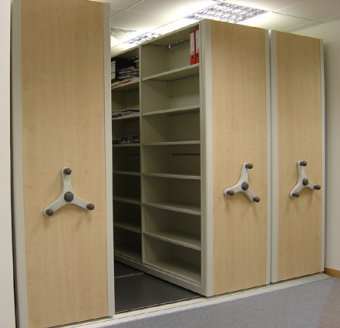

Mobile archive shelving (also called "compact shelving" or "high-density shelving") is a motorized or mechanical-assist storage system that dramatically increases document storage capacity in a fixed floor footprint. Unlike traditional fixed shelving with permanent aisles between each row, mobile shelving comprises multiple rows of shelves mounted on motorized carriages that roll on fixed rails, compressing aisles together when not in use.

A typical installation increases storage density by 50–85% compared to static shelving, allowing libraries, archives, and offices to fit 10 rows of shelves in the same space that previously held 5–6 rows.

System Architecture

The system consists of:

• Fixed Fixed Rail & Track steel rails anchored to the floor
• 4–8 Motorized Carriage Unit motorized units, each supporting a Shelf Bay Assembly of shelving
• Central Drive & Belt/Chain central motor with belt or chain transmission
• Control Interface for opening/closing sequences
• Safety Sensor & Interlock sensor network preventing collisions

At rest, carriages are pushed together side-by-side, eliminating aisles. To access a specific row, an operator uses the Control Interface to command the Central Drive Motor, which drives the Drive Transmission. All carriages move synchronized, parting to open a 900 mm aisle at the desired location.

Rail System & Guidance

The Fixed Rail & Track comprises structural steel I-beams (200 mm depth) running the full length of the installation, bolted to concrete with Foundation Anchor Bolt wedge anchors. The rails are precisely leveled to ±5 mm over 10 meters—any deviation causes carriage binding.

Each Motorized Carriage Unit sits on Polyurethane Wheel polyurethane wheels (125 mm diameter) rolling on the rails. Linear Bearing Block precision blocks reduce friction. Anti-Tip Guide Shoe anti-tip shoes mounted high prevent the carriage from rotating outward under load.

Motorized Drive System

The Central Drive Motor (0.5–2.0 kW depending on carriage count and load) drives a Drive Transmission—typically a heavy-duty roller chain or timing belt running the full width of the system. Each Motorized Carriage Unit has a Rack-Engagement Wheel (pinion or sprocket) engaging this central transmission.

When the motor rotates, the transmission drives all carriages in parallel, synchronized by mechanical coupling. The Position Encoder on the motor shaft provides position feedback to the PLC Controller, enabling precise carriage positioning (±10 mm accuracy).

Speed is adjustable via a Variable Frequency Drive (VFD) on the motor, typically 0.1–0.3 m/s. Slow speed reduces impact forces when carriages meet and reduces pinch hazards.

Mechanical-Assist Alternative

Some systems (especially in cost-conscious libraries) use mechanical-assist rather than full motorization. A manual Rack-Engagement Wheel engages the transmission; an operator applies hand force to a crank or lever, moving all carriages uniformly. A friction brake holds the position when released.

Mechanical-assist systems reduce upfront cost (no motor, VFD, PLC) but increase operator fatigue—moving a carriage row with 1500 kg load requires sustained 50–100 lbf force. These are practical for small installations (2–3 carriages) but impractical at scale.

Safety Interlocks

The Safety Sensor & Interlock sensor system is critical. Multiple IR Proximity Sensor infrared sensors are positioned on carriage edges at various heights, detecting obstacles (people, equipment, stored items protruding beyond shelf bounds).

If a carriage is closing an aisle (moving toward another carriage) and an IR sensor detects an obstruction, the Relay Safety Module immediately cuts motor power, halting the carriage in <2 seconds. A Panic Button panic button anywhere in the aisle provides manual emergency stop.

Failure to have proper sensors can result in catastrophic pinch injuries; modern systems are legally required to meet CE or ANSI standards for pinch-point safety.

Shelf & Load Specification

Each Shelf Bay Assembly is a welded steel frame 900 mm wide and 2.0–2.5 meters tall. Shelf Panel individual shelves are rated for 300 kg uniformly distributed (or 1200+ lbf per shelf).

A typical 6-shelf bay holds 1500–1800 kg total load. Most archive materials (books, paper boxes, legal records) at typical density (0.4–0.8 kg per shelf meter) are well within load limits.

Shelf Divider vertical dividers prevent horizontal item migration when the carriage accelerates or decelerates. Without dividers, items can slide sideways during motion.

Access Workflow

A researcher requests a document from, say, carriage row 7. The operator enters "7" on the Control Interface, and the system automatically:

1. Records the current open aisle position
2. Closes the current aisle (all carriages move together)
3. Opens aisle 7 (carriages move to create an opening at row 7)

The entire process takes 30–90 seconds depending on carriage count and motor speed. Once the aisle is open, the researcher retrieves the document.

Afterward, the operator can close the aisle (returning to dense packing) or, if frequent access is expected, leave it open.

Installation & Floor Requirements

Installation requires a flat, level concrete floor rated for point loads (wheel bearing loads are concentrated). A typical installation with 8 carriages at 2000 kg each exerts roughly 500 kg per wheel; wheels are 125 mm diameter, yielding contact pressures of 2–4 MPa, acceptable on concrete above 3000 psi strength.

The Foundation & Anchoring and Foundation Anchor Bolt wedge anchors bolt through floor slab. Installation typically requires 2–4 days for a small library (4–6 carriages) and 1–2 weeks for large installations (20+ carriages).

After installation, the rails must be aligned within ±5 mm over 10 meters. Alignment is checked with laser theodolites and adjusted via shims under rail supports.

Power & Environmental Sensitivity

Motorized systems require three-phase 400V or single-phase 230V power. A soft-starter limits motor in-rush current, preventing breaker nuisance trips.

The system is sensitive to floor debris (fine dust, paper scraps) in the rail groove, causing friction increase and potential carriage binding. Periodic (monthly) vacuuming of rail grooves is standard maintenance.

Humidity is less critical than in computer rooms (no electronics in the carriage); systems operate reliably in 30–90% RH.

Cost & ROI

A motorized compact shelving installation costs $200–500 per installed shelf (depending on automation and local labor). A traditional filing cabinet costs $500–800 per unit; compact shelving is cheaper per usable storage area.

For a 5000 square-foot library, compact shelving can provide the storage density of 8000–10,000 sq ft of traditional shelving, paying for itself in 3–5 years through deferred facility expansion costs.

Modern Trends

Newer systems integrate RFID or barcode tracking on Shelf Bay Assembly shelves, logging item location and supporting inventory management. Computer-controlled systems enable automatic sequencing of carriage positions to optimize retrieval order during batch digitization.

Some high-tech installations add item-level security (RFID gates) at aisle entrances, preventing unauthorized removal while aisles are open.
