Mobile Surveillance Trailer Product

Overview

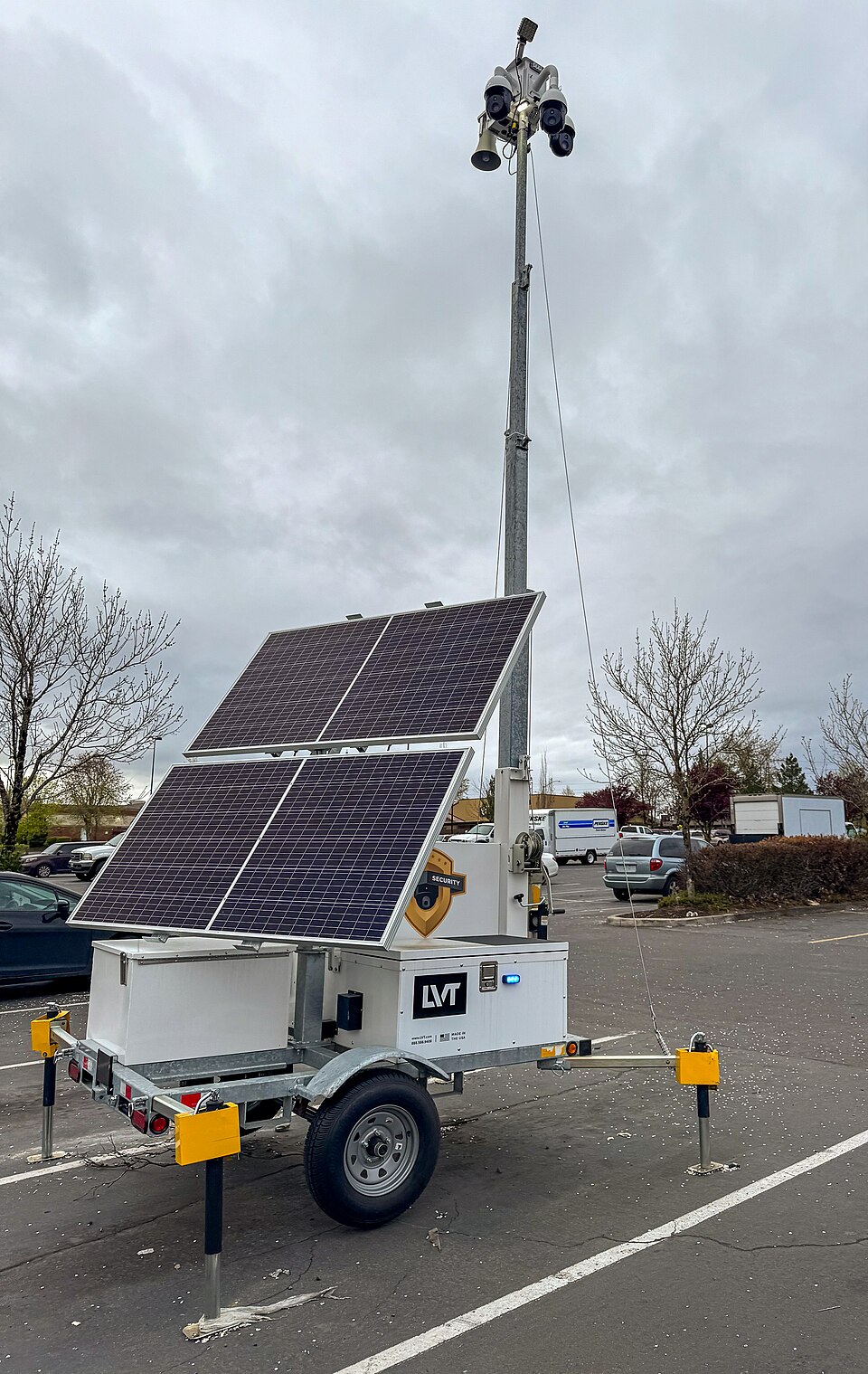

Mobile surveillance trailers are towed or self-propelled platforms mounting high-resolution PTZ (pan-tilt-zoom) cameras and thermal imagers on motorized telescoping masts. They provide persistent aerial-equivalent observation from ground level, enabling real-time situational awareness across large geographic areas during military operations, law enforcement incident response, or disaster assessment.

Typical missions:

• Military field operations: Tactical observation of objective area; commander situational awareness from 10 km distance.
• Law enforcement: Siege/barricade situations (bank robbery, hostage standoff); real-time observation of suspect location and movements.
• Disaster response: Hurricane/flood damage assessment; observe inaccessible areas via thermal imaging.
• Border patrol: Monitor high-traffic crossing areas 24/7 with crew rotation.

A single trailer costs $500k–1M depending on camera quality and power system specification. Operating costs (fuel, maintenance, staffing) run $50k–100k per deployment (2–4 weeks typical mission).

Observation Capabilities

PTZ Camera Coverage

The [[mobile-surveillance-trailer-ptz-camera|1080p+ PTZ camera]] offers:

• 30× optical zoom: Identifies human faces from 500 m distance; read vehicle license plates from 300 m.
• Motorized pan/tilt: ±180° azimuth (full rotation), ±90° elevation (up/down), enabling rapid target acquisition.
• Auto-focus: Continuous focus tracking ensures sharp images even when target moves.
• Slew rate: ~5°/second maximum pan/tilt speed; typical repositioning (80° pan, 45° tilt) takes 20–30 seconds.

Coverage area: From 15 m mast height with 30× zoom, observer can identify targets across ~5 km² area (depending on horizon obstruction and lighting).

Thermal Imaging Advantage

The [[mobile-surveillance-trailer-thermal-camera|thermal camera]] detects objects by heat signature, not visible light. Advantages:

• Night operation: Thermal imaging works in complete darkness (no moon, no artificial light). Visible camera requires moonlight or spotlight to function.
• Through obscuration: Smoke, dust, light rain partially attenuate thermal signatures but are less opaque than to visible light.
• Concealment detection: Heat signatures reveal hidden personnel (body temperature ~37 °C vs. ambient ~20 °C creates 17 °C contrast). A person hidden behind vegetation or temporary wall is visible thermally.

Sensitivity: <50 mK NEDT (noise-equivalent temperature difference) means the thermal camera can detect a human-sized target (0.5 m²) at 2 km range with reasonable temperature differential.

Limitations:

• Thermal camouflage: Sophisticated operators wear aluminized reflective suits that bounce thermal radiation away; this is rare in law enforcement contexts but common in military counter-surveillance.
• Steady-state problem: If ambient temperature equals target temperature (e.g., sunny afternoon, person standing in direct sun on hot asphalt), thermal contrast is minimal.

System Architecture

Autonomous Power Management

The [[mobile-surveillance-trailer-power-system|hybrid power system]] enables 24/7 operation without grid connection:

Energy balance:

• Demand: Mast motor (2 kW during extension, brief), PTZ camera servo motors (200 W), thermal camera processor (100 W), video recording server (~500 W), HVAC (2 kW), lighting (<500 W). Peak load ~5 kW during camera slewing; idle load ~1.5 kW.
• Solar supply: 4.8 kW peak solar output × 4 hours average daily sun = 19 kWh/day (seasonal variance: 12–30 kWh/day).
• Battery reserve: 9.6 kWh lithium LiFePO4 pack.

With solar alone, system is sustainable at average 1.5 kW continuous load. Diesel genset provides backup for nighttime operation or peak demand periods.

Operating cost: Fuel consumption ~15 L diesel/day at full operational tempo; ~$60/day in fuel (prices vary). Maintenance scheduled every 1000 operating hours (genset, vehicle engine).

Video Processing & Storage

The [[mobile-surveillance-trailer-video-server|onboard NVR]] records video 24/7:

• Compression: H.265 codec (HEVC) at 8 Mbps produces ~3.6 GB/hour of video. 10 TB SSD storage holds ~2800 hours = 117 days of continuous video.
• On-site analytics: GPU-accelerated CNN models running locally detect moving targets, classify vehicle types (car, truck, motorcycle), and flag suspicious activities (loitering, weapons, running).
• Cloud uplink: Selected high-priority clips are compressed further (H.265 @ 2 Mbps) and transmitted to command center via 4G LTE uplink.

Advantage of local processing: Real-time alerting (anomaly detected → operator notified within <1 second) without relying on uplink bandwidth or cloud latency.

Mast Stabilization & Operator Control

The [[mobile-surveillance-trailer-telescoping-mast|motorized mast]] extends to 10–15 m in <5 minutes. Stabilization is critical—wind and trailer vibration cause camera shake (blurring images). Mitigation:

• Outrigger legs: Hydraulic legs extend from trailer base, lifting rear wheels off ground. Improves stability by 10–20×.
• Guy-wires: Steel cables from mast top to ground anchors (4 points radial) tension to ~5 kN each. Resists lateral mast sway.
• Gimbal stabilizer: Mechanical two-axis gimbal on camera mount compensates for residual trailer movement.

With all stabilization active, camera shake is reduced to <0.1 degrees peak, acceptable for video at 30× zoom.

Deployment & Field Operations

Setup Workflow

1. Site selection: Choose elevated location overlooking objective area; clear line of sight (no obstructing buildings or vegetation).
2. Vehicle positioning: Park trailer at selected site; apply parking brakes, unhitch from tow vehicle.
3. Mast deployment: Extend hydraulic outrigger legs; lift trailer wheels off ground. Activate mast motor; extends in 2–3 minute stages (safety pauses for stability check). Guy-wires are tensioned by ground crew.
4. Power startup: Start diesel genset (if daylight solar insufficient); verify battery charging.
5. Camera initialization: Boot NVR computer; initialize PTZ and thermal cameras; verify video streaming.
6. Crew briefing: Operators are briefed on observation priorities, target descriptions, and communication protocols.
7. Continuous operation: Operators maintain surveillance 24/7 with 4–6 hour crew rotations.

Total setup time: 2–4 hours including site reconnaissance and communications initialization.

Operational Scenarios

Scenario 1: Barricaded Suspect

Law enforcement surrounds a building where a dangerous suspect has barricaded. Trailer deployed 500 m away from building.

• PTZ camera: Provides real-time video of building exterior, windows, doors. Helps commanders identify suspect location (visible at window, or thermal signature inside building).
• Thermal camera: At night, thermal imaging reveals human heat signatures inside building (through windows, thin walls). Helps negotiate team understand how many occupants and where they are positioned.
• Live stream: Video is transmitted to command post and incident commander's tablet in real-time.

Scenario 2: Search & Rescue (Disaster Area)

Hurricane has destroyed town; many residents are missing. Thermal trailer deployed to scan rubble and wooded areas for stranded survivors.

• Thermal imaging: Human heat signatures stand out against cold debris or vegetation. Survivors who are unconscious/immobile are still detectable by thermal signature (if not buried under heavy rubble).
• Grid search: Operators systematically sweep thermal camera across search area in overlapping scans.
• Rapid coordination: When thermal signature is detected, GPS location is recorded; rescue team is guided to site via radio.

Remote Video Transmission

Bandwidth-Limited Uplink

In field deployments, cellular uplink may be slow (2–10 Mbps typical 4G LTE in rural areas). Streaming full 1080p @ 8 Mbps video in real-time would saturate link. Mitigation:

• Adaptive bitrate: Server monitors uplink bandwidth; compresses video in real-time. If bandwidth drops to 3 Mbps, system automatically switches from H.264 8 Mbps to H.265 4 Mbps (perceptual quality ~equivalent).
• Keyframe optimization: Reduce keyframe interval (every 30 frames vs. every 60 frames) to minimize latency, at cost of slightly larger bitstream.
• Selective transmission: Only selected regions of interest are streamed in high fidelity; rest of frame is transmitted at lower resolution.

With these techniques, useful video (resolution sufficient to identify faces, vehicle plates) can be transmitted over 2–3 Mbps uplink.

Maintenance & Field Service

Daily Pre-Operation Checklist

• Mast operation: Extend and retract mast fully; listen for unusual grinding sounds indicating bearing wear.
• Camera functionality: Pan/tilt through full range (±180° pan, ±90° tilt); check for stalls or jerky movement.
• Thermal imaging: Verify thermal image is clear and centered; run automatic shuttering/calibration.
• Power system: Check battery voltage (should be 48 ±2 VDC); diesel genset starts cleanly.
• Communications: Verify 4G modem connection; test transmission of test video to command post.
• Storage: Verify NVR has available disk space (>500 GB free).

Scheduled Maintenance

• Every 100 operating hours: Oil change on diesel genset.
• Every 500 hours: Inspect vehicle brake pads, tire pressures, hydraulic hose condition.
• Every 1000 hours: Recalibrate mast levelness (settlement may shift alignment); replace hydraulic fluid.
• Every 2 years: Full thermal camera calibration (contrast and gain adjustment); replace lithium battery (degradation after 3–5 years).

Annual service cost: $15k–25k (labor + parts).

Standards & Regulatory

• FCC Part 15: RF emissions compliance (4G modem, microwave radio).
• FAA Part 77: Airspace notification for tall mast (>50 feet above ground).
• NTSB: Safety standards for towed vehicle operation.
• NATO AAP-5: Allied tactical doctrine for surveillance systems.

Performance Metrics

• Mast deployment time: <5 minutes to full height.
• PTZ slew rate: ~5°/second (typical target reposition: 20–30 seconds).
• Video transmission latency: <2 seconds end-to-end (capture → encode → transmit → display).
• Thermal detection range: 2 km for human-sized target (0.5 m²).
• System uptime: 99%+ (downtime mostly weather-related or genset maintenance).

Economics

Capital cost: $500k–1M (mast, cameras, power system, trailer, electronics). Operating cost per deployment: $50k–100k per month (fuel, maintenance, crew salaries estimated separately). ROI: For law enforcement, typically 2–4 years (compared to helicopter rental at $5k/hour × 100+ hours per major incident).
