Model Rocket Kit

Overview

A model rocket is a small single-stage aerospace vehicle used for sport, education, and STEM outreach. It operates on a simple physics principle: a solid-fuel motor at the base burns for 1–3 seconds, accelerating the rocket to apogee in 5–15 seconds, then deploys a parachute for safe recovery. The rocket is fundamentally a lightweight airframe with four major subsystems: thrust (the Motor Mount), structure (the Body Tube), stability (the Fin Assembly), and recovery (the Recovery System).

The Body Tube is a cardboard tube, typically 20–30 mm in diameter and 30–40 cm long. At its nose sits the Nose Cone, a streamlined tip that reduces drag and houses the avionics bay. The Fin Assembly consists of three or four fins mounted to the rear body, providing aerodynamic stability by moving the center of pressure behind the center of mass. At the base, the Motor Mount holds the solid fuel motor.

How it works

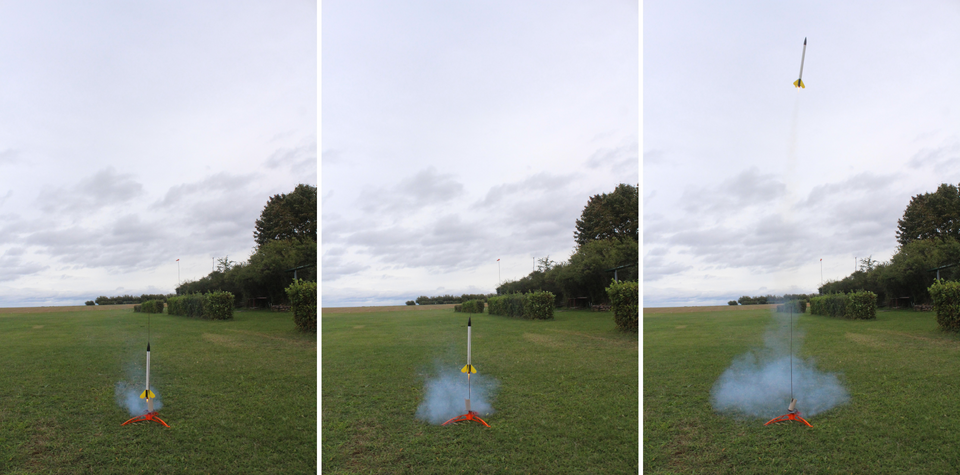

The flight sequence begins at launch. The Igniters are connected to a launch controller, an electric system that sends current through nichrome wire embedded in each igniter's pyrotechnic material. This heat ignites the motor's solid propellant (ammonium perchlorate, aluminum powder, and a binder), which burns at 2,000–3,000 K.

Combustion products exit the Motor Tube as a high-velocity jet, creating thrust. By Newton's third law, the motor pushes the rocket upward against gravity. The Fin Assembly stabilizes the trajectory, keeping the nose pointed forward. As the motor burns, the rocket accelerates; once the fuel is consumed, the rocket coasts upward under inertia, reaching apogee when vertical velocity becomes zero.

At apogee, the Ejection Charge, a timed pyrotechnic charge inside the motor, fires. Its explosion is contained by the Motor Tube, so the pressure pulse separates the Nose Cone from the Body Tube. The Shock Cord, which links the nose cone to the body, becomes taut and pulls the Parachute out of the Deployment Bag. As the parachute inflates, drag increases dramatically, and the rocket's descent rate drops from ~60 m/s (free-fall) to 4–6 m/s (under chute). The rocket lands softly, and the avionics bay inside the nose cone (often carrying an altimeter or camera) is recovered intact.

The Launch Lug is a small tube glued to the airframe body. On the launch pad, this lug slides over a rigid rail or rod. The rod prevents the rocket from tipping sideways during the first few centimetres of flight, when thrust is being applied but vertical velocity is still very small. Once the rocket is moving fast enough for the fins to provide directional stability, the friction in the lug releases and the rocket climbs free.

Design and regulations

Model rockets are classified by motor impulse (Total Impulse in Newton-seconds). In most countries, motors producing up to 320 N·s are unregulated consumer items; launches require an open field away from obstacles and spectators. The National Association for Rocketry and similar bodies publish safety codes. Recovery is mandatory, falling objects can injure. The Parachute must deploy reliably and be sized so that impact velocity is less than 10 m/s.

Materials are chosen for light weight and simplicity. The Body Tube is paper or cardboard because it is cheap, easy to machine, and provides good strength-to-weight. The Fin Assembly is typically balsa wood (for scratch-building) or plastic (for kits), both offering low density and easy shaping. The Nose Cone may be turned plastic or shaped foam, protecting the avionics bay and reducing aerodynamic heating.

Experienced modelers add altimeters and GPS trackers to the avionics bay, allowing precise measurement of apogee and recovery of the rocket if wind carries it far downrange. Competition classes exist for altitude, duration aloft, payload recovery, and multiple-stage designs.
