Model Train Set Product

Overview

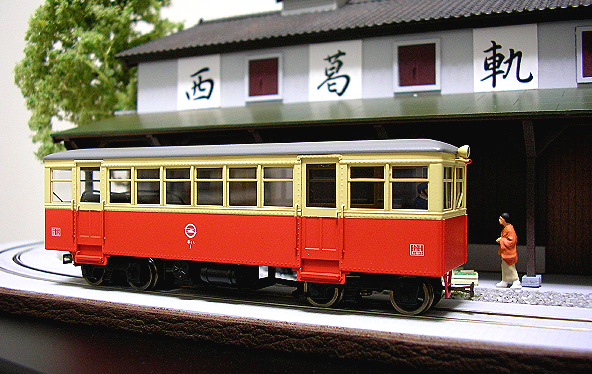

The model-train-set is a digital hobby layout featuring a motorized locomotive that can be independently controlled alongside other trains on the same track. Unlike older analog train sets where track voltage directly controls motor speed, this set uses DCC (Digital Command Control): a data signal encoded in the rails allows each locomotive to receive unique address commands and control signals from a [[model-train-set-power|command station]]. A [[model-train-set-locomotive|motorized engine]] with a [[model-train-set-decoder|DCC receiver decoder]] interprets commands and drives its [[model-train-set-motor-bogie|powered wheel set]]. Unpowered [[model-train-set-cars|freight and passenger cars]] couple behind the engine in a train consist. Motorized [[model-train-set-switches|track switches]] allow routing trains to different branch lines, enabling complex operating scenarios.

How it works

The [[model-train-set-power|power supply]] steps down mains voltage to 12 V AC and rectifies it to 12 V DC. This [[model-train-set-power|DCC signal]] is injected into the two rails by the [[model-train-set-command-station|command station]], which encodes locomotive address and speed/direction commands as a digital packet train at 9.6 kBaud. All [[model-train-set-decoder|decoders]] on the layout listen constantly; when a [[model-train-set-decoder|decoder]] hears its own address, it decodes the speed and direction data and commands its [[model-train-set-motor|drive motor]] via pulse-width modulation (PWM), accelerating or reversing as required.

The [[model-train-set-locomotive|locomotive wheel set]] makes electrical contact with both rails via the [[model-train-set-pantograph|pickup shoes]]. As the locomotive moves forward, the front wheels roll on the rails; the [[model-train-set-coupler|coupler]] on the locomotive's rear links to the front coupler of the first [[model-train-set-cars|car]], which is similarly mechanically coupled to the next car. The entire consist (locomotive + cars) moves as a unit along the [[model-train-set-track|track]].

[[model-train-set-switches|Motorized turnouts]] (switches) can be set to one of two routes. When a train encounters a switch set to the branch line, the [[model-train-set-switch-rails|point rails]] are moved, diverting the train onto the alternate track. The [[model-train-set-command-station|command station]] controls which switch is thrown and when, enabling automatic or manual routing.

Functions (lights, sounds, uncoupler magnets) are triggered via function outputs from the [[model-train-set-decoder|decoder]]. Function Button 0 controls headlights; F1 controls ditch lights or rear lights; F2 might trigger a horn; F3 activates an uncoupler magnet beneath the locomotive to drop cars on a siding. The [[model-train-set-function-relay|function relay]] switches 12 V accessory circuits based on decoder outputs.

Track and electrical design

The [[model-train-set-track|track]] consists of sectional [[model-train-set-rail-sections|steel rail sections]] joined with [[model-train-set-rail-sections|joiners]]. Both rails are electrically continuous; DCC voltage appears on rail 1 and rail 2, with the data encoded as the differential voltage between them. The [[model-train-set-ties|crossties]] are wooden or plastic and do not conduct electricity; they simply hold the rails at gauge distance.

The [[model-train-set-ballast|layout base]] is a plywood sheet upon which [[model-train-set-roadbed|cork or foam underlayment]] is glued, dampening wheel vibration and noise. The track is pinned or spiked to the roadbed, keeping it rigid.

Control and operation

A handheld throttle, part of the [[model-train-set-command-station|command station]], has a keypad where the operator selects locomotive address (e.g., 42), then uses a slider to set speed (0–28 steps forward or reverse). Pressing function buttons triggers decoder functions. The command station encodes the address and speed into the DCC packet and injects it into the rails continuously. All [[model-train-set-decoder|decoders]] check if the address matches; if it does, they execute the speed command.

Most command stations can control multiple locomotives simultaneously: address 42 at speed 15 forward while address 77 moves at speed 8 reverse on the same track. This multi-train capability is the primary advantage of DCC over traditional analog control.

Scenery and detail

The [[model-train-set-ballast|plywood base]] and [[model-train-set-scenery-foam|foam terrain]] can be shaped and painted to represent mountains, rivers, and plains. [[model-train-set-accessories|Scenic structures]] (buildings, trees) and [[model-train-set-signals|LED-lit block signals]] add realism. Signals can be wired to respond to train presence via occupancy detectors, stopping a train at a red light automatically.

Some advanced layouts integrate computer control via USB interfaces, allowing operators to program automatic train routes and timing (e.g., "at 14:30, send train 42 from yard to main line, hold for 2 minutes, then switch to branch B"). This appeals to prototype railroads where operators simulate real railroad dispatcher logic.

Scales and variants

HO (1:87) is the most common scale, with the widest selection of locomotives, cars, and scenery available. N scale (1:160) fits in smaller spaces and is more portable; Z scale (1:220) is more compact still but requires steady hands during assembly. O scale (1:48) is large and requires more space but offers excellent detail and is popular with collectors.

Maintenance and durability

Wheels periodically accumulate dirt from track and layout surfaces; cleaning with a dry cloth or dedicated track cleaner restores electrical contact. The [[model-train-set-motor|locomotive motor]] can be lubricated with light machine oil (one drop on bearing races) to reduce friction; over-lubrication attracts dust. [[model-train-set-coupler|Couplers]] may require adjustment (bending the latch arm) if trains separate unexpectedly. [[model-train-set-decoder|Decoders]] are solid-state and largely maintenance-free; some older decoders may require periodic re-programming if configuration is lost.

Cost and complexity

A basic starter set with locomotive, three cars, oval track loop, and command station costs $150–300. Expanding layouts with additional locomotives, cars, track, and scenery can escalate to $1,000+ for competitive layouts or historical reproductions. The hobby attracts both casual players and serious prototype modelers who spend years building and detailing historically accurate railroads.
