Molecular Sieve Dehydrator Product

Overview

Molecular sieve dehydrators remove residual water from [[beer-still-column|ethanol distillate]], converting 90–95% ethanol to fuel-grade absolute ethanol (99.5%+). Traditional azeotropic distillation cannot break the 95% ethanol-5% water azeotrope (lowest-boiling mixture at constant composition). Adsorption onto zeolite 3A (a porous aluminosilicate with 3 Å pores) is selective for water over ethanol: pores are small enough to exclude ethanol molecules (>4 Å) but admit water (1.65 Å), achieving near-complete drying.

How it Works

Feed ethanol (90–95% pure from Distillation Column (Beer Still)) is pumped at 6–10 bar through the first [[molecular-sieve-dehydrator-adsorber-vessels|zeolite bed]]. Water molecules preferentially diffuse into the zeolite micropores, while ethanol passes through. Product exits at 99.5–99.9% ethanol. Simultaneously, the second adsorber is heated (150–200 °C) offline, driving absorbed water from saturated zeolite as steam. This regeneration water vapor is condensed in the [[molecular-sieve-dehydrator-water-trap|water removal system]].

The two vessels operate in a cycle: while one adsorbs feed, the other regenerates. After ~6–8 hours, they swap roles. This alternating twin-bed design ensures continuous product availability and efficient energy use—only one heater is active at any time.

Zeolite Chemistry

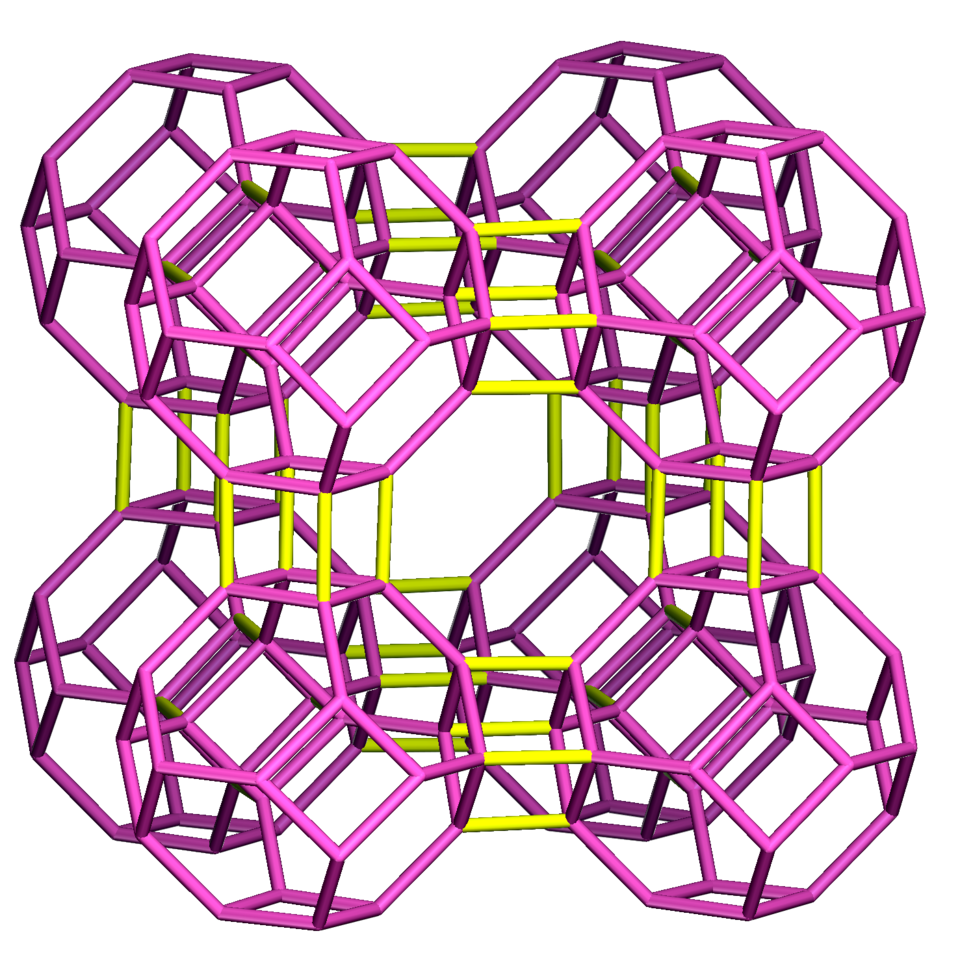

3A molecular sieve is a synthetic zeolite (Type A, silica/alumina framework with cavity diameter 3 Å). Unlike larger pores in 4A or 5A zeolites, 3A pores are sized to pass water (kinetic diameter 2.65 Å) but exclude ethanol (2.8 Å kinetic diameter). This size selectivity is the basis of separation.

Adsorption is a physical process (van der Waals forces and hydrogen bonding), not chemical: water molecules stick to the zeolite surface and enter pores, accumulating to 5–6 wt% saturation (i.e., a 200 L bed holds ~10 kg water at saturation). Regeneration applies heat (150–200 °C), breaking hydrogen bonds and enabling water molecules to exit as vapor—desorption.

Cycle Operation

Adsorption Phase (3–4 hours):

• Feed valve opens, pump circulates ethanol through the adsorber at 50 L/h.
• Water content in product drops from 2–5% (feed) to <100 ppm (99.9% ethanol).
• Pressure drop across the bed rises gradually from ~2 bar to ~5 bar as pores fill.
• When dP reaches setpoint or water breakthrough occurs (detected by [[molecular-sieve-dehydrator-water-analyzer|Karl Fischer]], adsorption is complete.

Regeneration Phase (2–4 hours):

• Feed is diverted to the standby vessel; adsorber is isolated.
• Heater jacket is filled with hot oil or steam (150–180 °C).
• As zeolite heats, absorbed water evaporates as steam.
• Steam is condensed in the [[molecular-sieve-dehydrator-cooler-coil|cooler coil]] and collected in the Separator Tank.
• When zeolite temperature stabilizes and no more water is released (no condensate), regeneration is complete.
• Adsorber cools to ambient; cycle repeats with vessel roles swapped.

Performance Metrics

Water Loading: A 200 L bed saturates at ~10 kg water (assuming 5 wt% capacity). To dry 100 L of feed from 3% to 0.1% water requires removing ~3 kg water, achievable in one 6–8 hour cycle.

Regeneration Temperature: 150 °C is the minimum practical temperature; above 200 °C zeolite degrades. Optimal is 160–180 °C, balancing regeneration speed against energy cost.

Pressure Impact: Higher inlet pressure (10 bar vs 6 bar) increases adsorption driving force, loading water faster but requiring more pump power. Most designs operate 6–8 bar as a compromise.

Practical Considerations

Bed Plugging: If feed contains particles or ethanol degradation products (aldehydes, ketones that polymerize on zeolite), the bed can clog and pressure rises uncontrollably. Upstream [[molecular-sieve-dehydrator-inlet-filter|filtration]] and feed polishing are essential.

Zeolite Lifetime: Under normal operation, zeolite degrades after 3–5 years due to thermal stress and trace contaminants (copper, iron) that catalyze side reactions. Replacement is routine maintenance.

Regeneration Efficiency: Incomplete regeneration (inadequate temperature or short heating time) leaves residual water, reducing next-cycle capacity. PLC-controlled temperature ramps ensure thorough regeneration.

Product Blend: Product from the outlet may still contain trace ethanol vapors. These are typically condensed and recycled back to Distillation Column (Beer Still).

Integration

Distillation Column (Beer Still) (90–95% ethanol) → Molecular Sieve Dehydrator (99.5%+ absolute ethanol) → final product (fuel-grade or neutral spirits).

Some plants skip the dehydrator if 95% ethanol is acceptable (e.g., for industrial fuel applications); others employ it as a final polishing step for beverage or chemical-grade product.

Energy Consumption

• Adsorption phase: Pump power ~2 kW continuous.
• Regeneration phase: Heater power 10–15 kW for 3–4 hours (30–60 kWh per cycle).
• Total energy: ~40–80 kWh per 100 L dehydrated ethanol, depending on feed water content.

This is similar to or slightly lower than the energy cost of azeotropic distillation, making PSA economically attractive for small-to-medium operations.

Comparison to Azeotropic Distillation

Azeotropic distillation uses a third liquid (e.g., benzene or ethylene glycol) to break the ethanol-water azeotrope, requiring a second distillation column. PSA is simpler, lower-energy, and avoids organic solvent residue. However, PSA units are sensitive to contaminants and require more frequent maintenance than distillation.
