Mountaineering Crampons Product

Overview

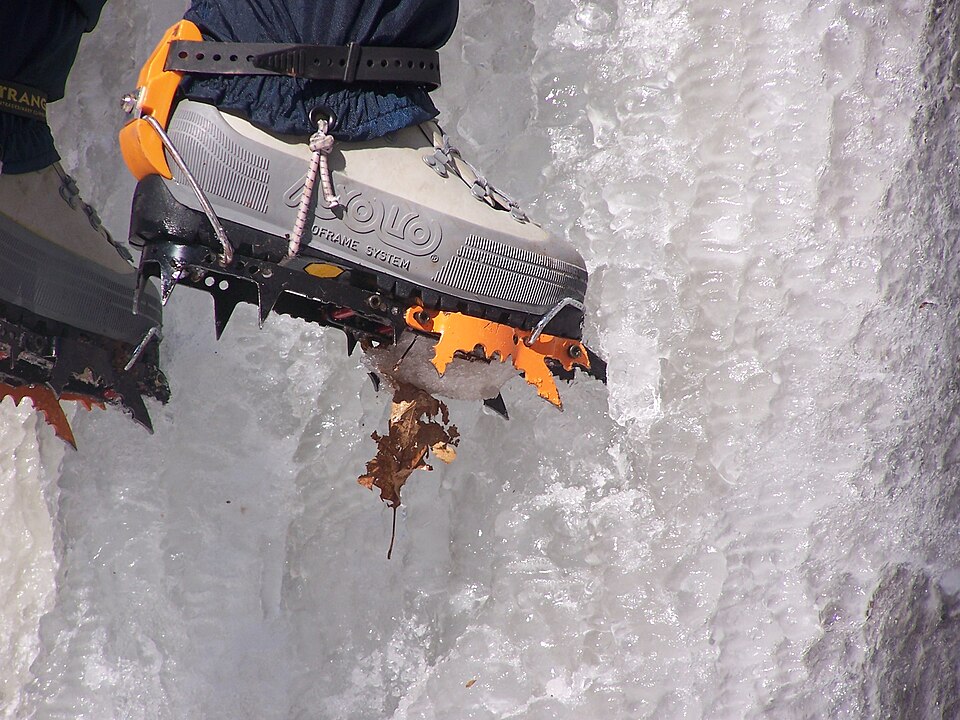

Mountaineering crampons are a framework of sharpened steel points strapped to a climber's boot, enabling secure footing on ice, hard snow, and mixed alpine terrain. The device consists of a front section with 4 vertical points for ice climbing and front-pointing, and a rear section with downward and lateral points for edge technique and traversing. Modern crampons use lightweight aluminum frames with replaceable hardened steel points, achieving a balance between weight reduction and durability.

Crampons are essential equipment for alpine mountaineering, ice climbing, and mixed rock/ice ascents where other footwear and climbing techniques are insufficient. A climber can front-point (using the two big-toe points directly into an ice slope) or edge-climb (using the lateral and rear points by tilting the boot outward), adapting to the steepness and condition of the terrain.

Frame Architecture

Front Section

The [[mountaineering-crampons-front-points|front points assembly]] consists of four hardened steel points projecting vertically (or at a slight upward angle, typically 60–75 degrees from horizontal) beneath the toe box. These points are typically arranged in a 2×2 pattern: two larger primary points beneath the big toe and first metatarsal, and two smaller secondary points beneath the third and fourth toes.

The four front points are mounted on a [[mountaineering-crampons-point-block|point block]], a rigid steel or aluminum billet welded to the front of the main [[mountaineering-crampons-frame-structure|frame structure]]. This concentrated arrangement minimizes the footprint of the front-pointing zone, allowing the climber to place the two primary points (each 5 mm diameter) directly into an ice slope with high precision.

When front-pointing, the climber swings the foot upward to drive the two primary points into the ice, then transfers body weight. The points displace roughly their own volume of ice, creating a secure hold even in blue ice (compressed, dense glacier ice) or neve (transitional hard snow).

Rear Section

The [[mountaineering-crampons-rear-frame|rear frame]] contains 6–10 hardened steel points arranged in a rectangular pattern: typically two or four downward-pointing teeth beneath the heel and midfoot (for traversing and climbing vertically while maintaining hip proximity to the slope), and 2–4 lateral-pointing teeth on the outside edge of the boot (for edge technique).

The rear section is connected to the front frame via a [[mountaineering-crampons-rear-connector|ball joint or hinged connector]] that allows 10–20 degrees of flexion. This flexibility reduces the mechanical stress on the climber's ankle during steep traversing and allows the rear section to adapt to variable boot heel heights.

Main Frame

The primary [[mountaineering-crampons-frame-structure|frame structure]] typically consists of two parallel aluminum or steel [[mountaineering-crampons-frame-rail|rails]] (12–16 mm diameter tube) running from toe to heel, cross-braced by [[mountaineering-crampons-frame-crossbar|crossbars]] for rigidity. This tubular design minimizes weight (900–1400 g per pair) while maintaining sufficient stiffness to transmit point-contact forces without flexing.

Aluminum 7075-T73 is preferred for its strength-to-weight ratio; stainless steel 303 is used where corrosion resistance is prioritized (high-altitude or arctic operations with salty winds).

Binding System

The [[mountaineering-crampons-binding-system|binding system]] secures the crampon to the boot. Two main types exist:

Flexible Strap System

An [[mountaineering-crampons-ankle-strap|ankle strap]] (30–40 mm nylon webbing) wraps around the climber's ankle just above the boot cuff. A [[mountaineering-crampons-toe-binding|toe binding]] strap, typically a lever-based design, secures the boot toe. Both straps use [[mountaineering-crampons-binding-buckle|ladder-lock or side-release buckles]] for rapid adjustment.

Advantage: Flexible, adaptable to different boot heel heights and cuff styles. Disadvantage: Requires careful adjustment for even pressure distribution.

Rigid Lever System (Hybrid)

A hinged lever at the toe attaches the crampon directly to a welded D-ring or boot loop. The ankle strap provides secondary security. This system reduces adjustment time but limits boot size range.

Heel Rest

The [[mountaineering-crampons-heel-rest|heel rest bracket]] provides mechanical support beneath the boot heel, preventing downward flexion and providing leverage for binding adjustment. The [[mountaineering-crampons-heel-cup|heel cup]] is shaped to fit a standard alpine boot heel, and the [[mountaineering-crampons-heel-padding|heel padding]] (foam or rubber) distributes contact pressure and reduces discomfort during extended climbing.

Point Design and Hardness

Individual [[mountaineering-crampons-point-tooth|point teeth]] are forged from high-carbon steel (typically 1060 or 1070 carbon steel) and hardened to 58–62 HRC (Rockwell hardness). This hardness resists plastic deformation when driven into hard ice but is brittle enough that points can be sharpened with a hand file or stone.

Point geometry varies:

• Front Points: Conical or slightly flattened (3–5 mm diameter base), sharp tip, 25–30 mm long. Designed for concentrated contact and deep penetration.
• Rear Downward Points: Similar geometry, 20–25 mm long.
• Lateral Points: Sharper, knife-like cutting edges (1–2 mm blade width), designed to bite into and cut hard ice during edge technique.

Modern crampons offer replaceable points, sold as kits, allowing field repair of dulled or broken teeth. Some climbers carry a whetstone or hand-file on alpine routes to sharpen points mid-climb.

Anti-Balling Plates

[[mountaineering-crampons-anti-balling-plates|Anti-balling plates]] are optional plastic or thin steel plates attached to the underside of the crampon, covering the area between the point bosses. In wet, compacted snow or consolidating conditions, snow can stick and build up under the foot, creating a "ball" of snow that reduces contact and can cause slipping. Anti-balling plates (typically 1–2 mm HDPE plastic) prevent this buildup.

Trade-off: Anti-balling plates add 50–100 g of weight and slightly reduce point accessibility for fine maneuvering. Alpine ice climbers often omit them; ski mountaineers climbing wet snow commonly use them.

Climbing Techniques

Front-Pointing

1. The climber faces the slope, with knees slightly bent.
2. The two primary front points are driven upward into the ice via a kicking motion, penetrating 3–5 cm.
3. Body weight is transferred to the points; the climber straightens the leg, rising 20–30 cm.
4. Repeat upward in a rhythmic sequence.

Front-pointing is energy-efficient on steep ice (>70 degrees) because the muscular effort is concentrated in the quadriceps and calves, and the climber can use arms for balance rather than load-bearing.

Edge Technique (Traversing or Lower-Angle Climbing)

1. The climber stands perpendicular or at an angle to the slope.
2. The inside edge of the boot (lateral points) is placed into the slope by tilting the foot outward, cutting a hold.
3. The heel and rear points also contact the slope.
4. The climber moves laterally or diagonally, maintaining three points of contact.

Edge technique is more efficient on lower-angle slopes (30–60 degrees) and allows the climber to conserve leg strength by distributing load across the entire foot.

Mixed Climbing

On routes with sections of rock, ice, and neve in sequence, climbers transition between techniques: front-pointing on pure ice, edging on snow, and removing crampons (if time permits) for rocky sections.

Fitting and Adjustment

Proper crampon fit is critical to performance and injury prevention:

1. Boot Compatibility: Crampons are sized to fit boots with heel-to-toe lengths roughly 230–280 mm. Most modern crampons use universal adjustment mechanisms that accommodate ±15–25 mm variation.

2. Ankle Strap Tension: Snug but not over-tight; overtightening restricts blood flow to the foot and causes numbness.

3. Toe Binding: Must hold the boot toe securely without compressing the foot.

4. Level Frame: The crampon frame must be parallel to the boot sole; misalignment causes lateral foot pain and poor point contact.

Climbers typically spend 10–15 minutes before a climb adjusting crampons precisely, as poor fit quickly becomes painful and dangerous.

Maintenance and Care

Sharpening

Points dull from impact against rock or hard ice. A dull point reduces penetration and increases slip risk. Climbers can use a whetstone or hand-file to resharpen the conical point or lateral cutting edge. Field sharpening takes 10–30 minutes and can extend crampon life by years.

Replacement Points

Commercial replacement point kits (typically 4–6 replacement teeth) allow damaged or heavily worn points to be drilled out and replaced. Drilling and re-riveting takes skill and tools; many climbers use professional repair services.

Storage

Crampons are stored with points protected (e.g., in cloth bags or point protectors) to prevent dulling and injury. Rust prevention: stainless steel crampons are naturally corrosion-resistant; aluminum and carbon-steel crampons benefit from occasional oiling or silicone spray.

Variations and Specializations

• Mono-Point Crampons: A single central point for very steep water-ice climbing; specialized and not for general mountaineering.
• Racing or Competition Crampons: Lightweight (<900 g/pair), minimalist design, optimized for speed; popular in ice climbing competitions.
• Expedition Crampons: Robust, full-coverage designs with maximal points and anti-balling plates; heavier (1200–1400 g) but reliable in variable conditions.
• Climbing-Specific Models: Designed to pair with specific ice-climbing boot architectures, with welded D-rings for attachment.

Limitations and Risks

• Underfoot Sensitivity: The rigid frame and points reduce foot proprioception (feedback) compared to unshod climbing. Climbers must rely on visual feedback and experience.
• Point Breakage: On mixed terrain with frequent rock contact, points can break or bend. Carrying replacement kits or knowing how to temporarily repair is essential.
• Fatigue and Numbness: Front-pointing recruits the calves and quads heavily and tires quickly. Climbers typically switch to edging to rest the front muscles.
• Slope Angle Adaptation: Crampons excel on 30–80 degree slopes. On gentler slopes, the points may slip sideways; on vertical overhanging ice, only highly experienced climbers with specialized techniques succeed.
