Muon Tomography Detector Product

Overview

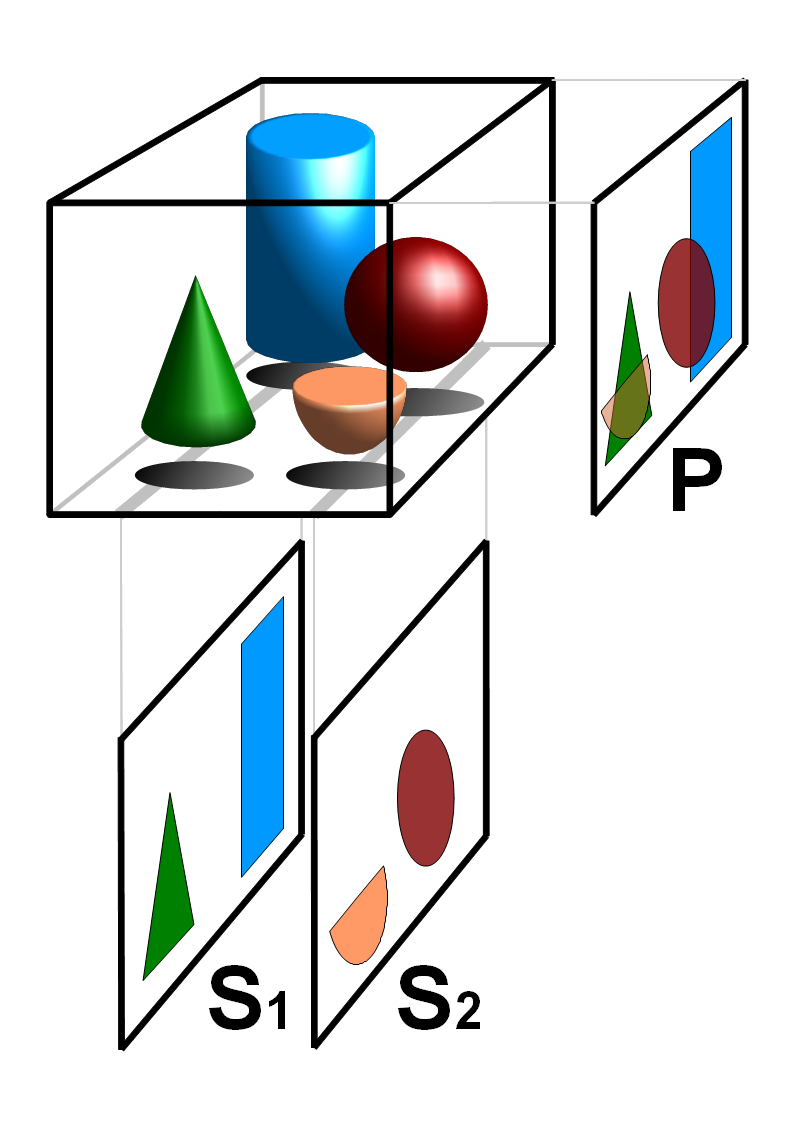

A muon detector is a tracking detector sensitive to ionizing radiation, used in cosmic-ray studies, particle-physics experiments, and muon tomography (imaging interior structures of dense objects via cosmic-ray muon absorption). The Muon Tomography Detector integrates scintillator strips, drift tubes, or straw-tube chambers for spatial tracking, photomultiplier tubes or silicon photomultipliers for fast signal conversion, and fast trigger and readout electronics for real-time event selection and data acquisition.

Muons (cousins of electrons, mass 105.7 MeV/c²) are created when cosmic-ray protons collide with upper-atmosphere nuclei. At sea level, ~1 muon crosses 1 cm² every minute; at high altitude, flux is 100× higher. A muon can penetrate 1–10 meters of rock or water before being stopped, making muon tomography a powerful tool for studying geologic or archeologic structures.

How it works

Tracking Planes

The Tracking Planes comprise 6–10 detection layers stacked vertically. Each layer provides one (1D) or two (2D) spatial coordinates of a passing muon:

Scintillator strips: A [[muon-detector-scintillator-layer|plastic-scintillator layer]] (1–2 mm thick, ~1 cm wide strips) emits blue light when ionized. [[muon-detector-light-guide|Lucite light guides]] couple scintillation photons to [[muon-detector-pmt-tube|photomultiplier tubes]], producing electronic pulses within <1 ns. Multiple scintillator layers (typically 2–4) at different angles (horizontal, ±45°) measure x-y-z coordinates.

Drift and straw tubes: For finer resolution, [[muon-detector-drift-tube-layer|proportional drift tubes]] (2–5 mm diameter, 2–5 cm length) or [[muon-detector-straw-tube-layer|straw tubes]] (6–10 mm diameter) provide <2 mm position resolution. A muon ionizes gas (typically argon or helium mixture), creating ion-electron pairs. Electrons drift toward a central anode wire (tungsten or gold-coated, 25 µm diameter) under ~1000 V electric field. The charge pulse at the anode is amplified by [[muon-detector-preamp-card|charge-sensitive preamplifiers]], shaped to 50–200 ns rise time, and digitized at 10–100 MHz.

Trigger and Coincidence

A muon passing through multiple planes fires several detectors nearly simultaneously. A Trigger System uses [[muon-detector-discriminator-module|fast analog discriminators]] to convert analog pulses to digital signals (typically 100–300 mV threshold). A [[muon-detector-coincidence-logic|programmable FPGA]] then computes multi-hit patterns: if, e.g., scintillator layers 1, 3, and 5 fire within a narrow time window (~20 ns), the FPGA generates a trigger pulse.

This trigger goes to the [[muon-detector-data-acquisition|data-acquisition system]], which:

1. Freezes ADC and digitizer buffers.
2. Reads out all detector channels.
3. Assembles a coherent event record.
4. Writes the event to disk or transmits over network.

Trigger thresholds are adjustable; cosmic-ray triggers are typical (1 kHz background at sea level).

Readout and Data Acquisition

The [[muon-detector-adc-module|ADC or TDC]] digitizes all preamplified signals at 40–1000 MHz. A [[muon-detector-event-builder|real-time event-builder FPGA]] collects ADC samples from all channels, discards noise/pedestal, and packages the event into binary format (typically <1 KB per cosmic-ray event).

The [[muon-detector-daq-computer|DAQ Linux PC]] streams events over gigabit ethernet or USB 3.0 to [[muon-detector-storage-disk|RAID disk storage]]. Modern systems achieve 1–10 MB/sec throughput, sufficient for 10 kHz event rate at 100 B to 1 KB per event.

Calibration

Before data-taking, detector gains and thresholds are calibrated using a [[muon-detector-calibration-source|radioactive source]]. A collimated [[muon-detector-radioactive-source|Co-60 or Cs-137 source]] emits electrons into the detector planes. By scanning the source across the detector face with a [[muon-detector-source-positioning|motorized stage]], engineers measure efficiency (fraction of muons detected per plane, >99% typical), timing resolution (<1 ns in scintillator, <10 ns in straw tubes), and spatial linearity.

Optional: Momentum Measurement

If momentum information is needed, a [[muon-detector-magnetic-solenoid|superconducting solenoid]] (0.5–2 T) surrounds the tracking volume. A muon passing through the field curves; curvature radius ρ relates to momentum: p (GeV/c) ≈ 0.3 × B (T) × ρ (m).

Modern muon detectors achieve momentum resolution ΔP/P ~ 10% over 0.1–100 GeV/c range.

Track Reconstruction

Offline reconstruction software reads raw event data and identifies tracks:

1. Clustering: group nearby hits in each layer.
2. Track finding: match clusters across layers, fitting a helix (or straight line if no solenoid).
3. Momentum: if solenoid present, curvature gives momentum.
4. Energy loss: ionization density (dE/dx) near high-energy tracks distinguishes muons from pions and other particles.

Reconstruction efficiency is typically >95% for isolated cosmic-ray muons.

Scientific Applications

Cosmic-ray physics: Measuring muon flux vs. latitude (geomagnetic effects), energy spectrum, seasonal variations (temperature-linked production in upper atmosphere).

Muon tomography (muography): Large detectors (10–100 m²) image dense structures by measuring muon flux attenuation. Applications include:

• Volcano interior (detecting magma chambers).
• Archeology (finding hidden chambers in pyramids or historical sites).
• Security/nonproliferation (detecting dense nuclear material).

High-energy physics: Muon spectrometers in collider experiments (e.g., LHC's ATLAS, CMS) identify muons from Higgs decay and other processes.

Advantages vs. Limitations

Advantages:

• Robust: scintillator/tube detectors work well with minimal shielding or prep.
• Fast: sub-nanosecond timing enables precision trigger logic.
• Affordable: compared to calorimeters or advanced semiconductor sensors.

Limitations:

• Low event rate (cosmic rays are sparse).
• Requires careful trigger tuning to reject noise.
• Solenoid adds cost and complexity.

Modern experiments often employ muon detectors as the outermost layers of multi-detector systems, where their tracking precision and fast response make them ideal for triggering and event characterization.
