Musical Fountain System Product

Overview

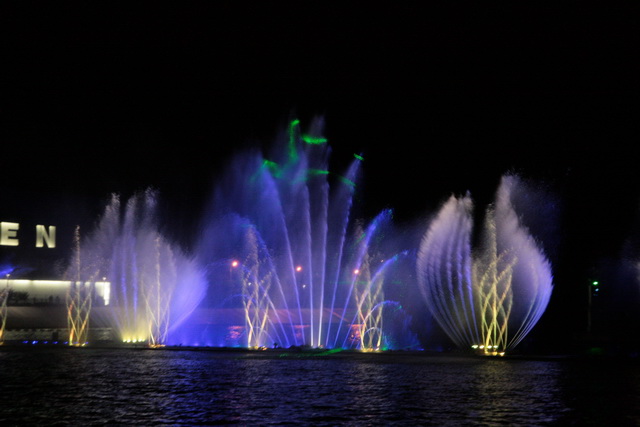

A musical fountain system synchronizes water jets, lighting, and sound to perform choreographed "shows" on command, responding to music beats and programmed color cues. Unlike static fountains (constant flow aesthetic), musical fountains are dynamic and programmable: every water stream and light can be individually controlled via DMX protocol, enabling entertainment venues (parks, resorts, casinos) to display branded shows, seasonal themes, or real-time audience participation.

The engineering combines hydraulics (multiple independent pump circuits), electronics (DMX control, solenoid valve arrays), and lighting (RGB LEDs), orchestrated by a central show controller running pre-programmed choreography.

Hydraulic System & Pump Banks

The Multi-Zone Pump Banks consist of 3–5 independent pump circuits, each 2–10 HP, supplying different water zones or effect types:

• Zone A Pump (2–5 HP): Left-side laminar arc jets.
• Zone B Pump (2–5 HP): Right-side arc jets and cascade effects.
• Zone C Pump (3–7 HP): Center high-volume fountain column (200+ GPM).
• Submersible Pump (0.5–2 HP): Below-deck circulation (optional, for closed-loop basins).

Each pump runs at variable speed via Zone A Pump with VFD Variable-Frequency Drive (VFD) (VFD), enabling proportional flow control. The DMX Show Control Unit sends 0–10V analog command signals to each VFD, ramping pump speed smoothly.

Advantages of multi-zone:

• Independent control: laminar arcs can spray while bubblers are off, creating visual variety.
• Pressure isolation: high-pressure zones (arc nozzles, 60+ psi) operate independently from low-pressure zones (bubblers, 10 psi).
• Redundancy: one pump failure doesn't stop entire show (degraded performance, but operational).

Nozzle Arrays

The Fountain Nozzle Assembly include diverse effect types:

1. Laminar Arc Nozzles (Laminar Arc Nozzle): Precision-engineered to produce clear, coherent water arcs 1–3 meters high with minimal turbulence. Operating at 40–60 psi, arcs are illuminated by Submerged RGB LED Fixture or Deck RGB Spotlight fixtures. Arc shape is determined by nozzle orifice diameter (typically 8–15 mm) and pump pressure.

2. Bell/Dome Nozzles (Bell/Dome Nozzle): Create bell-shaped cascading effects, water flowing from a dome opening downward. Effective at 20–40 psi, lower noise than laminar.

3. Bubblers (Bubbler Nozzle): Low-profile (10–15 cm), produce foam and surface agitation. Operate at 5–15 psi, driven by low-flow dedicated pump.

4. Aerated Mist Jets (Aerated Mist Jet): Air-injected jets producing fine spray mist, visible in daylight/sunlight. Operate at 20–40 psi with integrated air induction ports.

5. Oscillating Nozzles (Oscillating/Rotating Nozzle): Mechanically or electrically oscillating side-to-side, creating dynamic sweep patterns. Rotating heads (e.g., 90° oscillation) create rhythm effects synchronized to music.

Nozzles are mounted on Nozzle Support Riser support posts of varying heights (0.5–3 m), creating visual hierarchy. They connect to a Nozzle Distribution Block distributing pressurized water.

Solenoid Valve Control

The key to musical choreography is rapid switching of water supply to individual nozzles. The Fast-Switching Solenoid Valve Bank are 2-way or 3-way 24V DC solenoids that open/close in <100 ms when commanded by DMX signals.

Valve bank operation:

• Fast-Switching Solenoid Valve (×12–16): Each valve supplies a group of nozzles (e.g., left-side arcs, center bubblers, right-side cascades).
• Solenoid Mount Block: Brass block mounting 12–16 solenoid stack, distributing high-pressure water from pump to individual branches.
• Solenoid Driver PCB: PCB translating DMX512 commands to solenoid coil energization via IGBT Power Module power stages.

Response time: 24V DC coil energizes in 50 ms (solenoid plunger pull); pilot-operated valves (2-stage for high-pressure applications) open fully within 100 ms total. This sub-200-millisecond response is fast enough to synchronize visually with music beats (200 ms intervals at 120 BPM).

DMX Control Protocol

DMX512 (ANSI E1.11) is an industry standard serial protocol for theater/entertainment lighting and effects. The DMX Show Control Unit outputs DMX packets on one or more DMX Output Interface lines (up to 4 independent DMX universes, 512 channels each, supporting 2000+ controllable devices).

DMX addressing:

• Channel 1: Pump Zone A speed (0–255 = 0–100%).
• Channel 2: Pump Zone B speed.
• Channel 3: Pump Zone C speed.
• Channels 4–15: Solenoid valve bank (on/off for each nozzle group).
• Channels 16–50: RGB LED fixtures (R, G, B intensity per fixture).
• Channels 51–60: Lighting scenes (preset color macros).

The controller sends DMX packets at 44+ times per second (44 Hz update rate), allowing smooth ramps of pump speed and rapid solenoid switching synchronized to audio.

Audio Synchronization

The Audio Playback & Speaker Array includes:

• Audio playback device: MP3 player, media PC, or streaming input.
• Audio Power Amplifier: 100–300 W stereo/mono amplifier.
• Weatherproof Speaker Cabinet: Weatherproof outdoor speakers (subwoofer + satellite configuration for bass/treble separation).

The DMX Show Control Unit reads audio level via Audio ADC Module ADC (analog-to-digital converter), analyzing beat frequency and amplitude in real-time. The firmware maps audio beats to choreography:

• Bass beat detected → Zone C pump ramps to 100%, laminar arcs shoot high.
• Treble spike → LED colors flash, solenoids cycle rapidly, creating staccato effect.
• Silence → Pumps fade, lights dim to ambient.

Pre-programmed shows are stored on Show Media Storage (SD card) as choreography scripts: ''' Time 0:00 - Start music playback Time 0:05 - Pump A ramp to 50% (2 sec), LED red 100% Time 0:10 - Solenoid group 1 on, nozzles left-side jets fire Time 0:15 - Pump C ramp to 80%, LED blue 80%, solenoid group 1 off ... Time 2:30 - All pumps to 0%, LEDs off, show ends '''

Lighting Integration

The DMX RGB Light Array array includes:

• Underwater RGB LEDs (Submerged RGB LED Fixture, IP68 rated): 6–12W per fixture, submerged in basin, illuminating water from below. Creates colored glow and backlit effect on water streams.
• Deck/Above-Water Spotlights (Deck RGB Spotlight): Weather-sealed RGB fixtures on deck perimeter or structure, illuminating nozzles and water arcs from outside the basin.

Each RGB fixture has 3 color channels (red, green, blue), allowing any color in the 16-million-color gamut. The DMX-to-LED Driver PCB (DMX-to-LED driver) converts DMX intensity commands (0–255 per channel) to analog 0–10V signals powering each LED color.

Choreography examples:

• Laminar arcs illuminated blue: Water appears turquoise, high visual drama in evening.
• Bubbler zone alternating red/white: Patriotic effect for holiday shows.
• Progressive color sweep (red → green → blue → red, left to right): Creates flowing animation effect synchronized to music tempo.

Show Controller & Programming

The DMX Show Control Unit is the brain:

• Processor: Embedded Linux or RTOS microcontroller with dual ethernet, SD card slot.
• Display: 7–10 inch LCD touchscreen showing show status, timer, diagnostics.
• I/O: Multiple DMX outputs, audio input, sensor inputs (flow, pressure, temperature), relays for safety interlocks.

Operational modes:

1. Manual mode: Technician controls pumps, solenoids, lights via touchscreen or manual buttons (testing, maintenance).
2. Programmed show mode: Pre-loaded choreography file plays in sequence (typical public operation).
3. Audio-reactive mode: Real-time beat detection, automated choreography response (no pre-programming, true "music fountain").
4. Scheduled mode: Timer-based operation ("run show 1 at 14:00, show 2 at 16:00, repeat daily").

Fail-safe operation: If controller loses power or network connection, Safety & Emergency Stop System (redundant relay logic) defaults to safe state: all pumps stop, all solenoids close, master Master Water Shutoff Solenoid blocks main water feed.

Safety & Interlocks

Safety is paramount in public installations:

• Emergency stop: Red E-stop button (Red E-Stop Button) immediately cuts pump power and solenoid supply, halting all water effects within <1 second.
• Low-water protection: Float switches (Low-Water Float Switch) detect if basin water level drops (e.g., evaporation, leak). Controller reduces pump output or halts show to prevent pump cavitation.
• High-pressure relief (Main Pressure Relief Valve): Pilot-operated relief valve on main inlet (setpoint 80–100 psi) vents excess pressure to prevent rupture of plumbing or nozzle failure.
• Solenoid coil protection: Solenoid Protection Diode on each coil suppress inductive voltage transients that could damage electronics.

Maintenance & Operation

Daily (public operation):

• Visually inspect nozzles for blockage (algae, mineral deposits).
• Check water level (evaporation loss ~10–30 gallons/day in hot climates).
• Test audio playback and DMX command responsiveness (perform short test show).

Weekly:

• Clean nozzle filters, clear any debris.
• Inspect pump seals for water weeping.
• Test E-stop functionality and safety interlocks.

Monthly:

• Chemical treatment of basin water (chlorine, pH, alkalinity balancing).
• Deep-clean pump strainers.
• Inspect LED fixtures for burned-out diodes (may require element replacement).

Quarterly:

• Professional combustion/pressure testing (if gas heater integrated).
• Solenoid valve inspection and cleaning (mineral deposits reduce response time).
• Software update and backup (show files, logs).

Annually:

• Full system commissioning test (all pumps, solenoids, LEDs, safety interlocks verified).
• Filter cartridge replacement.
• Scheduled maintenance of rotating equipment (pump bearings, motor inspection).

Installation & Customization

Musical fountain installations are bespoke projects:

1. Design Phase: Client specifies basin size, nozzle types, lighting effects, show themes. Hydraulic engineer designs pump/solenoid/nozzle configuration.
2. Build Phase (4–8 weeks): Fountain basin construction, plumbing fabrication, electrical installation, DMX network cabling.
3. Integration Phase: Choreography programming, audio sync testing, lighting scene creation.
4. Commissioning: Factory acceptance test (FAT), site acceptance test (SAT), operator training.

Cost drivers:

• Basin size: Larger = more pump capacity, plumbing, footings (cost scales ~O(n²)).
• Nozzle count/type: Precision laminar jets are expensive (~$300–500 each); bubblers cost $50–100.
• LED count: 20 fixtures ~$5k; 100 fixtures ~$20k+.
• Choreography complexity: Simple pre-programmed shows cost less; audio-reactive real-time AI choreography is premium.

Typical small-to-medium installation (10×20 m basin, 30 nozzles, 20 LEDs): $100k–300k. Large-scale (competition-grade, Las Vegas-style): $500k–$2M+.

Comparison to Static Fountains

Factor	Static	Musical
Visual Interest	Monotonous (same pattern always)	Dynamic, variety every show
Audience Engagement	Low (passive viewing)	High (entertainment event)
Operating Cost	$100–200/month	$500–2000/month
Maintenance	Low (no electronics)	Moderate (DMX, solenoids, LEDs)
Installation Cost	$20k–50k	$100k–500k+
Customization	Limited	Unlimited (any choreography possible)
Target Market	Residential, small parks	City centers, theme parks, resorts

Musical fountains are entertainment infrastructure, justifying premium cost through visitor attraction and extended operational lifespan (15–25 years with proper maintenance).
