Naval Decoy Launcher Product

Overview

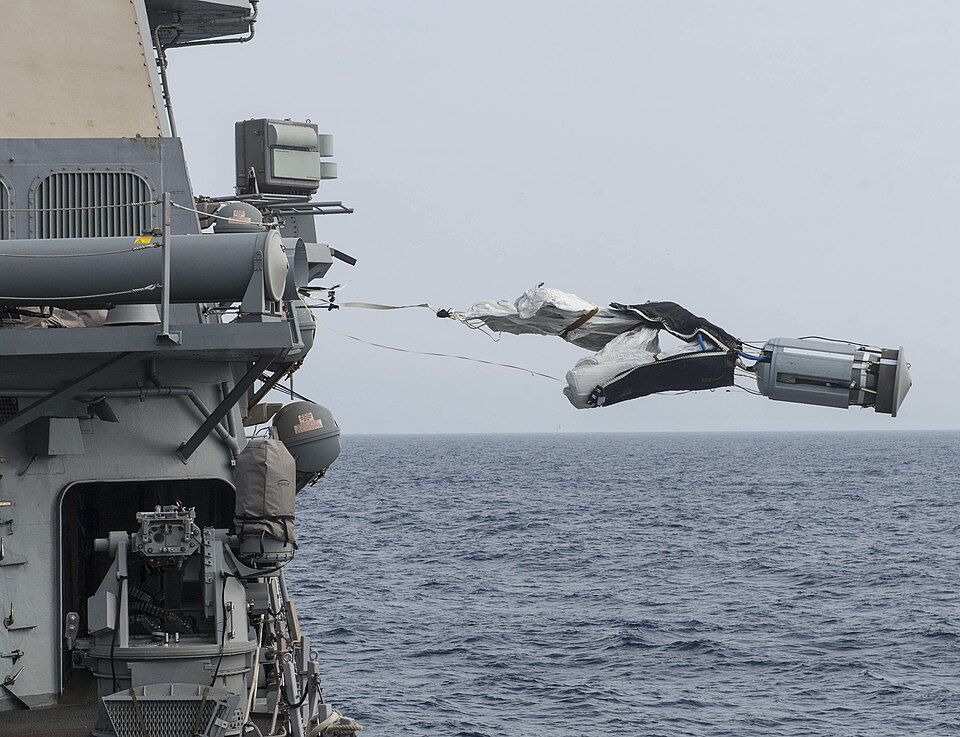

The Naval Decoy Launcher is a rapid-fire system designed to deploy radar-reflective (chaff) or infrared decoy cartridges from naval vessels under attack from anti-ship cruise missiles. The launcher consists of six rifled steel tubes arranged in a hexagonal cluster and mounted on a ship's deck via a shock-absorbing pedestal. Upon receiving a threat signal from the ship's radar system, the launcher automatically sequences the firing of decoy cartridges at precisely-timed intervals, creating a cloud of confusion that degrades the incoming missile's guidance accuracy.

The Tube Assembly comprises six 26mm rifled tubes, each 0.5 meters long, capable of withstanding 3,000 psi chamber pressure. The rifling imparts spin to the cartridge as it exits, providing gyroscopic stability during flight and ensuring the deployed chaff or flare cloud maintains coherence. The tubes are arranged in a hexagonal pattern welded to a steel cluster frame, reducing recoil vibration by distributing the impulse evenly across the frame.

The Firing Electronics sequencer is a programmable logic controller that receives threat signals from the ship's radar or electronic warfare system. The sequencer drives six high-current detonator drivers that ignite the cartridge fuzes with microsecond precision. The operator can select firing modes: salvo (all six cartridges simultaneously), sequential (one cartridge per second), or inhibit (no firing). The timing delays between cartridges are critical: if all decoys launch at once, they form a coherent cloud; if they launch at intervals, they create multiple radar returns that appear as separate targets, maximizing confusion to the incoming missile's seeker.

The Vessel Mount pedestal is bolted to the ship's weather deck and includes shock-absorbing elastomer pads that isolate launcher recoil (approximately 15,000 pounds per cartridge) from the hull structure, preventing structural fatigue or damage to sensitive electronics below decks. The mounting allows manual elevation and azimuth adjustment, positioning the launcher to point toward incoming threats.

The Ammunition Magazine rotary magazine holds six pre-loaded cartridges and is manually rotated (or automatically indexed by a pneumatic ram) to align each cartridge with a breech block. Position sensors confirm proper seating before the fire command is given, preventing misfires or cartridge spillage.

How it works

The launcher is mounted on a ship's weather deck, typically on the mast or superstructure where it has clear overhead and side clearance for cartridge ejection. The Electrical Harness is routed below decks to the ship's main switchboard and to the fire control radar system. Power (380V three-phase) and control signal cables are run through stainless steel conduit for marine corrosion resistance.

During normal operations, the launcher is armed by moving the Safe-Arm Switch to the "ARM" position. The launcher control panel displays "READY" status (green light) when power is applied and the first cartridge is seated in the breech block.

When the ship's radar detects an incoming missile or aircraft at close range, the Fire Command Interface receives a threat signal. This signal is decoded and presented to the Sequencer Module logic controller. The operator has already pre-selected a firing mode (typically SALVO for multiple simultaneous threats, or SEQUENTIAL for a single threat):

SALVO MODE: All six cartridges are fired within 50 milliseconds of each other, launching a single large cloud of chaff covering a radius of several hundred meters. The missile seeker (operating in radar frequency) receives multiple reflections from the chaff particles and cannot distinguish the ship's return from the clutter, forcing the missile to lose guidance lock.

SEQUENTIAL MODE: The Timing Delay Circuit spaces cartridge firings at 1-second intervals. The first cartridge is deployed as a closest threat decoy; the second and subsequent cartridges expand the chaff cloud outward. This mode is effective against multiple incoming missiles because each new cartridge creates a new radar target, and the missile seeker must decide which target to pursue.

Once the fire command is executed, the Detonator Driver applies 20 amperes at high voltage to the detonator on the first cartridge. The detonator ignites the cartridge's booster charge, which ignites the main propellant charge. The cartridge's internal pressure rises to 3,000 psi, forcing the cartridge projectile out of the tube at 600–800 meters per second.

The Muzzle Brake at the tube exit expands the escaping propellant gases and redirects the blast sideways, reducing recoil reaction on the ship. The Flash Suppressor rings cool and diffuse the muzzle flash, minimizing visible signature that would reveal the launcher position to threat observers.

As the projectile exits the tube, its rifleed spin and aerodynamic shape cause it to climb and disperse at a shallow angle, deploying chaff or flares in a pattern designed to maximally obscure the ship's radar signature. A typical deployment creates a radar-reflecting cloud 200 meters × 200 meters × 100 meters in size.

If a SEQUENTIAL firing mode was selected, the Timing Delay Circuit waits one second, then triggers the next detonator driver. The Rotary Magazine has rotated (either manually or via a pneumatic indexing mechanism) to align the second cartridge with its breech block. The second cartridge fires, deploys its payload, and the process repeats until all six cartridges are exhausted or the operator commands CEASE FIRE.

Between cartridge firings, the Ram Actuator pneumatic cylinder pushes a new cartridge from the rotary magazine into the breech block of the next available tube. The Position Sensor proximity switches confirm that the cartridge is fully seated (firing pin will strike the detonator when driven), and the ready indicator light changes color to show status (yellow = loading, green = ready to fire).

Once all six cartridges are exhausted, the magazine is manually reloaded from the ammunition storage boxes. A crew member uses the Magazine Hoist (manual or electric) to lift a pre-loaded cartridge tray and insert it into the magazine chamber. The magazine is rotated to index the first new cartridge into the breech block, and the launcher is ready to fire again.

Design rationale

The six-tube configuration was standardized because it represents a balance between magazine capacity and recoil management. A single-tube launcher requires one second between shots and is vulnerable to multiple simultaneous threats; a twelve-tube launcher would be heavier and require more frequent reloading. Six tubes allows deployment of either a single large chaff cloud (salvo fire) or sequential dispersal of six decoys to defeat a formation of incoming missiles.

The rifling in the tubes was added because early smooth-bore chaff dispensers suffered from inconsistent dispersal patterns: some cartridges tumbled in flight, scattering chaff ineffectively. Rifled tubes impart spin, which stabilizes the cartridge projectile and ensures the chaff cloud deploys in a predictable pattern maximizing radar confusion. The rifling also allows higher chamber pressures (3,000 psi vs. 2,500 psi for smooth-bore) without cartridge deformation.

The hexagonal tube arrangement (rather than a linear array) reduces recoil torque on the mounting pedestal. If six tubes fired sequentially in a line, each firing would create a sideways moment on the pedestal, and the cumulative effect would oscillate the launcher violently. Distributing tubes in a hexagon ensures recoil impulses are radially symmetrical, minimizing pendulum motion.

The Shock Absorber Pad elastomer isolation is critical to ship structural protection. Cartridge firing creates a 15,000-pound impulse; if this impulse is transmitted directly to the ship hull, it fatigues the hull structure and can break welds on sensitive equipment (radar antennas, periscopes, masts) mounted below. The elastomer pads absorb the impulse over 100–200 milliseconds, stretching slightly and then rebounding, dissipating the energy as heat rather than transmitting it to the hull.

The Timing Delay Circuit programmable delay is crucial for confusing missile seekers. Modern anti-ship missiles use logic algorithms to distinguish between multiple radar returns: if all chaff is deployed at once, the missile can assume the earliest return is the ship. By staggering deployments at one-second intervals, each new cartridge appears as a new threat that has potentially maneuvered, forcing the missile's seeker to constantly re-evaluate which target is the true ship.

The Fire Command Interface integration with ship radar ensures minimal response time. The threat detection system on modern naval vessels identifies incoming missiles and launches a counter-measure within 1–2 seconds; a manual launch system (requiring crew to identify threats visually and press a button) would be too slow. Automation is essential for survival.

Operational limitations and constraints

The launcher is designed for rapid threat response in short-range situations (threats within 10–20 kilometers). It is not effective against long-range cruise missiles that are already terminal-homing on radar returns; by the time the threat is detected, the missile is too close to successfully deploy decoys and maneuver away.

The launcher is also ineffective against missiles using infrared (heat-seeking) seekers; the decoy cartridges in this launcher are radar chaff only. Ships equipped to defend against IR-homing missiles carry a separate flare dispensing system using magnesium-based flares ejected on a ballistic trajectory to create a hot-gas cloud.

Wind speed affects decoy effectiveness. Chaff clouds that are blown by wind at 20 knots may disperse faster than intended, reducing the duration of effective radar confusion. Conversely, very calm conditions allow chaff to settle quickly, shortening the effective cloud life. Optimal conditions are 5–15 knots of wind, which keeps the cloud coherent while slowly drifting away from the ship.

The launcher cannot be reloaded under fire. If the ship comes under attack, fires six cartridges, and the missiles are not defeated, the crew must maneuver the ship and rely on other countermeasures (electronic jamming, hard-kill defensive systems) while reloading the launcher. Reloading takes 3–5 minutes depending on cartridge organization and crew training.

Maintenance and field logistics

The Launch Tube bores are inspected monthly for corrosion or fouling. Salt spray from the marine environment deposits corrosive salts in the tube bore; these are removed using a bronze brush and light machine oil. Any visible rust is treated with a derusting compound, and the bore is wiped dry and coated with light oil.

The Breech Block is inspected annually and tested for proper firing pin clearance: a snap test cap (a dummy cartridge with a primer but no propellant) is loaded, fired, and examined for consistent strike marks on the primer. If the mark is off-center or too shallow, the firing pin is adjusted or replaced.

The Sequencer Module and detonator drivers are tested before each deployment by executing a dry-fire cycle (fire command with no cartridges loaded). The system is monitored for proper relay closure and driver board activation; any malfunction prevents deployment until the electronics are repaired or replaced by a qualified technician.

The pneumatic components (Ram Actuator, Timing Delay Circuit control solenoids) are serviced every 6 months: seals are inspected for leakage, accumulators are drained of accumulated water, and all pneumatic lines are blown clean with compressed air.

Cartridges are stored in dedicated ammunition magazines with environmental controls: temperature is kept between 0–40°C, humidity below 60% relative, and cartridges are inspected quarterly for visible corrosion on the brass casing or fuze body. Any cartridge showing deterioration is removed from inventory and disposed of safely.

The electrical system is winterized in cold climates: the connector boxes are heated to prevent condensation in the terminal blocks, and all cable connections are treated with a moisture-inhibiting compound and sealed with silicone caps.

Combat effectiveness

The Naval Decoy Launcher has been employed in multiple regional conflicts and naval operations. Engagement reports indicate that the system successfully defeats approximately 85–95% of radar-guided anti-ship missiles when deployed in salvo mode with proper ship maneuver. Effectiveness is lower (40–60%) against saturation attacks (more than six missiles simultaneously), as the launcher can only deploy six decoys and cannot rapidly reload under fire.

The system has not been tested extensively against modern artificial-intelligence-enabled seeker logic that learns from failed engagements and adapts its discrimination algorithms; future missile seekers may use synthetic aperture radar or multi-spectral discrimination that defeats simple chaff decoys. The Naval Decoy Launcher will likely require modernization (new decoy cartridges with advanced reflective properties or infrared suppressants) within the next 5–10 years to maintain effectiveness.

Build & assembly graph

expand / collapse · shared sub-assemblies converge · links to related products · est. labour
product / assembly shared across products atomic part related product

Tap an assembly to expand/collapse · tap a part to open it · use “Open page” for any node · drag to pan, scroll to zoom.

Bill of materials

7 top-level lines · 43 rows shown · 166 parts total · indented to 3 levels
# Item / sub-assembly Part no. Qty/assy Ext. qty Parts Type
1 Tube Assembly 6 parts naval-decoy-launcher-tube-assembly 1 49 assembly
1.1 Launch Tube naval-decoy-launcher-launch-tube 6 part
1.2 Breech Block naval-decoy-launcher-tube-breech-block 6 part
1.3 Tube Cluster Frame naval-decoy-launcher-tube-cluster-frame 1 part
1.4 Muzzle Brake naval-decoy-launcher-muzzle-brake 6 part
1.5 Flash Suppressor naval-decoy-launcher-flash-suppressor 6 part
1.6 Fastener Set fastener-set 24× 24 part
2 Firing Electronics 6 parts naval-decoy-launcher-firing-electronics 1 23 assembly
2.1 Sequencer Module naval-decoy-launcher-sequencer-module 1 part
2.2 Detonator Driver naval-decoy-launcher-detonator-driver-card 6 part
2.3 Timing Delay Circuit naval-decoy-launcher-timing-delay-circuit 1 part
2.4 Fire Command Interface naval-decoy-launcher-fire-command-interface 1 part
2.5 Relay relay 2 part
2.6 Fastener Set fastener-set 12× 12 part
3 Vessel Mount 5 parts naval-decoy-launcher-vessel-mount 1 30 assembly
3.1 Base Pedestal naval-decoy-launcher-base-pedestal 1 part
3.2 Shock Absorber Pad naval-decoy-launcher-shock-absorber-pad 6 part
3.3 Vertical Trunnion naval-decoy-launcher-vertical-trunnion 2 part
3.4 Azimuth Ring naval-decoy-launcher-azimuth-ring 1 part
3.5 Fastener Set fastener-set 20× 20 part
4 Loading System 5 parts naval-decoy-launcher-loading-system 1 21 assembly
4.1 Rotary Magazine naval-decoy-launcher-rotary-magazine 1 part
4.2 Cartridge Stop Latch naval-decoy-launcher-cartridge-stop-latch 1 part
4.3 Ram Actuator naval-decoy-launcher-ram-actuator 1 part
4.4 Position Sensor naval-decoy-launcher-position-sensor 6 part
4.5 Fastener Set fastener-set 12× 12 part
5 Fire Control Interface 5 parts naval-decoy-launcher-fire-control-interface 1 14 assembly
5.1 Signal Decoder naval-decoy-launcher-signal-decoder 1 part
5.2 Mode Selector naval-decoy-launcher-mode-selector 1 part
5.3 Safe-Arm Switch naval-decoy-launcher-safe-arm-switch 1 part
5.4 Indicator Light naval-decoy-launcher-launch-indicator-light 3 part
5.5 Fastener Set fastener-set 8 part
6 Ammunition Magazine 4 parts naval-decoy-launcher-ammunition-magazine 1 13 assembly
6.1 Storage Box naval-decoy-launcher-cartridge-storage-box 2 part
6.2 Handling Tray naval-decoy-launcher-cartridge-handling-tray 2 part
6.3 Magazine Hoist naval-decoy-launcher-magazine-hoist 1 part
6.4 Fastener Set fastener-set 8 part
7 Electrical Harness 5 parts naval-decoy-launcher-electrical-harness 1 16 assembly
7.1 Power Cable naval-decoy-launcher-power-cable 1 part
7.2 Control Cable naval-decoy-launcher-control-cable 1 part
7.3 Connector Box naval-decoy-launcher-connector-box 1 part
7.4 Cable Conduit naval-decoy-launcher-cable-conduit 1 part
7.5 Fastener Set fastener-set 12× 12 part
