Overview

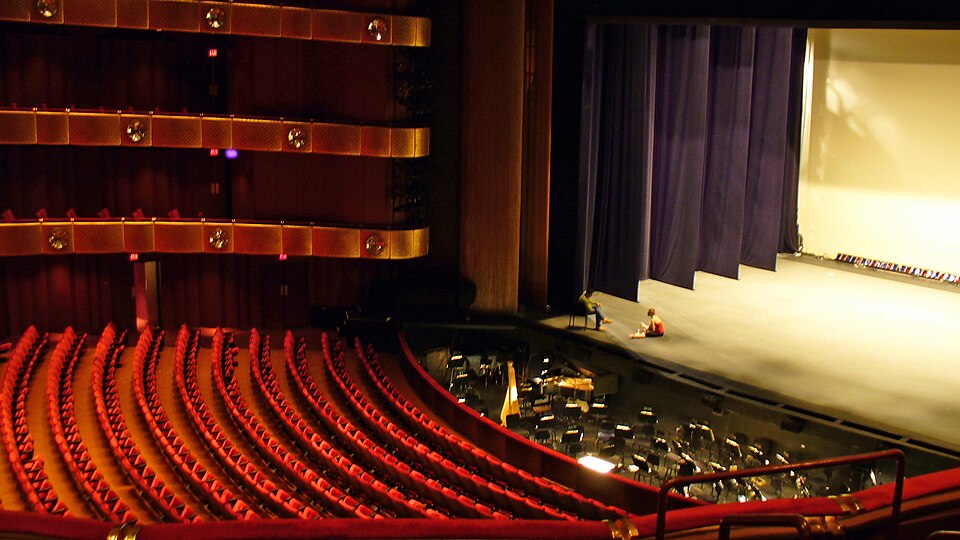

An orchestra pit lift is a large-capacity motorized platform that raises the orchestra pit floor to stage deck level, transforming theater configurations between orchestral concerts and full-stage productions. Modern opera houses and concert halls rely on these systems to maximize venue flexibility. The platform typically spans 10–30 m wide by 6–12 m deep and must support 50–150 tons (the orchestra pit itself, 50–80 seated musicians, their instruments, chairs, stands, and stage lighting rigs). The lift mechanism raises the platform 0–2.5 m from the pit bottom to stage height in 20–40 seconds, powered by electric motors or hydraulic systems.

Unlike smaller stage lifts, orchestra pit lifts must operate with extraordinary precision and safety: musicians are seated on the platform during the move, and any jerking, tilting, or unexpected motion could injure performers or damage instruments. The system architecture includes synchronized multi-point drive (dual or quad jacks), continuous position feedback, load-balancing logic, and redundant safety interlocks.

System Architecture

The Lift Platform & Frame is a massive welded steel frame (typically 250–400 mm depth) designed to distribute live loads evenly across its 30 m span. At each corner, a Guide Rail assembly rises vertically, anchored to the pit side walls and theater structure. Twin or quadruple Roller Carriage roller assemblies at each corner prevent tilt, twist, or lateral drift during travel.

The Drive System employs one of two strategies: dual screw-jack (two ball-screw lifting points at opposite ends of the platform) or quad hydraulic cylinders (one at each corner). Screw-jack systems are purely mechanical and provide inherent load-holding (if power is lost, the thread's self-locking prevents descent). Hydraulic systems offer smoother speed control and can respond to load imbalance by proportionally increasing pressure on the lower cylinders, keeping the platform level throughout travel.

Control & Synchronization

The Electrical Control System system continuously monitors platform height at each corner via proximity or optical sensors. If the left side rises faster than the right (a sign of uneven loading), the controller adjusts the proportional valve spools to balance the hydraulic flow, keeping all four corners within ±25 mm of each other. This prevents the orchestra from experiencing tilting motion.

The control pendant allows operators to command preset positions: "raise to stage," "lower to pit," or "stop at 1.2 m for conductor's elevated view." More sophisticated installations integrate the pit lift into the theater's main show-control system via DMX or Ethernet, allowing the lighting console to trigger the pit rise exactly on cue, synchronized with house lights, curtain motion, and other automated equipment.

Safety & Interlocks

The Safety System enforces critical operational rules:

• The platform cannot rise above stage deck level (enforced by Top Limit Switch), preventing the platform from hitting underside stage structure.
• The platform cannot descend below the Sump Basin or collide with equipment beneath (enforced by Bottom Limit Switch).
• A Side Safety Barrier mesh gate on the pit opening prevents people from falling into the opening during platform travel.
• An accessible Emergency Stop Button button on the platform itself allows any operator to halt the lift immediately.

All safety interlocks are hard-wired through dual-channel safety relays, meaning software failures or electrical noise cannot override these protections.

Seating Integration

The Seating Integration consist of modular riser sections (typically 1.2 m × 0.8 m × 0.4 m high) bolted to the platform top. These create the stepped seating geometry allowing all 80–100 musicians to see the conductor. The Chair Mounting Rail T-slot rail running the width of the platform allows quick attachment and repositioning of chairs without bolting. During platform motion, chairs remain fixed to the track, so musicians rise with the platform without fear of sliding or tipping.

Music Stand Clamp universal clamps secure music stands, reading lights, and conductor monitors. This modular approach allows the theater to store the entire riser assembly and redeploy it (or reconfigure it for a different orchestra size) between productions.

Drainage & Environmental Control

Orchestra pits are notoriously damp: they collect runoff from stage floor cleaning, HVAC condensation, and occasionally rainwater leakage from the roof. The Drainage & Sump Management system includes a Sump Basin at the pit floor, where a Sump Pump (typically 1–2 kW, 50 m³/h) removes water continuously. A Drain Collection Tray bolted to the platform undercarriage prevents water pooling on the elevator itself and routes drainage to the sump.

The entire Electrical Control System enclosure is installed well above the maximum pit flood line and includes secondary drainage or waterproofing to prevent motor and drive failures from moisture intrusion.

Emergency Descent

Although rare, a power failure while the pit is halfway to stage height would be catastrophic. The Emergency Descent System provides manual descent capability: a hand-crank Manual Descent Crank (geared 40:1 or 50:1) allows two or three stage crew to manually lower the platform to the pit floor in 5–10 minutes. Some facilities add a compressed-air backup, with a small Pneumatic Backup Motor powered by the building's shop air system and a Air Accumulator storing reserve pressure.

The Emergency Descent Valve is a solenoid-operated control valve that can be held open by a manual button, allowing slow, controlled descent under hand-crank or air-motor power. This system is inspected quarterly and exercised at least biannually to verify operability.

Touring Considerations

Many traveling opera companies bring pit lifts on tour, requiring the system to be disassembled into transportable sections. The Guide Rail and Roller Carriage assemblies may be temporarily bolted to the venue's pit walls (rather than permanently installed). The Lift Platform & Frame itself breaks into 2–4 segments, each weighing 3–5 tons, and is reassembled on-site using locating pins and heavy-duty bolts. Setup typically requires 2–3 days of labor and precise laser alignment to ensure all four corner guides are coplanar and vertical.

Maintenance & Lifecycle

The Roller Carriage roller bearings must be inspected visually every 50 operating hours and relubricated with synthetic grease every 200 hours or annually, whichever is first. The Screw Lifting Jack or Control Valve Assembly should be serviced (seals replaced, pressure verified, proportional solenoids cleaned) every 2 years or every 500 raise/lower cycles. The Sump Pump is typically replaced every 5 years due to seal wear and corrosion from pit water.

The entire system undergoes a comprehensive load test annually: the platform is raised to full height, held with the motor de-energized for 30 minutes to verify brake/screw holding, then manually descended under hand-crank power to verify emergency descent response. Any sign of creep, shudder, or unusual noise triggers a full inspection before the system is returned to service.
