Overview

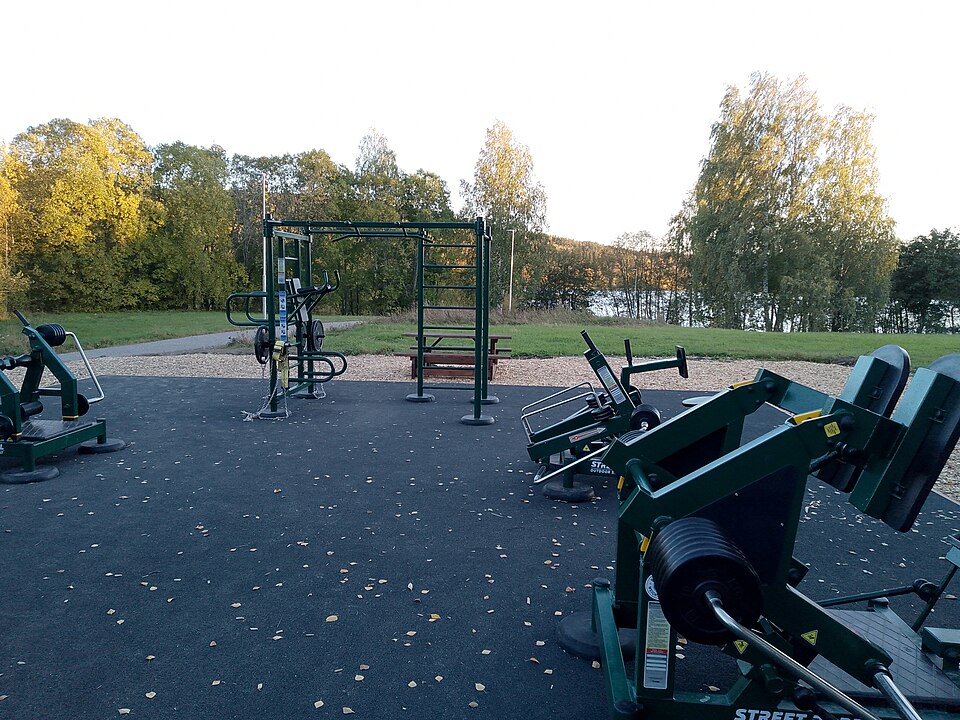

Outdoor gym stations populate parks, schoolyards, and public spaces worldwide as free, no-cost exercise equipment. A typical station is a single large apparatus with one or two Hinged Exercise Arm members that pivot on bearings. The user applies body weight and leverage to move the arms against gravity and friction. A leg press station has two pedals; a lat pull station has a high handle and low footrest; a leg adductor uses two platforms.

The engineering is simple and timeless: galvanized steel frame, sealed bearings, and mechanical advantage designed so that an average adult (75 kg / 165 lb) exerts moderate effort. The Main Frame Structure is anchored to concrete with four heavy bolts, so the station does not move or tip even under maximal user force.

Galvanizing and corrosion protection

Outdoor equipment must withstand UV, rain, salt spray, and temperature cycling without rusting. The standard protection is hot-dip galvanizing per ASTM A123, a 85–100 micrometer zinc coating applied to bare steel by immersion in molten zinc at 840°F. The zinc metallurgically bonds to the steel surface, stopping corrosion at the microscopic level.

Even galvanized steel can develop white rust (zinc oxide) or base-metal corrosion if the coating is damaged (e.g., a dent that opens the surface). High-end stations use stainless steel for critical components (pivots, fasteners, grips), eliminating this risk. Stainless is more expensive but requires zero maintenance.

The outdoor-gym-station-frame-base, posts, arm levers, and all structural members are galvanized. The Pivot Shaft is often stainless or hardened and plated steel to resist wear. The Anchor Bolt and Anchor Nut are stainless steel, because they are buried at the concrete interface where moisture collects.

Pivot bearings and movement

The Hinged Exercise Arm hinges on a Pivot Bearing Assembly assembly. The Pivot Shaft is a hardened steel axle, typically 16–20 mm diameter, threaded or press-fit into both the arm and the outdoor-gym-station-bearing-housing-block anchored to the frame. Two sealed Ball Bearing cartridges, one on each side, support radial and thrust loads.

Sealed bearings are critical outdoors. A typical outdoor bearing uses a deep-groove ball bearing (e.g., 6204) with integral seals on both sides. The seals are nitrile rubber, not the best low-friction performance, but effective at excluding water and grit. Some high-end stations use stainless-steel hybrid bearings (steel races, ceramic balls) for extended life in salt-spray environments.

The Seal Cap is a rubber or felt-lined metal cap at the outer edge of the bearing housing, providing additional weather protection. Even with seals, bearings gradually accumulate water and oxygen, so annual lubrication (a light machine oil or NLGI-2 grease worked in around the seal) extends bearing life from 5–10 years to 15–20 years.

Mechanical advantage and resistance feel

The user effort needed to operate an outdoor station depends on the Counterbalance Weight (if any) and the moment arms. A leg press with the foot platform 1 meter from the pivot and the user's body 1 meter from the pivot has a 1:1 mechanical advantage—the user lifts themselves at near full body weight. A lat pull with the handle 1.5 meters from the pivot and the seat 0.5 meters has a 0.33:1 advantage, so the user pulls one-third their body weight.

Stations are often designed so that a 75 kg person exerts 25–40 kgf (250–400 N) of effort, a comfortable, sustainable load for a 12–20 repetition set. Heavier users experience more resistance (proportional to their weight); lighter users experience less. This is a feature, not a bug: the apparatus scales effort with body mass naturally, accommodating a wide range of users.

The Counterbalance Weight on some designs provides fine-tuning. A leg adductor station might have a 5 or 10 kg counterweight that reduces the effective resistance by reducing the gravitational component. Adding or removing the counterweight (bolted on) changes the difficulty to suit different user populations.

Exercise modalities

A typical outdoor park has 6–12 stations covering: leg press, lat pulldown, leg adductor/abductor, abdominal/core flexion, chest press, leg curl, and torso twist. Each is optimized for one major movement pattern and is used for 12–20 repetitions, resting 30–60 seconds between exercises. A circuit takes 20–30 minutes and provides a full-body workout.

The simplicity of body-weight resistance means no adjustments are needed: the station difficulty is fixed. For progression, the user simply adds more repetitions, rests less, or performs variations (e.g., single-leg press instead of two-legged, or slower eccentric tempo).

Installation and ground preparation

The Anchor Bolt system requires a concrete foundation. Four holes are drilled in a concrete pad 1.5 meters (5 feet) deep, fitted with Concrete Anchor Insert threaded inserts or expansion anchors. The base plate of the frame is then bolted down with galvanized bolts and washers.

Correct installation is critical for safety. If bolts are undersized (e.g., M12 instead of M16), the station can rock or tilt. If the concrete is shallow or cracked, the station can pull the anchors free. Installation contractors typically follow a site-specific plan accounting for soil type, frost depth, and local loads.

Maintenance and longevity

Field inspections at annual intervals should check:

1. Bearing play: grasp the arm and try to rock it; excessive movement signals bearing wear.
2. Coating damage: look for rust spots or white oxide on galvanized surfaces.
3. Bolt tightness: verify all anchor bolts are tight (a torque wrench is the right tool).
4. Movement smoothness: work the arm through full range and listen for grinding.

Annual maintenance includes light lubrication of the Pivot Bearing Assembly. A spray of PTFE dry lubricant or a teaspoon of light machine oil worked around the bearing housing keeps corrosion at bay and preserves smooth motion.

Replacement parts are minimal: a Ball Bearing cartridge ($20–50) is the most common service item, easily swapped without removing the arm. Galvanized frame components rarely fail; structural cracks indicate overload or manufacturing defect, requiring replacement of the entire arm or frame section.

Most outdoor stations remain serviceable for 20–30 years with minimal maintenance. Some municipal parks have stations installed in the 1990s still in regular use. The robust mechanical design is the virtue: there is nothing to break that cannot be repaired with bolts and bearings.

Accessibility and user safety

Outdoor stations are popular because they are free and always available. However, accessibility is not universal: someone in a wheelchair cannot use a leg press or lat pull if they cannot be positioned relative to the pivot and footrest. Some newer parks include accessible stations with horizontal motion planes instead of vertical, and larger spacing between anchor points to accommodate wheelchair transfers.

The Movement Range Limiter prevent the arm from swinging beyond safe limits. Without them, an arm could swing 90° past its intended endpoint, causing wrist, ankle, or knee injury. The pads are rubber or polymer, placed to stop motion at ~85° of the natural range to allow a small deceleration distance.

Over-use injuries (e.g., a 100 kg person doing 30 repetitions on a leg adductor at maximal range) are the main medical issue, not equipment failure. Station signage typically recommends a target repetition count and range of motion.
