Parabolic Solar Cooker Product

Overview

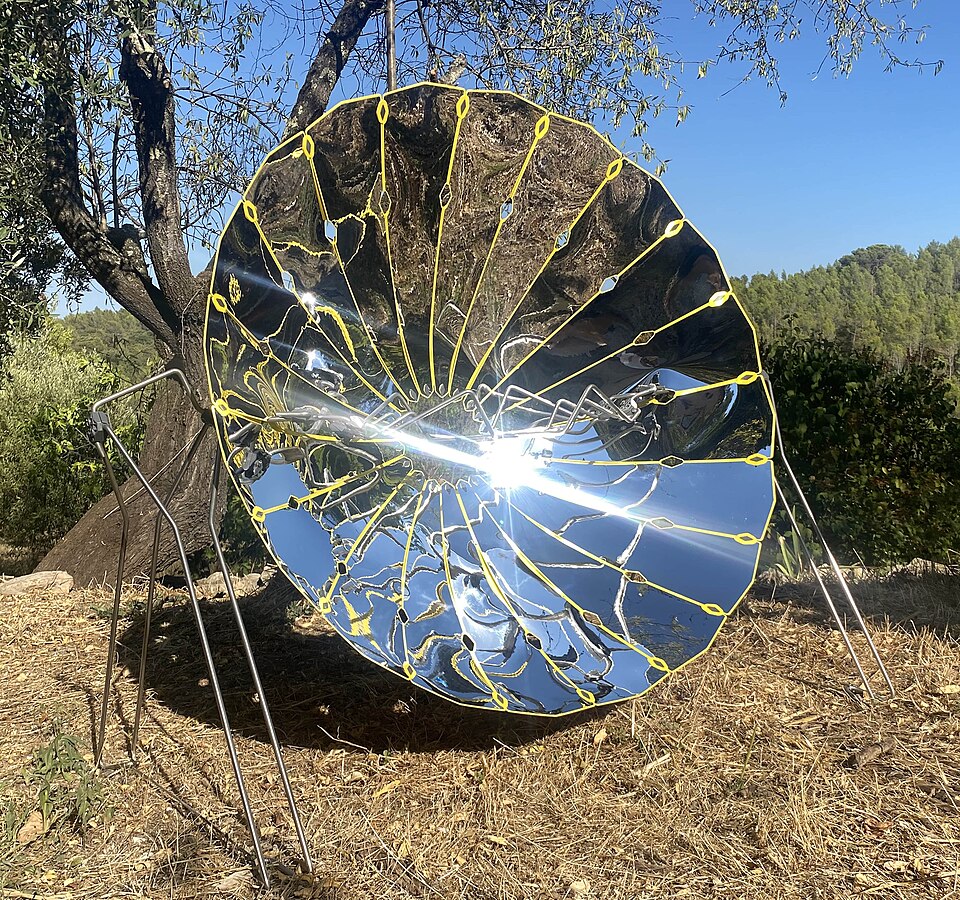

A parabolic solar cooker is a simple, low-cost thermal device exploiting the sun's energy for cooking, water heating, or pasteurization. The [[parabolic-cooker-mirror|curved reflector]] concentrates direct-beam sunlight 60–150× onto a small [[parabolic-cooker-pot|cooking pot]] at the focal point, raising food temperature to 150–200 °C (simmering) or 200–300 °C (boiling, baking) under clear skies. Peak thermal power output is 0.8–2.0 kW, equivalent to a small electric hot plate.

Parabolic cookers are widely deployed in off-grid rural areas, refugee camps, and developing countries (India, Africa, Middle East) where fuel is scarce or expensive. A family of four can cook a one-pot meal for five people in 30–45 minutes at solar noon. Zero operating cost, minimal maintenance, and universal fuel source (direct sunlight) are compelling advantages. Disadvantages include dependence on clear weather, slow cooking compared to gas/electric stoves, and mid-day cooking window (9:00–15:00 solar time).

Optics and Concentration

The Mirror Assembly is a thin [[parabolic-cooker-reflector|aluminum or glass mirror]] formed to a parabolic profile, focusing parallel sunbeams (direct normal irradiance, DNI) to a point at focal distance f. For a 1 m diameter mirror with focal ratio f/D = 0.4, the focal point is 0.4 m above the mirror vertex.

Concentration ratio C = (mirror diameter / beam spot size)². For a 1 m mirror focusing to a 2 cm diameter spot, C = (100 cm / 2 cm)² = 2500:1, but practical concentrators achieve only 60–150:1 due to:

• Slope error: Mirror curvature tolerance ±2–3 mm RMS, broadening focal spot to 4–6 cm
• Aberration: Off-axis points focus higher or lower due to spherical aberration, creating astigmatism
• Diffraction: Solar disk angle (0.53°) sets a diffraction-limited spot size (3 cm for 1 m mirror)

The [[parabolic-cooker-backing|backing material]] (foam or composite) provides structural rigidity; modern cookers use lightweight extruded polystyrene or polyurethane foam (density 30–50 kg/m³) that can be hand-carried.

Cooking Pot

The [[parabolic-cooker-pot-vessel|pot]] is typically stainless-steel or cast iron, 3–5 L, with matte-black exterior for high solar absorptivity (emissivity ε ≈ 0.9). The [[parabolic-cooker-pot-lid|insulated lid]] with aerogel or cork gasket minimizes convective loss. The [[parabolic-cooker-wind-guard|polycarbonate wind guard]] reduces convective cooling from wind, critical because convection loss scales with wind speed and can reduce power output by 50% in 5 m/s breeze.

At solar noon on a clear day (DNI ~800 W/m²), a 1 m² mirror receives 800 W; at 90% mirror reflectance and 70% concentration ratio efficiency (accounting for aberrations and atmospheric extinction), the pot receives ~500 W. The pot loses heat via:

• Radiation: ε σ A (T_pot⁴ − T_sky⁴) ≈ 0.9 × 5.67×10⁻⁸ × 0.05 × (350⁴ − 260⁴) ≈ 50 W (at 250 K sky, 77 °C food)
• Convection: h A (T_pot − T_∞) ≈ 5 × 0.05 × 20 ≈ 5 W (light wind, ΔT = 20 K)
• Conduction via pot handles and support: ~20 W (negligible if insulated)

Net power to food: 500 − 50 − 5 = 445 W, enough to boil 1 L of water (4180 J/°C × 80 °C rise = 334 kJ) in ~750 s (12.5 min). Measured boiling times are typically 15–30 min due to pot size, thermal mass, and variable solar position.

Tracking and Targeting

The Tracking System maintains alignment with the sun as it moves across the sky. Manual cookers use a [[parabolic-cooker-tracker-scale|printed sun-path chart]] showing hourly azimuth and elevation angles for a given latitude. The operator adjusts the [[parabolic-cooker-tracker-base|azimuth base]] and [[parabolic-cooker-elevation-screw|elevation tilt screw]] every 15–30 minutes to keep the focal spot centered on the pot.

More advanced designs include shadow-stick alignment: a thin shadow-rod on the pot casts a shadow on a calibrated ring; when the shadow aligns with the hour mark, the cooker is correctly aimed.

Focal-Point Positioning

The [[parabolic-cooker-pot-frame|pot frame]] must position cookware precisely at the focal point (±10 mm tolerance). The [[parabolic-cooker-focal-ring|spider arm mounting]] holds the pot without blocking incoming solar radiation; three or four arms typically span the focal region. The [[parabolic-cooker-tilt-adjustment|fine-focus screw]] allows small vertical adjustments (±50 mm) to compensate for atmospheric refraction (which shortens the apparent focal distance at low solar elevations) or thermal defocus (the mirror expands ~1 mm/K rise).

Temperature Control and Cooking Modes

Temperature control is passive: as pot temperature rises, radiative loss increases as T⁴, eventually balancing solar input at an equilibrium temperature. At 250 °C pot temperature in still air (DNI 800 W/m²), power balance is achieved when input ≈ losses.

Cooking modes:

1. Boiling (100–120 °C): Rapid vaporization of water, suitable for drinking water, pasta, rice.
2. Simmering (80–100 °C): Slow heating of soups and stews; requires afternoon tracking as solar intensity declines.
3. Slow-cooking/Baking (150–200 °C): Baked breads, roasted vegetables, cakes in closed pot with insulation jacket (acts like an oven).
4. Pasteurization (65–70 °C for 30 min): Safe drinking water; a [[parabolic-cooker-pot-lid|dial thermometer]] is essential.

Insulation and Energy Storage

For afternoon and evening cooking, users employ the [[parabolic-cooker-insulation-jacket|insulation jacket]] (aerogel or fiberglass blanket) to reduce cooling rate. A pot of soup heated to 90 °C and wrapped in 50 mm aerogel will cool to 70 °C over ~2 hours (insulation reduces heat loss by ~80%), allowing continued cooking or reheating at slower rate.

For extended cooking (e.g., overnight slow-cooking), some designs integrate thermal mass: a 2–3 kg sand or ceramic heat-storage block buried in the pot absorbs heat during solar hours and releases it over the following 24 hours. This "solar hay-box cooker" approach (combining solar cooking + thermal mass storage) extends cooking window to evening and early morning.

Manufacturing and Materials

Traditional designs (India, Scheffler cooker) use concrete or clay backing with aluminum reflector glued or mechanically fastened. Modern designs (Germany, Solar Cookers International) use:

• Mirror: Front-surface aluminum (lower cost, ~0.88 reflectance) or silver-coated glass (higher cost, ~0.95 reflectance)
• Backing: Expanded polystyrene or polyurethane foam, lightweight and durable
• Frame: Aluminum angle or fiberglass composite, corrosion-resistant

Manufacturing cost is low ($30–100 USD material) due to simple geometry and no moving parts (except tracking mechanism). Artisanal production in developing countries (India, Kenya) employs local labor, reducing cost further to $15–40 per unit at scale.

Performance Factors

Efficiency (thermal energy to pot / solar energy incident) is typically 60–70%:

• Mirror reflectance loss: 10%
• Atmospheric extinction: 15% (air mass, aerosols, clouds)
• Spillage and aberration: 10%
• Pot absorption and conduction: 5%

Variation with solar position:

• Solar elevation <30°: Reflectance drops to 0.75–0.80 (oblique angle), so winter-morning performance is poor
• Solar elevation 50–70° (local noon): Peak efficiency, reflectance ~0.90
• High atmospheric water vapor or dust: Effective DNI drops 20–30%

Degradation:

• Mirror coating oxidation: 2–3% per year if unprotected
• Dust and soiling: 5–10% power loss if not cleaned monthly
• UV-induced crazing of foam backing: Structural failure possible after 5–10 years in harsh sunlight

Practical Use and Limitations

Parabolic cookers are most effective in:

• Arid/semi-arid climates: >300 days clear-sky per year, low atmospheric water vapor
• Tropical highlands: High DNI, cool ambient allowing higher pot temperatures
• Off-grid communities: Fuel cost or scarcity makes solar cooking economically competitive

Limitations:

• Weather dependence: Cloudy regions (North Europe, monsoon zones) unsuitable
• Narrow cooking window: 3–4 hours of useful power (solar noon ±2 hours)
• Manual tracking required: Labor-intensive, operator must monitor pot and aim cooker every 20 min
• Slow cooking vs. conventional stove: 2–3× longer cook time for stews
• Safety: Focal point reaches 250+ °C; severe burn risk if user touches pot or mirror

Economic comparison (developed country): $50–150 material cost vs. $0–2 per day natural gas ($0–730/year for family). Payback only if household lacks electricity/gas or has very high fuel prices (>$2/liter propane).

Impact in developing countries: 2+ billion people cook with biomass (firewood, dung, crop residue). Parabolic cookers displace $50–200/year biomass cost, reducing deforestation and indoor air pollution (respiratory disease kills 4 million/year globally). NGOs (Solar Cookers International, SELCO) have deployed millions of units in Africa, South Asia, and Latin America.
