Pellet Boiler Product

Overview

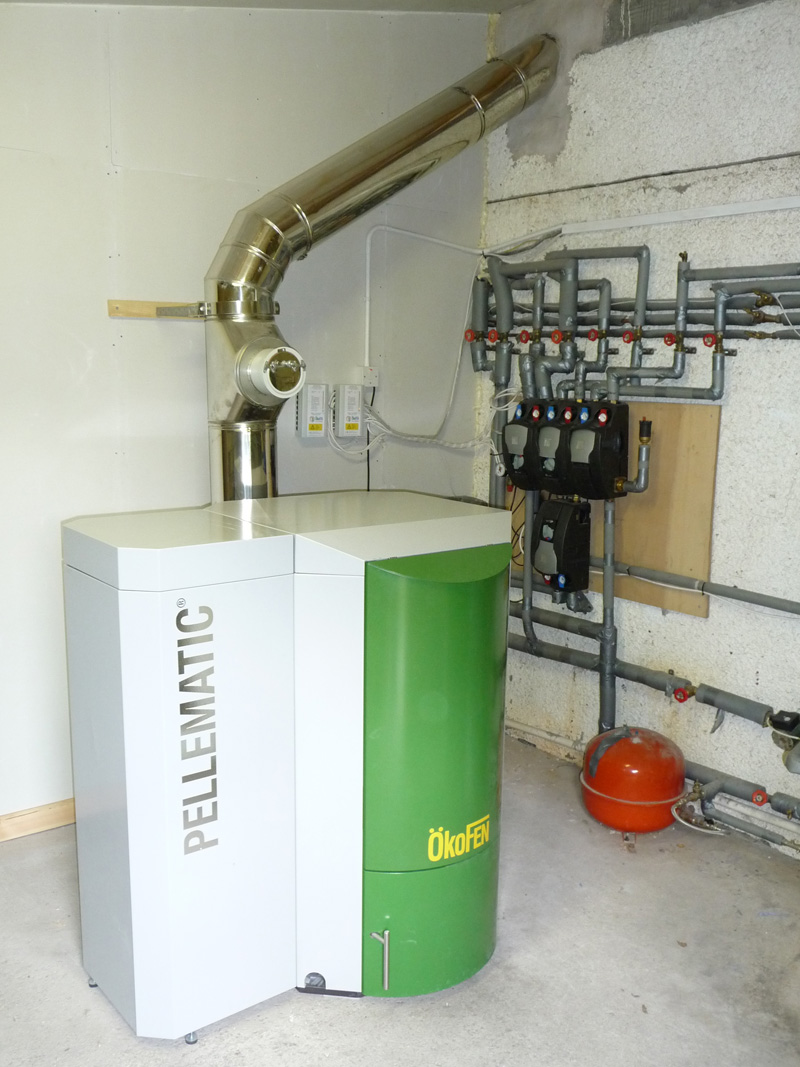

A pellet boiler is an automatic heating appliance that burns small compressed wood fuel pellets (~8 mm diameter, 20–50 mm length) in a controlled combustion chamber. Unlike traditional wood boilers, which require constant operator attention and burning whole logs in a large firebox, a pellet boiler automates virtually all aspects: an auger screw continuously feeds pellets from a hopper into the burner, a blower provides precisely metered combustion air, and a microcontroller adjusts burn rate via lambda feedback (oxygen sensor in the flue).

The boiler itself is a hydronic appliance—it heats water that circulates to radiators, underfloor heating, or thermal storage. The water-side comprises a sectional Heat Exchanger Assembly with Turbulator Rods, a Circulation Pump, and an Expansion Vessel for pressure absorption. The fuel-side includes the Pellet Hopper Assembly, the Pellet Burner Head, the Combustion Blower, and the Control & Lambda Module.

The primary advantage over manual wood boilers is autonomy: a well-sized boiler with a full hopper can run unattended for 1–3 weeks during moderate winter weather, automatically maintaining a setpoint via thermostat input. This eliminates the daily ritual of wood splitting, stacking, and loading required in a traditional wood-burning home.

How it works

The operator fills the Pellet Hopper Assembly with bagged or bulk pellets. On a heating demand signal (room thermostat below setpoint or scheduling command), the Control & Lambda Module energizes the auger motor. The pellet-boiler-pellet-burner uses a rotating grate that gradually pushes pellets from the auger feed point onto the active burn zone. As pellets drop and tumble on the hot grate surface (~500–700°C), they volatilize and ignite spontaneously.

Combustion air is supplied by the Combustion Blower, a variable-speed fan controlled by the Control & Lambda Module. Rather than fixed-speed operation (as in many oil boilers), the blower speed is modulated based on feedback from a Lambda Sensor in the flue gases. The sensor detects the oxygen concentration of the exhaust; if oxygen is high (incomplete pellet combustion, lean burn), the controller increases blower speed and auger feed to richen the mixture. If oxygen is low (excess fuel, rich burn) and carbon monoxide rises, the controller reduces air and fuel. This automatic tuning maintains near-stoichiometric combustion across load range, achieving 85–95% efficiency.

Hot combustion gases from the grate region flow upward through the Heat Exchanger Assembly. The Turbulator Rods inside the heat exchanger tubes are helical or spiral wire inserts that force flue gas into a swirling motion, preventing the formation of stagnant boundary layers and dramatically increasing the convection coefficient. The tube bundle geometry and turbulators are optimized to balance heat extraction (high residence time) against draft resistance (excessive static pressure overloads the chimney or induced-draft fan).

Below the combustion chamber, the Ash Removal System continuously or periodically evacuates ash via a secondary auger. A powered screw conveyor pushes ash from the grate region through the tubes and out a discharge opening, typically into a removable bin. Modern designs compress ash as it travels, reducing volume by 30–40%. Ash removal automation means the operator may not empty the ash bin for weeks, depending on hopper size and burn pattern.

On the water side, the Circulation Pump is controlled by the Control & Lambda Module based on water temperature sensed by a Boiler Temperature Sensor submerged in the boiler. When boiler water reaches setpoint (typically 60–80°C), the pump shuts down, and the auger stops feeding pellets. As the space cools and thermostat signals again, the cycle repeats. If water temperature rises toward a high limit (safety setpoint), an overheat relay stops the auger and may trigger the Combustion Blower to run in reverse (ash evacuation mode) to cool the firebox quickly.

The Expansion Vessel is pre-pressurized to approximately 0.5–1 bar and absorbs the 2–3% volume expansion of water as it heats from 20°C to 80°C. Without the tank, system pressure would rise uncontrollably and exceed the relief valve opening point.

Fuel quality and maintenance

Pellet quality is critical. Moisture content must be ≤10% (EN 14961-2); wet or moldy pellets expand, jam the auger, and produce thick creosote that clogs the heat exchanger and turbulator rods. Storage in a dry, well-ventilated space is essential. Off-spec pellets (too large, high ash content, inconsistent density) cause feed blockages and combustion instability.

Annual service includes:

1. Cleaning the Heat Exchanger Assembly tubes and turbulator rods of ash and soot deposits—a buildup thicker than 3 mm significantly reduces efficiency.
2. Inspecting the Pellet Burner Head grate for warping or cracking and the Lambda Sensor for carbon coating; the sensor must be removed and cleaned or replaced annually.
3. Checking the auger screw and drive motor for wear; a slipping auger produces erratic burn rate and incomplete combustion.
4. Flushing the boiler water circuit to remove suspended magnetite (iron oxide) corrosion products, which accumulate over time.

A complete unburned hopper (typically 3–5 day's heating capacity) should be cycled out annually—even under cover, pellets can pick up moisture over months of storage.

Economic considerations

Pellet boilers cost 2–3× more than simple wood boilers but reduce annual fuel handling labor from 40 hours (for manual wood stacking and loading) to ~4 hours (hopper refills and ash emptying). The energy content of wood pellets (4.7 kWh/kg) is slightly higher than split firewood due to compression and moisture control, so the effective cost per kWh may be comparable or lower than cordwood, depending on regional market pricing.

Automation also improves comfort: the boiler maintains setpoint temperature within 2–3°C without any operator intervention, whereas manual boilers have 5–10°C swings as loads cycle on and off around a slower water temperature rise curve.
