Overview

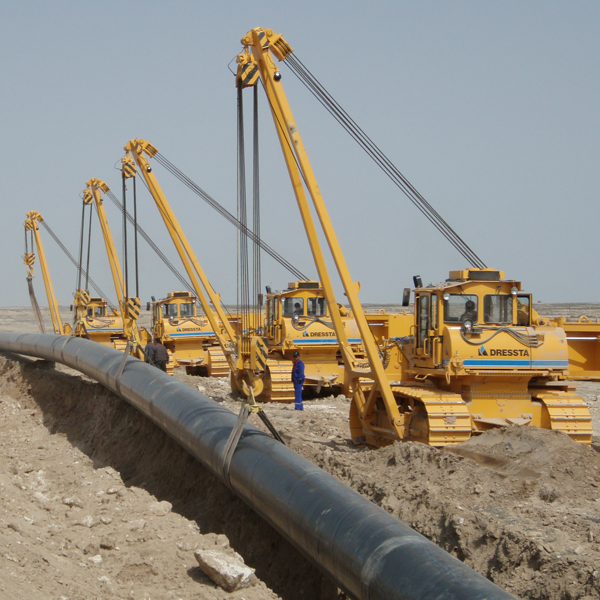

The pipelayer sideboom is the workhorse of pipeline assembly and lay yards. A large tractor or crawler base carries a lateral (side-mounted) boom arm that swings 180 degrees, enabling operators to lift heavy pipe sections from a stockyard and lower them into trenches or onto welding stations with precision control. The machine is used in:

• Pipeline Construction: Lifting 6–48 inch diameter pipe sections (weighing 5–30 tons each) from fabrication yards and positioning them for welding.
• Mainline Lay Operations: Unloading pipe from trucks, stringing it along the right-of-way, and setting it into shallow or deep trenches (10–30 feet).
• Trench Dredging: Extracting dredge spoil from under a laid pipeline during backfill.
• Equipment Handling: Placing valves, fittings, and small structures alongside the pipeline.

The machine's power comes from a hydraulic system driven by a 150–300 hp diesel engine. The Variable Displacement Pump (variable displacement, load-sensing) delivers oil at 3,500 psi to drive the Boom Elevation Cylinders (boom up/down), the Winch Hoist Motor and Drum (hoist rope), the Power Steering System (steering), and transmission controls.

How It Works: Pipe Lifting and Placement

1. Setup: A large-diameter pipe section (e.g., 24 inch OD, 6 inches wall, ~15 tons) is secured horizontally in a laydown area near the Hook Block and Sling Assembly. Crew members wrap a synthetic Synthetic Sling (4-leg or 2-leg choker sling) around the pipe at two balanced lift points, rated for the pipe weight plus shock load (typically 1.5× static weight).

2. Hoist Engagement: The operator (seated in the Operator Control Cabin) manipulates the proportional joystick Proportional Controls. A hydraulic solenoid opens the winch motor circuit. The Winch Motor (50–150 cc/rev) begins rotating, pulling rope from the Winch Drum (2–4 foot diameter) via the Winch Brake (spring-applied, hydraulically released). The rope tightens and lifts the pipe off the ground at ~10–30 feet/minute hoist speed (dependent on motor displacement and pilot pressure).

3. Boom Elevation: Simultaneously, the operator manipulates the joystick to raise the boom via the Boom Elevation Cylinders. These large double-acting cylinders (4–6 inch bore, 3,500 psi) extend in unison, raising the boom from ~0° (horizontal or slightly down) to 45–60° (up for reaching higher trenches or deck level). The boom motion is damped by pilot-operated check valves in the hydraulic manifold to prevent shock and load bounce.

4. Boom Swing (Lateral Rotation): The operator steers the boom sideways via the Boom Swivel Bearing (slewing bearing), permitting 180° of arc from the tractor centerline. Manual or proportional hydraulic steering (via solenoid valve) rotates the boom platform. Lateral movement is smooth and controlled, allowing precise positioning over the target trench, welding station, or next lay position.

5. Load Lowering and Setting: Once the pipe is positioned above the target (trench or welding station), the operator gradually reduces hoist pressure via the joystick, lowering the pipe at a controlled rate (~10 feet/minute). The Winch Brake modulates back-pressure on the hydraulic motor, preventing freefall. As the pipe approaches the target, the operator reduces speed further, setting it gently (1–2 feet/minute final descent).

6. Sling Release: Crew ground personnel unhook or release the sling legs from the pipe. The operator backs off the hoist winch, allowing rope to slack. The sling is removed, and the pipe rests on its supports (V-blocks, saddles, or welding station fixturing).

Load Balancing and Stability

The critical design parameter is Counterweight and Ballast System: the tractor must not tip over when the boom and loaded pipe are fully extended. A typical balancing equation:

Boom/Pipe Load × Boom Reach = Counterweight × Counterweight Arm

If a 20-ton pipe is lifted 30 feet from the tractor centerline, the tipping moment is 20 × 30 = 600 ton-feet. A 4-ton counterweight mounted 150 feet away (on the opposite side of the tractor) creates a 4 × 150 = 600 ton-feet restoring moment, preventing tip-over.

Operators are trained to respect the rated load capacity (10–30 tons SWL). Exceeding the rated load can cause the tractor to tip sideways, catapulting the load and operator. The Gauge Cluster includes a load cell indicator displaying actual pipe weight in real time; if the load approaches the limit, the operator stops and verifies weight and boom angle before proceeding.

Counterweight Adjustment for Different Pipe Sizes

The Ballast Block are removable, allowing operators to adjust total counterweight based on the day's heaviest pipe. For small-diameter pipe (6–12 inch), only 2–3 tons of counterweight may be needed, allowing removal of blocks to improve tractor mobility and fuel economy. For large-diameter (36–48 inch) pipe runs, all 4–8 tons of counterweight blocks are mounted.

Hydraulic System Load Control

The Variable Displacement Pump uses a load-sensing compensator: it measures the pilot pressure demand of the proportional solenoid valves and throttles pump displacement to match flow demand. This prevents excess heat generation and fuel waste. If the operator leaves the joystick centered (neutral), the pump goes into standby mode, circulating only a small internal leakage flow at low pressure.

The Hydraulic Manifold Block integrates:

• Winch Motor Control: Solenoid-operated proportional valve, allows variable speed descent and ascent.
• Boom Raise/Lower: Proportional directional control valve feeding the two Boom Elevation Cylinders.
• Steering Control: Proportional steering valve supplying front axle steering actuators.
• Brake Control: Solenoid energize/de-energize winch brake spring release.
• Pressure Relief: Pilot-operated relief valve set at 3,500 psi, protecting all circuits from overpressure.

Wind and Operator Safety

Large pipe sections (20+ tons) on a boom extended 30+ feet is inherently risky. Wind speeds >15 mph can cause swing and load swing-out. Operators are trained to:

• Reduce Hoist Speed in Wind: Slower descent = more operator control.
• Minimize Boom Extension: Keep the boom as far back as practical, reducing leverage.
• Use Tag Lines: Crew members hold light rope attached to pipe, damping lateral swing.
• Avoid Lifting Over People: Never hoist load over crew members or equipment.

The Operator Seat is a suspended or isolated seat, absorbing vibration and shock if the load suddenly shifts or brakes unexpectedly.

Maintenance and Service Life

The Diesel Tractor Engine requires oil and filter changes every 250 hours. The hydraulic fluid is sampled annually; the Return Filter is replaced every 500 hours. The Boom Elevation Cylinders seals are replaced after 2,000–4,000 operating hours of repeated extension/retraction. The Winch Motor and Winch Drum are serviced every 5 years; drum grooves are re-machined if rope slippage develops.

The Drive and Steering Axle, Power Transmission, and Power Steering System are standard tractor components, serviced per manufacturer schedules. The Boom Swivel Bearing (slewing bearing) is inspected annually for grease condition and sealing.

Typical sideboom machine life is 15–25 years with proper maintenance, after which the tractor and hydraulic systems may be overhauled, or the boom is transplanted to a newer tractor chassis for continued service.
