Pop-Up Hunting Blind Product

Overview

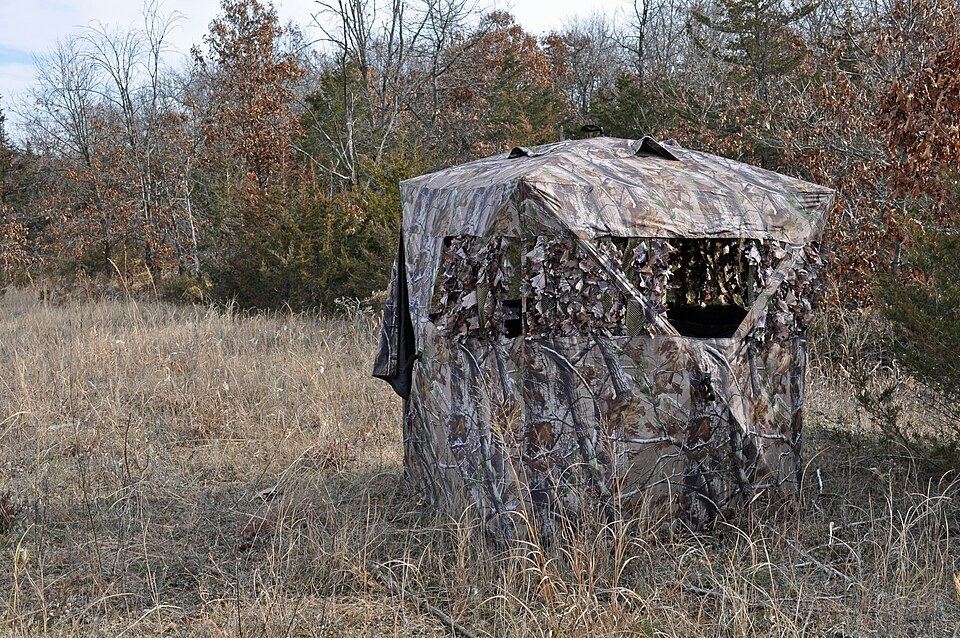

A portable hunting blind is a collapsible pop-up camouflage shelter enabling stationary hunting from concealed positions. Modern designs use a hub-and-spoke aluminum or fiberglass frame that expands rapidly (3–5 minutes) into a cone or dome shape, surrounded by a multi-layer camouflage fabric shell. The blind features four screened windows providing sight lines in cardinal directions, a zippered entry door, and an internal ground mat reducing moisture and noise. Anchoring stakes and guy-lines secure the blind against wind. Portability is paramount: the entire structure (blind, poles, mat, stakes) collapses into a ~60 L carry bag weighing 6–12 kg, enabling solo hunters to transport and deploy blinds into remote hunting areas.

Portable blinds revolutionized upland game and waterfowl hunting by allowing hunters to position themselves in optimal terrain without building semi-permanent structures. Unlike ground blinds (camouflage burlap draped over natural terrain features), portable blinds are rapid-deploy, repeatable, and effective in open fields, marshes, or sparse cover where natural concealment is minimal.

How It Works

The Hub-and-Spoke Frame Assembly consists of a Central Hub central junction with six or more Main Vertical Pole radial poles extending outward at a slight angle. Each pole is 1.8–2.2 m long, 25–30 mm OD, made of fiberglass (flexible, lightweight, damping vibration) or aluminum (stiffer, lighter, more rigid). The poles are connected at the hub via Pole Connector Sleeve sleeves that allow quick-release assembly.

A Pre-Tension Shock Cord runs internally through all poles, pre-tensioning the frame. During setup, the user separates the collapsed poles (still pre-connected by shock cord) and spreads them outward in a cone pattern. The pole bases naturally separate due to the cordless tension, and the structure self-expands over 30–60 seconds. Final tightening of base connectors locks the frame in place.

The Camouflage Fabric Shell is draped over the external frame. It consists of two layers: an outer Outer Camouflage Nylon camouflage nylon (typically a leaf, brush, or tree-pattern print) and an inner Dark Inner Lining dark fabric. This dual-layer construction serves two purposes:

1. The outer camo matches surrounding vegetation, breaking up the blind's silhouette.
2. The dark inner lining prevents external light from silhouetting the hunter inside, making the interior appear as dark shadow to external observers.

Four Viewing Window Ports are positioned at cardinal directions (north, south, east, west). Each window is approximately 20–30 cm wide by 15–20 cm tall, covered with fine dark mesh (Window Mesh Screen). The mesh is small enough (2–3 mm holes) to prevent detailed viewing from outside while allowing the hunter inside to aim weapons through the opening. Each window can be covered with a roller shade or velcro-attached panel (Window Cover Shade) to block light and close non-primary sight lines.

The Entry Door Assembly is a zippered panel (typically on the downwind side, facing away from expected game approach) allowing hunter entry and exit. The zipper is a heavy-duty two-way metal slider (YKK #8 or #10) allowing opening from both top and bottom without fully unzipping. A Door Overlap Flap overlaps above and below the zipper, reducing light leakage.

The Ground Contact Mat is a Rubber Ground Mat closed-cell rubber or woven plastic mat (5–10 mm thick), approximately 1.5–2.0 m diameter. This mat serves multiple functions:

1. Moisture barrier: Prevents ground damp from wicking upward, keeping equipment and clothing dry.
2. Noise insulation: Dampens footstep noise inside the blind.
3. Comfort: Provides cushioning for kneeling or sitting during extended hunts.

The blind is secured to the ground via Ground Anchoring System: Ground Stake ground stakes (30–40 cm length, plastic or metal) driven into the ground at the blind's perimeter, connected to the fabric via Paracord Guy-Line paracord. This prevents wind from tipping or sliding the blind.

Interior Layout and Hunting Operation

Typical interior dimensions are 1.5–2.0 m diameter at the base and 1.8–2.2 m height, providing ~3–5 m³ of volume. This accommodates 1–2 hunters, a backpack, decoys (for waterfowl hunting), and ammunition.

A hunter kneels or sits on the Rubber Ground Mat in a position offering clear sight lines through primary windows. Typically, the primary window faces the anticipated approach direction; secondary windows provide lateral and rear coverage. During waterfowl hunting, a small Window Cover Shade shade is raised on the primary window just before game approaches, allowing the hunter to maintain visual contact and aim without being silhouetted.

Noise discipline is critical. The inner lining and mat absorb some sound, but footsteps, bolt manipulations, and breathing are audible to nearby game. Experienced hunters move slowly and deliberately inside blinds, avoiding sudden motions that create vibration visible through windows.

Camouflage Effectiveness

Field observations show that portable blinds reduce detection distance (distance at which game first detects the hunter) by approximately 50–70% compared to unobstructed standing hunters. The reduction is greater on opening days (when game is more alert and expects human activity) than during high-pressure periods.

The Outer Camouflage Nylon pattern is critical. Open-field hunting often uses brown/tan leaf patterns; wooded areas benefit from branch/bark patterns. Some blinds offer reversible fabric (one side spring green, reverse winter brown) for seasonal use. Specialized patterns (snow white, tall-grass tan, marsh cattail) exist for specific environments.

Common camouflage patterns:

• Mossy Oak or Realtree: Photorealistic leaf/branch patterns, effective 10–50 m
• RealTree Xtra: High-definition photograph-based pattern
• Solid tan/brown: Budget option, effective at distance but less realistic up close
• Snow white: Essential in heavy snow, otherwise very visible

The Dark Inner Lining is typically charcoal or dark green. A light-colored interior would create a visible outline when the hunter aims through a window; the dark lining prevents this internal silhouette.

Material and Durability

The Outer Camouflage Nylon is typically 400–600 D ripstop nylon or Cordura, water-resistant with a DWR (durable water-repellent) coating. Ripstop weave (reinforced grid pattern) prevents small tears from propagating. DWR treatments degrade under UV exposure; annual re-treatment with silicone spray extends life.

The Main Vertical Pole are typically fiberglass-wound composites (glass fibers in epoxy resin). Fiberglass is chosen for its combination of strength, lightweight, and damping properties (absorbing vibrations better than aluminum, reducing noise). Fiberglass poles typically last 10–15 seasons; aluminum alternatives last indefinitely but are stiffer and more prone to ringing (audible vibration).

The Rubber Ground Mat is closed-cell rubber or woven polyethylene. Closed-cell prevents water absorption; woven polyethylene is lighter and less expensive but absorbs more water. Longevity is 5–8 years before compression becomes pronounced.

Setup and Field Use

Setup requires <5 minutes:

1. Select a location offering natural cover and wind direction advantage (downwind from game approach).
2. Spread collapsed frame, allowing poles to naturally expand via shock-cord tension.
3. Secure pole base connectors, locking frame rigidity.
4. Drape fabric, securing Fabric-to-Frame Connector loops to frame.
5. Spread Rubber Ground Mat, tying corners to frame.
6. Drive stakes and secure guy-lines.
7. Position water bottles, decoys (if waterfowl), and ammunition inside.

Teardown is similarly rapid: disconnect guy-lines, collapse poles, compress fabric and mat into the Carry and Storage Bag, and carry out.

Camouflage Limitations

Even high-quality blinds have sight-line weaknesses:

• Window frames: The dark plastic or aluminum frame creates a rectangular outline, visible at close range (<20 m) to alert game.
• Movement: Any motion inside catches an observer's eye; freezing motions are essential.
• Scent: Blinds do not eliminate human scent; upwind positioning is critical for scent-sensitive game (deer, elk).
• Noise: Floor vibrations and equipment movements transmit through the Rubber Ground Mat and frame structure into the ground, potentially detected by sensitive animals.

These limitations are acceptable tradeoffs for the convenience and repeatability of portable blinds.

Variants and Specialized Designs

Waterfowl blinds: Often feature wider side windows and a large front opening for shotgun swing. Some integrate decoy storage or small heater compartments.

Tree stand blinds: Lightweight designs (3–4 kg) for elevated installation, often triangular footprint to fit platform shapes.

Heavy-duty field blinds: Larger footprints (2.5–3.0 m) for multiple hunters, weighing 12–16 kg.

Silent designs: Fiberglass poles with advanced vibration damping, silent velcro (instead of zippers) for window operation, noise-absorbing mat materials.

Insulated blinds: Heavy thermal lining for cold-weather hunting, adding 3–5 kg but retaining heat for extended sits in subzero temperatures.

Regulations and Ethics

Most hunting jurisdictions permit portable blinds without restriction. Some parks or preserves restrict their use or require advance permission. Hunters should verify local regulations.

Ethical hunting emphasizes stealth and respect. A portable blind, combined with accurate shooting and sound technique, reduces the likelihood of wounding and losing game. Poorly maintained blinds (visible frameworks, uncovered bright colors, excessive noise) may reflect negatively on hunters in public perception.
