Radiant Floor Manifold Product

Overview

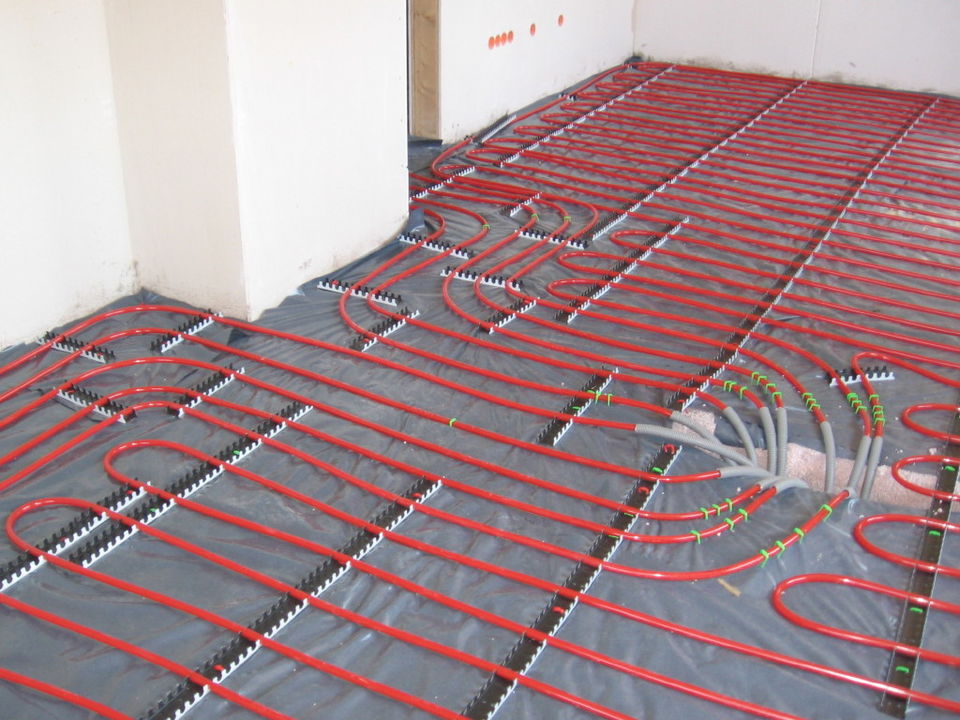

A radiant floor manifold is the central control and distribution point for hydronic radiant heating or cooling systems. It receives pressurized hot or chilled water from a boiler or chiller and distributes it through independent circuits to long loops of tubing (typically 16–20 mm plastic PEX or PERT) embedded in floors throughout a building. Each circuit is individually metered, isolated, and modulated, allowing different rooms or zones to reach different temperatures simultaneously. The Supply Water Rail and Return Water Rail are paired brass or stainless steel manifold blocks mounted on a [[radiant-floor-manifold-mounting|steel frame]], connected to all floor loops via crimp or compression fittings beneath the floor slab or in accessible wall cavities.

Radiant floor systems excel in open-plan spaces, hotels, residential buildings, and buildings with high internal heat gains where conventional air-based systems struggle. Because radiant surface temperature is maintained in the 24–32°C range (much cooler than forced air), comfort is achieved without drafts. Unlike traditional radiators, the heat is distributed over a large area, reducing temperature stratification and enabling zone control with precision. The manifold assembly is the heartbeat: it measures flow, isolates failed circuits, modulates temperature per zone, and provides air release and drain points for maintenance.

How it works

Hot or chilled water enters the Supply Inlet Port at a target temperature (typically 45°C for heating, 18°C for cooling). It first passes through a [[radiant-floor-manifold-supply-inlet-strainer|Y-strainer]] to remove particles. The water then flows into the Supply Manifold Block, which contains internal channels distributing equal pressure to all 6–12 outlet ports. Each port feeds one radiant circuit beneath a floor zone.

For zone temperature control, a proportional [[radiant-floor-manifold-actuator-valve|balancing valve cartridge]] and [[radiant-floor-manifold-actuator-motor|motor actuator]] are installed on each supply port. When a room temperature sensor detects that a zone is too warm, the proportional valve throttles that circuit's flow, reducing the heat output. When the zone is too cool, the valve opens further, increasing flow and heat delivery. This [[radiant-floor-manifold-meter|flow meter]] monitors actual flow through each circuit for diagnostics and balancing.

Return water from all floor loops enters the Return Manifold Block, which collects them into a single return stream. The [[radiant-floor-manifold-return-separator|air separation chamber]] inside the return block traps entrained air bubbles and fine sediment, preventing them from returning to the boiler. The mixed return water exits via the Return Outlet Port and flows back to the hydronic plant (boiler, chiller, or mixing tank).

Zone Isolation and Balancing

Each zone's supply circuit is equipped with a [[radiant-floor-manifold-valve|ball isolation valve]], allowing technicians to shut off a single zone without affecting others—critical for troubleshooting a failed loop or service. The [[radiant-floor-manifold-meter|flow meters]] (one per zone) are essential diagnostic tools: they confirm that water is circulating in every loop and allow field balancing of flow to match design values.

The [[radiant-floor-manifold-thermometer|supply and return thermometers]] display real-time loop temperatures, enabling quick checks for delta-T (temperature drop across the system). A healthy radiant loop typically shows a 3–8°C drop between supply and return; a larger drop suggests insufficient flow or over-extraction.

Maintenance and Commissioning

At startup, the [[radiant-floor-manifold-bleed-vent|automatic air vent]] is opened while the system fills and pressurizes, releasing air pockets. The [[radiant-floor-manifold-bleed-drain|manual drain valve]] is used for complete system drains during maintenance or decommissioning. Annual inspections include checking for leaks at compression fittings, verifying all proportional valves actuate smoothly (by manually repositioning them), and confirming that no circuits are isolated or blocked.

Radiant floor systems typically carry treated water (inhibitors and pH buffers) to minimize corrosion inside long plastic tubing and brass fittings. Periodic water analysis (pH, alkalinity, corrosion inhibitor residual) is recommended every 2–3 years. The manifold itself requires minimal service; valve cartridges and motors are field-replaceable without draining the entire system if equipped with isolation ball valves.

Standards and Typical Applications

ASHRAE 90.1 and EN 12098 provide design guidance for radiant systems. A typical residence might have 2–4 zones (living/sleeping/bath areas); a commercial building might have 8–12 zones per floor. Radiant heating pairs well with heat pumps, solar thermal systems, and district heating networks. Cooling requires careful dehumidification control—the room air must be dried by a separate ventilation system to prevent condensation on the floor surface.
