Overview

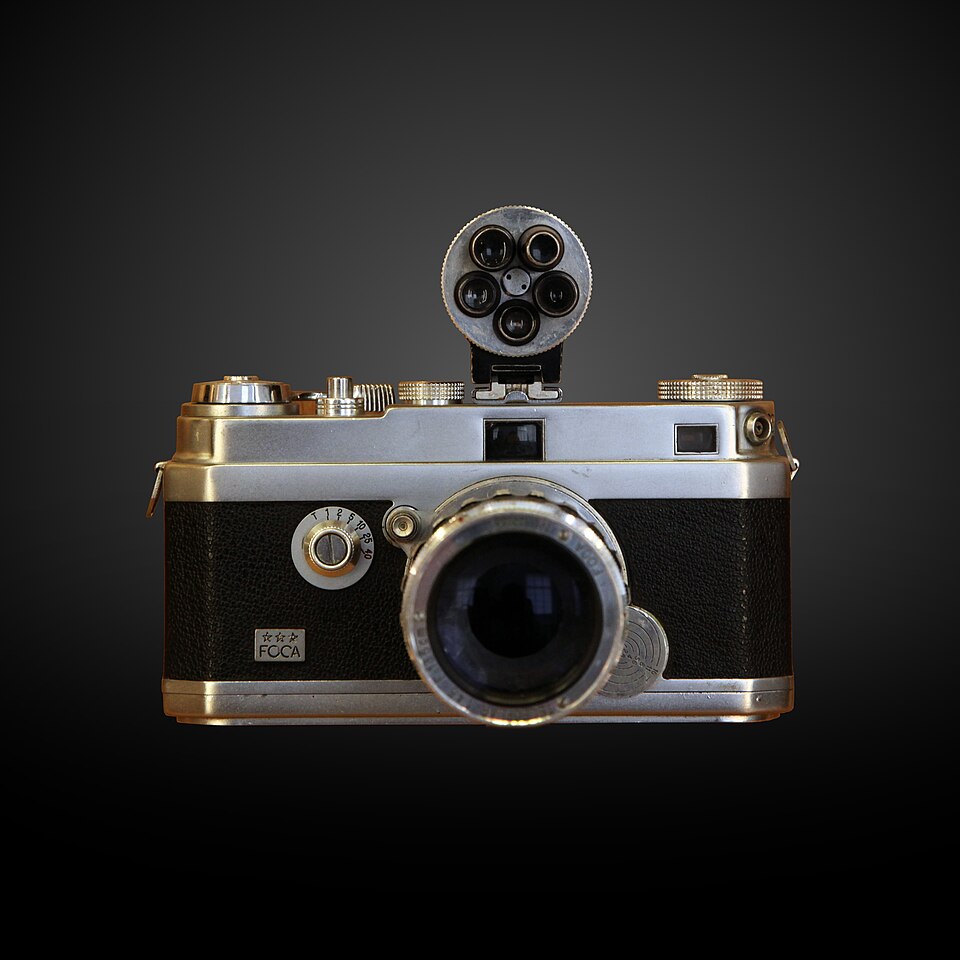

A rangefinder camera is a compact 35 mm camera with a coupled rangefinder mechanism—an optical distance-measuring system—that automatically adjusts the lens focus as the photographer aims at the subject. The name derives from the rangefinder's function: to "find the range" (distance) to the subject.

The Coupled Rangefinder Assembly contains a movable prism aligned with the optical axis. Light from the subject enters via a Rangefinder Window and strikes two prisms: a fixed Fixed Rangefinder Prism and a movable Movable Rangefinder Prism. The movable prism's position is mechanically linked to the Lens Assembly, so as the photographer adjusts the Manual Focus Knob, the movable prism rotates. When the two light paths align in the Viewfinder Optical System (typically showing as a superimposed or split image), the subject is in focus.

Rangefinder cameras were the dominant form-factor for serious amateur and professional 35 mm photography from the 1950s through the 1970s, before autofocus SLRs became common. Classic rangefinder models (Leica M series, Voigtländer, Canon, Contax) are still highly regarded for their compact size, mechanical reliability, and optical quality.

How it works

Rangefinder Mechanism: The Fixed Rangefinder Prism is mounted at one end of a baseline (typically 40–70 mm long, part of the camera body). The Movable Rangefinder Prism is mounted on a slider or rotating stage at the opposite end. Both prisms receive light from the subject via the Rangefinder Window.

Light from a distant object enters at both prisms at nearly the same angle; the two images are nearly superimposed. Light from a nearby object enters the fixed and movable prisms at different angles, creating a visible angular displacement between the two images in the viewfinder.

A mechanical Focus Cam Mechanism is shaped such that rotating it (via the focus knob) rotates the Movable Rangefinder Prism proportionally. When the photographer rotates the Manual Focus Knob, the movable prism rotates until the two light paths align, indicating focus. This angular displacement is mechanically converted to lens focus distance via the cam.

Viewfinder Integration: The two rangefinder light paths are directed into the Viewfinder Optical System, specifically into the Rangefinder Focusing Patch area in the center of the viewfinder. A Beamsplitter Optics optical element combines the two images. The patch typically shows:

• A superimposed image: The two images overlap in the patch area. When they are vertically or horizontally displaced, the subject is out of focus. When they align perfectly, focus is achieved.
• A split-image: A line divides the patch. On one side is the fixed prism image, on the other the movable prism image. They align when focus is achieved.

Bright-Line Viewfinder: Surrounding the rangefinder patch is the main viewfinder, which shows the full scene as seen through the Primary Lens Element. [[rangefinder-bright-line-reticle|Bright-line framing marks]] etched or projected into the viewfinder define the film frame boundaries. The photographer composes by keeping the subject within these framelines.

Focus Coupling to Lens: The Manual Focus Coupling mechanically links the Manual Focus Knob input and the Focus Cam Mechanism output to the Focus Helicoid in the lens. As the rangefinder prism rotates, the linkage rotates the lens helicoid, changing the focus distance. The rotation angle precisely corresponds to subject distance via the carefully shaped focus cam.

Exposure and Shutter: The Shutter Mechanism is typically a leaf shutter (metal blades) integrated into the Lens Assembly, though some models use focal-plane shutters. The photographer selects shutter speed via the Speed Selector Dial and aperture via the Iris Diaphragm. Pressing the Release Button fires the shutter, exposing the film at the Film Gate.

Film Advance: The Film Transport Mechanism advances the film frame-by-frame via the Film Advance Lever. The Auto Shutter Cock Linkage automatically cocks the shutter as the film is advanced, preventing double exposures.

Rangefinder Accuracy and Depth of Field

The rangefinder's accuracy depends on the baseline length. A 50 mm baseline achieves approximately ±0.1 meter accuracy at 5 meters, and ±0.3 meter at 10 meters. This is sufficient for most photography when using modest apertures (f/5.6–f/8), but at wide apertures (f/2 or wider) with close subjects, focus errors become visible.

Users often "bracketed" focus (adjusting slightly forward and backward) to ensure sharp focus in uncertain conditions. Modern rangefinder enthusiasts use the depth-of-field scale printed on the lens barrel to estimate acceptable focus ranges.

Parallax Compensation

Unlike a reflex viewfinder (which shows exactly what the lens sees), the rangefinder viewfinder is optically separate from the lens. At close focus distances, the viewfinder sees a slightly different composition than the film. To address this, Bright Line Framelines markings are often designed to shift or split at close distances, showing the actual lens field of view.

Lens Options

Early rangefinder cameras had fixed lenses (typically 50 mm, equivalent to human eye perspective on 35 mm film). The Leica M series introduced interchangeable rangefinder lenses, allowing photographers to swap lenses while retaining the same camera body. Interchangeable lens rangefinders use standardized lens mounts (Leica M-mount, Contax/Kiev mount) and require precise mechanical and optical integration.

Leaf vs. Focal-Plane Shutter

Leaf Shutter (integrated into the lens): Fast flash synchronization (all shutter speeds), mechanical simplicity, and compact design. Drawback: shutter speed changes require mechanical adjustment in the lens.

Focal-Plane Shutter (in camera body): Allows shutter speed to be selected on the body rather than on the lens, and enables faster maximum shutter speeds. Drawback: complex mechanism and limited flash sync speed (typically 1/60–1/125 second).

Manual Focus Discipline

Operating a rangefinder camera requires intentional, deliberate focusing. Unlike modern autofocus systems, the photographer must actively focus before each shot. This slower rhythm encourages compositional thinking and careful framing. Many contemporary film photographers appreciate this discipline and the tactile feedback of manual focus.

Historical Development

The coupled rangefinder was invented in the 1920s and perfected by Leica. By the 1930s, rangefinder cameras were the standard for professional photojournalists, sports photographers, and serious amateurs. The compact form factor, bright viewfinder, and precise rangefinder mechanism were advantages over view cameras and early SLRs.

The rise of autofocus SLRs in the 1980s–1990s displaced manual-focus rangefinders, though some manufacturers (Leica, Contax, Mamiya 7) continued rangefinder production for professional and enthusiast markets.

Contemporary Use and Resurgence

Rangefinder cameras have experienced a resurgence in the digital age, driven by:

• Film photography enthusiasm: Manual rangefinder cameras offer a deliberate, tactile experience absent in digital cameras.
• Optical quality: Rangefinder lenses (e.g., Leica M lenses) are renowned for clarity and color rendering.
• Compact size: Rangefinder bodies are lighter and more compact than SLR equivalents, favored by street and travel photographers.
• Historical significance: Classic rangefinder cameras (Leica M3, Voigtländer Prominent, Contax RII) are collectible and mechanically reliable decades after manufacture.

Modern digital rangefinders (Leica M Monochrom, Fujifilm X100 series) carry forward the rangefinder philosophy: fixed or semi-fixed lens, bright optical or electronic viewfinder, and direct manual control.
