Overview

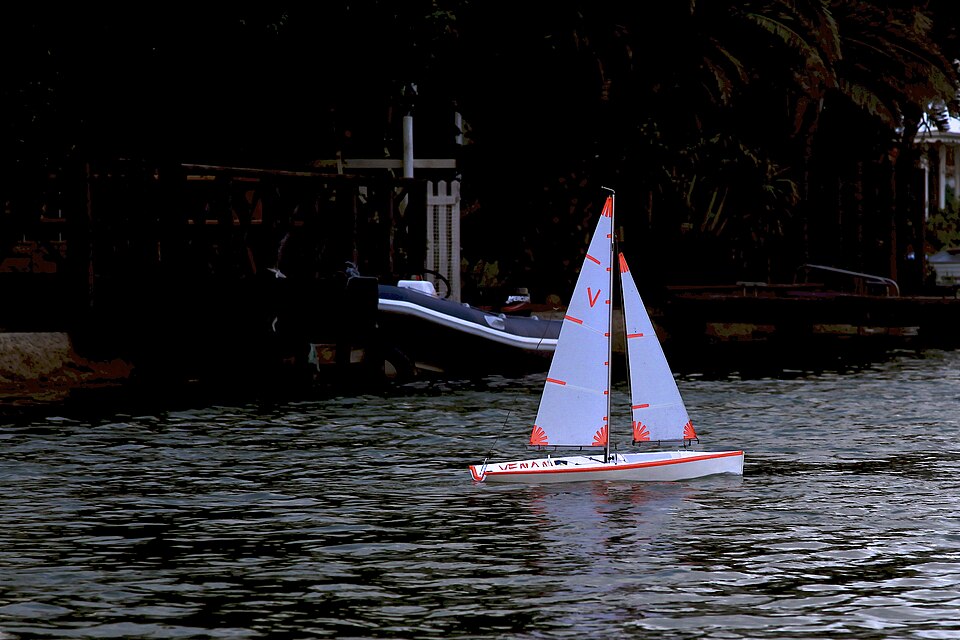

The rc-sailboat is a high-performance sailing model propelled by wind, with two servos enabling autonomous sail trim and steering. Unlike motorized RC boats that carry batteries for engine power, sailboats use wind energy and thus require only modest servo power—a [[rc-sailboat-battery|6V NiMH pack]] can run for 30+ hours. The [[rc-sailboat-hull|fiberglass hull]] is narrow and deep-drafted for stability, with a [[rc-sailboat-ballast|lead keel]] providing righting moment to resist heeling under sail load. The [[rc-sailboat-winch|sheet winch]] servo automatically tensions or relaxes the mainsail, and the [[rc-sailboat-rudder|rudder servo]] steers the boat independently. Two-channel control—throttle for sheet trim and steering for rudder angle—gives the pilot full command over course and speed.

How it works

Wind fills the [[rc-sailboat-mainsail|mainsail]] and [[rc-sailboat-jib|jib]], generating lift perpendicular to their surfaces. This force is resolved into forward thrust (along the hull) and sideways push (heeling), which is resisted by the [[rc-sailboat-ballast|ballast keel]]. The [[rc-sailboat-rudder|rudder]] creates lift to turn the boat; rudder angle is proportional to servo input, allowing fine control.

The [[rc-sailboat-winch|sheet winch]] controls mainsail depth. A servo-driven [[rc-sailboat-winch-drum|drum]] winds the [[rc-sailboat-sheet-line|sheet line]] around itself, tensioning the sail and changing its angle of attack relative to the wind. Tighter sheet angle closes the airfoil and increases forward drive; looser sheet angle opens it and reduces heeling. The pilot uses transmitter throttle to modulate sheet tension in real time, matching trim to wind strength and course.

The [[rc-sailboat-rig|aluminum mast and boom]] are supported by stainless [[rc-sailboat-shrouds|lateral shrouds]] and a [[rc-sailboat-forestay|forestay]], keeping them in column and preventing side-to-side wobble. The [[rc-sailboat-spreaders|spreaders]] change the shroud angle at mid-height, increasing structural efficiency. All rigging is stainless steel or galvanized to resist corrosion in saltwater and freshwater environments.

Racing considerations

Two-channel RC sailboats compete in fixed courses; the pilot navigates wind shifts and maneuvers around marks. Skill lies in anticipating wind direction and puffing, adjusting sheet and helm accordingly. Races last 10–20 minutes; the boat may drift or stall if the pilot loses focus. Some designs include a [[rc-sailboat-keel|keel]] that can be removed for ultra-shallow water racing, reducing draft to 80 mm.

Ballast and stability

The [[rc-sailboat-ballast|lead or tungsten keel]] is typically 40–50% of total weight, concentrated at the hull bottom. This righting moment allows the boat to heel 30–40° under sail without capsizing. In extreme gusts, the boat will heel flat but float upright; recovery requires only wind to ease. Ballast can be tuned by replacing the keel with a heavier or lighter casting to match specific wind conditions and racing rules.

Construction and repair

The fiberglass [[rc-sailboat-hull|hull and deck]] are robust but can be damaged by rocks or dock collisions. Repairs are straightforward: sand the area, apply epoxy, and fiberglass tape, then re-paint. The [[rc-sailboat-rig|aluminum spars]] are durable; bent booms and masts can be straightened or replaced. Nylon [[rc-sailboat-sails|sails]] last 2–3 seasons before UV and wind fatigue require replacement; worn sails lose shape and efficiency.

Variants

One-design classes enforce strict hull and rig rules; all boats are essentially identical, making racing purely about sail trim and piloting skill. Open classes allow any hull shape, rig configuration, and sail area within weight and length limits, leading to continuous design evolution and arms-race tuning. Some sailors use electronic telemetry to log wind angle, boat speed, and heel angle for post-race analysis.
