An apron feeder is a metering machine that controls the rate at which bulk material flows from a stockpile or hopper onto a discharge conveyor. Using an interlocked steel-pan belt driven by heavy-duty chains, the apron feeder meters material continuously and controllably. By varying apron speed (0.3–1 m/second) via variable-frequency motor drive, operators can adjust discharge rate from zero (stopped) to maximum capacity (50–300 tonnes per hour) without stopping or choking the system.

Apron feeders are essential in aggregation processing because they:

• Prevent bridging or arching of material in hoppers
• Protect downstream conveyor and equipment from material surges
• Allow load balancing when multiple feeders deliver to a single conveyor
• Provide wear-resistant surface tolerating highly abrasive materials
• Enable smooth ramp-up from zero flow to full capacity

Operating Principle

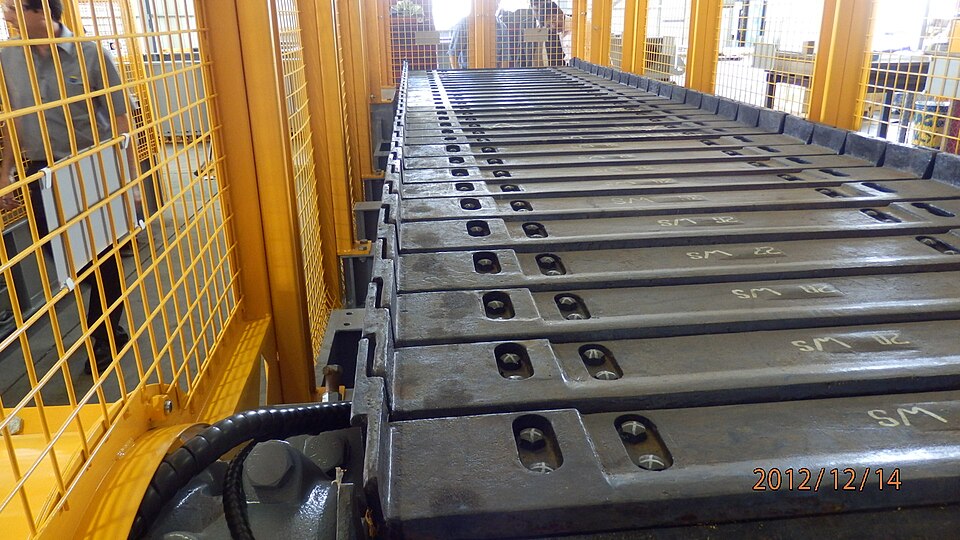

Material from an overhead hopper falls onto the moving [[reclaim-apron-feeder-apron-deck|apron deck]], a continuous chain of interlocked steel pans. As the chains move forward at controlled speed (0.3–1 m/s), material is carried along. Gravity and friction prevent material from sliding backward on the moving pans; instead, material advances steadily toward the discharge end, where it drops onto a [[overland-conveyor|belt conveyor]] or onto a truck.

The key advantage over fixed-hole chutes is speed control. A simple gravity chute cannot regulate flow rate—it depends entirely on incoming hopper pressure. An apron feeder, by adjusting speed, controls volumetric flow. A [[reclaim-apron-feeder-vfd|variable frequency drive (VFD)]] steps down motor speed from 1500 rpm to apron speeds of 0.3–1 m/second, with electronic feedback from [[reclaim-apron-feeder-load-cell|downstream load cells]] maintaining desired flow rate automatically.

Mechanical Components

Apron Deck and Chain Drive

The [[reclaim-apron-feeder-apron-deck|apron deck]] consists of 20–30 individual steel pans (300–600 mm wide) joined by hinge pins. Each pan is a flat or slightly raised steel plate capable of withstanding impact from falling material and abrasion from sharp rock. As the [[reclaim-apron-feeder-chain|drive chains]] move, they engage the pans and pull them forward.

Two heavy-duty [[reclaim-apron-feeder-roller-chain|roller chains]] run parallel, one on each side of the apron. Chain pitch (spacing between pins) is typically 31.75 mm or 50.8 mm, selected based on load and speed. Larger pitch allows higher speeds; smaller pitch permits longer apron lengths without excessive tension.

The apron speed depends on motor speed (via gearbox reduction) and sprocket tooth count. A typical feeder operates:

• Motor: 1500 rpm input
• Gearbox: 50:1 reduction → 30 rpm
• Head sprocket: 30 teeth → 1 meter per revolution
• Result: 30 rpm × 1 m/rev = 30 m/minute = 0.5 m/second

By fitting a VFD, the motor can be slowed to 50% speed (15 rpm), resulting in 0.25 m/second—half the capacity without mechanical changes.

Sprockets and Drive

The [[reclaim-apron-feeder-head-sprocket|head sprocket]] at the motor end is the driven component, receiving torque from the gearbox output. The [[reclaim-apron-feeder-tail-sprocket|tail sprocket]] at the far end is idler-only; the moving chain rotates it passively. [[reclaim-apron-feeder-idler-sprocket|Idler sprockets]] on adjustable arms maintain chain tension.

Chain tensioning is critical: too loose, and chains slip or derail; too tight, and bearing loads increase, shortening bearing life. Tension is typically checked weekly using a tension gauge (belt pull), adjusted to 0.5–1% of chain length horizontal deflection at midspan between sprockets.

Return Path and Scraper

After passing the tail sprocket, the return chain (now carrying no load, only its own weight and residual material) travels back under the apron. A [[reclaim-apron-feeder-scraper|chain scraper]]—a hardened steel blade—cleans the return chain before it re-engages at the head sprocket. Without the scraper, residual ore or aggregate sticks to the return chain, increasing weight and requiring more drive torque. The scraper also prevents material from being re-deposited onto the return path below.

Control and Automation

Variable Speed Feeders

A [[reclaim-apron-feeder-vfd|variable-frequency drive (VFD)]] controls motor speed from 0–100%, translating to apron speeds from 0 (stopped) to full capacity. A [[reclaim-apron-feeder-load-cell|load cell]] mounted under the discharge conveyor measures instantaneous flow rate. A [[reclaim-apron-feeder-controller|PLC controller]] compares measured load to setpoint and adjusts VFD frequency to maintain desired throughput.

For example, if the target is 100 tonnes per hour and the load cell reads 80 tonnes per hour, the controller increases motor speed by 20%, raising flow to the target. If hopper empties and flow drops to 60 tonnes per hour, the controller increases speed further. This closed-loop control maintains constant outfeed even as hopper density or particle size fluctuates.

Interlocked Shutdown

Multiple [[reclaim-apron-feeder-emergency-stop|emergency stop buttons]] positioned along the feeder, and on remote control pendants, halt the apron immediately. The VFD decelerates the motor in 3–5 seconds, preventing sudden jolts that could damage chains or pans.

Maintenance

Apron feeders are heavy-duty machines designed for 10–20 year service lives:

[[reclaim-apron-feeder-roller-chain|Chain Wear

[[reclaim-apron-feeder-roller-chain|Roller chains]] gradually wear, links elongating over time. Wear is measured as chain stretch: a 3 meter chain can stretch to 3.03 meters (1% elongation) before requiring replacement. Lubrication frequency is critical: chains should be oiled weekly in dry service, daily in wet or dusty conditions. Under-lubrication causes rapid wear; over-lubrication collects dust and abrasive particles, accelerating wear.

[[reclaim-apron-feeder-pan|Pan Degradation

Steel pans are subject to:

• Impact wear from falling material → surface peening and stress-concentration cracking
• Abrasion from sharp rock sliding across the pan → gradual thinning
• Corrosion in wet environments → pitting and eventual perforation

Pan liners (replaceable plates of hardened steel or ceramic) are sometimes bolted to pans in high-wear applications, extending pan life from 3–5 years to 7–10 years.

Bearing and Sprocket Maintenance

Sprocket teeth gradually wear, producing a "hooked" profile that can slip or derail chains. Sprockets are replaced when tooth wear exceeds 1 mm. Bearings on sprocket shafts last 5–7 years; sealed bearings require annual re-greasing.

Integration with Stockpile Reclamation

Apron feeders are commonly installed at the discharge point of large stockpile reclaim systems:

1. Bucket-wheel reclaimer or stacker-reclaimer excavates ore from stockpile
2. Overland conveyor transports excavated ore to processing
3. Apron feeder meters the ore onto the conveyor at controlled rate, preventing surges

In this chain, the apron feeder acts as a buffer: it accepts material from the high-speed [[bucket-whe-assembly|bucket wheel]] (which produces lumpy, variable-flow material) and discharges it smoothly at constant rate to the [[overland-conveyor|main conveyor]]. This matching of flow rates is essential for downstream processing efficiency.

Capacity and Selection

Apron feeder capacity depends on three variables:

• Apron length: Longer aprons hold more material per foot of movement. A 2-meter apron holds ~2 tonnes of aggregate; a 6-meter apron holds ~6 tonnes.
• Apron speed: Doubling speed doubles capacity.
• Density of material: Ore (3000 kg/m³) gives higher capacity than aggregate (1600 kg/m³) on the same apron.

Example Capacity Calculation:

Apron: 2 m long × 1 m wide, holding 0.2 m³ per meter length = 0.4 m³ capacity Material: aggregate, 1600 kg/m³ → 640 kg per apron load Speed: 0.5 m/second → 1 apron load every 4 seconds Capacity: 640 kg / 4 seconds = 160 kg/second = 576 tonnes/hour (theoretical)

Actual capacity is 70–80% of theoretical (material is not perfectly dense), yielding 400–460 tonnes/hour. Oversizing feeders by 20–30% accounts for surges and future expansion.

Operational Best Practices

1. Monitor chain tension weekly; retension if stretch exceeds 1% or if chains slip.
2. Oil chain weekly (dry) or daily (wet); use chain-specific oil, not motor oil.
3. Inspect pans monthly for cracks or thinning; replace pans showing >2 mm wear depth.
4. Check sprocket teeth quarterly; replace sprockets when teeth show hooked wear (1 mm depth).
5. Confirm VFD calibration every 6 months; recalibrate load cell zero annually.

Properly maintained apron feeders operate reliably for 10–20 years, often outlasting the mine or processing facility they serve, and are recovered for re-deployment to other sites.
