Recumbent Bicycle Product

Overview

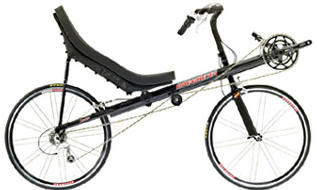

A recumbent bicycle places the rider in a reclined chair-like seat with the pedals out in front, rather than perched on a saddle above the cranks. The position has two consequences that define the machine. First, aerodynamics: a reclined rider presents a much smaller frontal area, cutting drag area (CdA) by roughly 20–30 % against an upright bike — enough that the UCI banned recumbents from conventional racing in 1934, and they have held the unpaced bicycle speed records ever since (faired recumbent streamliners exceed 140 km/h). Second, comfort: weight is spread across the whole back and pelvis through the Recumbent Seat, eliminating saddle, wrist, and neck pressure entirely.

How it works

The Frame and Boom is a backbone design: one large Main Tube runs from the Head Tube back to the Rear Stays, and a telescoping Front Boom extends forward to carry the crankset. Because the rider's position is fixed by the seat, leg length is fitted by sliding the boom — about 150 mm of range under the Boom Clamp — instead of by raising a saddle. The seat itself is a Seat Frame with a laced, ventilated Seat Mesh sling and a Seat Pad that keeps the rider from sliding down the recline; Seat Struts set the back angle, and recline beyond roughly 30° calls for a Headrest.

Power takes a long path. The Crankset on the boom — usually with short 152–165 mm arms, since the closed hip angle tolerates less knee flexion — drives a Long Chain of around 300 links, about two and a half standard chains joined together. The run passes under the seat over one or two Idler Pulley wheels, which redirect it around the frame with a measured loss of only a few watts, and through polymer Chain Tube sections that keep grease off the rider's calves. At the back, an ordinary Cassette and Rear Derailleur provide the gearing; the derailleur spring has the extra job of tensioning the long return run. Riders clip in with Pedals almost without exception, because a foot that slips off a forward crank can be pulled into the front wheel — the recumbent crash mode known as leg suck.

Steering

Two schools exist, both covered by the Steering System group. Over-seat steering (OSS) puts a tiller or "superman" Handlebar in front of the chest, directly on the steerer. Under-seat steering (USS) hangs the bars below the hips where the arms fall naturally; the bars pivot on the frame and a Steering Rod with spherical Rod End Joints carries the motion forward to an arm on the Front Fork. USS gives the most relaxed posture and clean forward view; OSS is narrower, lighter, and more common on fast bikes. Either way, low-speed balance differs from an upright: the rider cannot shift body weight meaningfully, so all balance correction is steering, and new riders typically need an hour or two of practice before traffic.

Wheels and braking

Most recumbents run mixed wheels. The Front Wheel is a 20-inch (ISO 406) wheel, chosen so the boom and pedaling circle clear it and the frame stays low; small wheels are inherently stiff and strong but need higher tire pressure (4–6 bar in the Front Tire) for equal rolling resistance. The Rear Wheel is full size — 26 inch or 700c — and carries 60–70 % of system weight through the Rear Hub.

Braking favors the recumbent strongly. With a long wheelbase and a center of gravity perhaps 50 cm off the ground, the Brake System can apply full front-wheel force with essentially no pitch-over risk; deceleration is limited by tire grip alone. Disc Brake Caliper units on 160 mm Brake Rotor discs are standard, fed by Brake Lines runs that reach 2.5 m to the rear wheel.

Trade-offs

The recumbent gives up climbing: the rider cannot stand, so out-of-saddle surges are unavailable and steep grades are ridden seated at low cadence, favoring very low gearing. Heads-up visibility in traffic is lower, commonly addressed with a flag and mirrors. Against that, the platform offers all-day comfort, superior braking, and on flat or rolling terrain genuinely higher speed for the same power — which is why recumbents dominate long-distance ultras and human-powered speed records while remaining a niche of general cycling.
