Overview

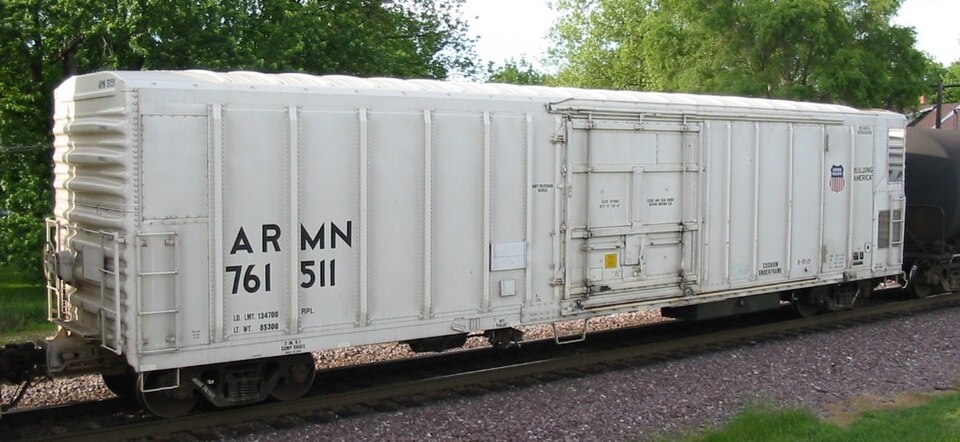

A refrigerated railcar—often called a "reefer car" in North America—is a thermally insulated rail freight car equipped with mechanical refrigeration to maintain perishable cargo at or below freezing temperatures during multi-day rail journeys. The Insulated Cargo Body is a double-walled steel box with thick polyurethane or polystyrene insulation, achieving R-values comparable to a residential freezer: heat leakage through the walls is minimal enough that a small refrigeration system can hold -15 °C even in hot climates. The Refrigeration Unit is a vapor-compression cycle with Refrigeration Compressor, Condenser Coil, and Evaporator Coil, powered by a Diesel Generator Set—a small diesel engine and alternator mounted on the car roof. The Fuel Storage and Delivery allows the genset to run continuously for a week or more between refueling depots. An Air Circulation System ductwork system, driven by an electric blower, distributes cold air from the evaporator uniformly across the cargo floor, preventing frost pockets and hot spots that would spoil product.

Unlike frozen-food warehouses that operate on grid power, reefer cars are isolated—the genset is their sole power source, and it must not fail mid-transit. Modern designs use robust mechanical controls with minimal electronics: the Thermostat is spring-based or analog, the Mode Selector is manual, and diagnostics are visible lights rather than networked sensors. The Cargo Doors are heavily insulated and gasketed, and crew does not open them during transit except at waypoints to verify cargo integrity.

How it works

A reefer car begins its journey pre-cooled. The Diesel Generator Set is started at the loading facility, and the Refrigeration Unit runs in "pull-down" mode, removing all sensible heat from the box before cargo is loaded. Once the interior reaches the target temperature—typically -15 to -18 °C—frozen product is loaded through the Cargo Doors, either from a frozen-food warehouse or directly from a production line. The door is sealed and the car couples to the locomotive.

During transit, the thermostat continually cycles the compressor on and off, modulating refrigeration to counteract ambient heat leakage and any minor internal heat generation (e.g., from respiring fruit). The diesel genset idles at constant RPM, burning roughly 5–8 liters of fuel per day depending on ambient temperature, insulation condition, and thermostat set point. Fuel consumption over a 5-day journey is typically 25–40 liters, well within the 100–200 liter tank capacity. The Circulation Blower circulates air continuously to maintain uniform temperature; stagnant pockets would create frost on one side and spoilage on the other.

At destination, the car is uncoupled and positioned at an unload dock. Receivers open the Cargo Doors, verify temperature, check for signs of power loss (ice melting = spoilage), and unload the cargo. The genset is shut down, the car is returned to the railway for servicing—filters changed, refrigerant checked, insulation inspected for cracks—and then repositioned for the next load.

Design considerations

The insulation thickness (80–150 mm) is a compromise: thicker insulation reduces energy consumption but adds weight and reduces cargo volume. European standards (RIC insulation class A–D) specify thermal conductance limits that drive minimum thicknesses; a Class A car (best insulation) costs more but burns less fuel on long routes. The Condenser Coil is mounted on the roof with a fan to reject heat to ambient air; in extreme heat (40+ °C) the condenser fan may run flat-out but the system stays ahead of the load as long as the genset is running. The Evaporator Coil is positioned in a return-air plenum above the cargo, with the Return Air Duct drawing warm air upward; this creates a gentle circulation loop that avoids dead zones on the floor.

Diesel is chosen over electric because reefer cars are semi-nomadic—they move between regions with varying electrical infrastructure, and grid hookup during a 2–3 day siding is impractical. A small genset (3–5 kW) is sufficient because the insulation does most of the work; the genset merely compensates heat leakage. Mechanical controls dominate because redundancy and simplicity are paramount: a sensor failure or control unit malfunction can lead to complete loss of perishable cargo, and field repairs are impossible mid-transit. Manual thermostat and mode switch give crew absolute control in an emergency.
