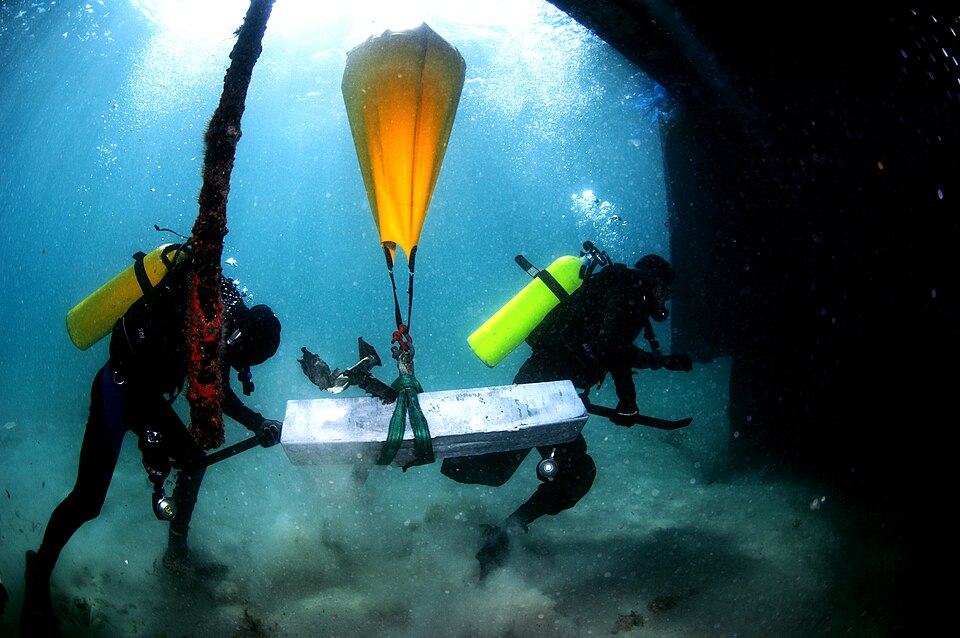

Lifting Air Bag Product

Overview

A rescue air bag (also called a lifting air bag, pneumatic lifting bag, or airbag) is a heavy-duty pneumatic device used to lift and stabilize loads in rescue operations, structural extrication, and heavy-equipment recovery. The system uses compressed air to inflate a Kevlar-reinforced rubber bladder, which expands and displaces the load upward. Unlike hydraulic jacks, which require precise positioning and can overheat under sustained pressure, pneumatic air bags are lighter, more portable, and can be rapidly deployed through confined spaces. They are standard equipment in fire/rescue services, vehicle extrication, structural collapse operations, and disaster recovery.

A typical air bag system consists of the [[rescue-air-bag-bladder|inflatable bladder]], [[rescue-air-bag-valve-assembly|valve assembly]], [[rescue-air-bag-pressure-regulator|pressure regulator]], control panel with gauges, and supply hose. The bladder inflates slowly and evenly, minimizing shock and allowing the operator to stop, monitor, and reposition loads at any intermediate height.

Bladder Engineering and Materials

Fabric Reinforcement

The [[rescue-air-bag-bladder|inflatable bladder]] is the core functional element. The structure consists of multiple layers:

1. Rubber Base Layer ([[rescue-air-bag-rubber-sheet|rubber sheet]]): Natural or synthetic rubber (neoprene or EPDM), 2–4 mm thick, provides gas impermeability and flexibility.

2. Kevlar Fabric Plies ([[rescue-air-bag-kevlar-weave|Kevlar weave]]): High-tenacity aramid fabric (para-aramid, typically 1000+ denier) bonded to the rubber in multiple layers (often 3–6 plies). Kevlar is chosen over conventional nylon or polyester because it:

   • Has high tensile strength-to-weight (5× stronger than steel wire of equal weight).
   • Resists abrasion from rough surfaces (collapsed concrete, jagged metal).
   • Maintains strength at elevated temperatures (relevant if the bladder is near hot wreckage).

3. Seam Reinforcement ([[rescue-air-bag-seam-tape|seam tape]]): Where two bladder halves are bonded together, additional tape is applied over the seam to prevent delamination and provide redundancy.

The overall bladder envelope is engineered to withstand 2–3× the working pressure (if rated 5 bar working, it should withstand 10–15 bar before rupture). This safety factor accounts for stress concentration at seams and fabric defects.

Valve Assembly Design

The [[rescue-air-bag-valve-assembly|valve assembly]] is a precision manifold mounted on the bladder (typically at the top or side). It controls inflation and deflation:

• Inlet Valve ([[rescue-air-bag-inlet-valve|inlet valve]]): A check valve (spring-loaded flapper) allowing air in from the supply hose but preventing backflow when the vent is opened.

• Vent Valve ([[rescue-air-bag-vent-valve|vent valve]]): A needle or ball valve allowing controlled, slow release of pressure. Unlike a quick-release vent (which would cause the bag to collapse suddenly), a needle valve can be cracked open slightly, allowing the load to descend in a controlled manner at 1–10 cm/second.

• Pressure Port ([[rescue-air-bag-gauge-port|gauge port]]): A 1/8" NPT (National Pipe Taper) port accepts a pressure gauge or electronic transducer, allowing real-time monitoring of bag pressure and load.

The [[rescue-air-bag-manifold-body|manifold body]] is typically aluminum A356 (aerospace-grade aluminum alloy) or brass, with precision-bored passages and threaded ports. All internal surfaces are polished to reduce friction and drag on moving parts (poppet valves, springs).

Pressure Regulation and Control

The [[rescue-air-bag-pressure-regulator|pressure regulator]] reduces compressed air (typically 6–8 bar from a portable compressor or air tank) to a setpoint, typically 5 bar, which is then delivered to the air bag. The regulator:

1. Accepts inlet pressure (variable, depending on supply tank charge state).
2. Uses a spring-loaded [[rescue-air-bag-diaphragm|diaphragm]] to sense outlet pressure.
3. Modulates a valve to maintain constant outlet pressure regardless of inlet pressure fluctuations.

The [[rescue-air-bag-spring-cartridge|spring cartridge]] is a replaceable module containing the calibration spring. Different cartridges allow the regulator to be tuned for different max pressures (e.g., 3 bar for very fragile loads, 8 bar for heavy structural lifting). A modern variant includes a [[rescue-air-bag-solenoid-vent|solenoid vent]] for proportional control, allowing electronic systems to modulate pressure via pulse-width modulation, enabling automated or remote operation.

A [[rescue-air-bag-relief-valve|relief valve]] downstream of the regulator provides a second safety barrier: if the regulator fails and over-pressurizes, the relief poppet opens and vents to atmosphere, protecting the bag from rupture.

Hose and Coupling System

The [[rescue-air-bag-hose-set|hose set]] connects the supply source to the air bag via flexible reinforced tubing. The supply [[rescue-air-bag-supply-hose|supply hose]] is typically EN 286 4SP (four-spiral reinforced), 6–10 mm ID, rated 10 bar working / 40 bar burst. The length is typically 10–30 meters, allowing the operator to remain distant from the load during inflation.

Quick-disconnect couplers ([[rescue-air-bag-qd-coupler-female|female sockets]] and [[rescue-air-bag-qd-coupler-male|male plugs]]) are flat-face design, meaning disconnection does not spill large quantities of air or fluid. A separate [[rescue-air-bag-vent-hose|vent hose]] (low-pressure, 4–6 mm ID) routes exhaust gas to a safe location, away from the rescue site.

Control Panel and Operator Interface

The [[rescue-air-bag-control-panel|control panel]] is the human-machine interface. It typically includes:

• Pressure Gauge ([[rescue-air-bag-pressure-gauge|pressure gauge]]): A 0–10 bar glycerin-filled analog gauge (resistant to vibration and dirt) or a digital display showing real-time bag pressure.

• Inlet and Vent Valve Handles: Color-coded ball valves (red for inlet, blue for vent) allowing the operator to manually control inflation and deflation.

• Electrical Switch ([[rescue-air-bag-pump-switch|pump switch]]): If the system includes a motorized pump (for sites without air compressors), a toggle switch powers the pump.

The entire control panel is typically portable (15–25 kg) and can be connected/disconnected from the air bag via quick-couplers, allowing rapid deployment and repositioning.

Load Distribution and Bagging Plates

Directly under and over the load, [[rescue-air-bag-bagging-plate|bagging plates]] distribute the lifting force. These are rigid metal plates (steel or aluminum, 6–10 mm thick, typically 200×300 mm to 400×600 mm) that:

1. Prevent the inflating bag from extruding sideways and flowing around the load.
2. Distribute pressure evenly across the load surface, preventing localized stress concentrations that could tear the bag or damage the load.
3. Provide a smooth, controlled interface between the bag and the load surface.

The plates are connected to a control frame or chain rigging system that stabilizes the bag position during lifting. An [[rescue-air-bag-edge-bumper|edge bumper]] (rubber or foam) is bonded to plate edges to protect the bag fabric from being cut or pinched.

Operating Principles and Lift Sequence

Setup

1. The air bag is positioned under the load to be lifted.
2. Bagging plates are positioned above and below the bag.
3. The supply hose is connected from the compressor to the control panel via quick-coupler.
4. The pressure gauge is checked to confirm regulator calibration.

Inflation

1. The inlet valve handle is opened slowly, allowing compressed air to enter the bag.
2. As pressure increases, the bag expands and the load rises.
3. The operator monitors the pressure gauge, stopping inflation once the load is lifted enough to extract the victim or insert shoring.
4. Typical working loads lift 2–5 tons at 5 bar pressure; heavier loads require larger bags or multiple bags.

Deflation

1. The inlet valve is closed, stopping air flow to the bag.
2. The vent valve is opened slightly, cracking (not fully opening) to allow slow pressure release.
3. As pressure decreases, the load lowers in a controlled manner.
4. Once fully deflated, the bag is removed and repositioned for the next lift (if a multi-stage rescue).

Safety and Limitations

Overpressure Protection

The combination of regulator and relief valve provides two independent barriers against overpressure. Additionally, the manufacturer specifies a maximum working pressure (e.g., 5 bar) and designs the bladder to burst safely at 2–3× that pressure. In practice, a properly maintained system will never exceed its design rating.

Load Control and Descent Rate

Unlike a hydraulic jack (which can be rapidly lowered by cracking open a valve), the vent valve on an air bag is deliberately designed to restrict flow, ensuring slow descent. A victim trapped under collapsed concrete requires careful, controlled lowering to avoid re-injury. Descent rates are typically 1–10 cm per second, allowing rescuers to monitor for tipping or secondary collapses.

Bag Material Degradation

Kevlar and rubber degrade over time from UV exposure, ozone, and thermal cycling. Bags stored outdoors in sunlight last 5–7 years; those in climate-controlled storage last 10+ years. Periodic visual inspection for fabric cracking, seal leakage, or delamination is essential.

Load Stability

A major concern is load instability during lifting: if the bag is not properly centered under the load, or if the load geometry is irregular, the load may tip or roll sideways as it rises. Rescue teams use multiple bags, chain rigging, and cribbing materials to ensure stable, controlled lifts.

Variations by Capacity and Use

• Small Bags (1–5 ton): Used for vehicle extrication and light structural lifting.
• Medium Bags (5–15 ton): Standard for building collapse rescue and concrete slab lifting.
• Large Bags (15–30+ ton): Heavy-equipment recovery, bridge reconstruction, and large-scale disaster operations.

Multi-bag systems using 4–8 bags in parallel can achieve distributed lifting of 30–100 tons, essential for urban search and rescue (USAR) teams operating in major earthquakes or structural collapses.
