Riflescope Product

Overview

A riflescope is a fixed or variable-magnification optical sight that extends the effective range of a firearm by magnifying the target image and providing precise aiming adjustments. Modern rifle scopes are sealed, pressurized instruments combining multiple lens groups, adjustable turrets, and reticle systems—all mounted on the firearm's top rail via rings and bases.

The Objective Lens Group gathers light from the target, projecting a real image into the Erector Lens Group, where variable magnification occurs. The Ocular Lens Group then magnifies that intermediate image for the shooter's eye. Windage and elevation corrections are applied by rotating the Turret Adjustment Assembly, which moves the erector group mechanically. The entire assembly is housed in a pressurized Tube Body Assembly filled with dry nitrogen gas to prevent internal fogging and dust infiltration, with a Reticle System positioned at the focal plane for precise aiming.

How it works

Light enters through the Objective Lens Group, a multi-element assembly typically 40–50 mm in diameter. The objective elements are coated with multiple layers to reduce light loss and aberrations. The light is focused into the Erector Lens Group, which contains magnifying lenses arranged in a tube that can move horizontally and vertically. The Adjustment Cam drives this movement when the shooter rotates the Elevation Turret (vertical) or Windage Turret (horizontal).

Each turret click rotates the cam by a precise amount, typically 1/4 minute of angle (MOA), translating to 0.25 inches of impact shift at 100 yards. The Turret Detent Spring elements hold the turrets at discrete click positions, providing tactile feedback.

The erector group magnifies the target image to the specified power (e.g., 3× to 12×). The intermediate magnified image is then passed to the Ocular Lens Group, which acts as an eyepiece. The shooter adjusts the diopter by rotating the ocular cell to focus the Reticle System—typically an etched glass pattern—onto their eye. This forms a virtual image at infinity, allowing the shooter to aim with a relaxed accommodation.

The Reticle System may include Reticle Illumination LED illumination for low-light conditions. The reticle is positioned at the front focal plane (FFP) or second focal plane (SFP) depending on the design; FFP reticles scale with magnification, while SFP reticles remain constant size.

The entire optical path is enclosed in a sealed Tube Body Assembly, a seamless aluminum cylinder pressurized with dry nitrogen gas at approximately 1 psi above atmospheric. This sealing prevents moisture ingress, internal dust accumulation, and fogging of the internal optical surfaces. The tube features threaded end-caps: the front threads to the objective cell, and the rear threads to the ocular assembly.

The Optical Mount consists of two steel or aluminum rings that clamp around the tube body and integrate Picatinny or Weaver rails, allowing the scope to be mounted on a firearm's receiver rail. The rings are torqued to 25–30 in-lbs to ensure rigidity without distorting the tube.

Optical Design

Most hunting and tactical scopes use an erector-based system with an eccentric cam mechanism. The cam is an off-center lobe on a rotating shaft; as the turret is turned, the cam rotates and pushes the erector group laterally or vertically via a gear or screw drive. This design allows for a compact package and reliable mechanical adjustment.

High-end scopes may employ a floating reticle system, where only the reticle moves relative to the fixed erector group, minimizing image shift from turret adjustment errors. The optical surfaces are typically coated with multi-layer anti-reflection coatings (e.g., MgF2 or proprietary formulas) to achieve 90%+ light transmission through all elements.

Reticle Patterns

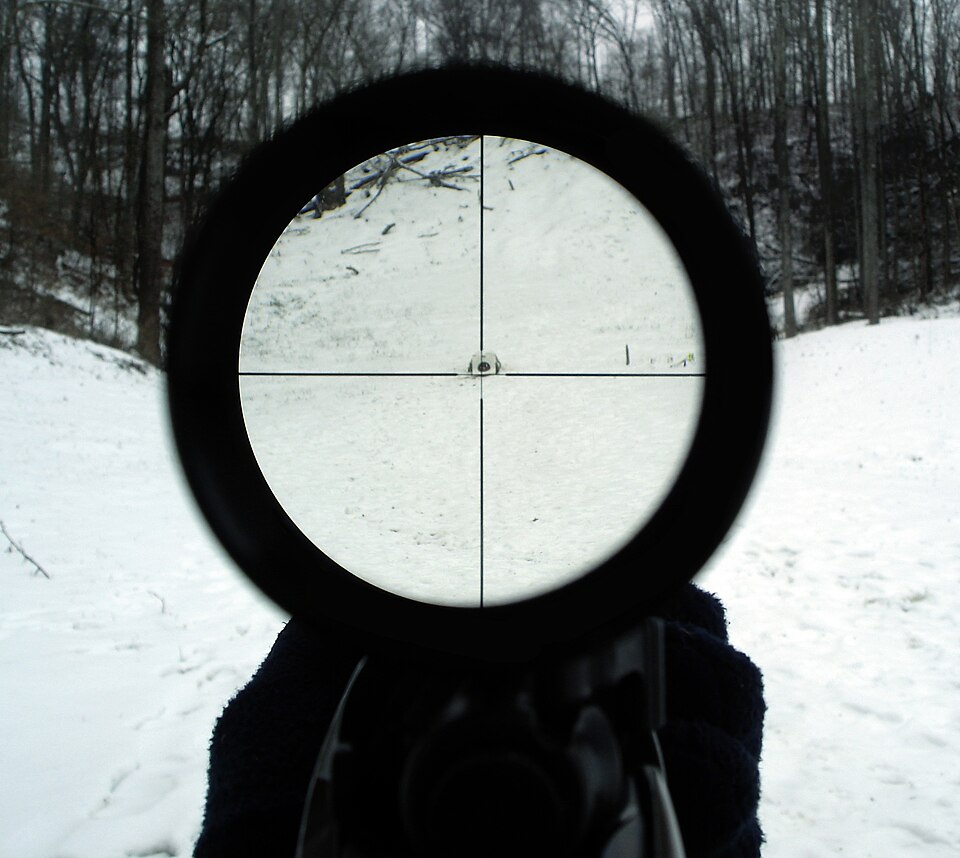

Common reticle styles include the duplex (four thicker lines with thin crosshairs), bullet-drop compensator (BDC) with holdover marks, and mil-dot (small dots for range and wind estimation). Illuminated reticles use an LED (often red or green) driven by a simple battery circuit. Modern electronic scopes may integrate Bluetooth for ballistic calculator integration or image stabilization.

Sealing and Weatherproofing

The nitrogen sealing serves two purposes: preventing internal fogging from temperature and humidity changes, and maintaining a dry environment that protects optical coatings and mechanical components. A small Purge Gas Valve (Schrader-type check valve) on the tube allows field pressurization or leak testing. A properly sealed scope retains internal pressure for years under normal conditions.

The O-Ring Set at the front and rear end-caps form the primary seals. Threads are coated with a small amount of optical-grade grease to ensure proper seating and water resistance.

Precision and Repeatability

Modern riflescopes achieve 1/4 MOA repeatability, meaning that turrets can be adjusted and returned to zero without mechanical slop. This is achieved through precision machining of the cam and turret housings, ball bearings in the adjustment mechanism, and careful tolerance control.

The Erector Housing and Adjustment Cam are the critical components; any play in these elements results in accuracy loss. Scopes in the $300–$800 price range typically exhibit excellent repeatability for field use.

Environmental Performance

Quality rifle scopes are designed to operate from −20 °C to +50 °C, withstand shock loads (recoil), and maintain zero after thousands of rounds. The sealed Tube Body Assembly and O-Ring Set prevent moisture ingress in rain or immersion. A riflescope rated "submersible to 30 feet" will survive a river crossing or extended wet-weather hunting.
