Road Weather Station Product

Overview

A road weather station is a fully autonomous remote-monitoring installation that measures atmospheric and pavement conditions at a specific highway location, transmitting observations to a traffic operations center or road maintenance facility. Road departments use these stations to guide anti-icing treatment decisions: is the road wet? Is the temperature dropping toward freezing? Is precipitation falling? Modern anti-icing strategy relies on timely, localized data rather than general weather forecasts — a station reporting −5 °C pavement temperature with 100% humidity and light rain triggers brine spray 24 hours before forecast snowfall, preventing ice bonding.

The station combines a solar-powered data logger, multiple environmental sensors, and a cellular uplink into a single weatherproof package. No external power or communications infrastructure is required. Installation is straightforward: dig a hole, pour a concrete pad, assemble the tower, and clamp on sensors. The system is fully autonomous for 5+ years between battery replacements.

Tower and sensor placement

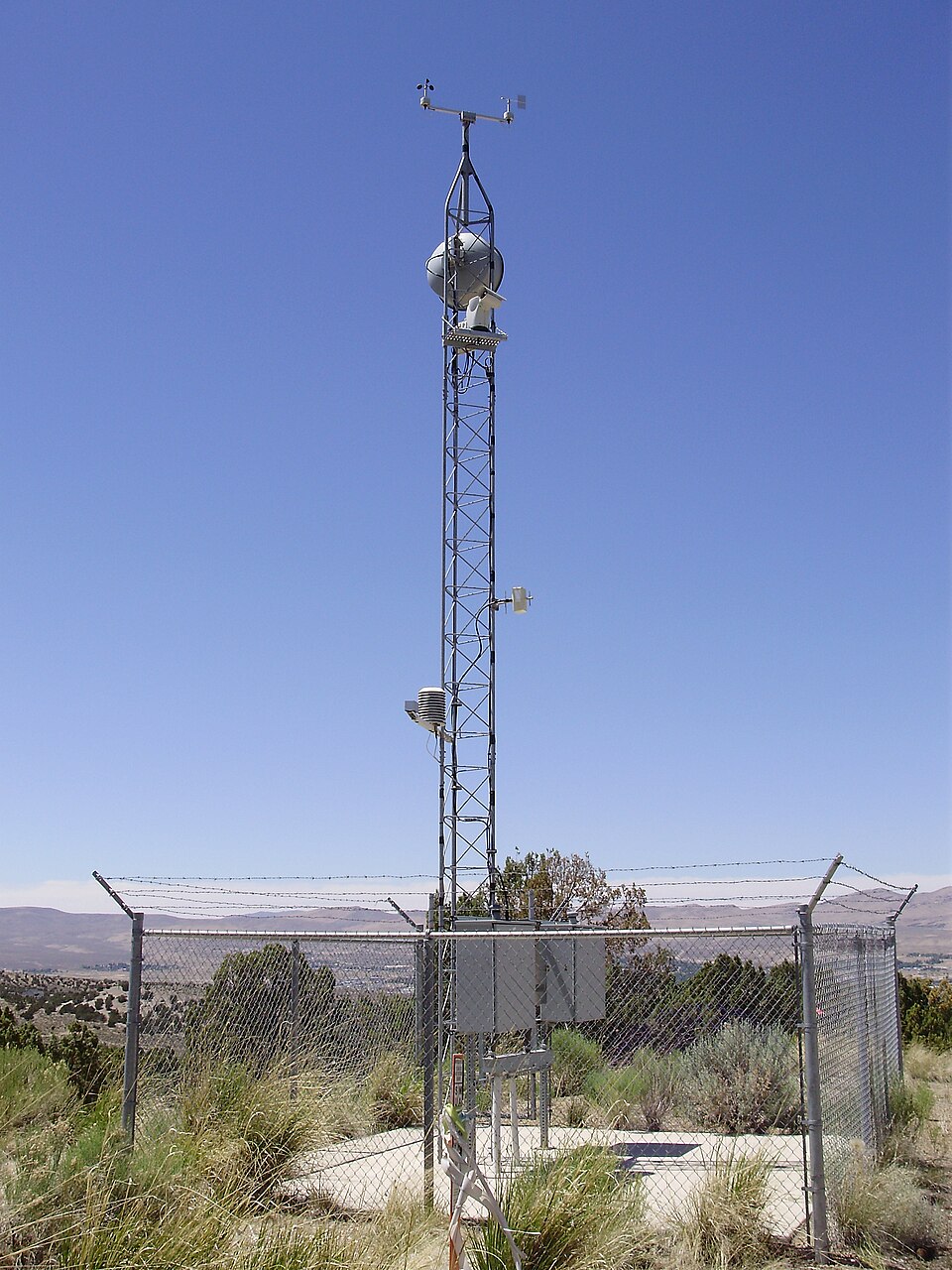

The Mounting Tower is typically a 4–10 m aluminum or steel Tower Pole guy-braced with Guy Cables. The height is chosen to clear nearby trees and buildings that would shadow the solar panel or block wind. Most stations are installed on a Base Anchor concrete pad beside the roadway, stabilized by Guy Cables anchored to the ground 5–10 m away.

Standardized sensor heights ensure data comparability. The Air and Wind Sensors are typically mounted at 4–10 m above ground, with the Anemometer on a Sensor Arm arm extending 1–2 m away from the mast to minimize wind shadow. The Precipitation Sensor is unobstructed and sits at least 10 m from trees or buildings.

The Pavement Temperature Sensor is embedded directly in the road surface at a representative location — often the northernmost edge of the roadway in the northern hemisphere (the coldest micro-climate). A maintenance crew uses a drill bit to prepare a recess in the asphalt, inserts the Mounting Ring, and cements it flush. The probe cable runs back to the RPU cabinet in an underground conduit or along the roadside, terminating in a Remote Processing Unit Cabinet beside the base of the tower.

Pavement and air temperature

The Pavement Temperature Sensor is the most critical measurement. Pavement temperature determines the critical point at which freezing occurs. A bare pavement at +2 °C might still be safe for traffic, but if the ambient temperature is dropping and humidity is high, the pavement will cool to freezing within hours. The probe is a Pavement Probe thermistor or platinum RTD in a stainless-steel sheath, protected against frost heave by the Mounting Ring which sits flush with the road surface.

The Air and Wind Sensors include a Thermistor in a radiation shield — a white or polished aluminum cylinder that reflects direct solar radiation and allows airflow. Most road weather stations measure air temperature in the shade of this shield to avoid solar heating of the probe.

The two temperatures diverge significantly: on a sunny winter day, bare asphalt may be +5 °C while the air is −5 °C. At night, the pavement cools faster than the air because it radiates heat to the clear sky. Road-maintenance operators use these gradients to time de-icing: when air temperature is dropping toward freezing and pavement is still near 0 °C, that's the moment to apply brine, before ice forms.

Wind and humidity

The Anemometer is a cup rotor on a vertical shaft. As wind turns it, the cups pulse a reed switch or generate pulses proportional to wind speed. Most stations sample wind speed over a 10-minute window (e.g., logging the average and gust maximum every 10 minutes). Wind direction is measured by the Wind Vane, an arrow-shaped fin attached to a potentiometer or digital angle encoder that reports 0–360° heading.

The Humidity Probe is a capacitive RH sensor, accurate to ±5%. High humidity combined with low pavement temperature is an indicator of imminent frost formation. A rule of thumb: if relative humidity is above 80% and pavement temperature is approaching freezing, frost is likely forming. Combined with precipitation (below), this drives treatment decisions.

Precipitation and wetness detection

The Precipitation Sensor is a tipping-bucket rain gauge. A funnel funnels rain into a seesaw bucket; at 0.254 mm (0.01 inch) of accumulated rain, the bucket tips, emptying its contents and sending a pulse to the data logger. Continued rain causes repeated tipping; the total number of tips per hour is converted to precipitation rate (e.g., 60 tips = 15.24 mm/hour).

For snow, the gauge must be heated to melt incoming snowflakes so they can be measured. Most road weather stations include a Wetness Sensor — a capacitive sensor on the funnel that detects liquid water or wet snow, independent of the tipping bucket. When the station detects the pavement is wet (high humidity + wetness sensor = wet conditions), maintenance operators know that salt or brine will dissolve and flow, making treatment effective.

Data logging and communications

The Remote Processing Unit Cabinet is the heart. Its Data Logger is a ruggedized embedded controller (microcontroller with SD card or flash memory) that samples all sensors every 30 seconds and logs to internal memory. The log file is typically circular (rolling buffer), storing 30–60 days of data at 30-second resolution.

Every 2–5 minutes, the Modem (cellular 2G/4G or LoRaWAN radio) transmits the current observation to a central server. The data packet is JSON or proprietary binary format, encrypted over HTTPS or TLS. If the uplink fails (no cell coverage, modem failure), the station continues logging locally; upon reconnection, it transmits all buffered data to fill any gaps at the operations center.

Modern systems push data to cloud platforms (AWS, Azure) where traffic operations staff view real-time dashboards of all their monitoring stations. Automated rules (if pavement temp drops below −2 °C and precipitation > 5 mm/hr, alert the salt-spreader dispatcher) simplify decision-making.

Power and solar charging

The Power and Energy Management is entirely solar-powered. The Solar Panel is a 30–50 W monocrystalline module, typical for these low-power applications. The Charge Controller is a maximum-power-point tracking (MPPT) controller that adjusts charging voltage dynamically to extract peak power even in partial clouds or low-angle winter sun.

The Battery is typically a 12 V lead-acid or lithium battery (40–100 Ah capacity). This provides approximately 7–14 days of autonomous operation if solar charging fails completely (winter, extended cloudiness). In normal operation, daily solar recharge exceeds consumption, and the battery floats at full charge.

Environmental robustness

The Cabinet is NEMA 4X (stainless steel) or polyurethane, rated for UV exposure and −40 to +60 °C operation. Electronics inside use industrial-grade components: thermistors with glass encapsulation, stainless-steel fasteners, potted circuit boards. All external connections (antenna, sensors, solar) use sealed M12 or IP67 waterproof connectors.

Typical installation life is 5–7 years before battery replacement is needed. Sensor calibration drifts slowly; most road departments perform annual site visits to replace desiccant cartridges in the enclosure and visually inspect tower guy-cables. The pavement sensor is checked for silt buildup (scraped clean if needed) and the solar panel is washed of road salt and dirt.

Operations and decision support

A typical scenario: an operations center monitors 50–100 road weather stations across a highway network. At 11 PM on a winter night, the system alerts: station #47 reports pavement temp −0.5 °C, air temp −3 °C, humidity 95%, and precipitation beginning. The dispatcher immediately dispatches a Anti-Icing Brine Sprayer to that corridor, arriving 30 minutes later to apply preventative brine. By the time snow falls at 1 AM, the pavement is pre-treated, and plows can focus on mechanical removal rather than ice-breaking.

Without the station data, the dispatcher would guess based on a regional weather forecast, arriving too late to prevent bonding or wasting product on warm pavement. The economics are compelling: preventing one lane-closure incident pays for dozens of stations.
