Roll-Off Truck Product

Overview

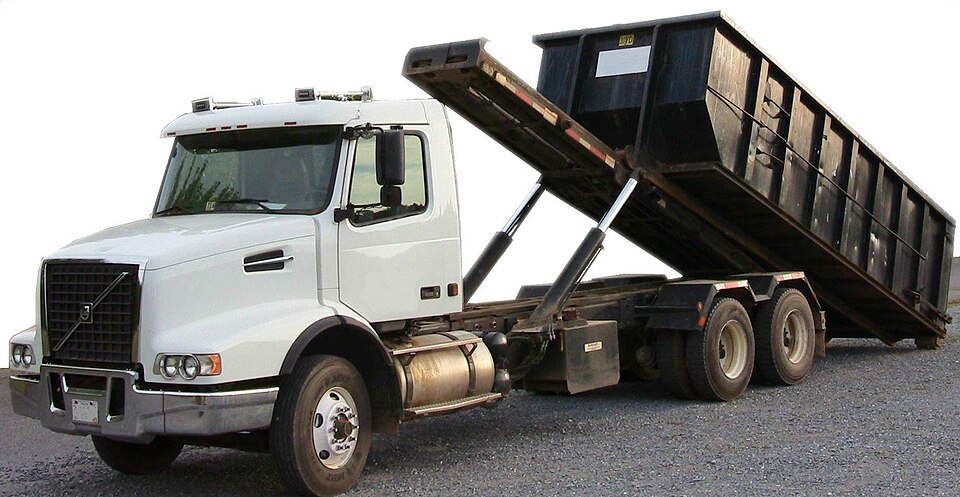

The roll-off truck, or hook-lift truck, is a specialized vehicle for transporting shipping containers or dumpsters that cannot be lifted bodily like side-loader bins or front-loader dumpsters. Instead, the truck uses a mechanical hook at its front and a powered cable reel to engage a container's lifting lugs, then hydraulically tilts its frame backward 30–45 degrees, sliding the container along ground-contact rollers until it is fully seated on the truck bed.

Roll-off trucks are indispensable in construction waste management, industrial recycling, and portable storage services. Containers are left on-site for 1–7 days (depending on customer needs), filled by workers or machinery, then swapped out for an empty unit. A single roll-off truck can service 5–10 exchange stops per shift, making them highly efficient for high-turnover container logistics.

The technology dates to the 1970s but remains largely unchanged: the core mechanism is a mechanical hook, a cable reel, ground rollers, and a hydraulic tilter. Modern variants add load sensors and proportional hydraulics for smoother operation, but the fundamental design is durable and proven.

How it Works

The collection sequence begins at a customer site where a full or partially filled container sits on level ground. The driver maneuvers the truck to align the front hook with the container's hook lug—a welded lug or bar on the container's front underside. The hook typically has a 200 mm width and hardened 20 mm tip designed to engage lugs with minimal manual adjustment.

Once aligned, the driver engages the cable reel via joystick or push-button in the cabin. An electric or hydraulic motor begins unwinding cable from the reel, pulling the container forward along ground-contact rollers (typically two 300–400 mm diameter steel cylinders). As the container slides forward, its rear end rises off the ground and eventually lands on a second roller set or a fixed frame lip on the truck bed.

Simultaneously or immediately after, the driver operates the hydraulic hoist, tilting the truck frame backward 30–45 degrees around a pivot pin at the chassis rear. This backward tilt is crucial: as the frame tips, the front hook (which is rigidly attached to the frame) rises, drawing the container up and forward with it. The cable continues pulling, guiding the container further up the sloped truck bed. The tilt angle is proportionally controlled via joystick, allowing smooth, gradual engagement without shock loads.

The entire loading cycle typically takes 120–180 seconds. When complete, the container rests fully on the truck bed, supported by the frame structure. The cable remains under slight tension (preventing sag), and the hook is latched in place to prevent disengagement during transit.

At the destination (landfill, transfer station, or next customer site), the driver reverses the process. The hydraulic hoist is released, slowly tilting the frame forward. The cable reel begins rewinding, allowing the container to slide backward off the truck bed under controlled tension. Gravity and the forward frame motion together accelerate the container's descent. When fully disengaged, the container settles on the ground, its rear end touching down first. The hook is then withdrawn, the cable is retracted, and the frame is lowered to horizontal.

The entire unloading cycle also requires 120–180 seconds.

Hydraulic power is supplied by a 35 cc/rev variable displacement pump, proportional directional control valves, and relief valves set at 250 bar. Load cells on the cable reel or frame may monitor cable tension, alerting the driver if a container exceeds weight limits. Position sensors track hoist angle, preventing over-tilt (which could damage the truck or spill cargo).

Safety is paramount because cables and heavy containers pose crush hazards. Modern roll-off trucks include:

• Cable reel limit switches preventing overwind or underwind.
• Load-sensing to alert if a container is off-center or improperly seated.
• Mechanical or electromagnetic brakes on the cable reel (holding tension when unpowered).
• Audible and visual warnings during hoist operation.
• Cab visibility enhancements (large windscreen, side mirrors, sometimes camera feeds).
• Interlocks preventing simultaneous cable and hoist operation to avoid mechanical conflicts.

Subsystems

[[roll-off-truck-chassis|The chassis]] is a conventional or cab-over truck frame rated for 18–25 tonne GVW, featuring a 6-cylinder turbocharged diesel (180–220 kW), automatic transmission with engine braking, and air-suspended dual rear axles. The cab offers elevated seating for visibility.

[[roll-off-truck-hoist-frame|The hoist and pivot assembly]] consists of a large-bore hydraulic cylinder (350 mm bore, 1200 mm stroke) mounted on a pivot bracket at the truck's rear axle. This enables controlled tilting of the entire frame backward at 30–45 degrees.

[[roll-off-truck-hook-mechanism|The hook mechanism]] is a welded hardened steel arm (200 mm width) mounted at the frame's front, engaging the container's lug as the frame tilts and cable pulls.

[[roll-off-truck-cable-reel|The cable reel]] is a motorized spool (electric or hydraulic drive) capable of storing 300–400 meters of 12–16 mm wire rope and exerting 15–25 kN pull force. Limit switches prevent over/underwind, and a mechanical brake holds cable tension when unpowered.

[[roll-off-truck-subframe-rollers|Rear ground-contact rollers]] (typically two 300–400 mm diameter steel cylinders) are mounted on a subframe, allowing containers to slide smoothly along the truck bed during engagement and disengagement.

[[roll-off-truck-hydraulics|The hydraulic system]] includes a 35 cc/rev pump, proportional valve manifold, 1 L accumulator, and 100 L reservoir. Flow is directed to the hoist cylinder and, on some models, to a hydraulic cable motor (alternative to electric).

[[roll-off-truck-controls|The control suite]] features a joystick with multi-function buttons, pressure gauges, cable tension monitoring, hoist angle feedback, and safety interlocks.

[[roll-off-truck-container-guide|Side guide rails]] flank the truck bed, preventing lateral drift of containers during sliding and providing elastomer-faced bumpers for impact absorption.

Applications and Variants

Roll-off trucks serve construction waste (debris boxes, dumpsters), industrial recycling (metal bins, scrap containers), portable storage (self-storage containers), and logistics (industrial shipping containers). A typical service loop involves dropping an empty 20 m³ container at a job site, allowing 2–7 days of fill, then swapping it for another and transporting the full container to a disposal or processing facility.

Variants include:

• Dual-hook models: Some trucks carry two separate containers simultaneously, one on the frame and one on a trailing towed bed.
• Fixed vs. towed containers: Most modern units are hook-lift on-frame; older designs used dedicated trailers.
• Hydraulic cable motor: Some models replace electric reel motors with hydraulic motors for integrated drive.
• Extended reach hooks: Special hooks for non-standard container geometries.
• Weighing systems: Integrated load cells and displays alert drivers to overweight loads before transport.

Safety and Operational Constraints

Cable failure, while rare, is catastrophic. Cables are inspected monthly and replaced every 2–3 years or after 1,000 cycling hours. Hoist hydraulic failure is prevented by relief valves and accumulators that allow controlled descent even if pump power is lost.

Container positioning is critical: if a container is off-centre or improperly seated before hoisting, it can shift during tilting, causing imbalance or spillage. Modern vehicles include position sensors or load-balancing indicators to flag unsafe load geometry before hoist engagement.

Operators must maintain clear sightlines during hook engagement and cable operation; blind spots are significant, so some vehicles now include rearview cameras or proximity sensors.

Maintenance and Design Life

Cable reel bearings and seals are replaced every 5–7 years. Hydraulic cylinders seals and rod wear are inspected annually; major cylinder overhaul is needed every 10–15 years. A well-maintained roll-off truck achieves 15–20 years in service, with the cable reel and hoist cylinder being the principal wear items.

Industry Standards

Design follows NFPA 1901 (refuse vehicle safety), ISO 4413 (hydraulic safety), and local occupational health standards. Containers must be designed and tested to withstand 125–150% of their rated capacity without permanent deformation.
