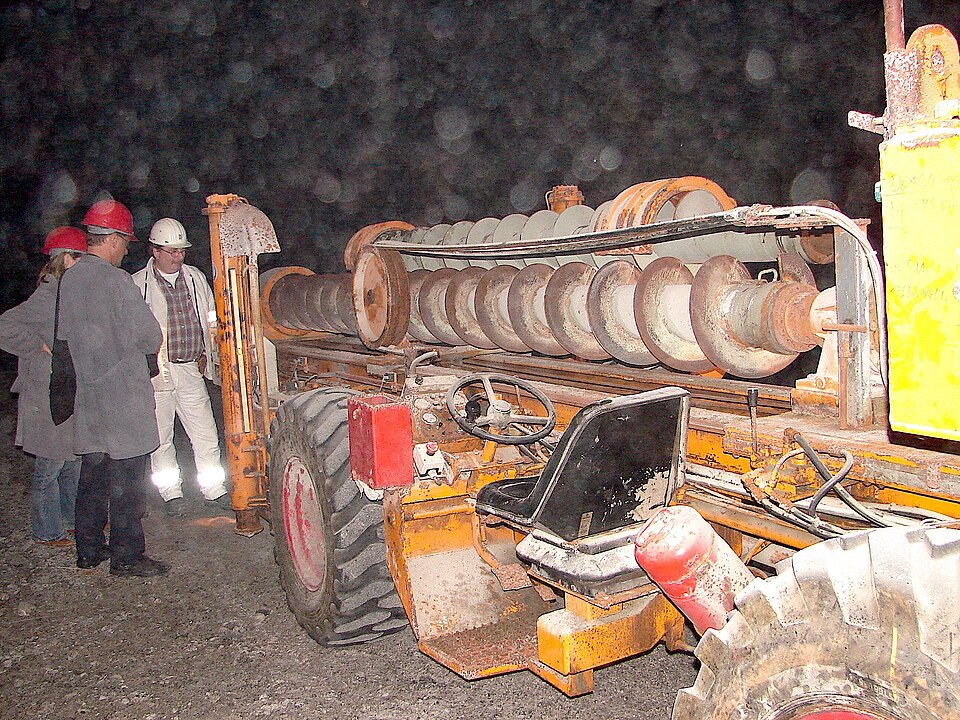

Rotary Blasthole Drill Product

Overview

The rotary blasthole drill is the production drill of large open-pit mines. Every bench blast starts with a pattern of vertical holes — typically 200–445 mm in diameter, 10–20 m deep, spaced 5–12 m apart — that are loaded with bulk explosive and fired to fragment the rock for shovels. A single large drill bores 50–100 holes a day, and pits run fleets of them; drilling accuracy and fragmentation set the cost of everything downstream, from shovel fill factors to crusher throughput.

The machine is a deck on crawlers carrying its own power station: a Deck Engine of 500–1,200 kW (mains-electric on many large pits) that drives an onboard Air Compressor System and the hydraulics, with a Mast & Rotary Head of 15–30 m raised at the front. Gross weights run from 45 t for small machines to about 200 t for the largest, which exist mostly to put weight on the bit.

How it drills

Rotary drilling crushes rock rather than hammering it. A Tricone Bit — three toothed cones with tungsten-carbide inserts, the same technology as oilfield bits — rolls on the hole bottom under 200 to 550 kN of weight while the string turns at 50–120 rpm in hard rock. The inserts indent and spall the rock; there is no percussion. Torque comes from the Rotary Head, a gear-driven top drive travelling on the mast rails, whose paired Head Drive Motors deliver up to 25,000 Nm through the hollow Head Spindle.

Weight on bit is applied by the Pulldown System system: Feed Cylinders, rope-doubled through Cable Sheaves, pull the head down the mast and transfer machine weight into the string. The Autodrill Valve closes the loop — the control system holds weight, torque and vibration inside the bit manufacturer's envelope, backing off automatically in broken ground. A Shock Sub protects the head gearcase from the axial vibration the cones generate, and a full-gauge Stabilizer keeps the hole straight.

Cuttings leave the hole on air. The Screw Airend, an oil-flooded screw stage driven directly off the engine, delivers 25–110 m³/min down the string through the Air Swivel; the air exits at the bit (cooling its bearings on the way) and carries chips up the annulus at 25–35 m/s. Bailing velocity is the sizing rule of the whole machine — too slow and cuttings regrind at the bottom, killing penetration and bit life.

The drilling cycle

A hole takes 10–30 minutes. The machine trams onto the collar position — guided by the GNSS Receiver to centimetre accuracy against the blast design — then the Leveling Jack System jacks lift the tracks clear and level the deck to ±0.1°, since a mast leaning half a degree puts the toe of a 15 m hole 130 mm off design. Single-pass machines drill the full bench with one pipe; deeper holes add pipe from the Pipe Carousel, with the Breakout Wrench making and breaking the API threads and a Saver Sub absorbing the thread wear. After reaching depth, the string is hoisted at up to 50 m/min, the jacks retract, and the Propel Drives walk the machine to the next collar.

Dust is controlled at the collar: a rubber Dust Skirt encloses the hole, and the Dust Collector draws the return plume through Filter Cartridges cleaned by reverse Pulse Cleaning Valve pulses. In wet mode, the Water Injection Pump pump mists water into the bailing air instead.

Autonomy

Blasthole drilling was the first surface-mining task to go fully autonomous at scale: the work is repetitive, the pattern is known in advance, and the machine already drilled under closed-loop control. Autonomous fleets at iron-ore and copper operations now tram, level, collar and drill entire patterns supervised remotely, with one controller overseeing many drills. The enabling pieces are all on the machine described here — RTK positioning, auto-leveling through the Jack Valve Block, autodrill, and carousel pipe handling. Measurement-while-drilling data (penetration rate, torque, specific energy per metre) doubles as a grade and hardness map of the bench used to tune explosive loading per hole.

Consumables and maintenance

Bits dominate drilling cost: a tricone in hard taconite may last 1,500–3,000 m, in soft coal overburden ten times that, and bit records are tracked per hole. Drill Pipe and Deck Bushings wear with the abrasive return flow; feed cables are tensioned and periodically replaced; the compressor Receiver-Separator separator element and cooler cores follow engine-hour schedules. Undercarriage life mirrors excavator practice — Track Chains, rollers and Track Tensioners are inspected on the same intervals as the rest of the mine's crawler fleet.
