Rotary Kiln Product

Overview

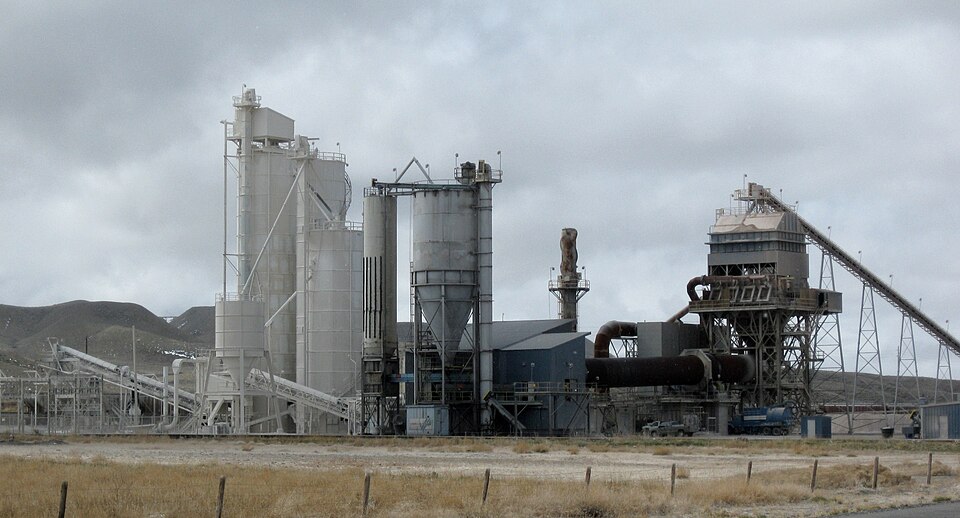

A rotary kiln is a large rotating cylindrical drum, 3–6 m in diameter and 30–60 m long, lined with refractory bricks that can withstand temperatures of 1000–1500°C. Raw material (calcining feedstock) is fed into one end, undergoes thermal and chemical transformation as it progresses through the kiln, and exits as calcined product (e.g., clinker, calcined alumina, roasted ore). The kiln rotates at 3–5 rpm, causing material to tumble and cascade through the interior while being heated by a flame jet from a fuel-fired burner.

Rotary kilns are the thermal heartbeat of modern cement, lime, alumina, and nickel production. They are also essential for roasting and calcining specialized ores. The technology is fundamental to the built environment: nearly all Portland cement clinker worldwide is produced in rotary kilns.

How it works

Raw material (limestone, clay mix for cement, or crushed ore for metallurgical processes) enters from the high end of the kiln via a gravity-fed chute. The kiln is tilted at a slight angle (3–5°) so material naturally flows downhill while the kiln rotates. As the shell rotates, the material tumbles down the interior, gradually moving toward the discharge end.

Inside the kiln, a flame generated by the [[rotary-kiln-burner|burner system]] reaches 1800–2000°C. The [[rotary-kiln-refractory-lining|refractory lining]] protects the steel [[rotary-kiln-shell-steel|shell]] from direct heat. Radiation from the flame and conduction through the lining heat the material. Chemical reactions occur:

• In cement kilns, limestone (CaCO₃) decomposes into lime (CaO) and CO₂; lime then combines with silica and alumina to form clinker minerals.
• In nickel laterite kilns, iron oxide reduces under CO atmosphere, producing metallic iron.

The [[rotary-kiln-control-system|control system]] continuously monitors [[rotary-kiln-thermocouple|kiln temperature]] and [[rotary-kiln-exhaust-analyzer|exhaust gas composition]] (O₂, CO levels). Based on feedback, the PLC adjusts fuel rate, combustion air flow, and raw material feed rate to maintain target temperature and product quality.

As material exits the hot discharge end at 1000–1200°C, it enters the [[rotary-kiln-product-cooler|product cooler]]. The [[rotary-kiln-cooler-air-fan|cooler fan]] draws ambient air upward through the moving clinker bed, extracting sensible heat. This recovered heat can be recycled to pre-heat combustion air via a [[rotary-kiln-secondary-air-intake|heat exchanger]], improving thermal efficiency. Clinker exits the cooler at <100°C for safe handling.

Kiln Shell and Refractory

The [[rotary-kiln-shell-steel|steel shell]] is a welded cylinder of mild steel, 20–40 mm wall thickness. The shell must expand and contract with temperature cycling; roller supports allow free longitudinal movement. Inside, the [[rotary-kiln-refractory-lining|refractory lining]] is composed of high-temperature bricks:

• Magnesia-chromite bricks (preferred for cement kilns) resist lime attack and thermal cycling, lasting 2–4 years.
• Alumina bricks are used in zones with less chemical attack.

Brick thickness is typically 150–300 mm depending on zone temperature. The ''transition zone''—where temperature peaks around 1400°C—experiences the most chemical and thermal stress and requires frequent rebricking campaigns (every 6–12 months). The ''burning zone''—where clinker forms—is hardest on the refractory; spent bricks are carefully removed and replaced.

Refractory maintenance is the dominant operating cost of a rotary kiln after fuel. Each campaign involves kiln cool-down (12–24 hours), manual brick removal, cleaning, new brick installation, and kiln warm-up (12–24 hours). During this downtime, production is zero, making refractory life critical to economic performance.

Kiln Drive

The [[rotary-kiln-motor|AC motor]] (100–500 kW) soft-starts via contactor or variable frequency drive to minimize inrush current when accelerating the 500+ tonne rotating mass. Power is transmitted through a [[rotary-kiln-coupling|flexible coupling]] to the [[rotary-kiln-main-gearbox|main gearbox]], which reduces 1500–1800 rpm motor speed to 60–200 rpm [[rotary-kiln-pinion|pinion speed]]. The pinion meshes with the [[rotary-kiln-girth-gear|girth gear]]—a large external gear (5–15 m diameter, ~300 mm module) bolted to the kiln [[rotary-kiln-shell-flanges|end flange]]. This arrangement allows the entire kiln to rotate at 3–5 rpm.

The [[rotary-kiln-support-rollers|support rollers]] (typically four to six large cast steel wheels) roll on the outside of the kiln shell, supporting its weight (radial support). A [[rotary-kiln-thrust-roller|thrust roller]] prevents axial creep. Rollers are positioned in ''tire sets''—two or three sets distributed along the kiln length—to evenly distribute the load.

Burner and Combustion

The [[rotary-kiln-burner|burner system]] is the kiln's heat source. A [[rotary-kiln-fuel-nozzle|fuel nozzle]] atomizes oil or injects natural gas into the [[rotary-kiln-burner-pipe|burner tube]], creating a jet flame in the kiln interior. The [[rotary-kiln-combustion-air|combustion air system]] supplies pre-heated or ambient air via a [[rotary-kiln-combustion-fan|fan]] (50–200 kW). A [[rotary-kiln-flame-stabilizer|stabilizer]] or register controls flame shape and heat distribution.

Flame temperature reaches 1800–2000°C, but the kiln material itself may operate at 1300–1400°C (design-dependent). This difference arises because the kiln is rotated and material is continuously supplied, preventing localized overheating.

Fuel type varies by region and raw material:

• Pulverized coal is economical in coal-rich regions but requires grinding and complex pneumatic injection.
• Natural gas is clean and easier to control but more expensive.
• Oil (liquid fuel) is less common due to storage and handling risks.
• Waste fuels (used tires, waste solvents) are burned in some kilns to recover energy while processing waste.

Thermal Efficiency

A typical rotary kiln operates at 60–70% thermal efficiency. The remaining energy exits as:

• Hot kiln exhaust (often 300–400°C), which is recovered via a [[rotary-kiln-secondary-air-intake|heat exchanger]] to pre-heat combustion air.
• Sensible heat in cooler exhaust (after the heat exchanger), which may power a power plant if the kiln is large and fuel consumption is high.
• Radiation losses from the kiln exterior.

Modern large cement plants integrate a multi-stage heat recovery system, sometimes generating 15–20 MW of electricity from a single kiln's exhaust.

Control and Optimization

The [[rotary-kiln-plc|control system]] is sophisticated:

• [[rotary-kiln-thermocouple|Temperature sensors]] measure flame temperature and kiln wall temperatures at multiple axial positions.
• [[rotary-kiln-exhaust-analyzer|Exhaust gas analysis]] (O₂, CO) provides real-time feedback on combustion stoichiometry.
• A [[rotary-kiln-feed-controller|variable-speed screw feeder]] meters raw material feed rate.

The PLC adjusts fuel rate, combustion air, and feed rate to stabilize kiln temperature within ±20°C of setpoint. This tight control ensures consistent product quality—critical for downstream processes like cement milling or metal refining.

Typical Applications

Cement production: By far the largest application. A modern cement plant has two or three large rotary kilns (5–6 m diameter, 60 m long), each producing 150–300 t/day of clinker.

Lime kilns: Smaller kilns (2–3 m diameter) calcine limestone (CaCO₃) to lime (CaO), used in construction, water treatment, and steelmaking.

Nickel laterite roasting: Laterite ore is roasted at 700–900°C to reduce iron oxide, enabling subsequent leaching and precipitation.

Alumina calcination: Alumina trihydrate is calcined to alumina (Al₂O₃) for use in aluminum smelting and refractories.

Specialty minerals: Magnesia, chromite, and other specialty refractory minerals are calcined in dedicated kilns.

Operational Challenges

1. Refractory life: The single largest cost and downtime driver.
2. Kiln buildup: Material sometimes adheres to the refractory lining, reducing cross-section and causing imbalance. Manual chipping is labor-intensive.
3. Hotspot formation: Localized refractory failure can collapse a lining section, requiring emergency shutdown.
4. Pinion/girth gear wear: The drive gear interface is subject to extreme loads; gear maintenance and alignment are critical.
5. Dust emissions: Kiln exhaust is very dusty; advanced baghouses or electrostatic precipitators are required for environmental compliance.

Modern kilns include online monitoring systems—vibration analysis on roller bearings, infrared thermography on the kiln exterior—to detect problems early and schedule maintenance.
