Overview

Safety interlocks are electromechanical devices that prevent a machine from operating whenever a protective guard or access door is opened. This solenoid-actuated interlock combines a locking mechanism—which physically prevents the guard from opening until the machine stops—with an electrical contact block that signals the controller when the guard has been opened. The dual approach (mechanical + electrical) provides defense-in-depth against both accidental and deliberate defeat.

This model uses a unique-key solenoid actuator: only the correct key can unlock the guard, and once inserted, the key rotates an internal cam that mechanically disengages the latch. Simultaneously, an electrical contact pair switches state to signal the machine controller to halt all motion. Common applications include access doors on injection molding machines, hinged safety gates on press machines, and interlock chambers for hazardous areas (hazmat rooms, radiation vaults).

Solenoid Locking Actuator

The Solenoid Locking Unit is the heart of the interlock. A Solenoid Coil electromagnetic coil (24V DC, 2 W) draws power when the machine is running. This energized coil generates a magnetic field that pulls a hardened steel Plunger inward by 12 mm, retracting a mechanical latch bolt. The guard door can now be pushed open manually.

When power is lost (either intentionally by the operator or due to E-stop activation), a stainless steel Return Spring spring pushes the plunger back outward, re-engaging the latch bolt into a notch on the guard door. The guard is now mechanically locked and cannot be opened, even if someone applies force. This "fail-safe" behavior is critical: if solenoid power fails, the machine remains locked down.

The Armature Core ferromagnetic core is laminated to reduce eddy current losses and improve response time. The Solenoid Frame aluminum housing contains the entire solenoid assembly and mounts to the main Housing Assembly.

Key Mechanism and Cam Actuation

To open the guard door after the machine has stopped, an operator must insert the unique coded key into the Key Mechanism. The Key brass key has a specific cut pattern; only this key (or a duplicate commissioned from the manufacturer) can fit the lock. A set of Tumbler Pin hardened steel pin tumblers are spring-loaded inside the plug assembly. Each pin must be at the correct height for the key's cut to turn. Any wrong key will cause a pin to bind and prevent rotation.

Once the correct key is inserted and rotated 90 degrees, a Cam Follower rod (mechanically coupled to the key plug) translates the rotary motion into linear motion. This rod engages the guard latch, pulling it away from the guard door and allowing the door to swing open. At the same time, the rod also mechanically actuates the electrical Contact Block Assembly.

A Mechanical Detent spring-loaded ball bearing provides tactile click-stops at discrete key angles, preventing the key from being held at ambiguous positions.

Dual-Channel Safety Contacts

The Contact Block Assembly contains two independent contact sets: a normally-closed (NC) pair and a normally-open (NO) pair. When the guard is closed, the NC contacts are closed (allowing current to flow through a machine control relay). When the guard is opened (key is turned), both sets switch state simultaneously: NC opens, NO closes.

The NC Contact Set NC contacts are rated for 5A @ 240V AC. These are the primary safety contacts; the machine controller monitors whether current flows through them. If the contacts open (guard opened), the control relay loses power and the machine E-stop circuit engages.

The NO Contact Set NO contacts serve a redundant safety function. The controller can verify that both NC and NO contacts switch together. If one pair fails to switch (due to mechanical stiction or electrical fault), the controller detects the mismatch and enters a safe state, preventing operation.

Contact pairs are mounted on a Contact Carrier ceramic insulated block, with stainless steel Contact Spring springs and silver alloy tips that resist arcing and corrosion.

Enclosure and Connector

All components are housed in a Housing Assembly made of 316L stainless steel for corrosion resistance and hygiene (food processing, pharmaceutical facilities). The Housing Body is die-cast and mounted on an Mounting Bracket aluminum bracket with four M8 threaded holes, suitable for bolting to a machine frame or guard hinge.

The Housing Cover hinged cover maintains NEMA 4X / IP67 rating; a Gasket Seal EPDM foam gasket seals the interface across 500 open-close cycles. Drain holes allow moisture to escape while dust cannot ingress.

Power and signal connections use a M12 Connector M12 A-coded circular plug—a standard industrial connector. The 4-pin M12 connector houses two pins for the solenoid coil (24V supply) and two pins for the contact block signal (NC contacts wired to the E-stop circuit). The M12 Plug male plug mounts directly to the interlock housing and locks with a threaded ring. The Contact Pin gold-plated brass pins and Connector Insert polyamide insulating insert maintain IP67 mating face rating.

Operational Sequence

1. Machine Running: Solenoid is energized (24V DC applied). Plunger is retracted. Guard latch is disengaged. NC contacts are closed; E-stop relay is energized; machine operates normally.

2. Guard Opened: Worker pulls guard door. Guard cannot fully open (latch is engaged), so worker presses key into lock and rotates 90°. Key rotation pulls latch aside and actuates contact block. NC contacts open; E-stop relay de-energizes; machine stops within 2 seconds per standard ISO 12418.

3. Machine Stopped: Solenoid power is removed (E-stop or operator panel shutdown). Plunger spring pushes plunger outward, re-engaging latch bolt into guard notch. Guard is now mechanically locked.

4. Guard Opened After Stop: Worker rotates key again. Latch disengages. Guard swings fully open. Worker can access machine interior (e.g., to clear a jam). Key must remain inserted; if key is withdrawn, spring re-engages latch and traps the worker's hand.

5. Re-Close: Worker closes guard door and withdraws key. Latch bolt resets to neutral. Machine is ready to restart once solenoid power is restored.

Safety Category and Redundancy

This interlock, when wired as a monitored solenoid device, meets ISO 13849-1 Performance Level PLd and IEC 61508 Safety Integrity Level 2 (SIL 2). This means the combination of mechanical locking + dual electrical contacts + solenoid supervision reduces the probability of undetected failure to <1E-6 per demand (once per million operations).

The key-coded mechanism prevents casual unauthorized access. Only personnel with a key can open the guard, and the guard remains locked if power is lost. This design is mandated by OSHA for guarding rotating machinery (29 CFR 1910.211-219) and NFPA 70E for electrical arc-flash hazard mitigation.

Industrial Applications

• Injection Molding: Guard door on mold cavities; interlock prevents operator hand entry during clamping.
• Hydraulic Presses: Die guard interlocks; prevents access to die during press stroke.

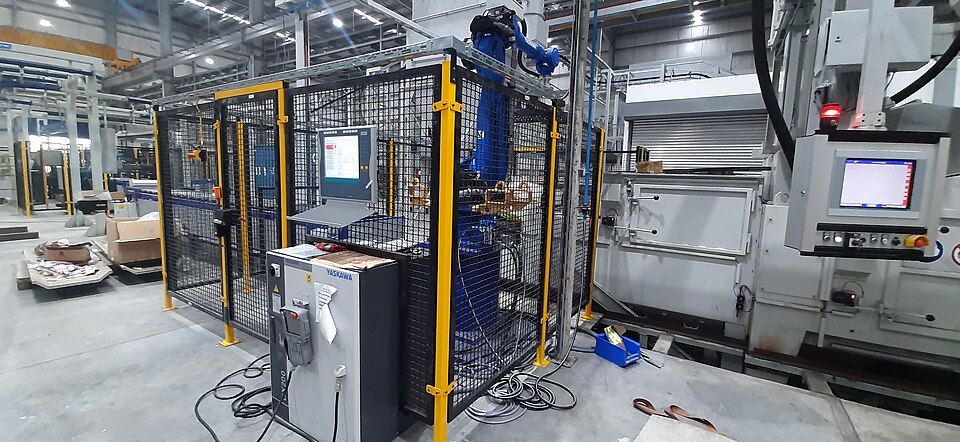

• Automated Palletizers: Safety gates around robot work cells; prevents human entry during cycle.
• Hazardous Material Storage: Interlocked access doors prevent simultaneous opening of inner and outer chambers.
• Radiation Shielding: Heavy lead doors in medical radiation rooms; solenoid locks during treatment to prevent accidental exposure.

Certification and Standards

All interlocks sold in North America must be CSA- or UL-listed. European equivalents fall under Machinery Directive 2006/42/EC with CE marking. Key-coded interlocks fall under ISO 13856 (safety interlocks with solenoid-actuated mechanical locking).
